Adjustable Solar Panel Mount Bracket
Adjustable Solar Panel Mount Bracket

foldable Adjustable solar panel tilt Mount

Adjustable Assembled Solar Panel Mount Mounting Brackets with Foldable Tilt Legs

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-TF-P
  • Installation Site:

    Roof or Ground
  • Tilt Angle:

    0-90 degree
  • Material:

    AL6005-T5
  • Warranty:

    10 years and 25 years service time
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

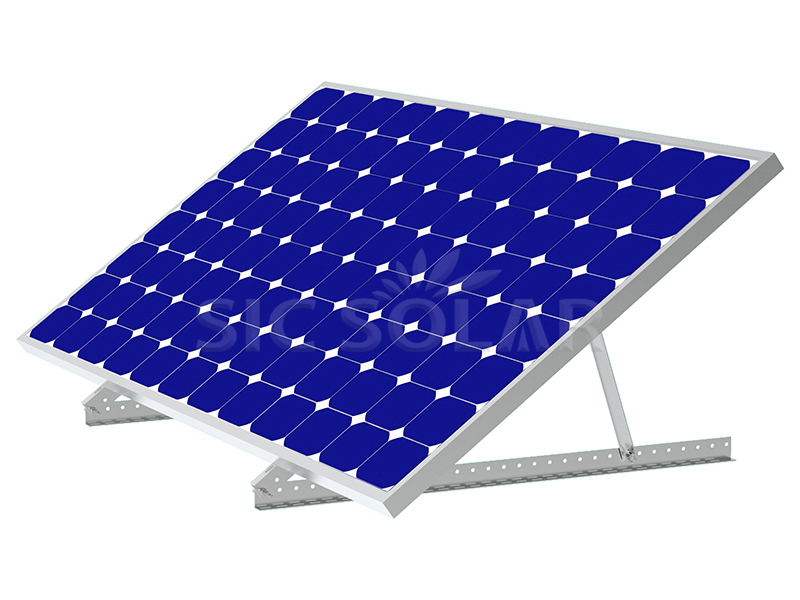

Solar Panel Adjustable Tilt Mount

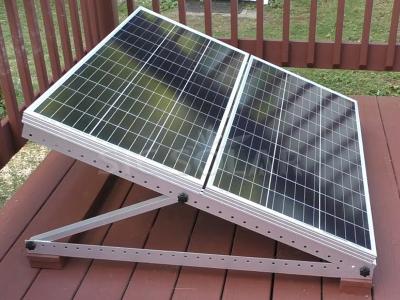

22 28 41 Inch Adjustable and folding Triangle solar panel tilt mount are ideally designed for off-grid solar system, which have been widely used on Boat, RV, Marine, Motorhome, caravan,  sheds, garages or other flat surface.

Adjustable Solar Panel Tilt Mount

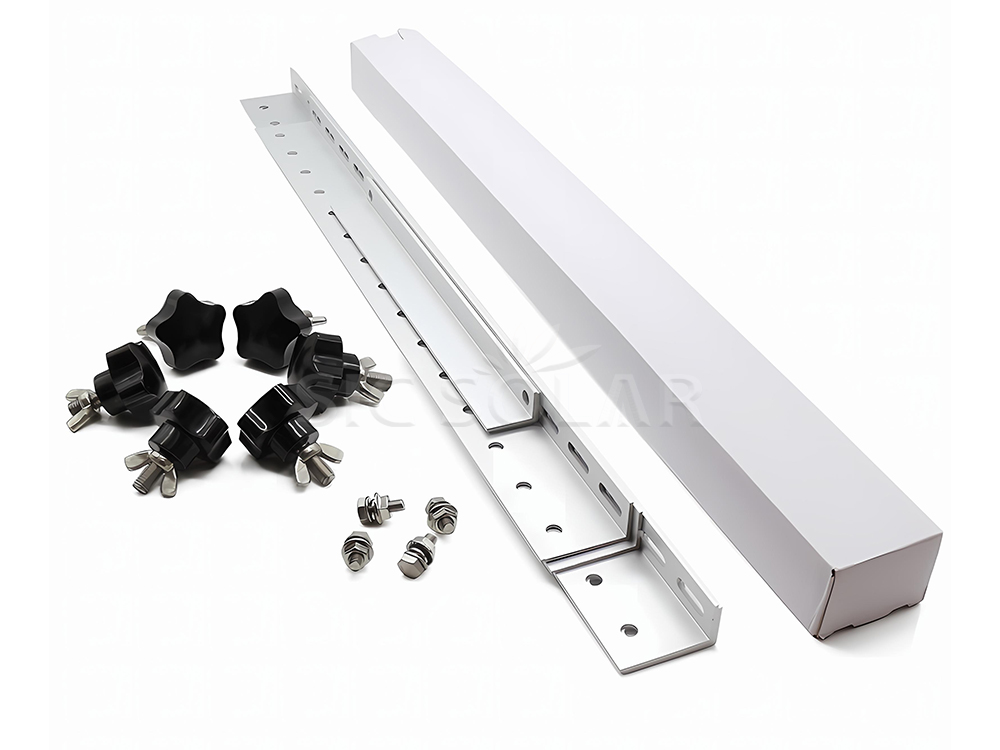

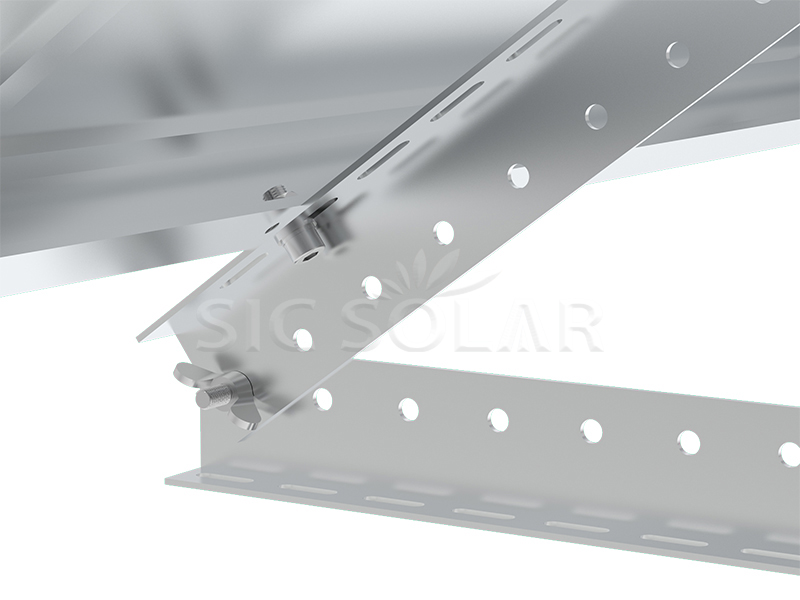

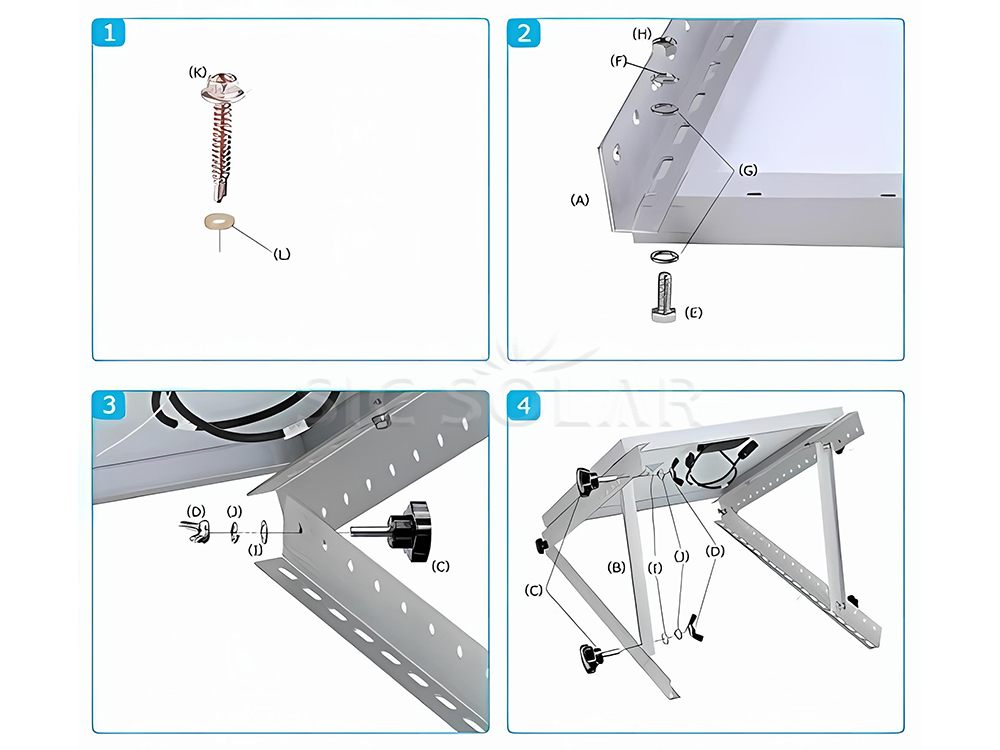

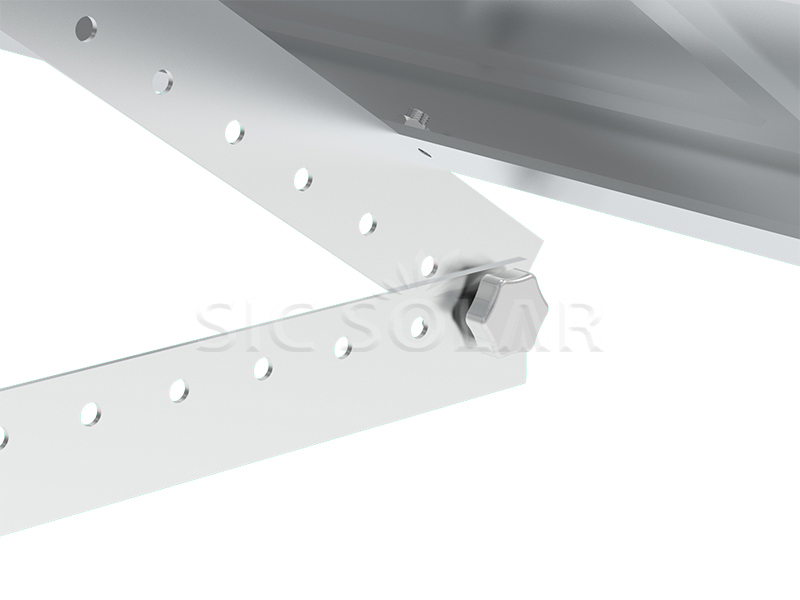

Folding tilt leg for solar panel could be assembled quickly with stainless steel fasteners and pre-drilled holes, which tilt the solar panel from 0 to 90 degree and help win more solar energy. Heavy duty bracket could support solar panel up to 300W.



Item

Description

Spec. (mm) Solar panel

SIC-PFT-22

22 inch portable and foldable triangle frame

Bottom & Top Beam 50x25x556

Support Beam 30x20x290

<100W

SIC-PFT-28

28 inch portable and foldable triangle frame

Bottom & Top Beam 50x25x712

Support Beam 30x20x375

<150W

SIC-PFT-41

41 inch portable and foldable triangle frame

Bottom & Top Beam 50x25x1040

Support Beam 30x20x545

200W-350W





Adjustable Tilt Solar Panel Mounts

One set could be packed into cartons with plywood pallet.

Adjustable Tilt Solar Panel Mounts

☆  0 - 90 degree adjustable angle - ideally designed for off-grid solar system

☆  Max. Solar Power Efficiency - Adjustable angle achieve highest solar power.

☆  Easy to use - Assembled quickly with stainless steel fasteners and pre-drilled holes

☆  Widely application - Boat, RV, Marine or other flat surface.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list
