Solar panel mounting rails

Think of Solar panel mounting rails as a key part of setting up solar power systems. They're what you build on to attach solar panels to roofs, the ground, or anywhere else you're putting them. These rails make sure the panels stay put, line up correctly, and can handle things like strong winds, heavy snow, and changing temperatures.

Brand:

SIC SOLAR

Item NO.:

SIC-R1

Installation Site:

Xiamen

Color:

Silver or black

Material:

AL6005-T5

Length:

Customized

Wind Load:

60m/s

Snow Load:

1.4kn/m2

Components Project Technical Details Installation Guide Package Advantage FAQ

Click here to learn more solar rail

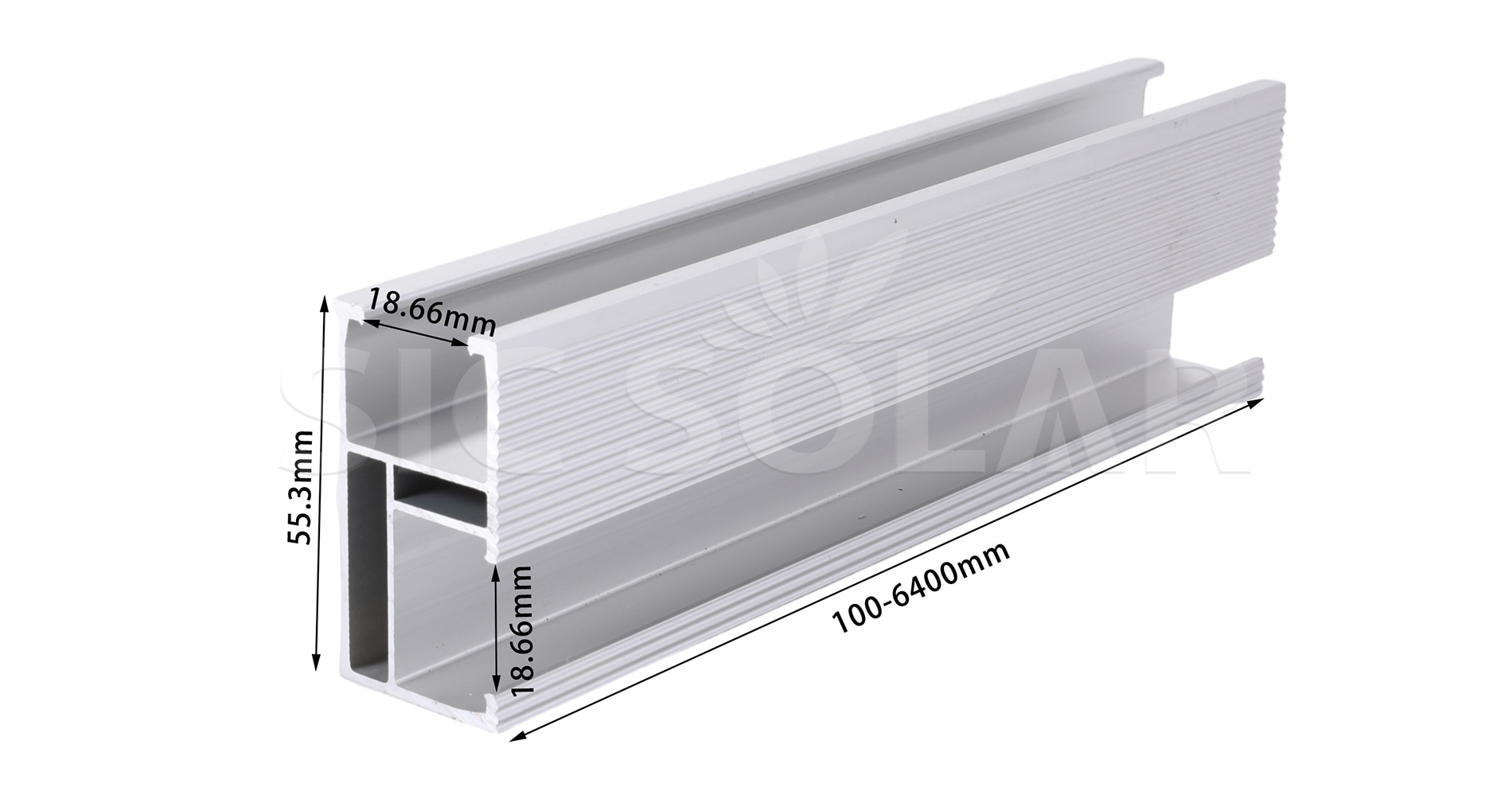

Solar Panel Mount Rails

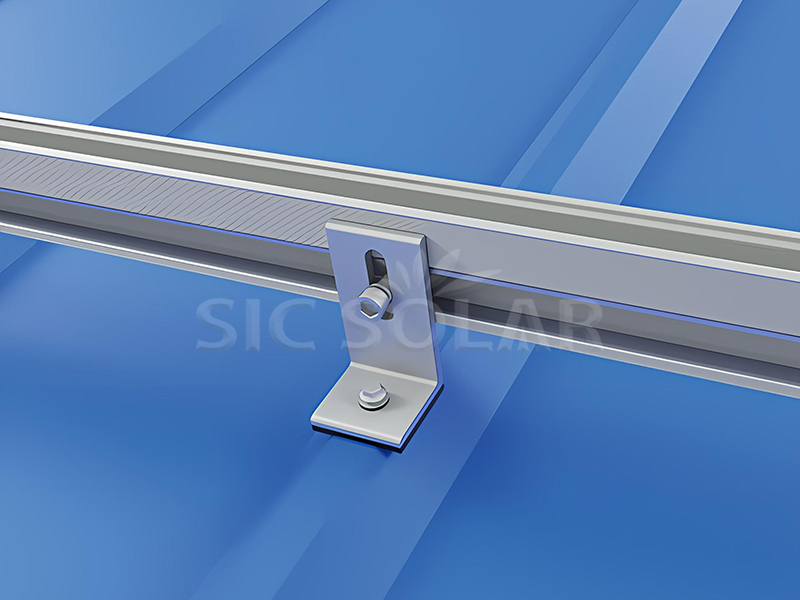

Solar roof mount

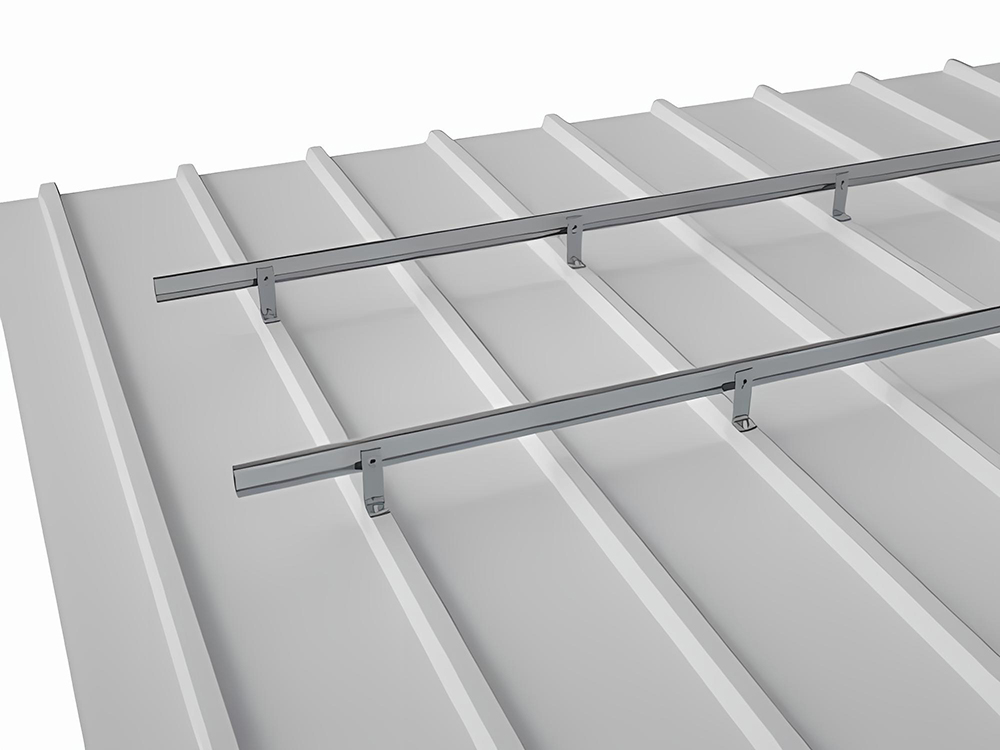

Solar Panel Roof Rails

Installation Site	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ First, make sure the roof or ground structure where you'll put the panels is ready.

2️⃣ Next, position the rails either horizontally or vertically, just as your design shows.

3️⃣ Then, attach them firmly to the structure; you can use things like roof hooks, hanger bolts, or clamps for this.

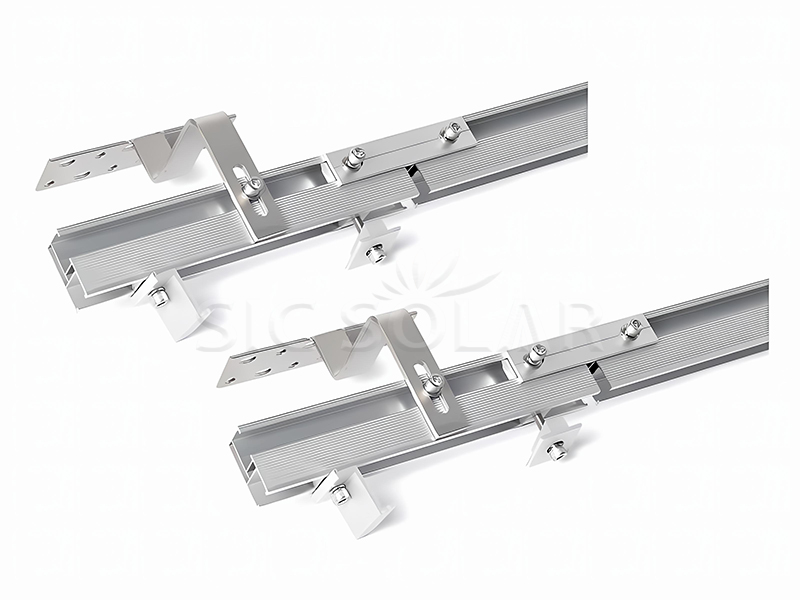

4️⃣ If you need longer sections, you'll simply connect multiple rails using a connecting kit.

5️⃣ Before you go further, always make sure the rails are level and perfectly parallel.

6️⃣ Finally, attach the solar panels to these rails using clamps in the middle and at the ends.

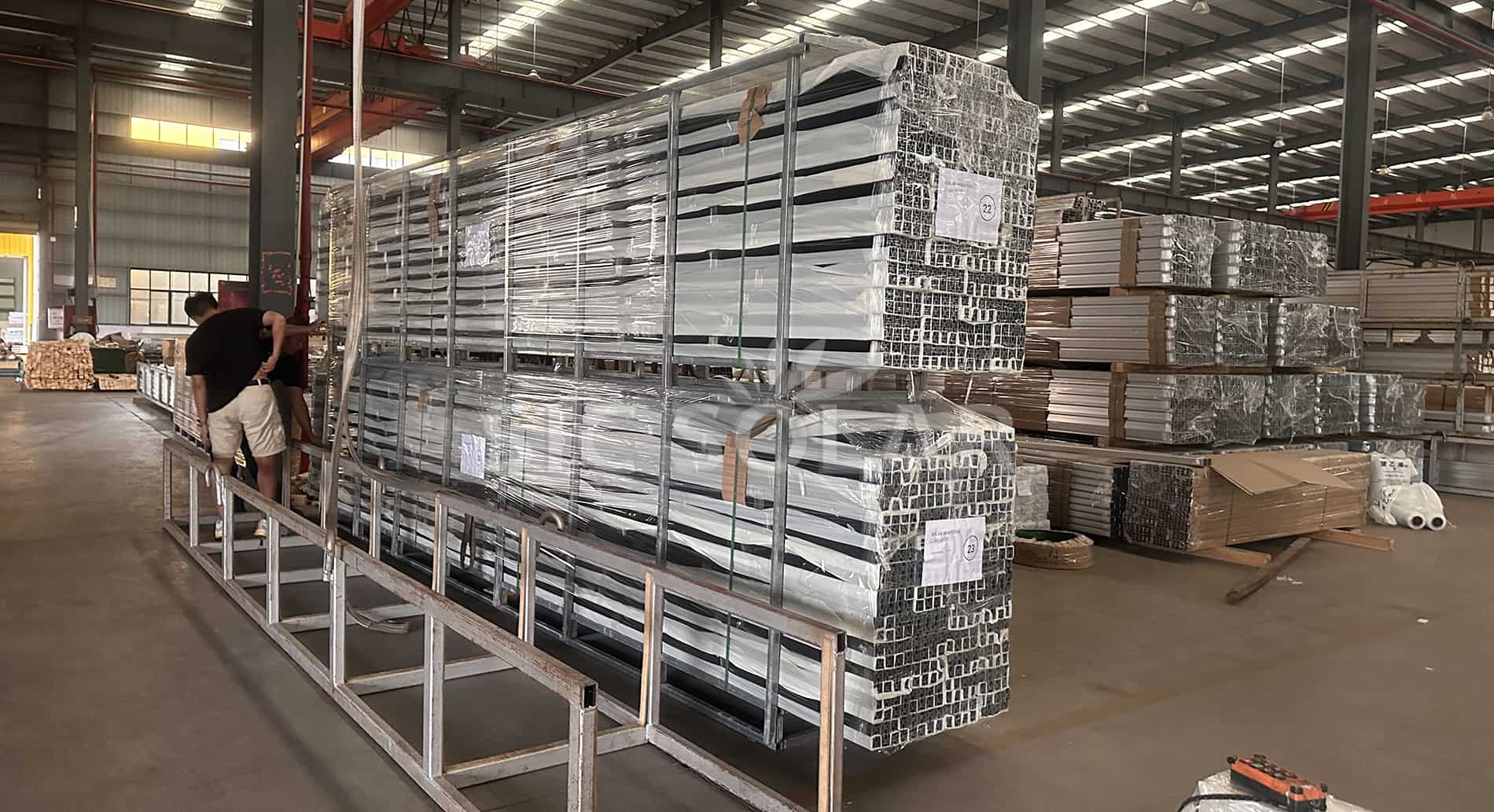

Aluminum PV rail packing

☆ We can offer different kinds of rails to meet whatever strength you need.

☆ They're built to last, made from top-grade AL6005-T5 aluminum, which means a 10-year warranty and a lifespan of 25 years.

☆ This aluminum material is also very light, making installation easy, and it won't corrode.

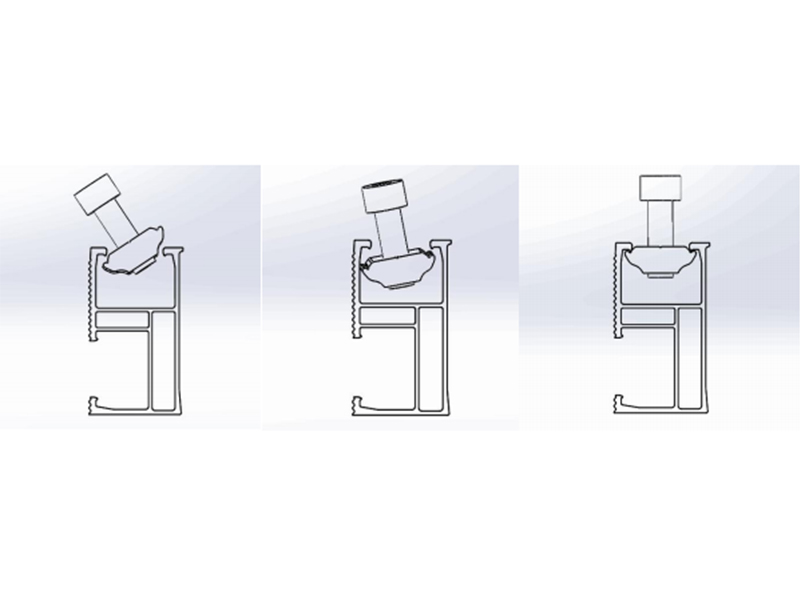

☆ Smart patented rail design – "Tilt-in-module" could be slide in at any position of rail.

Installtion manual for clamp

Q1. What's the max length of rail ?

6.4m.

Q2. Can the aluminum profile be customized ?

Yes.
