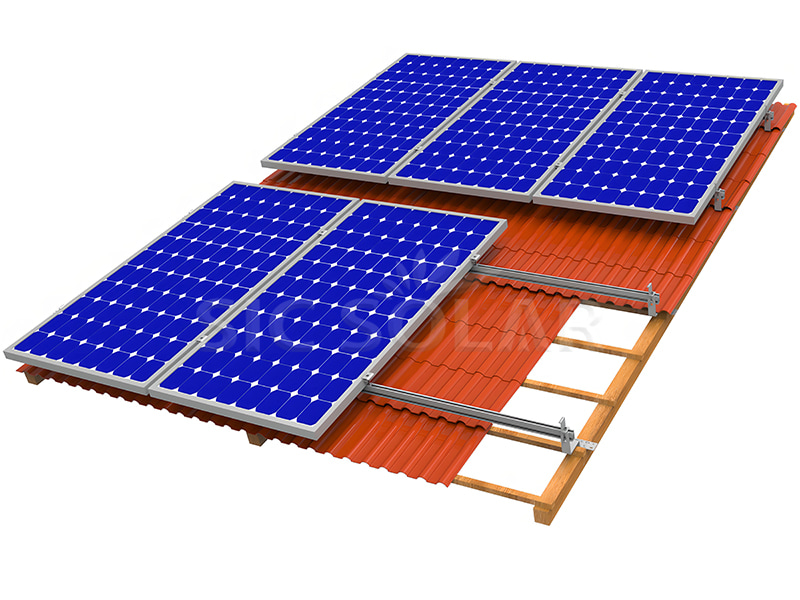

Tile roof solar mount system
Tile roof solar mount system

Solar panel roof mounts for tile roof

Solar Panel Roof Mounts for Tile Roof are specialized systems designed to securely attach solar panels to tiled roofs, which are common in residential settings. These mounts are engineered to work with the unique challenges posed by tile roofs, such as the need to avoid damage to the tiles and ensure a watertight installation.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-TTH1
  • Installation Site:

    Pitched Tile Roof
  • Tilt Angle:

    <60 degree
  • Color:

    NATURE
  • Material:

    Al 6005-T5 & SUS304
  • Warranty:

    10 years
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

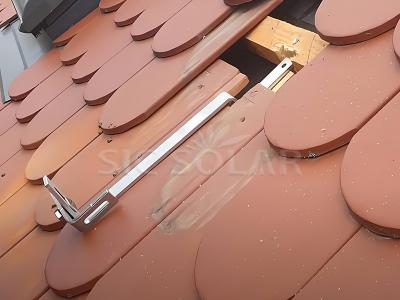

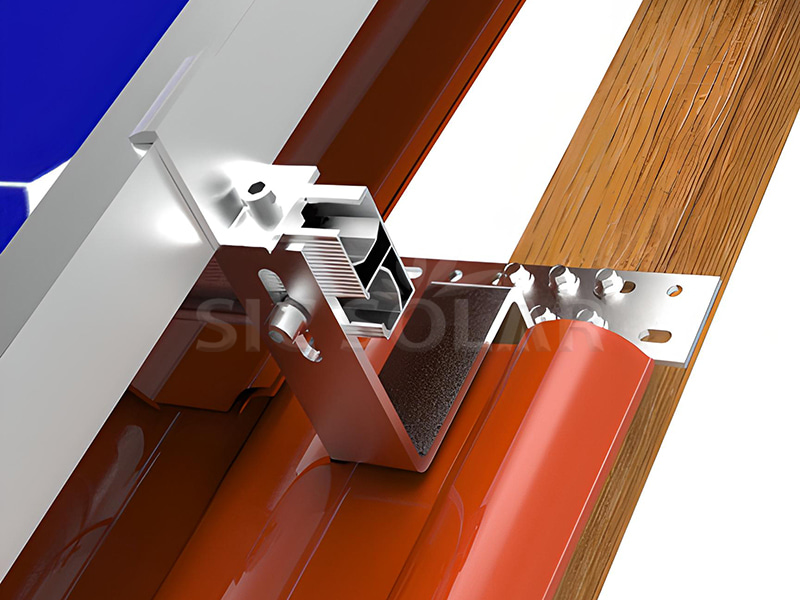

Solar Panel Tile Roof Hook
One of the main advantages of Solar Panel Roof Mounts for Tile Roof is its adaptability. They can accommodate different tile sizes and shapes, making them suitable for a wide range of residential and commercial rooftops. The ease of installation is another significant advantage, with pre-assembled components and simple attachment mechanisms that reduce installation time and labor costs.

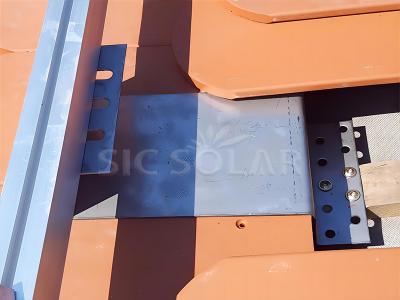

Solar Panel Flat Tile Roof Hook

SIC Solar panel roof mounts for tile roof provide a stable, durable, and efficient solution for mounting solar PV systems on residential and commercial tile roofs.

Installation site              Roof
Wind Load <60M/S
Snow Load <1.4KN/M2
Material Aluminum 6005-T5 & Stainless Steel 304
Color Natural or Customized
Anticorrosive Anodized aluminum & stainlesssteel
Warranty 10 years and 25 years service time

1️⃣ Identify mounting point – Locate the rafters beneath the tile to ensure a secure anchor.

2️⃣ Lift the tile – Carefully remove or gently lift the tile to reveal the wood structure underneath.

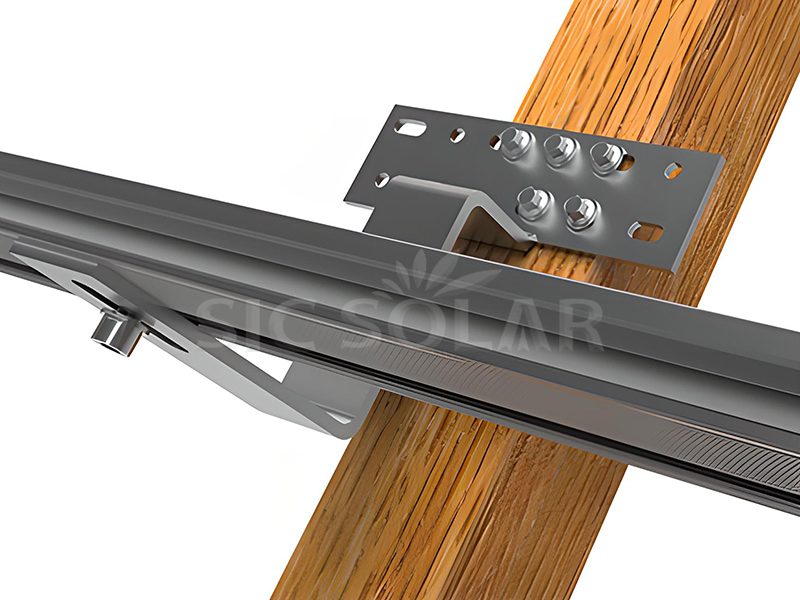

3️⃣ Install roof hooks – Attach the stainless steel hooks to the rafters using stainless steel screws.

4️⃣ Reposition the tile – Place the tile back onto the hooks ensuring a proper fit.

5️⃣ Install mounting rails – Attach the solar mounting rails to the hooks using bolts and nuts.

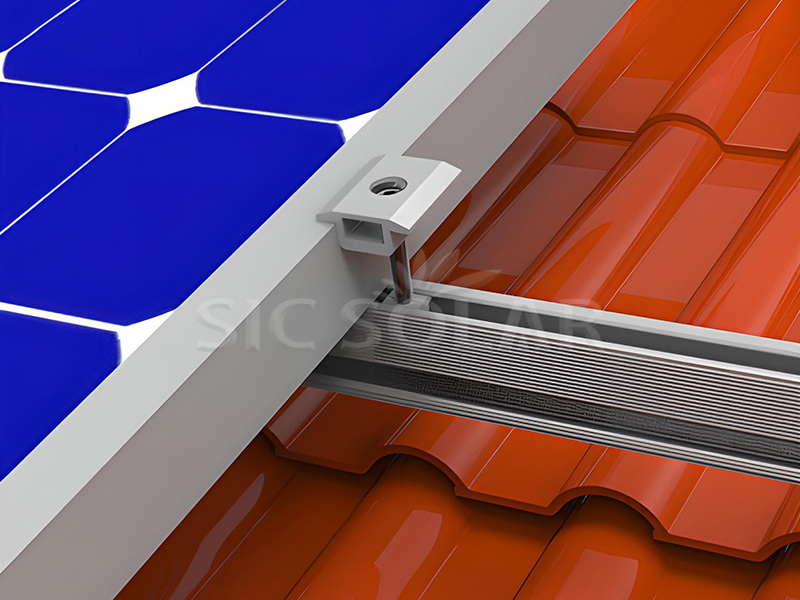

6️⃣ Secure the solar panel – Attach the solar panel to the rails using the mid and end clamps.

7️⃣ Final check – Tighten all components and ensure proper alignment before completing the installation.

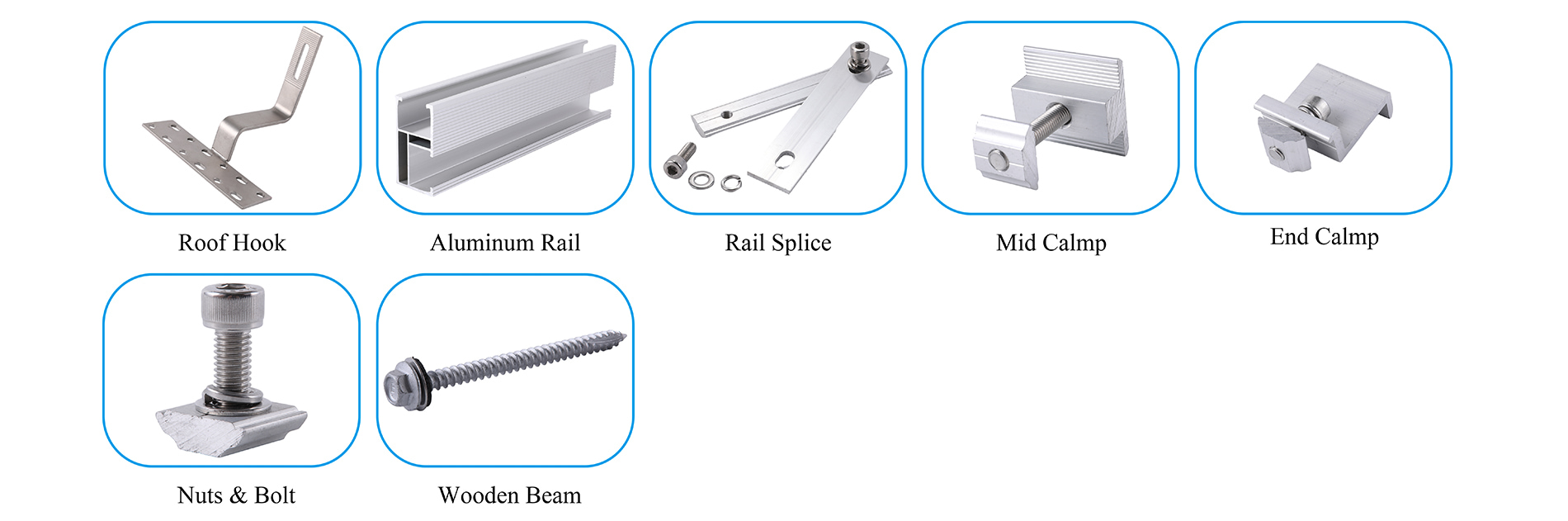

Solar bracket package

Advantages as follow:
☆ Diverse solar hooks - Meet all types of wooden beam and tile roof sheet.
☆ Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ Pre-assembled double adjustable hook - Save labor cost at the installation site.

☆ The whole structure have been strictly tested to stand up to the extreme weather



Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGS Certificate for screw material -- SUS304
