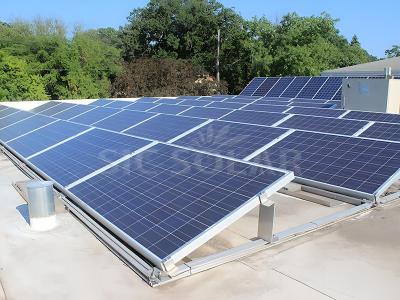

Solar panel installed on a flat roof
Solar panel installed on a flat roof

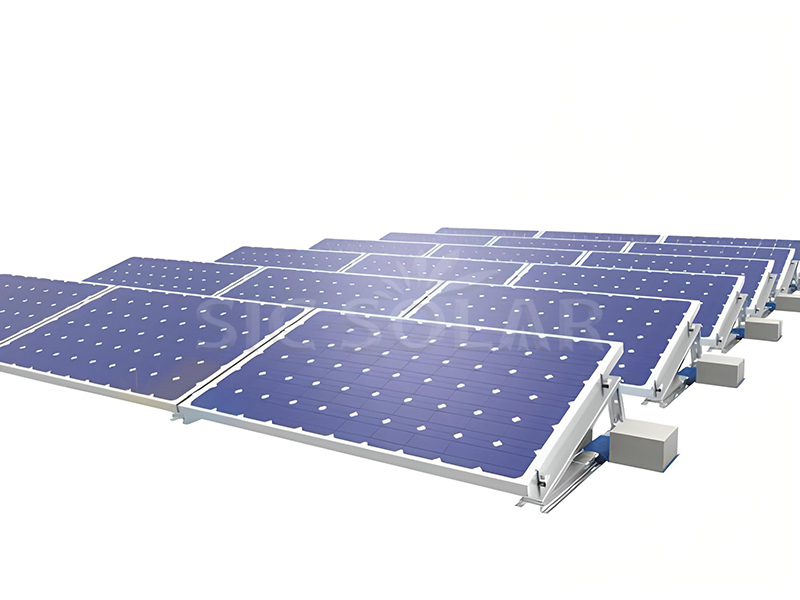

Solar ballasted single face structure

The Solar Ballasted Single Face Structure is a type of mounting system designed to hold solar panels securely in place on flat surfaces, such as rooftops or ground-based installations, using ballast weight rather than penetrating the surface. The "single face" design means that the solar panels are oriented in a single direction (typically south in the northern hemisphere), maximizing energy capture from the sun.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-FAB1
  • Installation Site:

    Flat roof or ground
  • Color:

    Nature
  • Material:

    AL6005-T5 & SUS304
  • Warranty:

    10 years and 25 years service time
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2



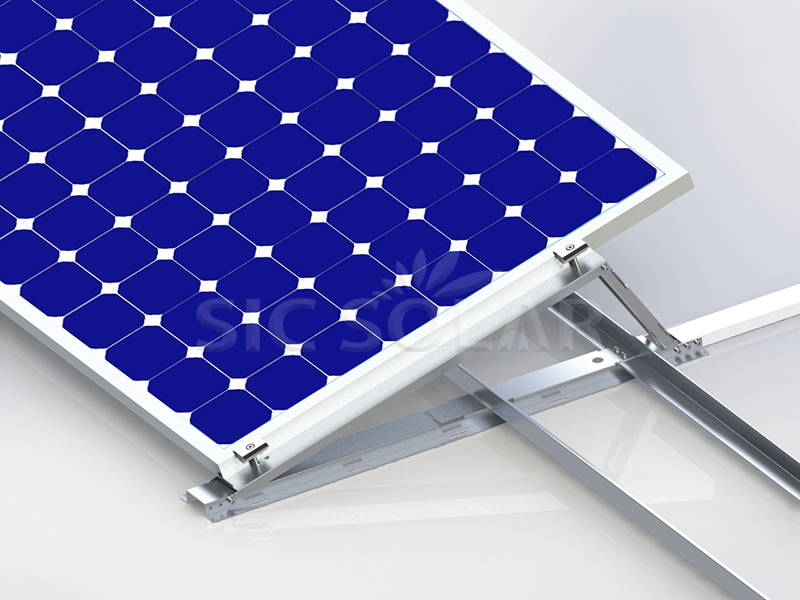

Solar panel ballast mounting system

Solar Ballasted Single Face Structure designed to secure photovoltaic panels to a flat surface without penetrating the surface or using complex anchoring mechanisms. The system is particularly useful in situations where the integrity of the roof must be maintained.

Solar panel ballast mounting system

Solar Ballasted Single Face Structure are generally easier and quicker to install compared to systems that require roof penetration. This can lead to cost savings in labor and time.With fewer components and a simpler design, ballasted systems can be easier to maintain and inspect, as there are fewer points of potential failure.

Installation Site

Flat roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Al6005-T5 & stainless steel

Warranty

10 years and 25 years service time

1️⃣ Site Assessment: Assess the load-bearing capacity of the mounting surface and determine the best layout for the solar panels.

2️⃣ Lay Protective Mats: Lay EPDM or rubber mats to prevent damage to the mounting surface.

3️⃣ Frame Installation: Position the mounting frame according to design specifications.

4️⃣ Add Ballast: Place the appropriate number of concrete blocks on the ballast pan to secure the system.

5️⃣ Panel Installation: Use clamps to secure the solar panels to the frame, ensuring they are securely fastened.

6️⃣ Electrical Connections: Connect the wiring and grounding components to complete the installation.

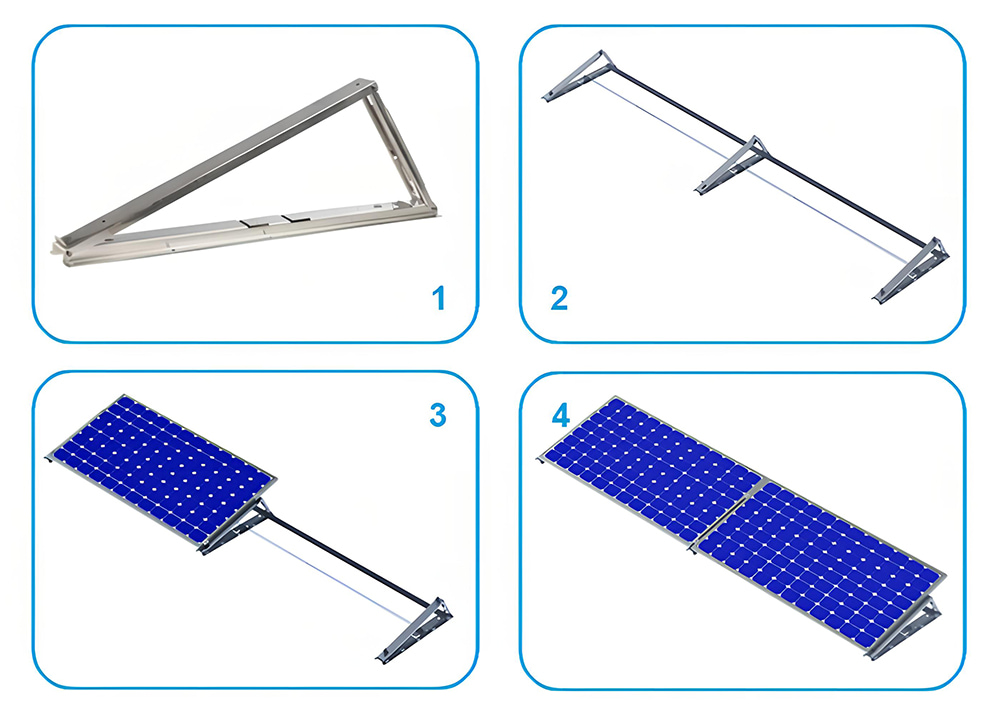

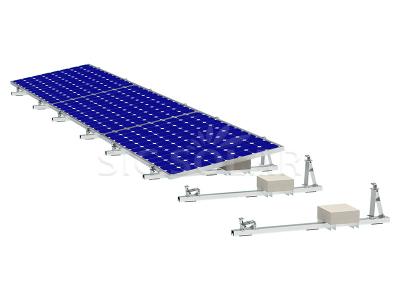

solar ballast installation

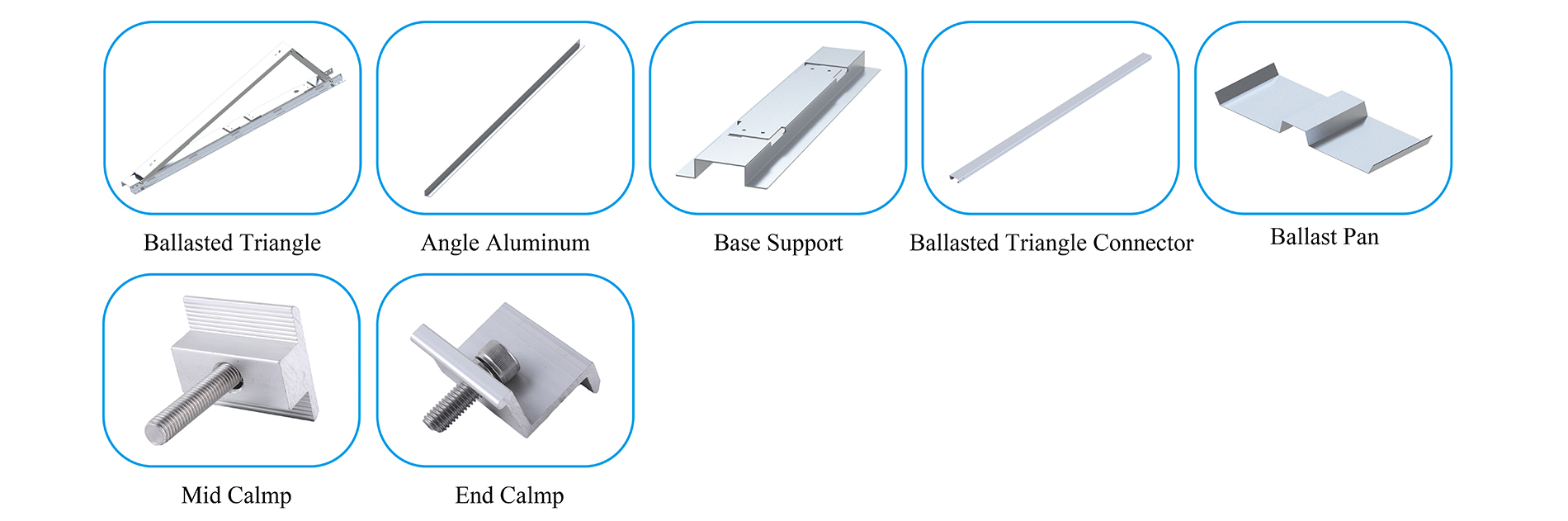

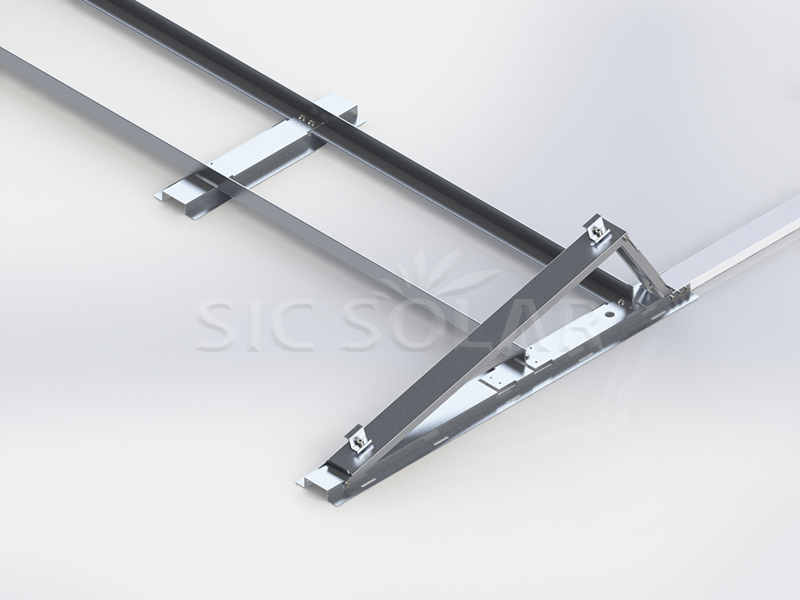

1. Fix the pre-assembled triangle ballast frame by one bolt, M6*80.

2. Put the triangle ballast mount according to our drawing, and connect them by angle aluminum.

3. Fix the solar panel on the ballast mounting structure by clamps.

4. Put the ballast, Finished.

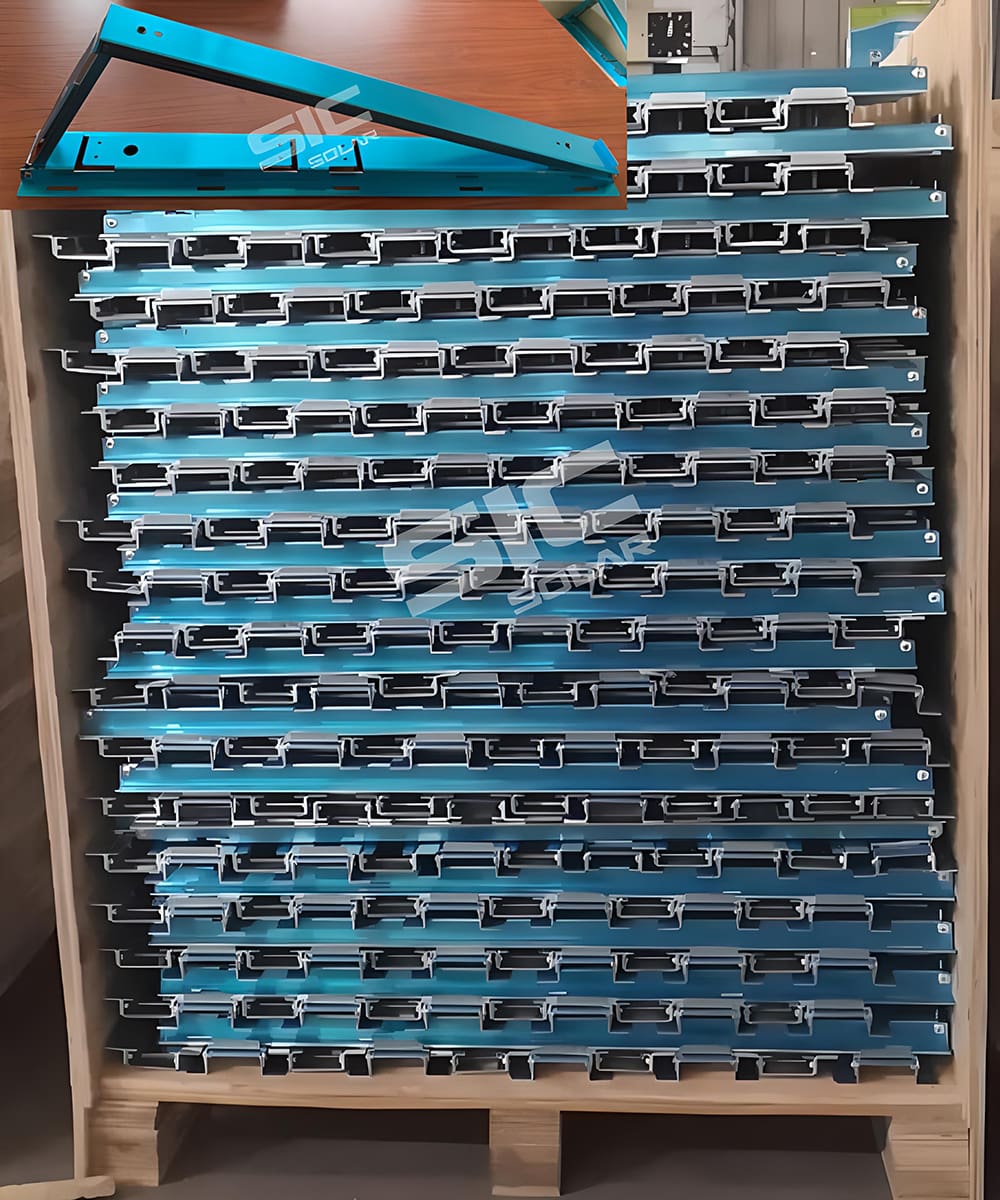

Triangle ballast frame will be pre-assembled and packed with blue protective film. All of them will be putted into one wooden case for transport.

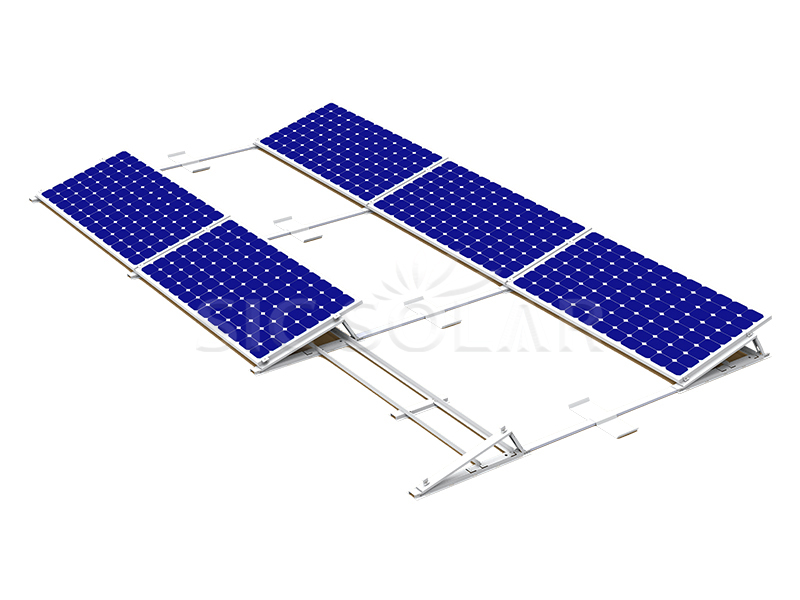

Solar panel flat roof mounting ballast



Advantages as follow:

☆ Easy to use - Only 4 Components.

☆ 100% Aluminum profile is anti-corrosion, and light for installation.

☆ Pre-assembled ballast frame  – highly save the labor cost at your installation site.

☆ Adjustable angle could also be provided.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. Can you provide East-West Ballasted Mount?

Yes.



Q2. What’s the weight of Ballasted Object?

This will need customers local wind speed and snow load.
