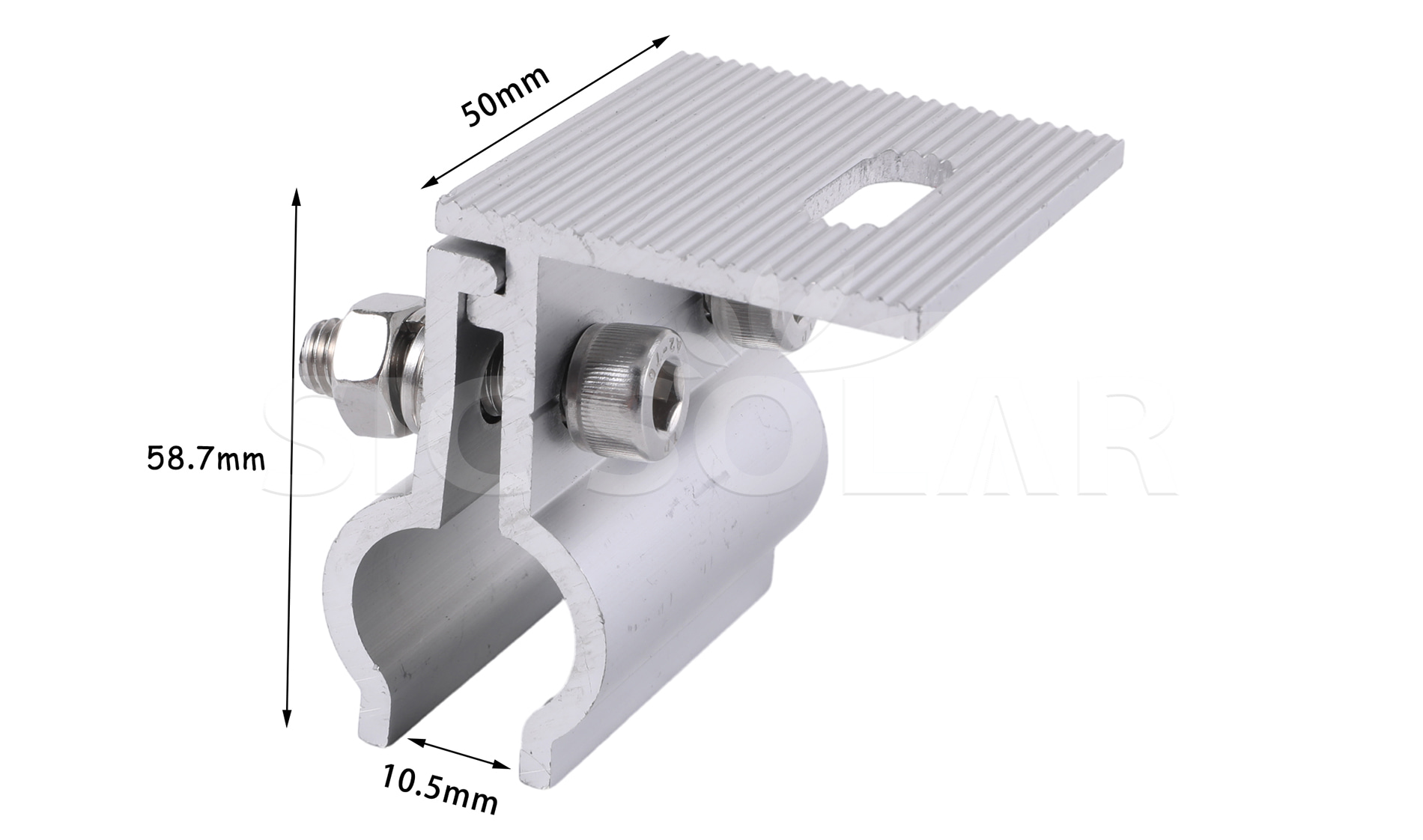

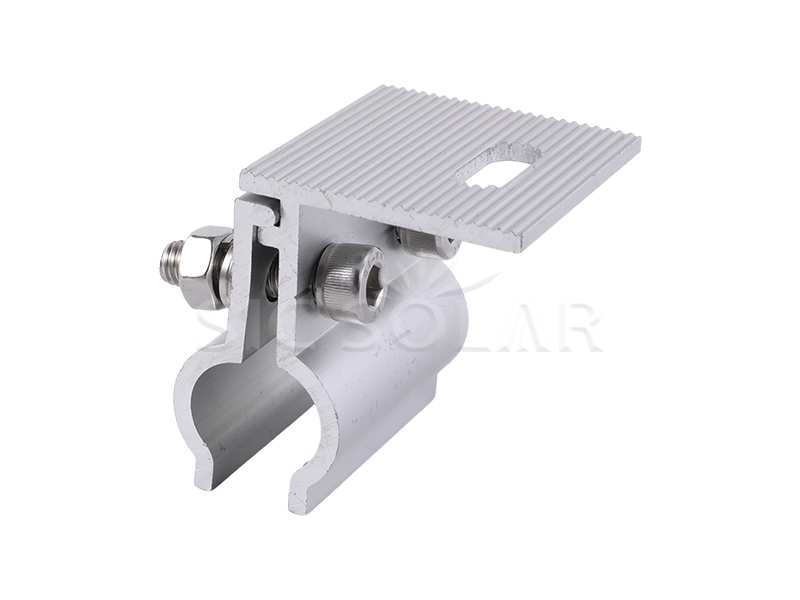

Non Penetrating Solar Clamps For Metal Roof

Non Penetrating Solar Clamps For Metal Roof are a smart way to install solar panels without drilling holes or harming the roof's structure. These clamps attach securely to the raised parts or specific shapes of your roof. This makes for a strong, weather-resistant setup that you can count on for a long time.

Brand:

SIC SOLAR

Item NO.:

SIC-TC-02

Installation Site:

Metal Roof

Color:

Natural

Material:

AL6005-T5

Wind Load:

60m/s

Snow Load:

1.4kn/m2

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more clamps

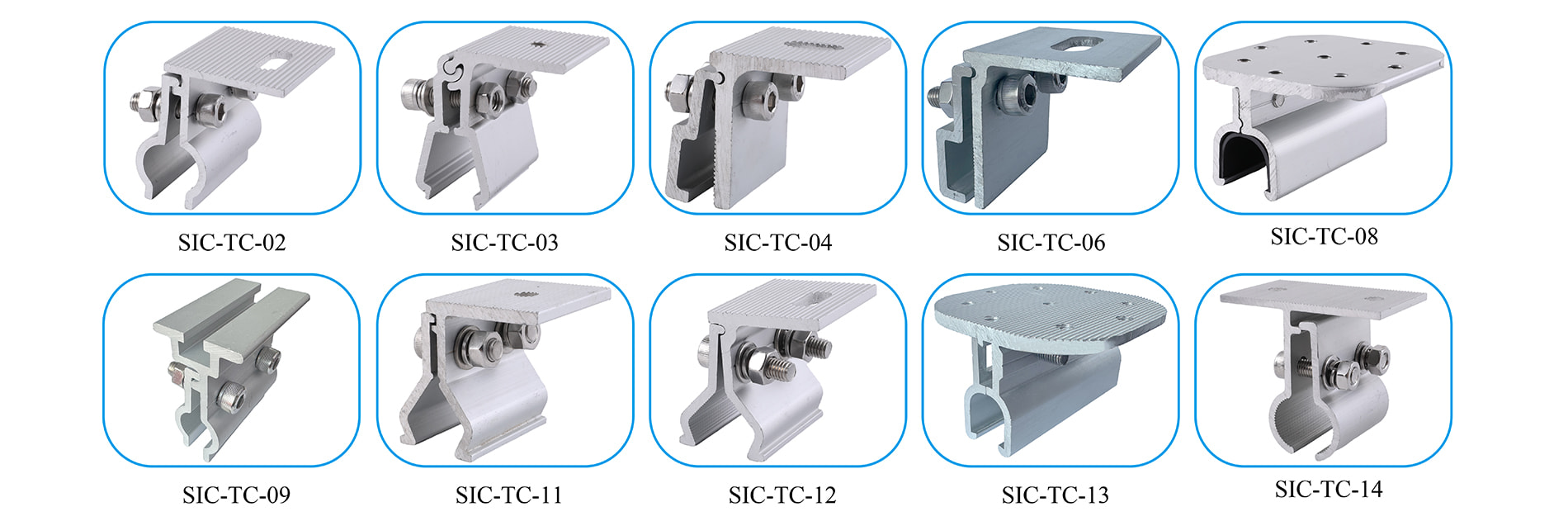

Various of roof clamp

Solar Roof Clamps

Installation Site	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

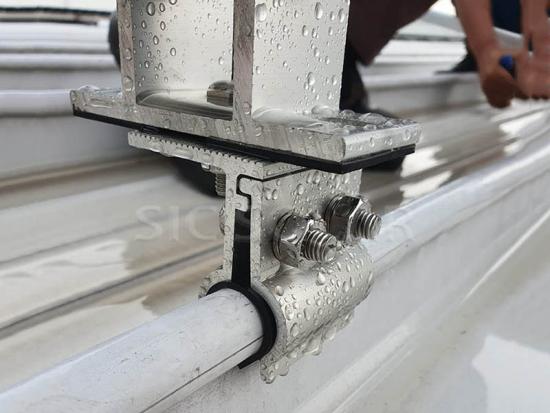

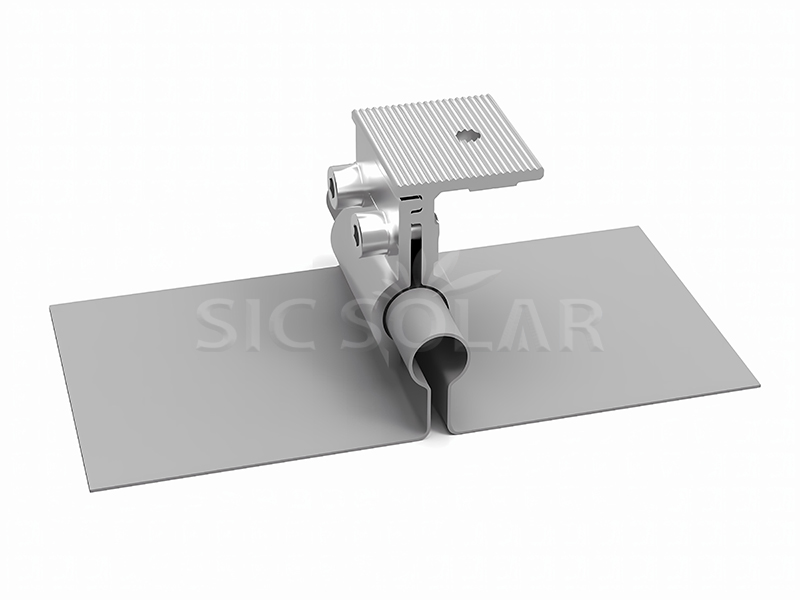

1️⃣ First, put the clamps that don't need holes right over the vertical seam.

2️⃣ Then, tighten them down firmly onto that seam.

3️⃣ Next, attach the aluminum rails using bolts and nuts.

4️⃣ After that, use the clamps at the middle and ends to secure the solar panels.

5️⃣ Finally, check all the fasteners and make sure everything is properly grounded, if that's needed.

Solar bracket package

☆ These standing seam roof clamps won't cause any damage to your metal roof.

☆ They're really built to last – made from top-grade AL6005-T5 aluminum, so you get a 10-year warranty and they should work well for 25 years.

☆ A lot of the assembly is done beforehand, which helps cut down on installation costs and time on site.

Related Certificate

☆ We have reports showing how strong these mounts are; they're tested to handle specific wind speeds and snow loads, for example.

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
