Home Products Flat Roof Mounting Ballasted mount East-West Dual Tilt Aluminum Solar Ballasted Mounting
East and West Ballasted Mounting System
East and West Ballasted Mounting System

Dual Tilt Aluminum Solar Ballasted Mounting

Dual Tilt Aluminum Solar Ballasted Mounting provides a sturdy and efficient solution for solar panel mounting, especially for commercial applications where maximizing energy yield is important. The adjustable tilt and azimuth combination provides significant advantages in capturing sunlight.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-FDB2
  • Installation Site:

    Flat roof or ground
  • Panel Orientation:

    Horizontally
  • Tilt Angle:

    10 degree / 15 degree
  • Color:

    Nature
  • Material:

    AL6005-T5
  • Wind Load:

    <60m/s
  • Snow Load:

    <1.4kn/m2



Ballasted mounting structure

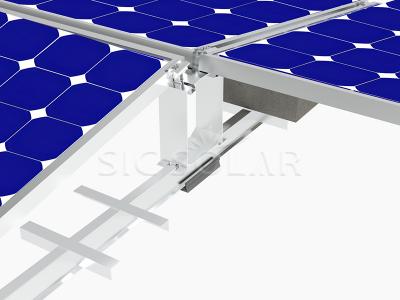

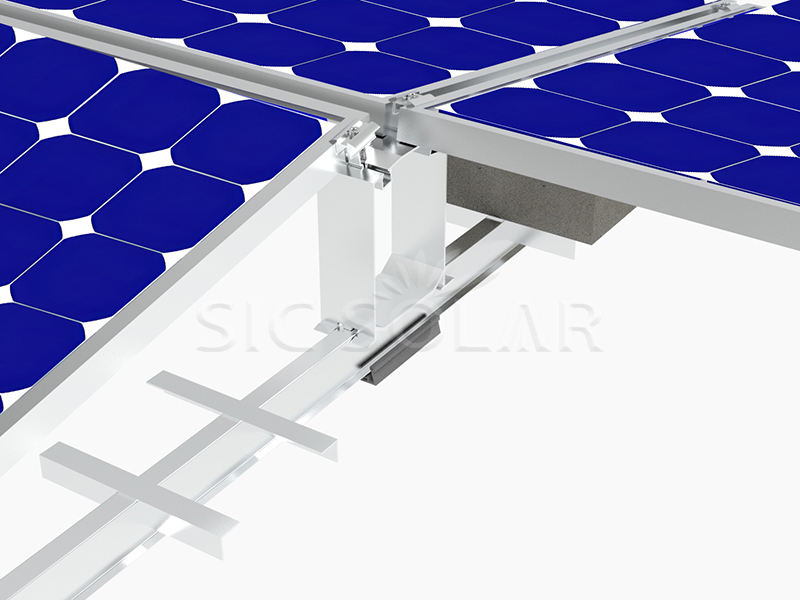

Dual Tilt Aluminum Solar Ballasted Mounting could be installed on flat roof or ground. With light alu material, it could be mounted quickly without harming the installation surface.

East & West solar ballasted structure

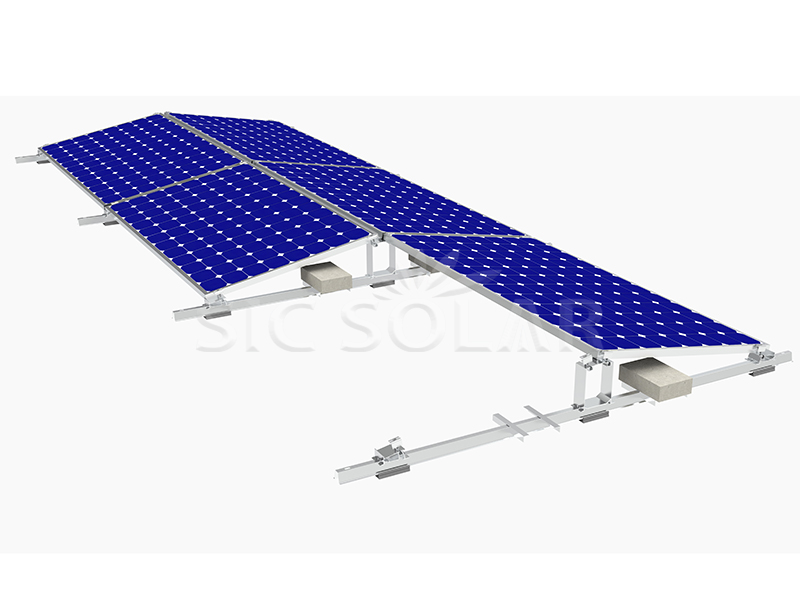

Dual Tilt Aluminum Solar Ballasted Mounting is designed for mounting solar panels on flat roofs or in the open ground, with the panels facing east or west. The system uses ballast support without penetrating the roof, making it ideal for protecting the integrity of the roof and optimizing power generation.



Installation Site

Flat Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

1️⃣ Site Assessment: Evaluate the flat roof to ensure it can support the additional load of the ballasting system.

2️⃣ Layout Planning: Design the solar panel layout to optimize space and energy production, taking into account factors such as shading and orientation.

3️⃣ Mounting Frame Assembly: Assemble the aluminum mounting structure according to guidelines.

4️⃣ Panel Mounting: Secure the solar panels to the mounting frame, ensuring correct alignment and tilt angle.

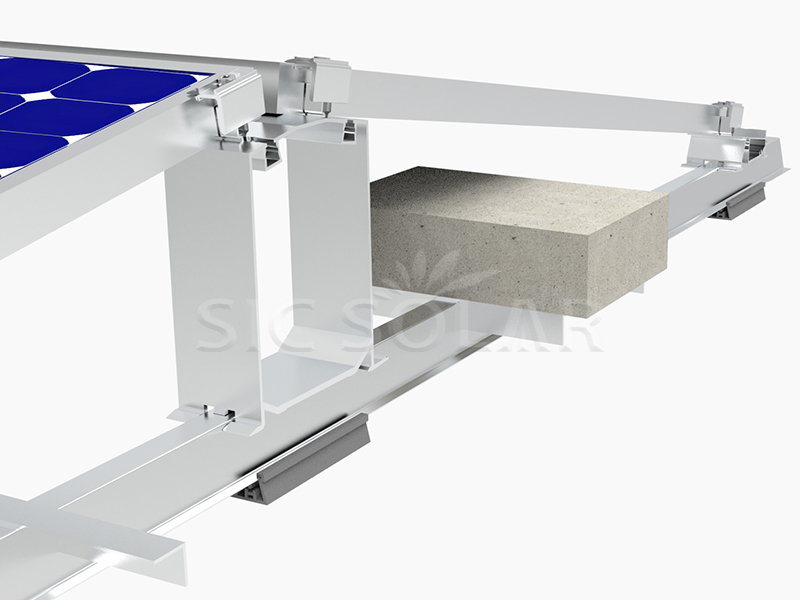

5️⃣ Ballast Placement: Place appropriate ballast to secure the system according to engineering specifications for wind and loading conditions.

6️⃣ Final Inspection: Perform a thorough inspection to verify structural integrity and compliance with safety standards.

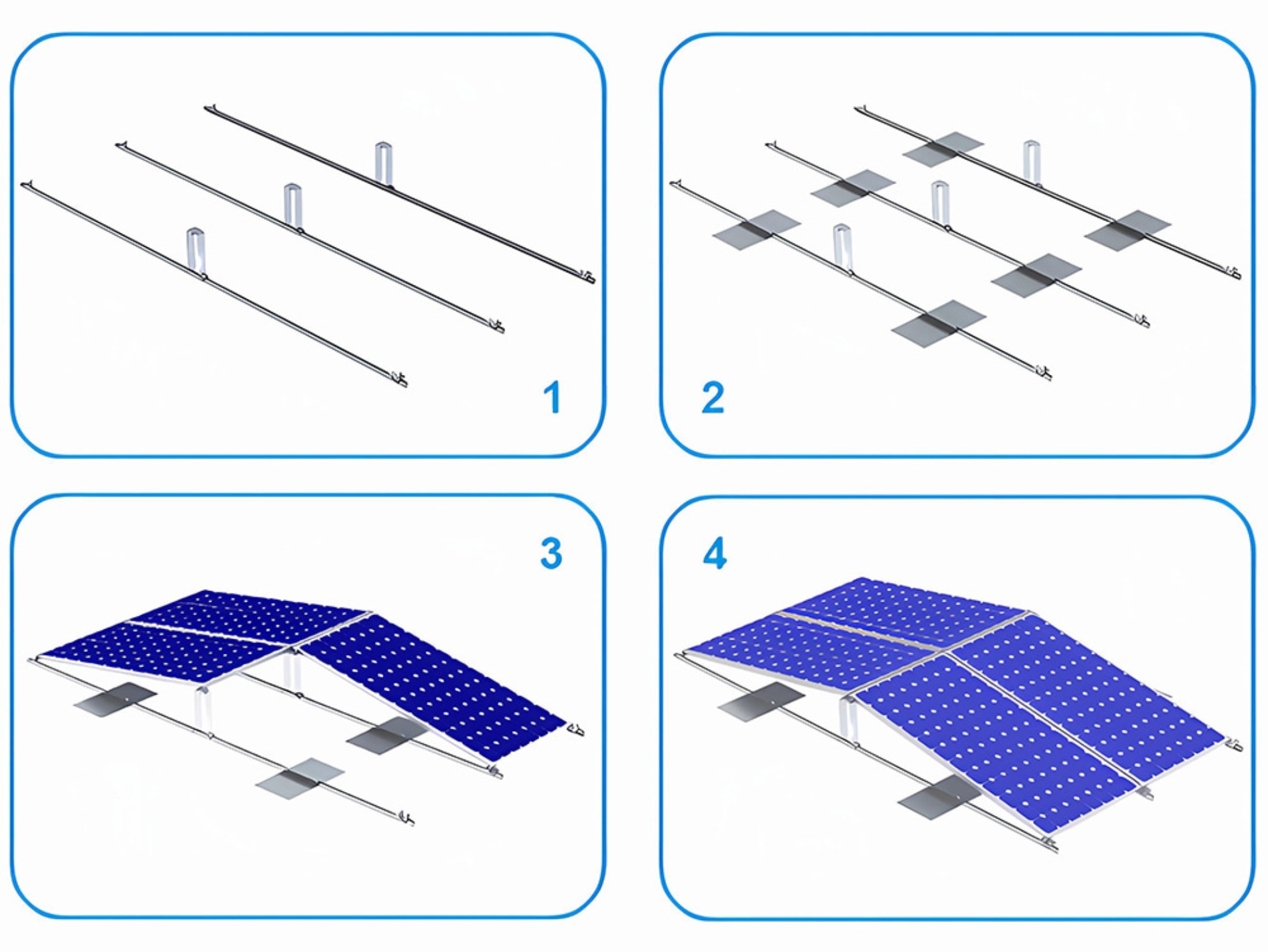

Installation guide for ballasted bracket

1.Locate the rails, front legs and rear legs according to our drawing.

2.Put two ballast pan under each panel, and then put on the concrete ballast.

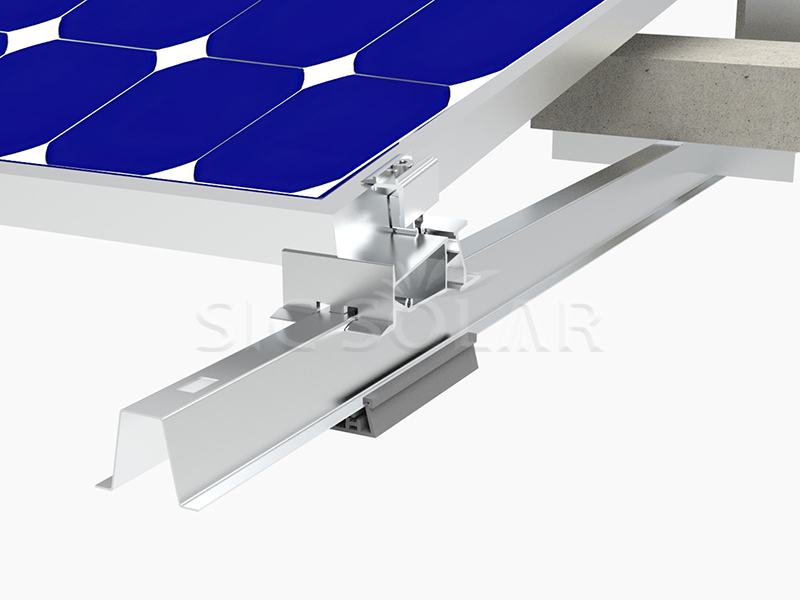

3.Fix the solar panel on ballast mounting structure by clamps.

4.Finished.

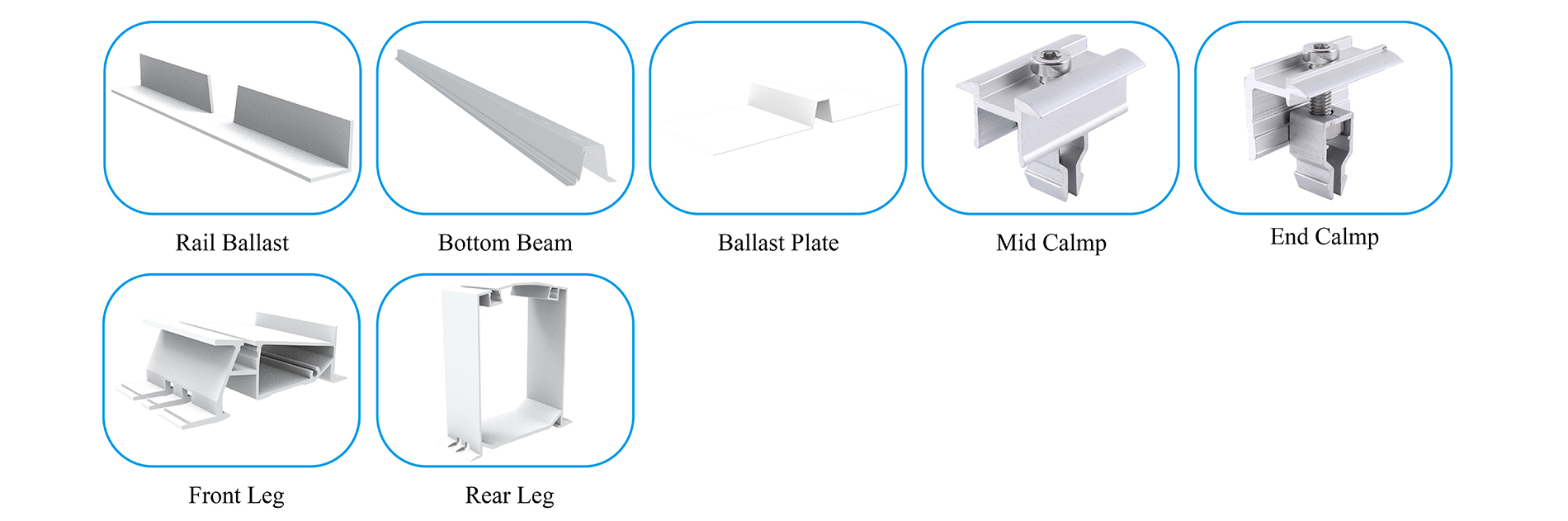

Solar bracket package

☆ High flexibility - The panel direction could be East-West or south according to your site request.

☆ Ballast design -Non-Penetrating to concrete roof.

☆ Easy to use  – Light alu components is easy for installation

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Aluminum quality certificate -- AL6005-T5 composition list

Q1. Can you provide East-West Ballasted Mount?

Yes.



Q2. What’s the weight of Ballasted Object?
