East-West Solar Ballasted Mounting System

Click here to learn more produce

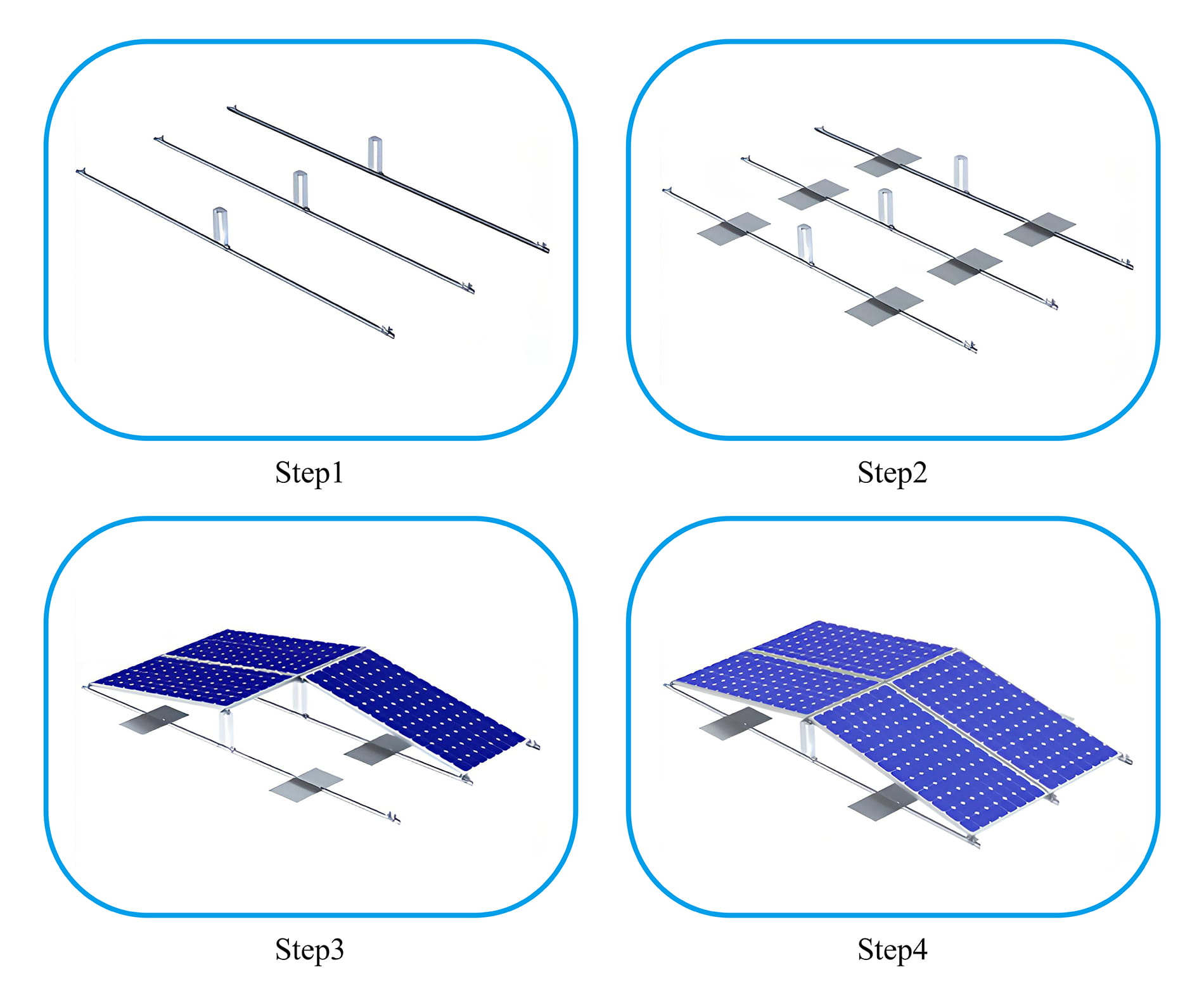

1️⃣ Roof Assessment

Assess the load-bearing capacity and size of the flat roof. Identify any obstructions (gutters, air conditioning units, etc.).

2️⃣ System Design

Design the array layout so that the modules are arranged in alternating rows facing east and west to optimize sunlight throughout the day.

3️⃣ Bracket Installation

Lay the pre-assembled brackets directly onto the roof surface.

4️⃣ Ballast Block Addition

Add concrete ballast blocks to the designated pallet to secure the system without drilling holes in the roof membrane.

5️⃣ Track and Module Installation

Secure the solar track (if necessary) and install the PV modules using end clamps and intermediate clamps.

6️⃣ Cable Routing and Grounding

Secure the wiring and grounding components to ensure the safety and durability of the system.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Advantage as follow:

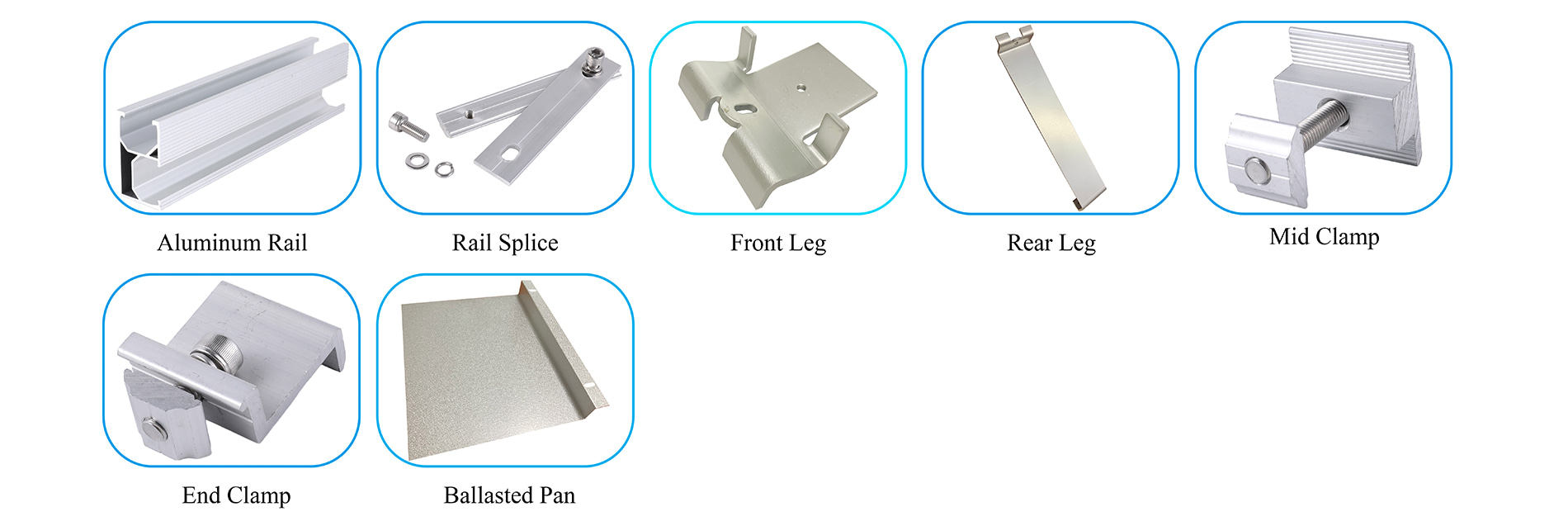

☆ Easy to use- only 4 components

☆ Minimize the installation space - East-West design reduce the space between panels.

☆ Ballast design -Non-Penetrating to concrete roof.

☆ Pre-assembled ballast frame  – highly save the labor cost at your installation site.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

Related certificate:

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list

Q1. Can you provide East-West Ballasted Mount?

Yes.

Q2. What’s the weight of Ballasted Object?

This will need customers local wind speed and snow load.
