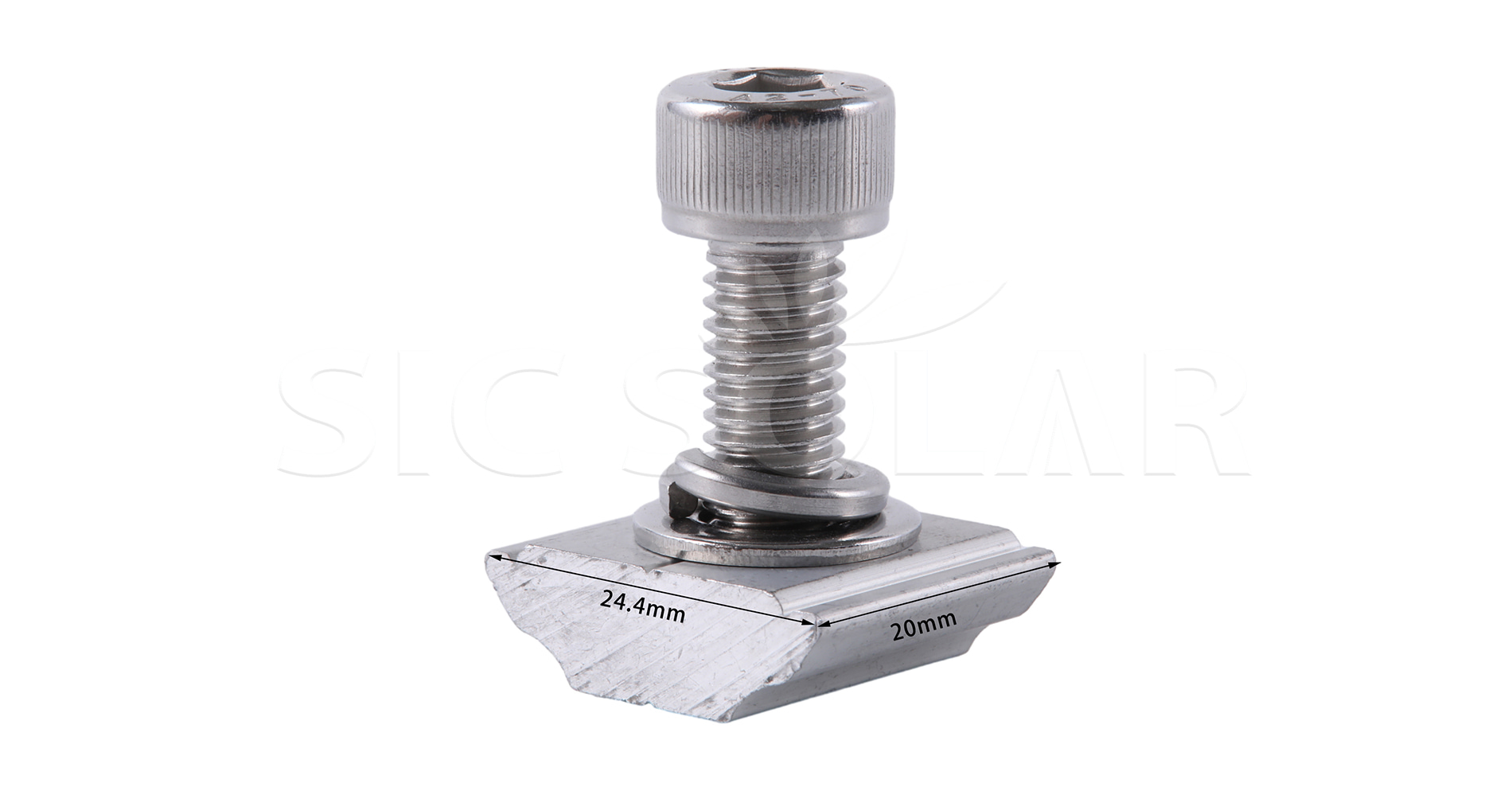

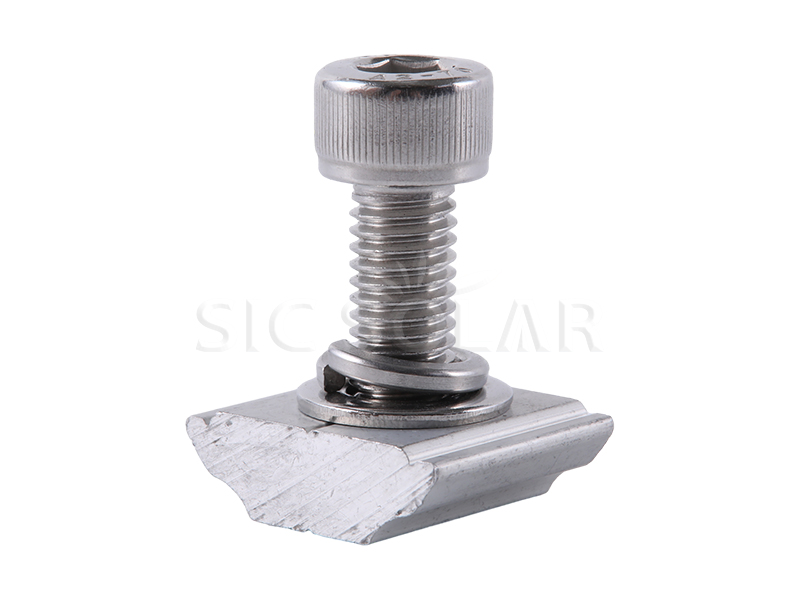

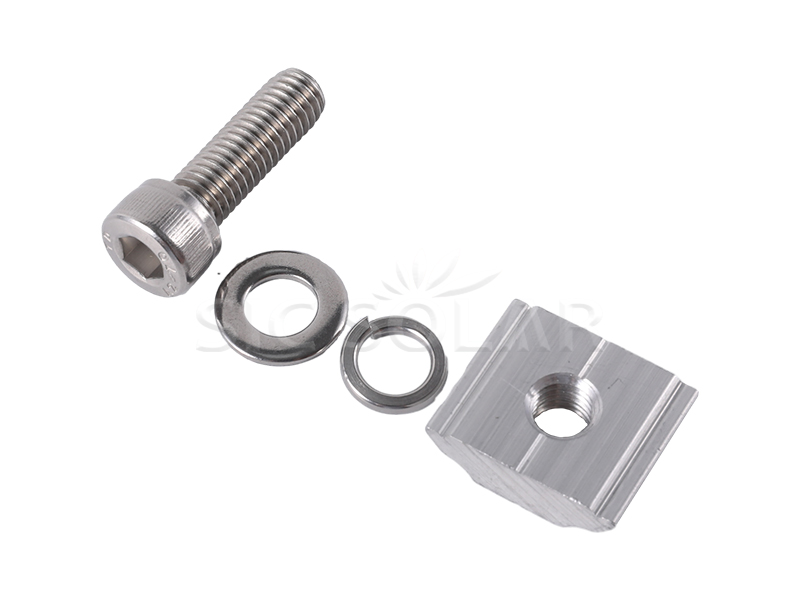

Solar Aluminum Sliding Nuts
Solar Aluminum Sliding Nuts
Solar Aluminum Sliding Nuts

Aluminum Solar Sliding Nuts

Aluminum Solar Sliding Nuts are really useful and a key part of setting up solar panels. They're made to give you a secure connection for your panels, and you can adjust them easily. Because they're lightweight aluminum, they're tough and work well with most solar rails, which is why lots of people use them for solar setups on roofs and the ground.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-SN
  • Installation Site:

    Roof or Ground
  • Color:

    Natural
  • Material:

    AL6005-T5 & SUS304
  • Warranty:

    10 years and 25 years service time
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

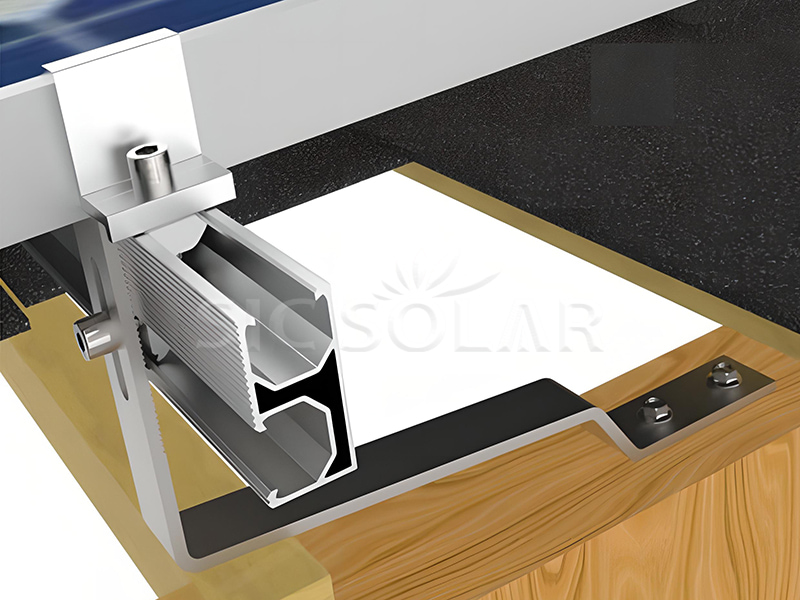

Solar rail mount nuts

Aluminum Solar Sliding Nuts are truly a critical piece in how solar panels get mounted.

Solar clamp nuts

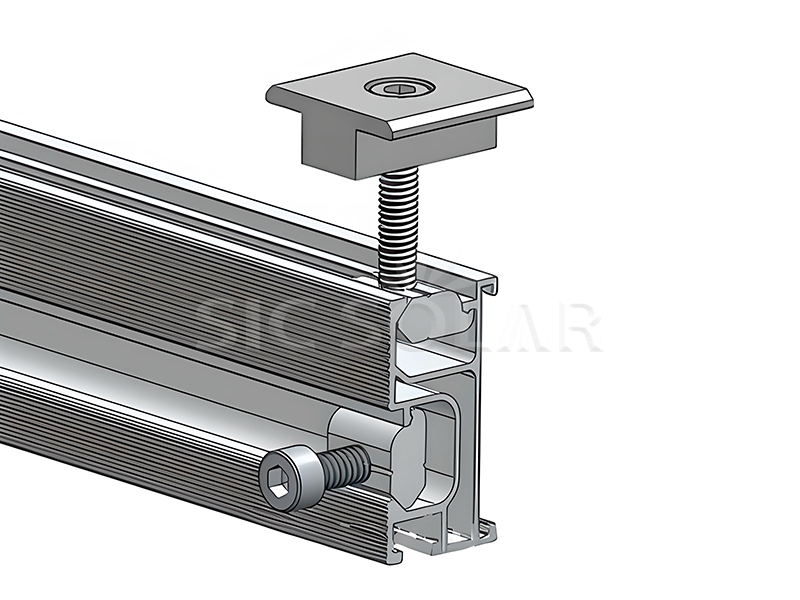

Aluminum Solar Sliding Nuts can easily slide right into the grooves of your rails and then stay firmly in place wherever you need them. They act as a connecting piece for things like hex cap bolts, middle clamps, end clamps, or grounding clips.

Sliding Solar Panel

Name Aluminum Solar Sliding Nuts

Installation Site

Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

AL6005-T5 & SUS304

Color

Natural

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time

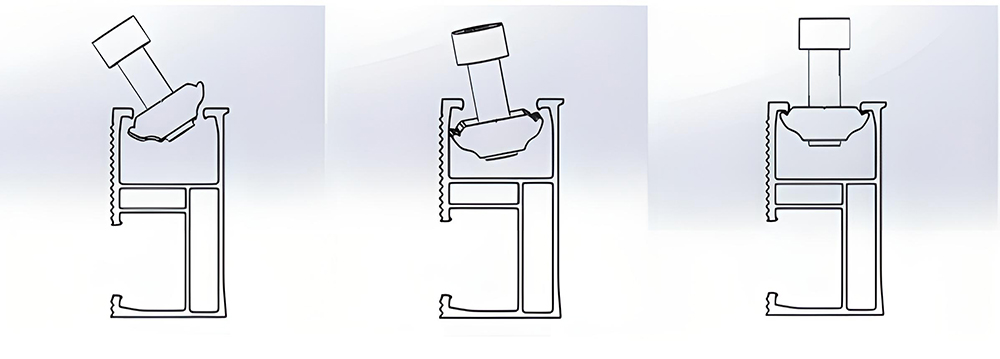

1️⃣ First, slide the nut into the rail slot.

2️⃣ Next, move it to exactly where you want it.

3️⃣ Then, put your clamp, bracket, or other part right onto the nut.

4️⃣ After that, tighten it down with screws or hex bolts.

5️⃣ Make sure everything lines up properly.

6️⃣ Finally, tighten all the connections really well to make sure they're secure.

Solar Sliding Nuts installation steps

Solar bracket package

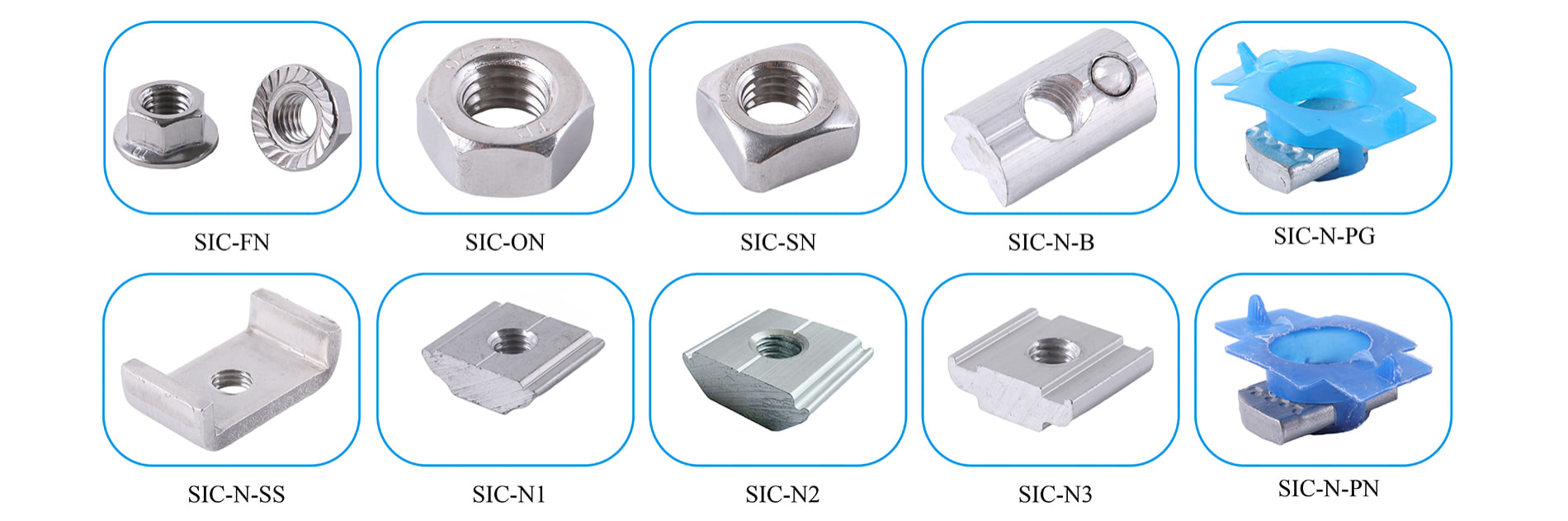

☆ Various nuts blocks could be offered according to client's demand.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Smart patented nut design – "Tilt-in-module" could be slide in at any position of rail.



Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.
