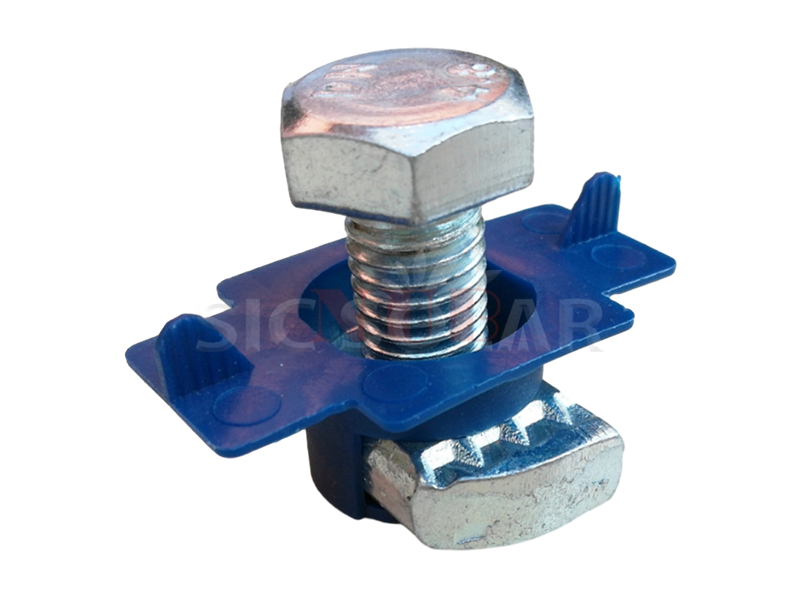

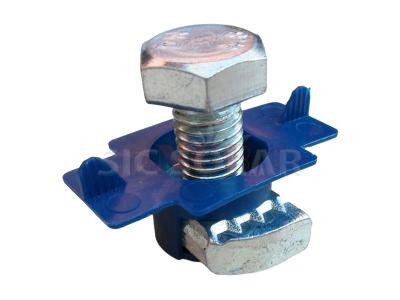

Solar Plastic Wing Nut With Hex Head Bolt

Solar Plastic Wing Nut with Hex Head Bolt is a versatile fastening solution designed for solar mounting systems. It combines a plastic-coated wing nut for easy hand-tightening with a hex head bolt for enhanced torque and security. This combination ensures both convenience during installation and strong, reliable connections in solar panel systems.

Brand:

SIC SOLAR

Item NO.:

SIC-N-PN

Installation Site:

Roof or Ground

Color:

Natural

Material:

Steel+Galvanized Nickel

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Technical Details Installation Guide Package Advantage

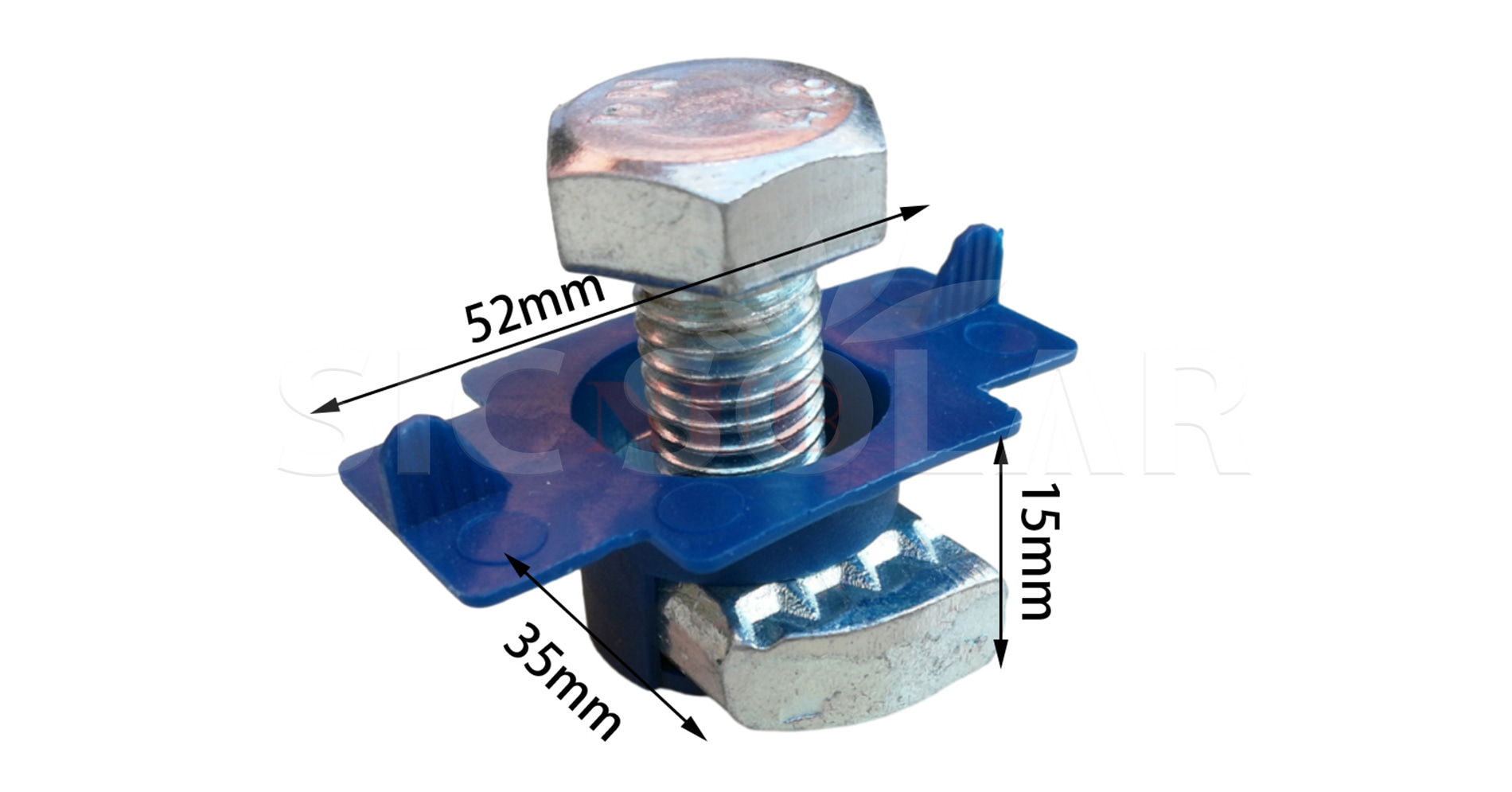

Wing Nut Dimensions

Name	Solar Plastic Wing Nut with Hex Head Bolt
Installation Site	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Steel+Galvanized Nickel
Color	Natural
Anticorrosive	Stainless steel
Warranty	10 years and 25 years service time

1️⃣ Bolt through assembly: Push the hex bolt through the bracket, clamp, or mounting hole.

2️⃣ Thread in the wing nut: Thread the plastic wing nut onto the exposed threads.

3️⃣ Hand tighten: Turn the wing nut clockwise until tight.

4️⃣ Adjust or remove as needed: Loosen by hand for repositioning or removal.

Solar bracket package

Advantages as follow:

☆ Various nuts blocks could be offered according to client's demand.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Smart patented nut design – "Tilt-in-module" could be slide in at any position of rail.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list
