Solar Panel Mounting Rail Nut
Solar Panel Mounting Rail Nut

Solar Mounting Rail Sliding Nuts

Solar Mounting Rail Sliding Nuts are fastening accessories designed for solar mounting rail systems. Their sliding design allows installers to position mounting components along compatible rails, providing a flexible and reliable way to secure brackets, clamps, and other accessories.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-N3
  • Product Origin:

    Fujian, China
  • Shipping Port:

    Xiamen port
  • Installation Site:

    Roof or Ground
  • Color:

    Natural
  • Material:

    AL6005-T5
  • Warranty:

    10 years and 25 years service time
  • Length:

    Can be customized
  • Thickness:

    Can be customized
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M²

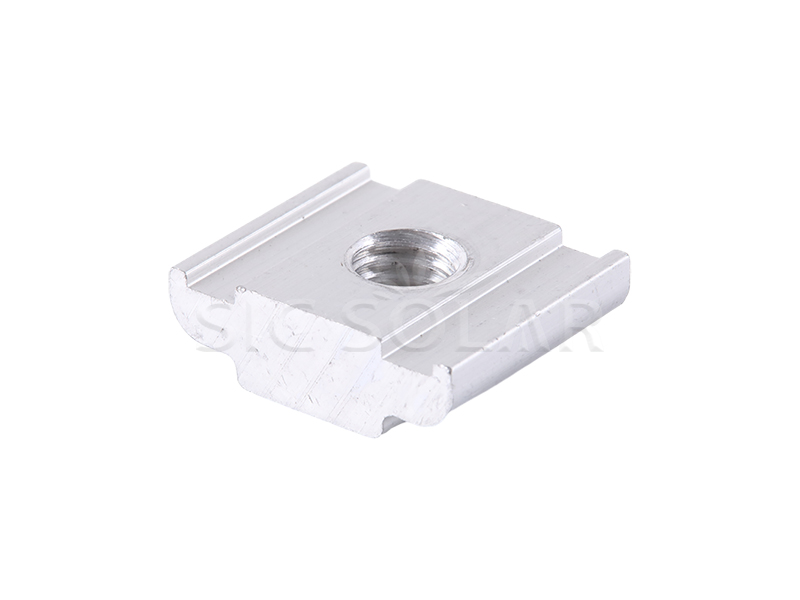

Solar Sliding Nuts

Solar Mounting Rail Sliding Nuts make it easier to adjust the position of mounting accessories during installation. They can slide along the rail channel, allowing installers to find the right fixing points for different panel layouts and mounting requirements.

Pv Sliding Nuts

Once the components are in position, the Solar Mounting Rail Sliding Nuts can be tightened with matching bolts to create a secure connection. This helps keep mounting accessories firmly in place, even when exposed to outdoor conditions such as wind and vibration. Their practical design also simplifies assembly and reduces installation time.

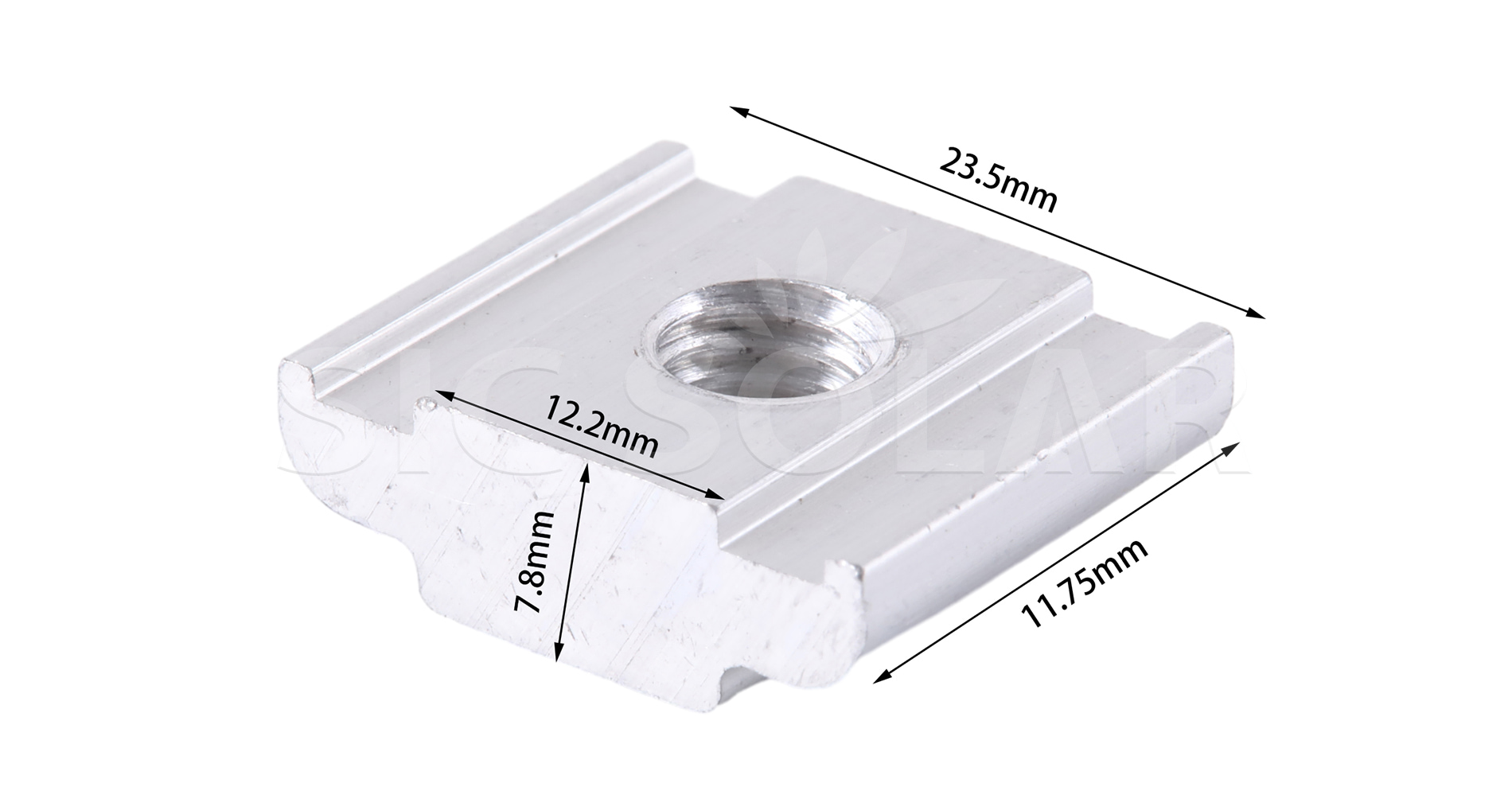

Solar Sliding Nuts Dimensions

Name Solar Mounting Rail Sliding Nuts

Installation Site

Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M²

Material

AL6005-T5

Color

Natural

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

1️⃣ Insert the Nut: Slide the nut into the designated channel of the mounting rail.

2️⃣ Adjust the Position: Move it along the rail to the required fixing point.

3️⃣ Align the Components: Position the clamp or bracket so its mounting hole lines up with the nut.

4️⃣ Insert the Bolt: Pass the matching bolt through the mounting component and into the sliding nut.

5️⃣ Tighten the Connection: Secure the bolt to hold the component firmly in place.

6️⃣ Check the Installation: Make sure all connections are properly tightened and the accessories are stable.

Solar bracket package

☆ Flexible Positioning: Slides along compatible mounting rails, allowing installers to adjust fixing points to suit different panel layouts.

☆ Wide Compatibility: Works with mid clamps, end clamps, and other mounting accessories when the rail profile and thread specifications match.

☆ Corrosion Resistance: Suitable material selection and surface treatment help protect the nuts against outdoor exposure.

☆ Easy Installation: The sliding design makes positioning and fastening more convenient, helping reduce installation time and effort.

Q1: Can sliding nuts be used with solar mid clamps and end clamps?
A: Yes. They can be used with compatible mid clamps, end clamps, and other mounting accessories, provided the rail channel, bolt, and thread specifications match.

Q2: Can the sliding nut be adjusted after installation?
A: Yes, it can usually be repositioned along the rail before final tightening. If it has already been secured, loosen the bolt first before making any adjustments.

Q3: How do I choose the right sliding nut for my solar project?
A: Check the rail channel dimensions, thread size, bolt compatibility, material, and installation requirements. These details help ensure a proper fit and reliable connection.

Q4: Can Solar Mounting Rail Sliding Nuts be customized?
A: Customization may be available for dimensions, thread sizes, materials, and surface treatments, depending on production capabilities and order quantity. Contact the supplier with your project requirements for more details.

Leave A Message
With 10 years solar experience professional team,SIC SOLAR insist in a management theory of
Send Message

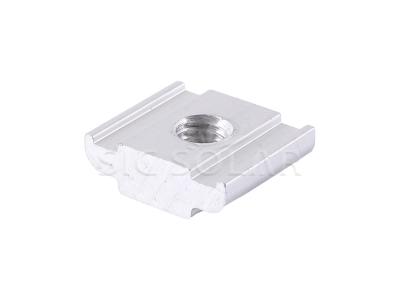

Related products
