Wall tilt frame system is developed for wall, which can help our customers to have more choose to install solar panel.
Brand:
SIC SOLARItem NO.:
SIC-TMShipping Port:
Xiamen portInstallation Site:
Roof or WallColor:
Natural or CustomizedMaterial:

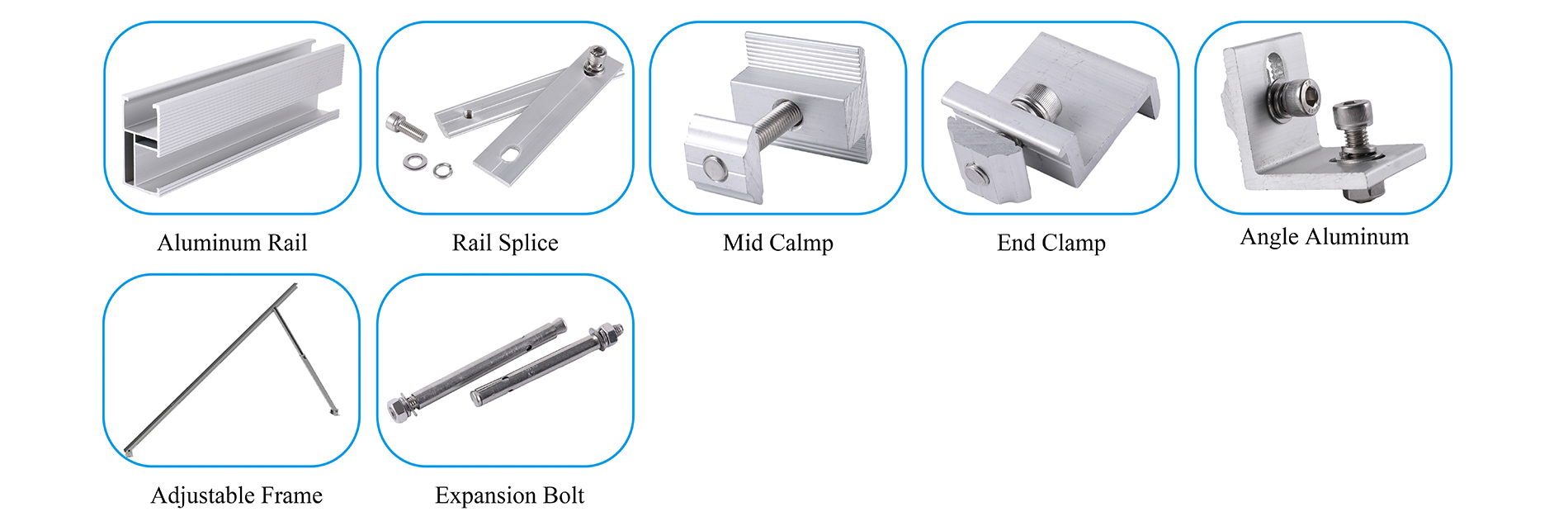

AL6005-T5 & Stainless Steel 304Warranty:
10 years and 25 yearsWind Load:
<60M/SSnow Load:
<1.4KN/M2

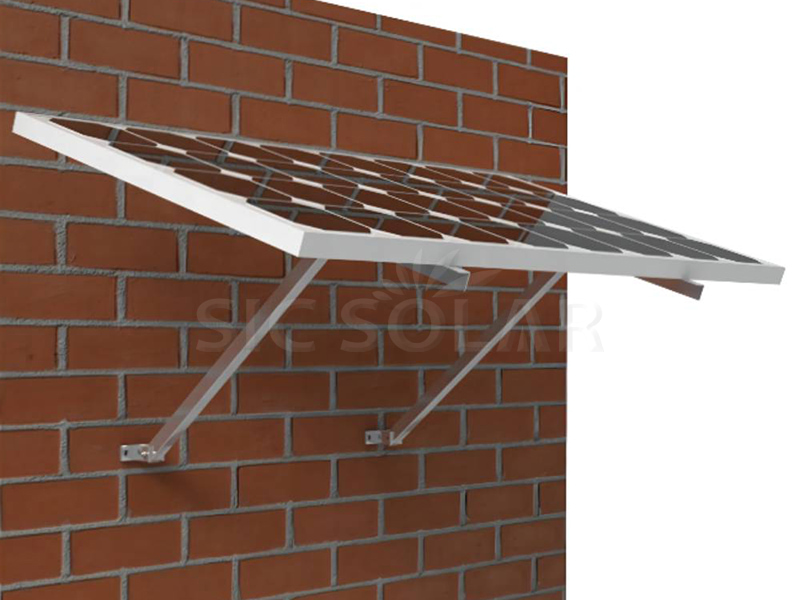

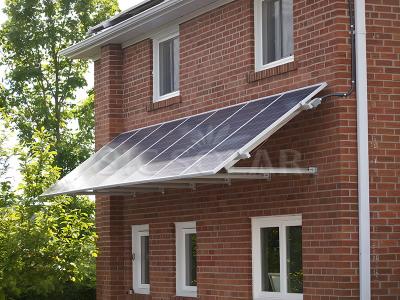

Wall PV mounting solution is an economical mounting type for panel installation. It can be easily installed on wall in customized angle.

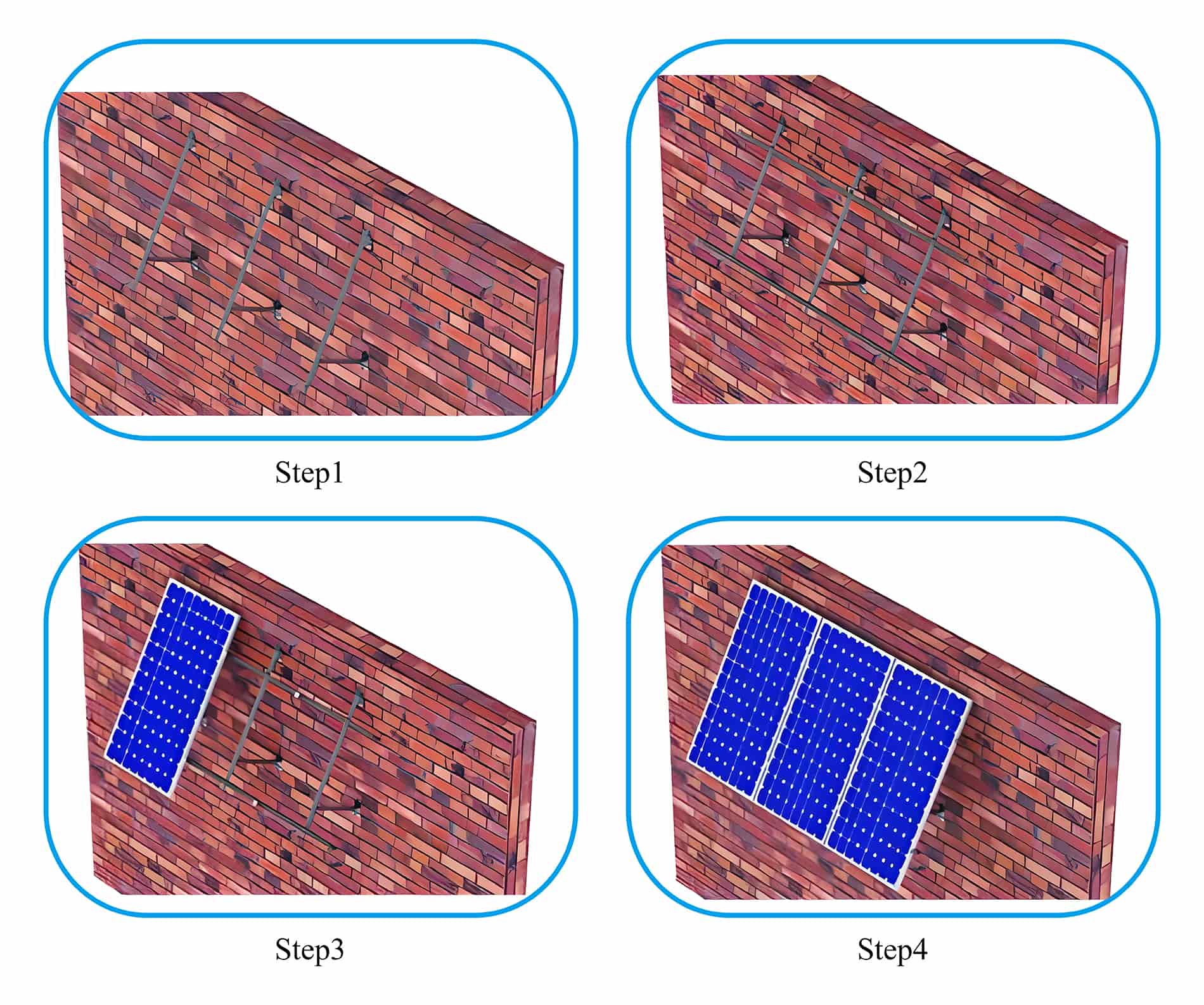

1. Put fixed wall tilt frame on the wall surface.
2. Fix the rail on the fixedwall tilt frame.
3. Fix the mid clamp between panels, end clamp on the panel edge.
4. Finished.
