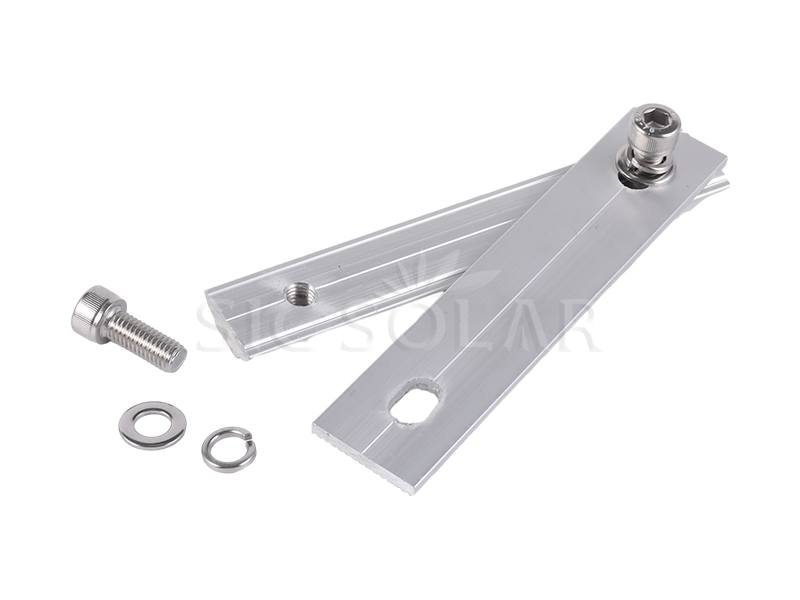

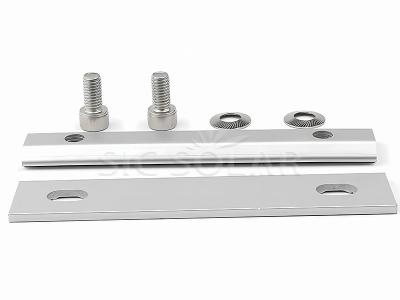

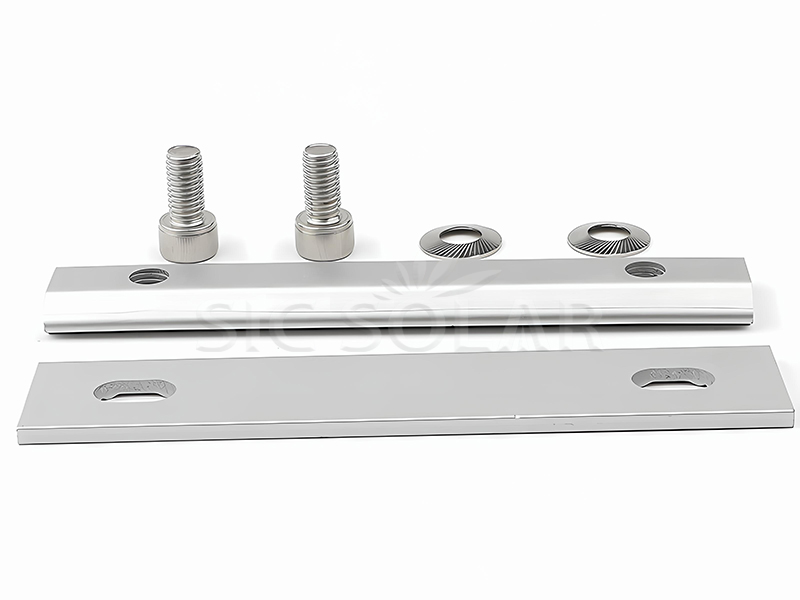

Solar Panel Mounting Rail Splice

Solar Panel Mounting Rail Splice is an important part of holding up solar panels. It connects two rails, making sure the whole setup stays strong and straight.

Brand:

SIC SOLAR

Item NO.:

SIC-RS-01

Color:

NATURE

Installation Site:

Roof or Ground

Material:

AL6005-T5 & SUS304

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

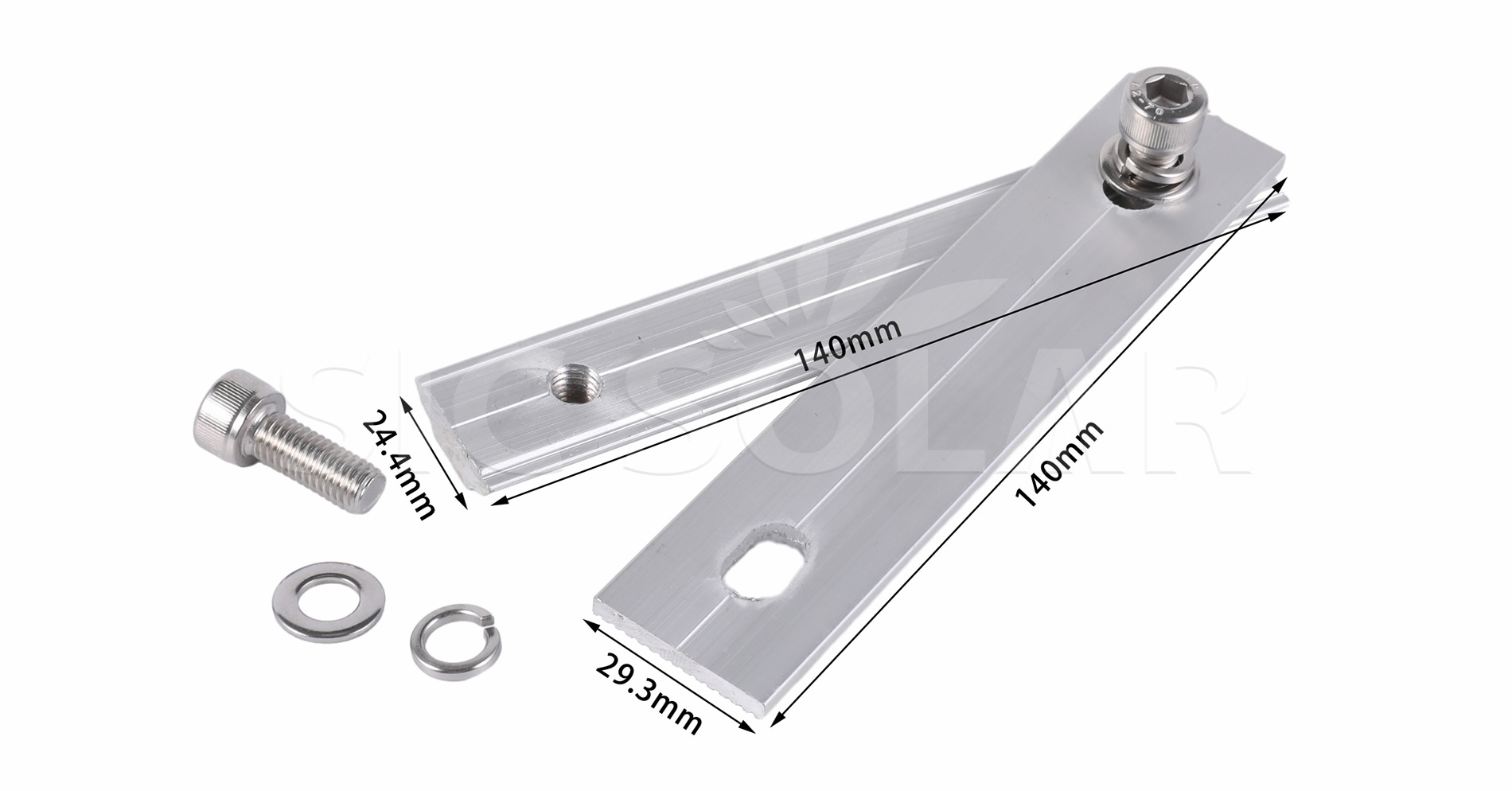

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices.

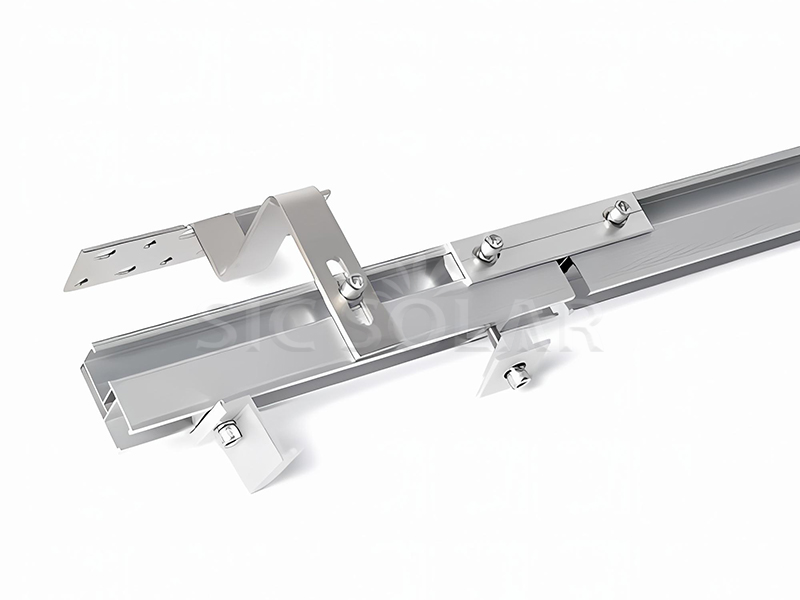

Photovoltaic rail splice bracket

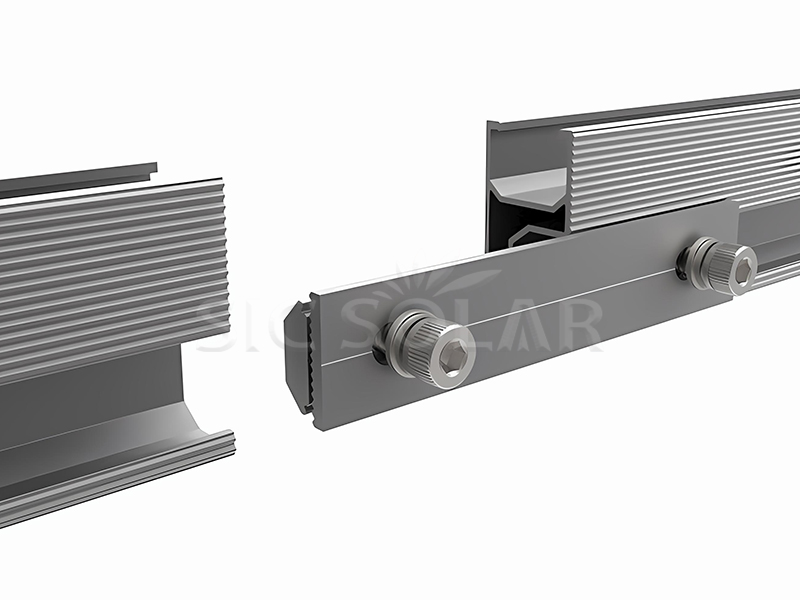

Aluminum rail splice kit

Installation Site	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5 & SUS304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ First, line up the two mounting rails, leaving a small space between their ends.

2️⃣ Then, slide the connector piece into the inside channels of both rails.

3️⃣ Make sure the connector is in the middle – that gives it the best stability.

4️⃣ Fasten it with stainless steel bolts or self-tapping screws.

5️⃣ Before you put on the solar panels, double-check that the rails are level and joined firmly.

Aluminium profile connector

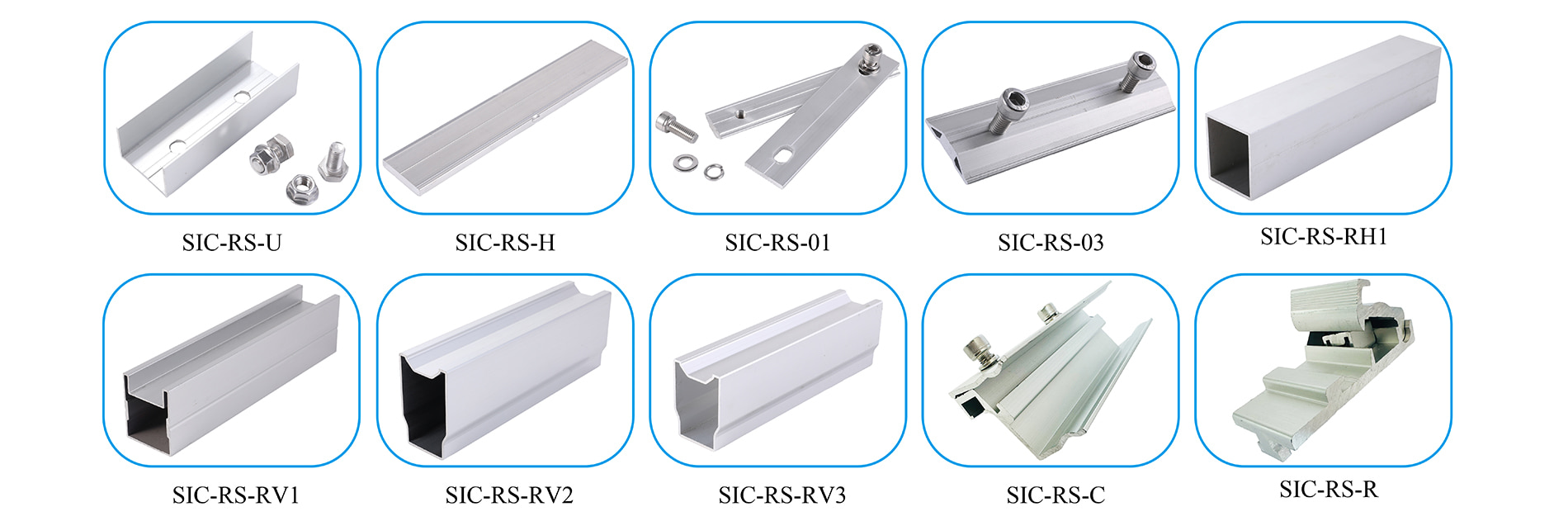

☆ We have different kinds of rail splices available, so you can extend any rail.

☆ They're very durable – the high-quality AL6005-T5 aluminum means they come with a 10-year warranty and should last around 25 years.

☆ These rail splices come pre-assembled, which really cuts down on the work needed when you're installing them.

Related certificate

☆ An aluminum quality certificate, showing the AL6005-T5 composition.
