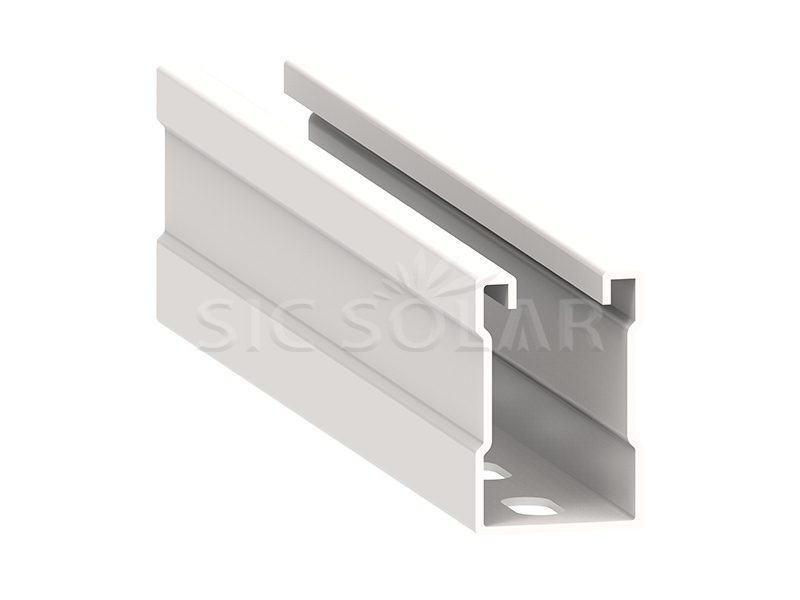

Solar Curled Galvanized Steel U Channel Rail

Click here to learn more aluminum rail

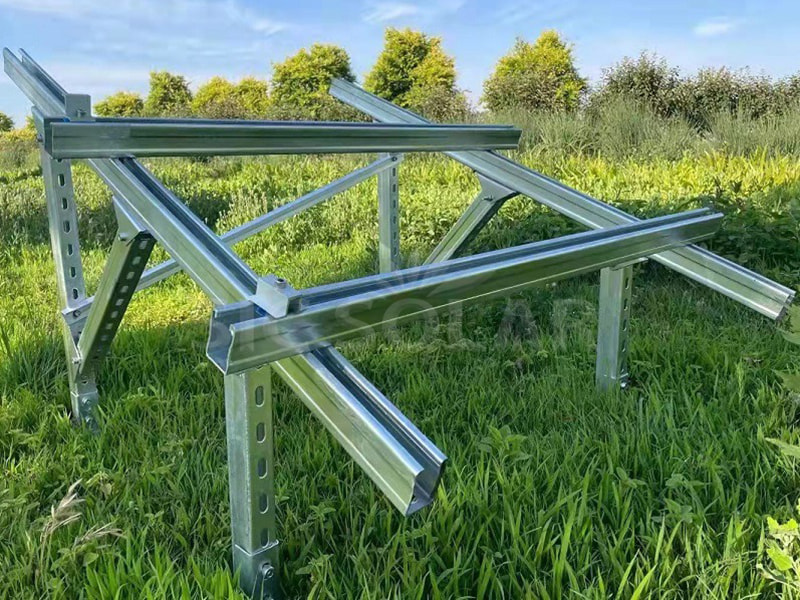

1. Prepare the foundation or structure: Confirm the alignment of pre-installed posts, beams or brackets, and ensure that the spacing matches the solar array layout.
2. Place the U-groove track: Install the U-groove track to the mounting structure using pre-cut grooves or marked positions, using alignment tools to keep the track parallel and level.
3. Secure the track: Secure with hex bolts, track clamps or saddle brackets depending on the system design, tighten the bolts to the specified torque to ensure stability.

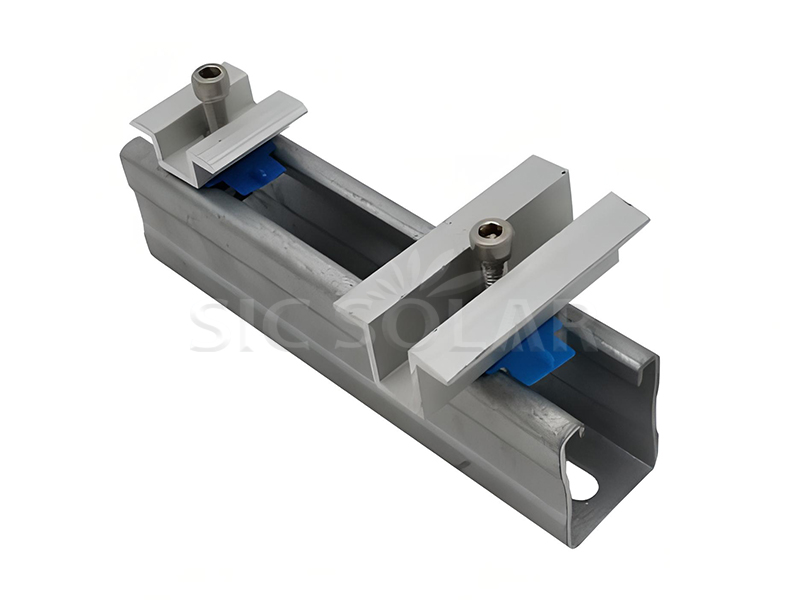

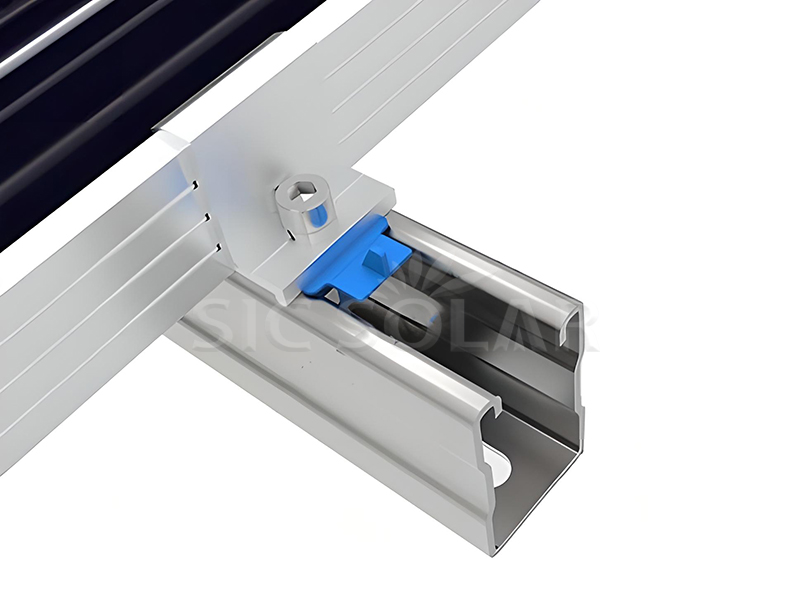

4. Install the solar panel: Secure the solar panel to the U-groove track using compatible mid- and end clamps, ensuring ground continuity between components as needed.
5. Final check: Check the tightness and structural integrity of all connections, and confirm that the alignment and spacing of the solar panels are correct.

Advantages as follow:

☆ Various rails could be offered for different strength request.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

Q1. What's the max length of rail ?

6.4m.

Q2. Can the aluminum profile be customized ?

Yes.
