Solar Hanger Bolt for Roof Panels Mounting

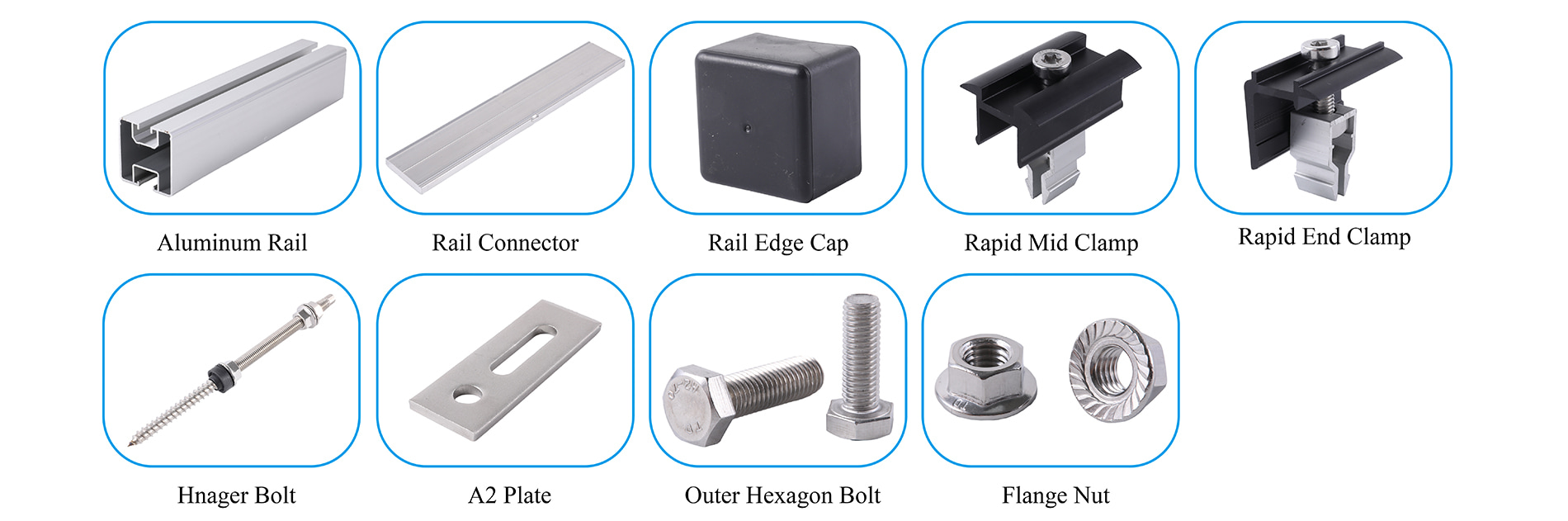

Click here to learn more components

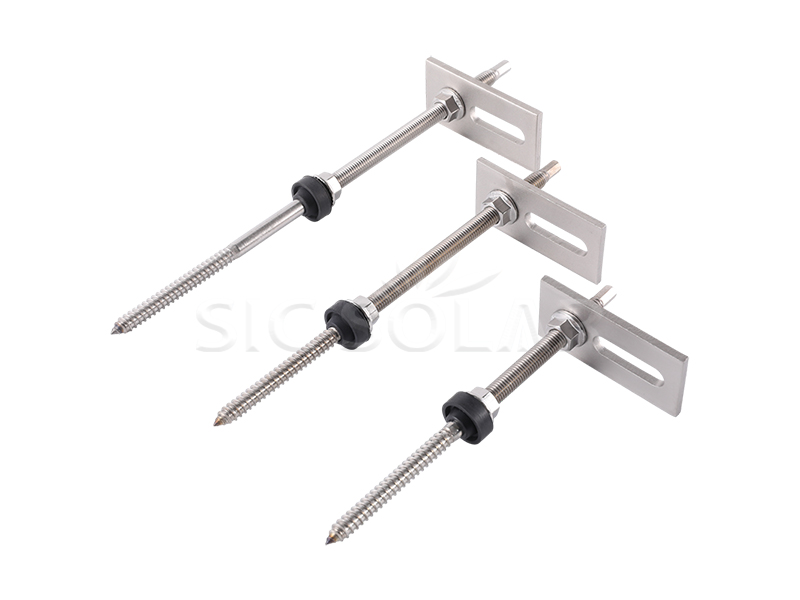

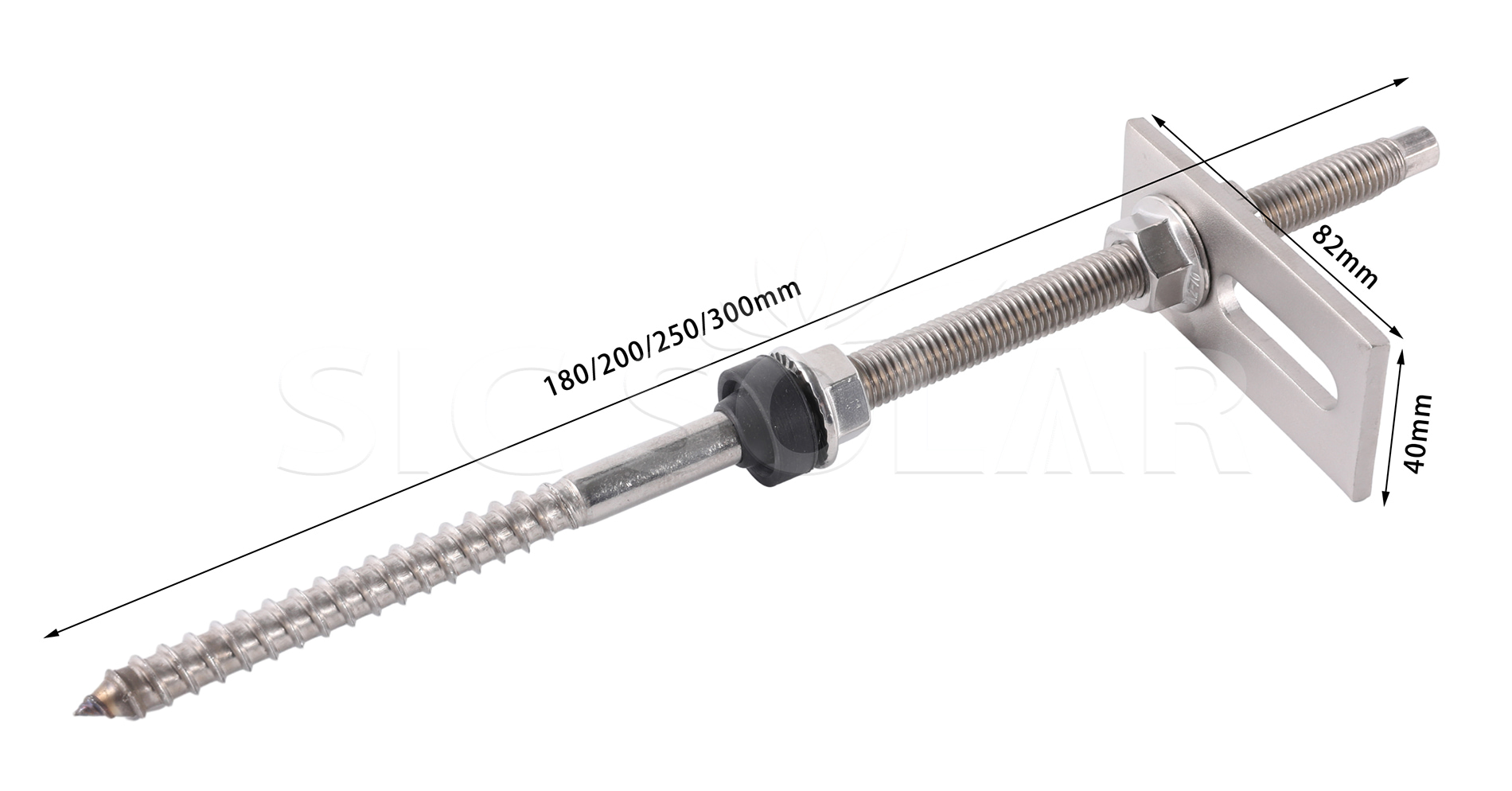

Hanger bolt can used with steel plate and aluminum L feet, Various types can fit different demand, pls see photo below.

1️⃣ Mark where the bolts will go based on the track layout.

2️⃣ Drill pilot holes if needed, especially in hardwood.

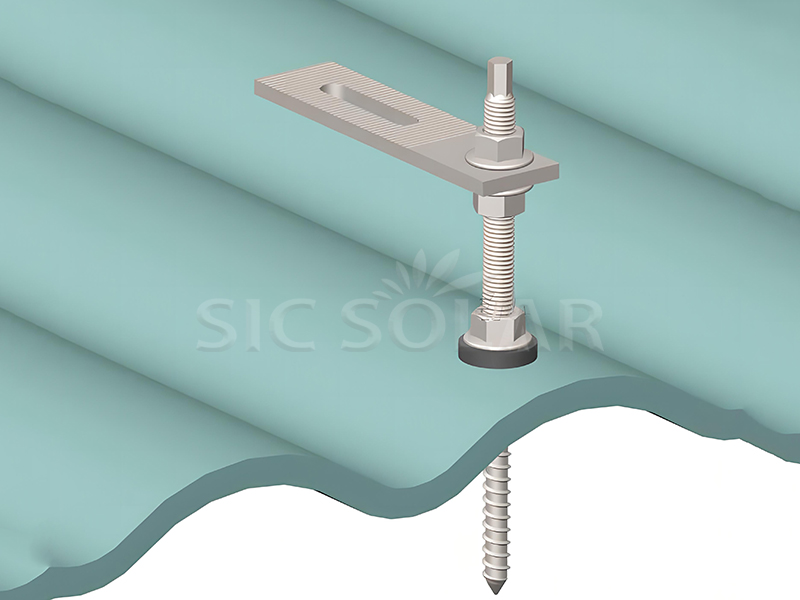

3️⃣ Screw the hanger bolts in until the EPDM washers fit snugly.

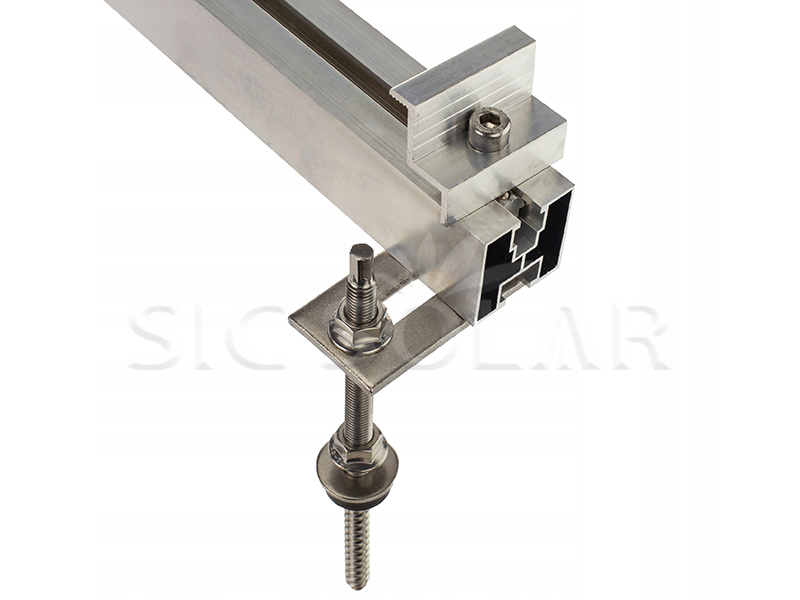

4️⃣ Attach the L-shaped legs, brackets, or tracks with nuts and washers.

5️⃣ Check that EPDM washers are fully compressed to seal waterproofing.

6️⃣ Finish by installing solar panels with clamps.

☆ Secure attachment directly to steel purlins.

☆ Durable stainless steel ensures up to 10 years warranty and about 25 years service life.

☆ EPDM rubber provides effective waterproof sealing.

☆ Pre-assembled parts save installation time and labor costs.

Related certificate

☆ Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

☆ Aluminum quality certificate -- AL6005-T5 composition list

Q1: Can I get a sample order?

Yes, there is no MOQ limited, one sample order is ok.

Q2: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.
