Adapter Plate Solar Bottom Plate Bracket for Solar Roof Mounting

Adapter Plate Solar Bottom Plate Bracket For Solar Roof Mounting is a base for mounting solar panels to roofs. It's a simple base that you can use to attach different mounting brackets or rails, so it works with many kinds of solar roof setups.

Brand:

SIC SOLAR

Item NO.:

SIC-SP

Installation Site:

Hanger Bolts

Color:

Natural or Customized

Material:

SUS304

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Technical Details Installation Guide Package Advantage

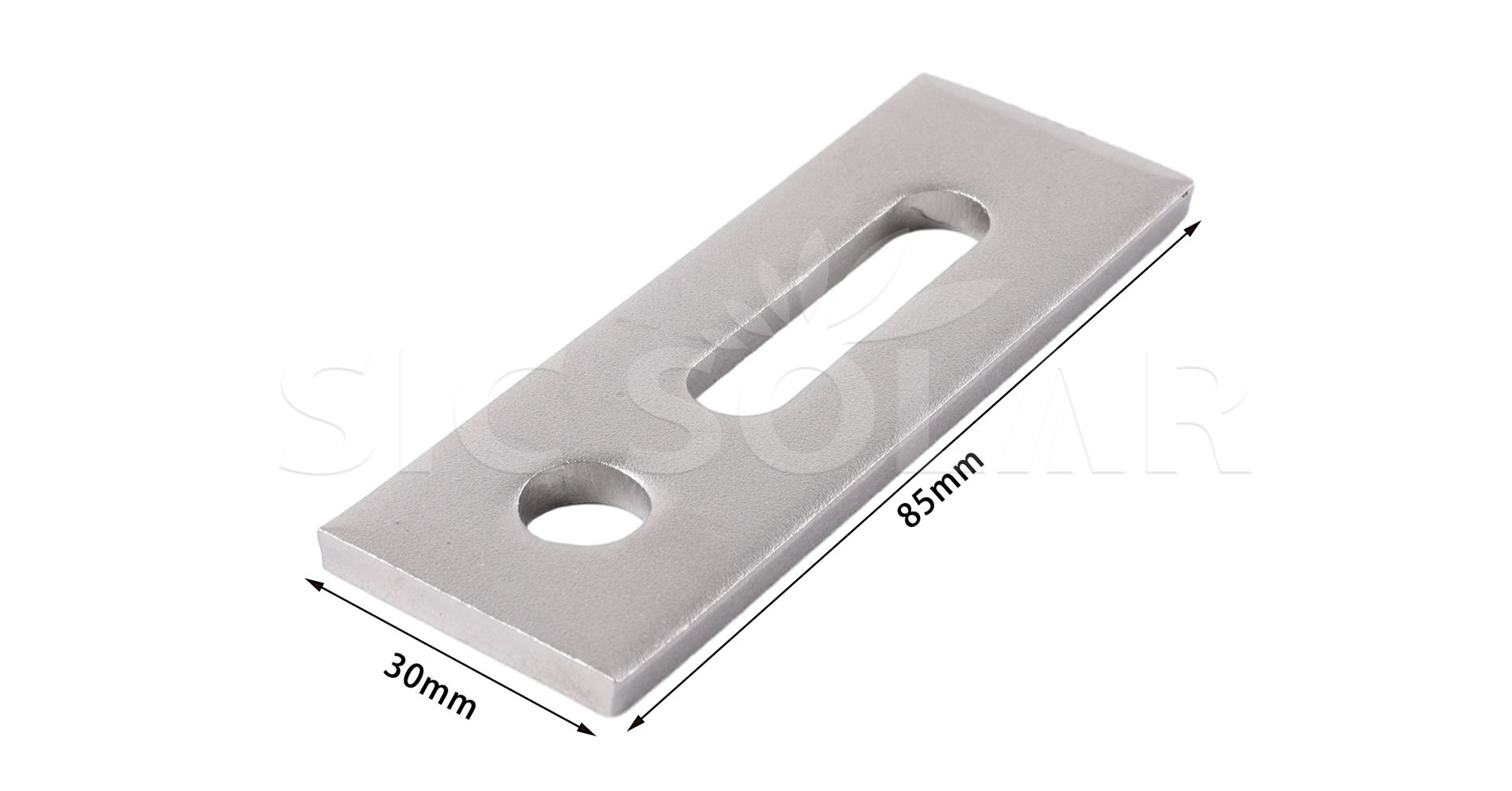

Solar Adapter Plate Dimensions

Installation Site	Hanger Bolts
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	SUS304
Color	Natural or Customized
Anticorrosive	Stainless steel
Warranty	10 years and 25 years service time

1️⃣ Mark where you want to put the adapter plate on the roof.

2️⃣ Install the plate, If you need to, drill holes and use bolts or plugs to secure it. Seal it to keep water out.

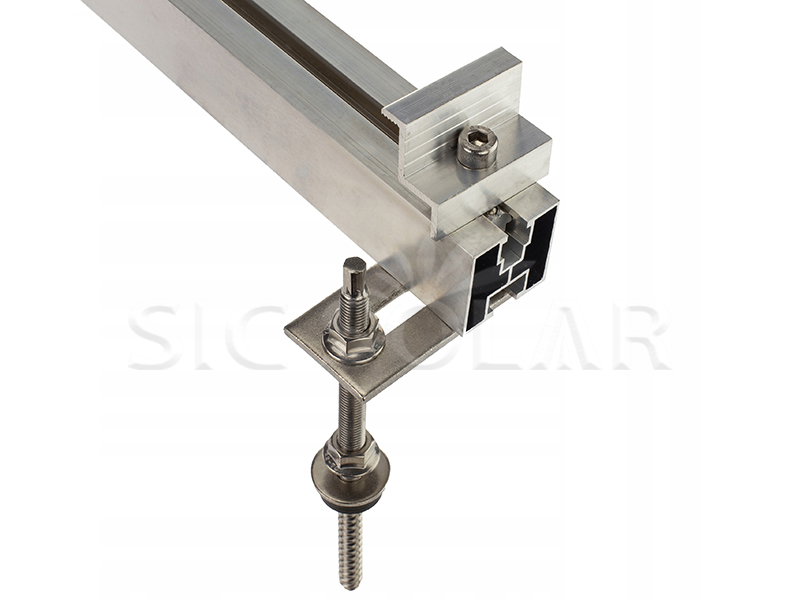

3️⃣ Add Mounting Parts: Attach L-brackets, rails, or other parts to the adapter plate using the holes.

4️⃣ Tighten everything and make sure it's lined up right. The base should be secure and waterproof.

Solar panel hold down clamps

☆ Very Durable: Made with good stainless steel (304). We guarantee it for 10 years and it should last for 25.

☆ Mostly Pre-assembled: This saves you time and money on installation.

Related Certificate

☆ CE Certificate for our solar tile hook roof mount system.

☆ SGS Certificate for the hook material (SUS304).

☆ SGS Certificate for the bolt material (SUS304).
