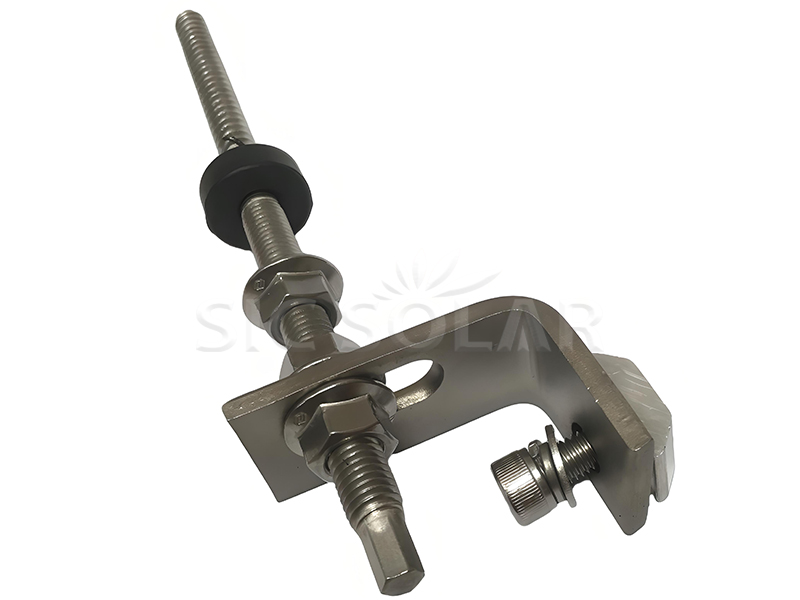

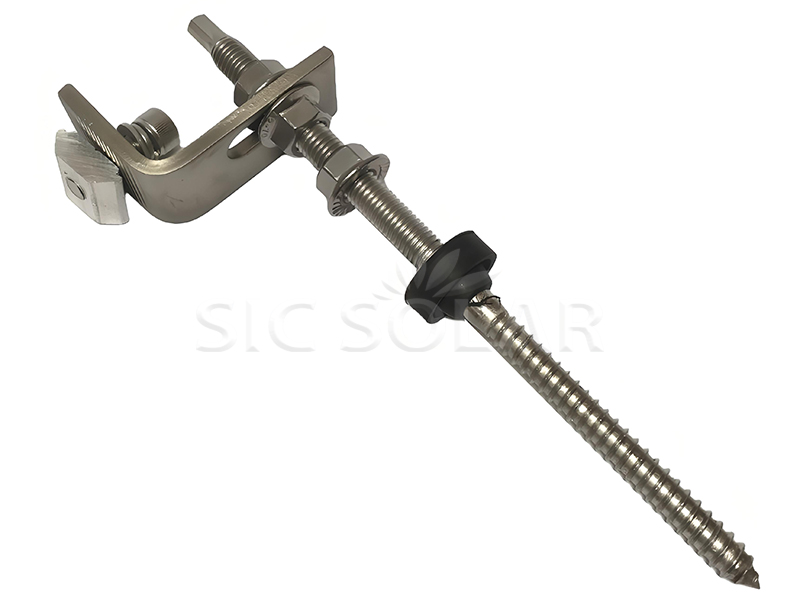

Solar Hanger bolt for wood beam With stainless steel L feet

1️⃣ Mark the Fixing Points: Locate the wooden beams or rafters and mark the installation positions according to the mounting layout and load requirements.

2️⃣ Drill Pilot Holes: Drill holes of the recommended size and depth for the hanger bolts.

3️⃣ Install the Hanger Bolts: Screw the bolts into the timber, keeping them straight and securely seated.

4️⃣ Attach the L Feet: Fit the stainless steel L feet onto the bolts, adjust their position, and secure them with suitable washers and nuts.

5️⃣ Install the Rails: Attach the solar mounting rails to the L feet, check the alignment, and tighten all fasteners to the specified torque.

☆ Secure Timber Fixing: The hanger bolts anchor directly into wooden beams or rafters to support the mounting structure.

☆ Corrosion Resistance: SUS304 stainless steel L feet offer good resistance to corrosion in outdoor conditions.

☆ Waterproofing Support: Compatible EPDM washers or sealing components help reduce the risk of water leakage around roof penetrations.

☆ Pre-Assembled Components: Ready-to-install parts help reduce on-site assembly time and labor costs.

Related Certificates

☆ Strength Test Report: Provides information on mounting system performance under specified wind and snow loads.

☆ Aluminum Quality Certificate: Provides the material composition details for AL6005-T5 aluminum alloy, where applicable to the supplied components.

Q1: Which roof types is this product suitable for?
It is designed primarily for roofs with wooden beams or rafters. Suitability for a specific roof covering depends on the roof structure and required waterproofing method.

Q2: How does the system help prevent roof leaks?
Compatible waterproof washers, flashing, or sealing components can help seal roof penetrations. Correct installation is essential, as the hanger bolt alone does not guarantee waterproofing.

Q3: Can it be used with different solar mounting rails?
Compatibility depends on the L-foot dimensions, hole configuration, and rail fastening method. Check the rail specifications before installation.

Q4: What should be checked before installation?
Check the timber condition, hanger bolt dimensions, L-foot material, rail compatibility, fastening requirements, waterproofing method, and project-specific load requirements.

Q5: What information is needed for a quotation?
Provide the required quantity, hanger bolt length and thread size, stainless steel grade, L-foot dimensions, mounting rail type, and roof structure details.
