Home Products Solar Components Aluminum rail Solar Panel Mounting Aluminum Rail For PV Roof Mount
Solar Panel Roof Mount Rail For Pv Bracket Mounting
Solar Panel Roof Mount Rail For Pv Bracket Mounting
Solar Panel Roof Mount Rail For Pv Bracket Mounting

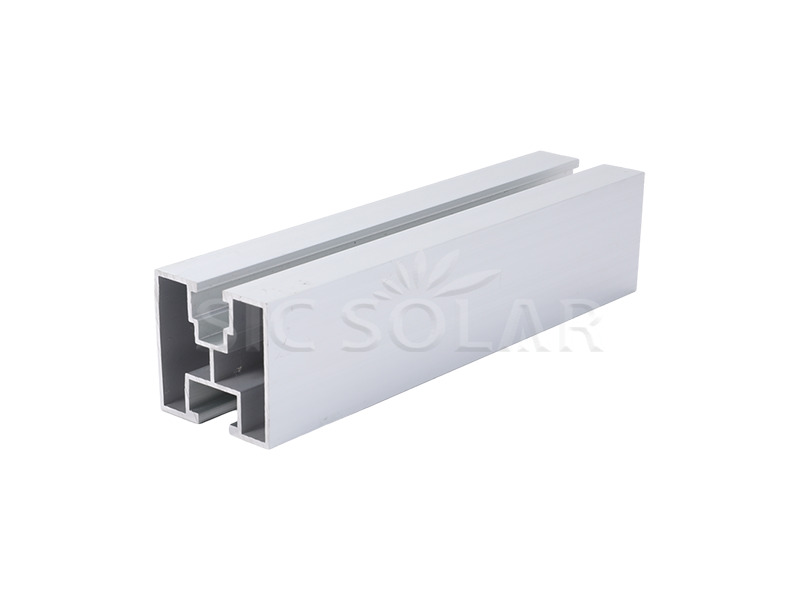

Solar Panel Mounting Aluminum Rail For PV Roof Mount

Solar Panel Mounting Aluminum Rail for PV Roof Mount is an important part of solar systems, made to hold the panels firmly in place. These rails act as the base for the solar setup, giving a strong and reliable frame to attach the panels.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-R4017

  • Shipping Port:

    Xiamen ,China

  • Color:

    Silver & Black

  • Material:

    AL6005-T5

  • Warranty:

    10 years and 25 years service time

  • Function:

    Support solar panel
Inquire Now
Download



Solar Panel Mounting Aluminum Rail

Made from good-quality aluminum, the Solar Panel Mounting Aluminum Rail For PV Roof Mount are lightweight but strong enough to support the panels. They handle outdoor weather well without rusting or corroding.

Solar roof component

Solar Panel Mounting Aluminum Rail For PV Roof Mount come with pre-drilled holes or slots, which makes it easier to install the panels and saves time for workers. They come in different lengths and sizes to fit various roof types and panel layouts, so they can be used in many situations.

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more aluminum rail

Whole solar panel mounting brackets



Solar Panel Roof Mounting Rail

Installation Site

Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

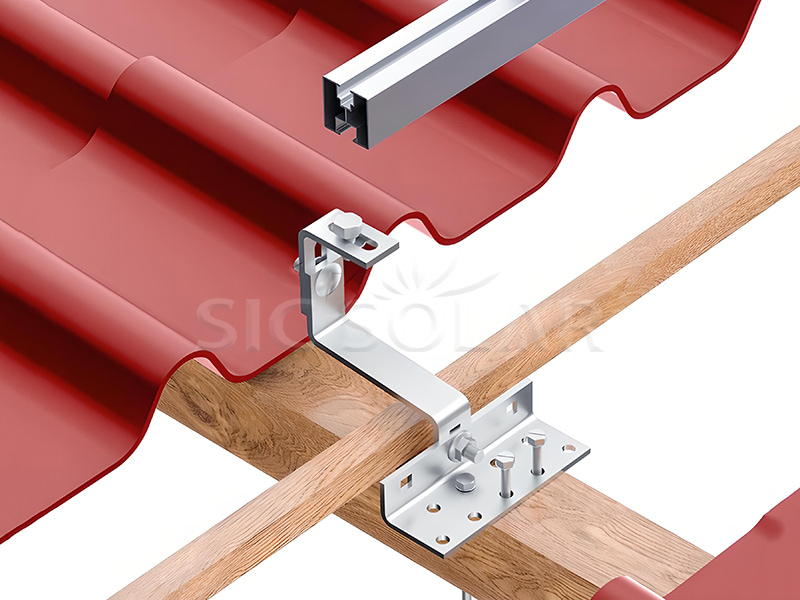

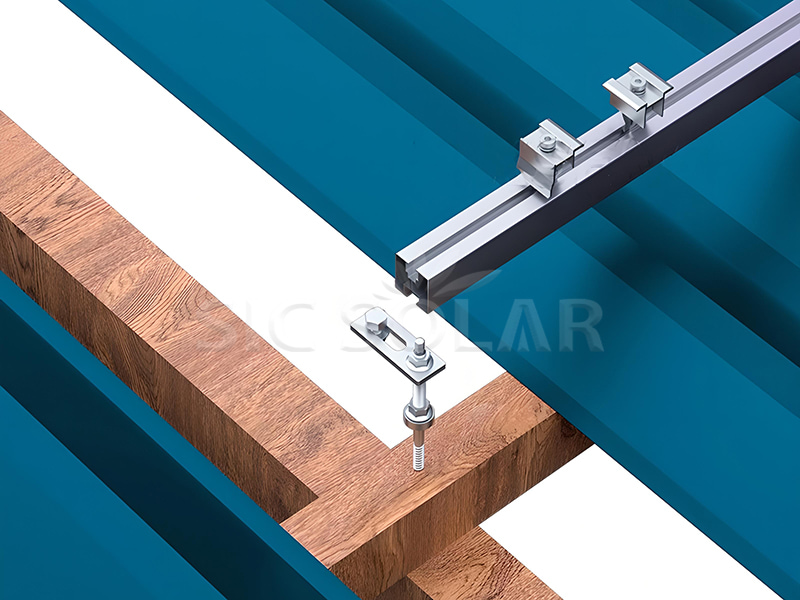

1️⃣ Plan the layout by deciding where the rails should go based on the panel arrangement.

2️⃣ Attach hooks, clamps, or brackets to the roof.

3️⃣ Place the aluminum rails onto these fixtures and line them up correctly.

4️⃣ Tighten bolts and connectors to secure the rails firmly.

5️⃣ Install the solar panels using clamps at the ends and in the middle.

6️⃣ Check to make sure all panels are level and properly fixed.

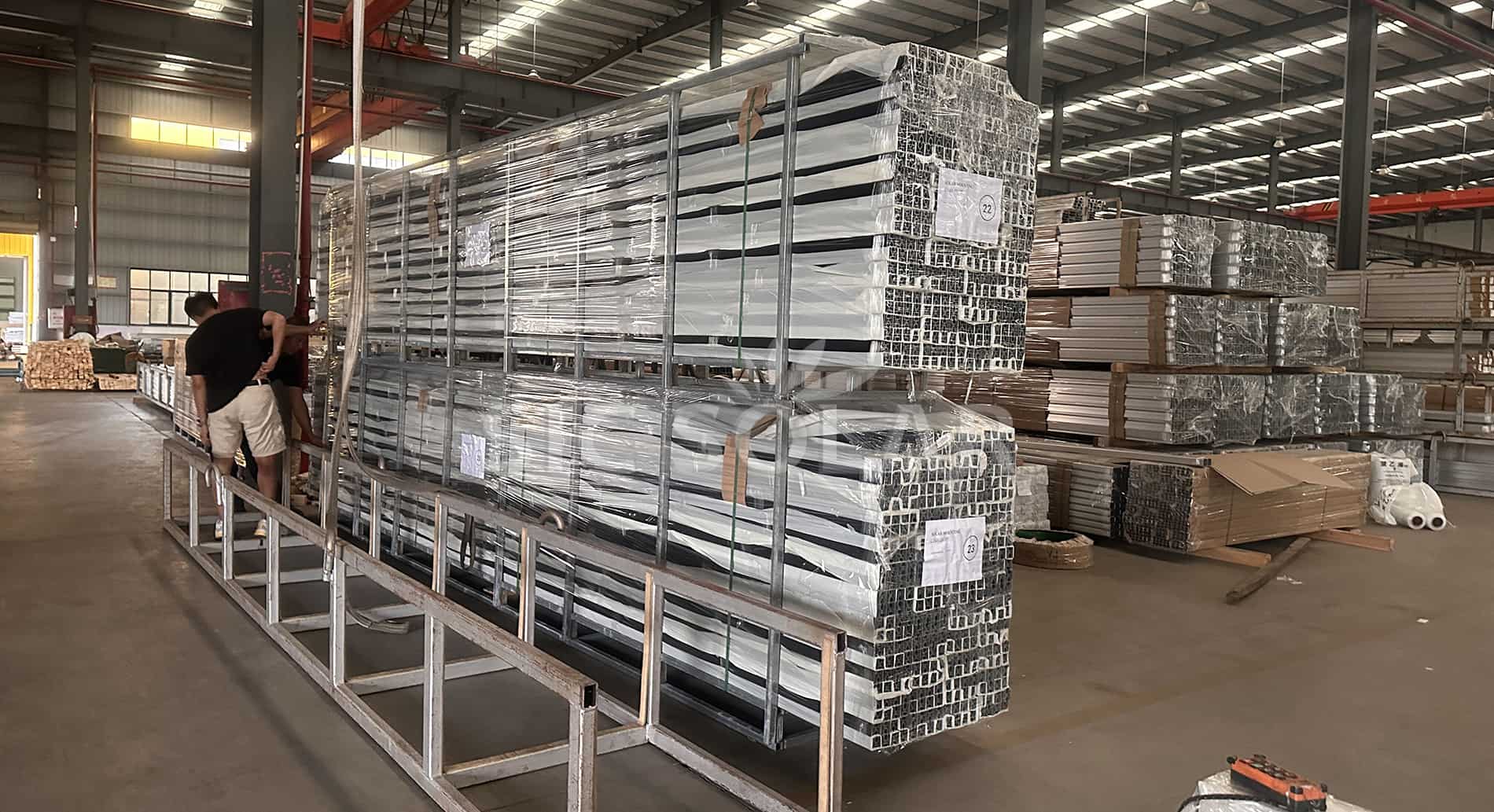

Rail packing

☆ Different rails are available depending on the strength needed.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ The aluminum profile is light and easy to work with, plus it resists corrosion.



Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.

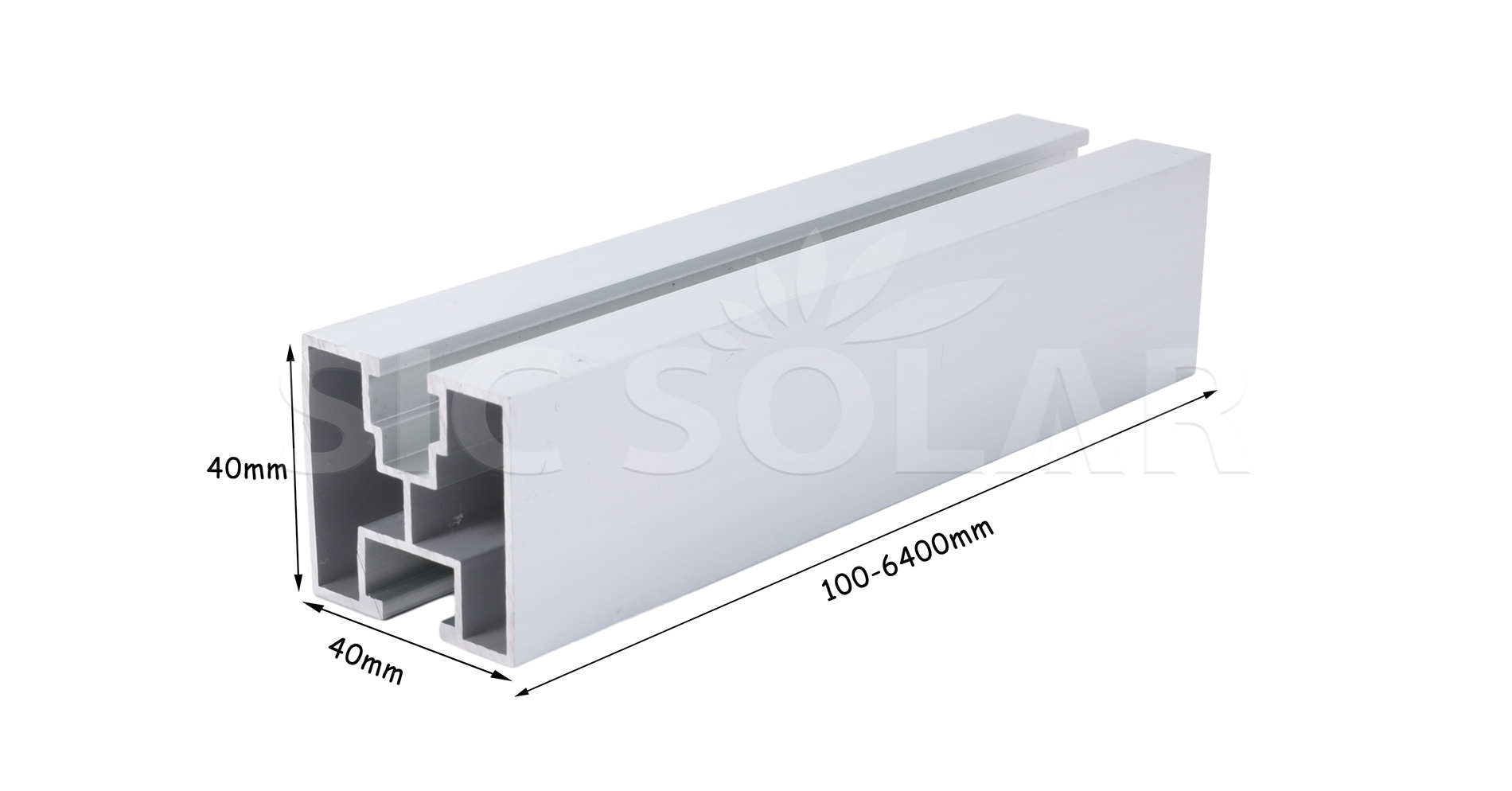

Q1. What's the max length of rail ?

6.4m.



Q2. Can the aluminum profile be customized ?

Yes.
