Aluminum Rail For Mounting Solar Panel

Aluminum Rail for Mounting Solar Panel is a lightweight, durable component that provides a stable base for PV modules. It connects the panels to the roof or ground mounting structure and keeps them securely positioned throughout the life of the system.

Brand:

SIC SOLAR

Item NO.:

SIC-R0

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Roof or Ground Solar Systems

Color:

Natural or Customized

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Surface:

Anodized

Length:

100-6400mm

Function:

Support solar panel

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Technical Details Installation Guide Package Advantage FAQ

click here to learn more rails

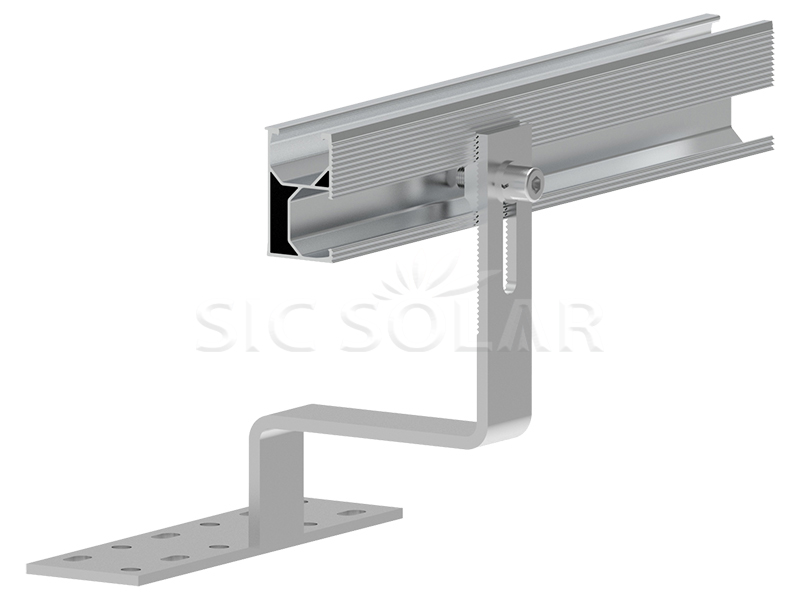

Solar Panel Roof Rail

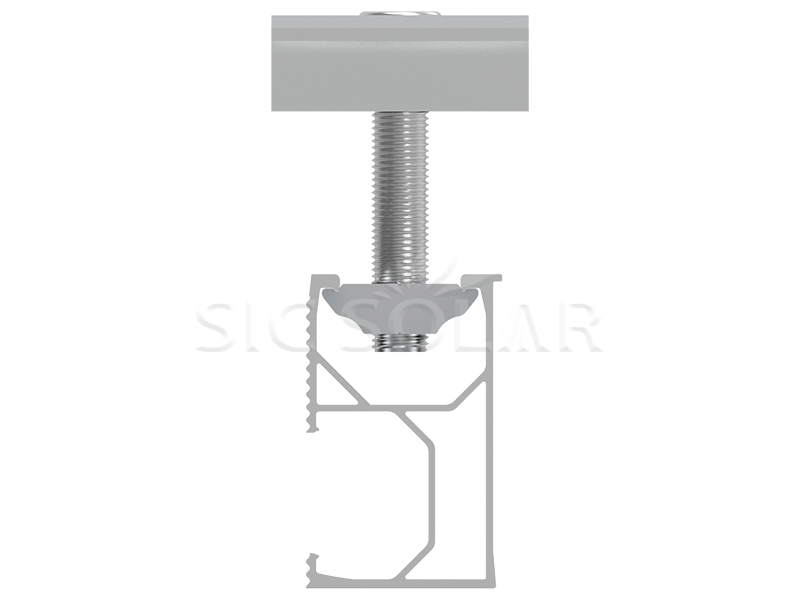

Solar Panel Rail

Name	Aluminum Rail For Mounting Solar Panel
Installation Site	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M²
Material	AL 6005-T5
Color	Natural or Customized
Warranty	10 years and 25 years service time

1️⃣ Plan the Layout：Determine the panel layout and measure where the mounting rails will be installed.

2️⃣ Install the Rails：Fix the rails to the roof or supporting structure using the appropriate brackets, L feet, roof hooks, or other mounting components. Check the spacing and alignment before tightening.

3️⃣ Mount the Solar Panels：Place the panels on the rails and secure them with compatible mid clamps and end clamps.

4️⃣ Complete the Wiring：Connect the panels to the inverter and other electrical equipment according to the manufacturer's instructions and applicable safety requirements.

5️⃣ Final Check：Check the rails, clamps, fasteners, panel alignment, and electrical connections before putting the system into operation.

Rail packing

☆ Lightweight: Aluminum construction makes transportation and installation easier.

☆ Corrosion Resistant: Anodized aluminum offers good protection against long-term outdoor exposure.

☆ Easy Installation: Compatible with common solar mounting accessories.

☆ Flexible Design: Different lengths and profiles can suit various PV layouts.

☆ Customizable: Rail specifications can be adjusted to meet specific project requirements.

☆ Low Maintenance: Requires little maintenance when properly installed and inspected.

Q1. What is the maximum rail length?

The maximum standard rail length is 6.4 m.

Q2. What material is used for the solar mounting rail?

The rail is made from AL6005-T5 aluminum alloy, offering a good combination of strength, low weight, and corrosion resistance.

Q3. Can the aluminum profile be customized?

Yes. Rail length, profile, and other specifications can be customized based on the panel layout and project requirements.

Q4. What accessories are compatible with aluminum solar rails?

Common accessories include mid clamps, end clamps, rail connectors, L feet, roof hooks, and other compatible mounting brackets.

Q5. Can two aluminum rails be connected together?

Yes. Rail connectors can join two or more rail sections when a longer mounting track is required.
