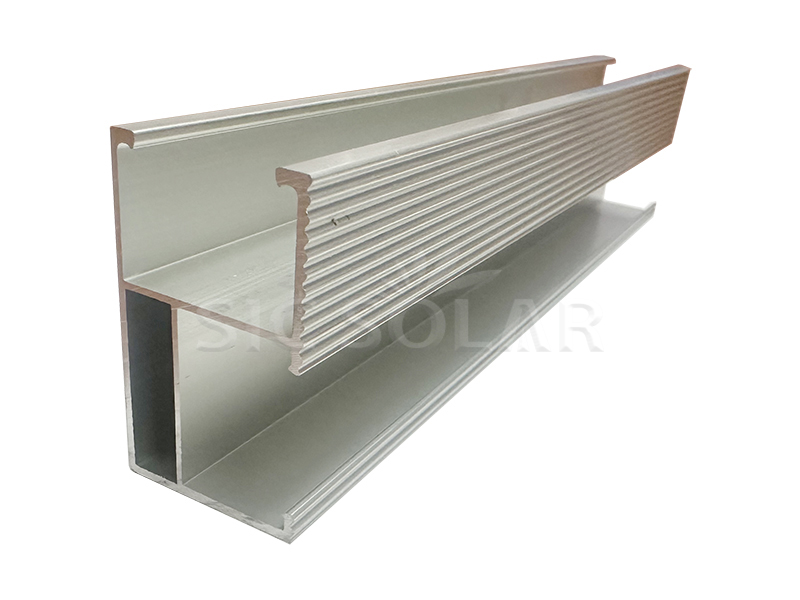

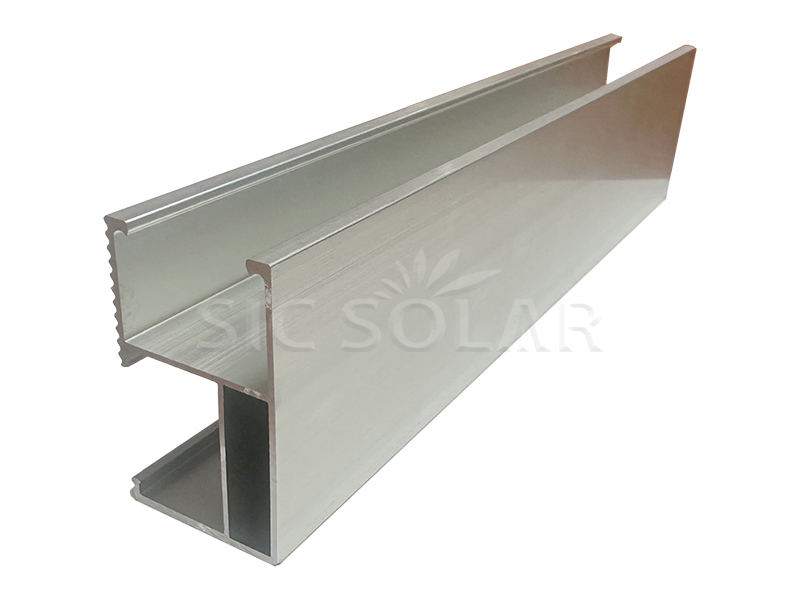

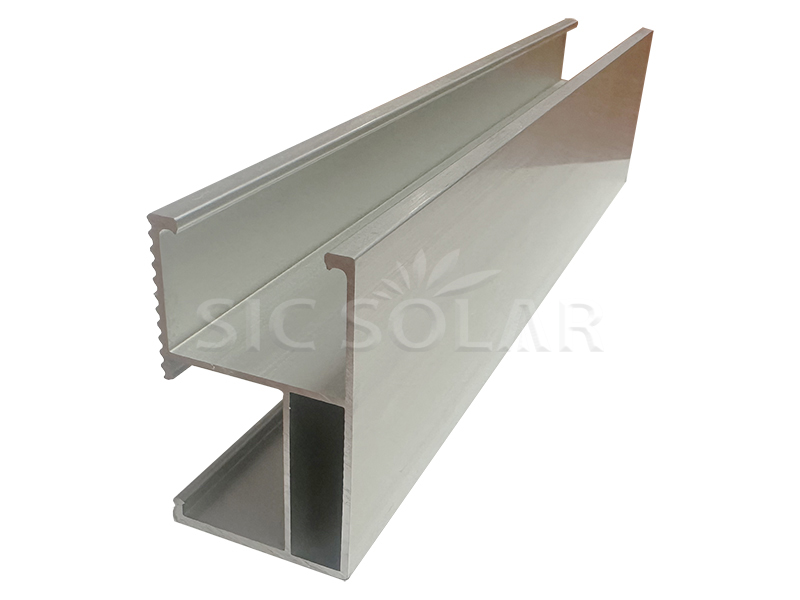

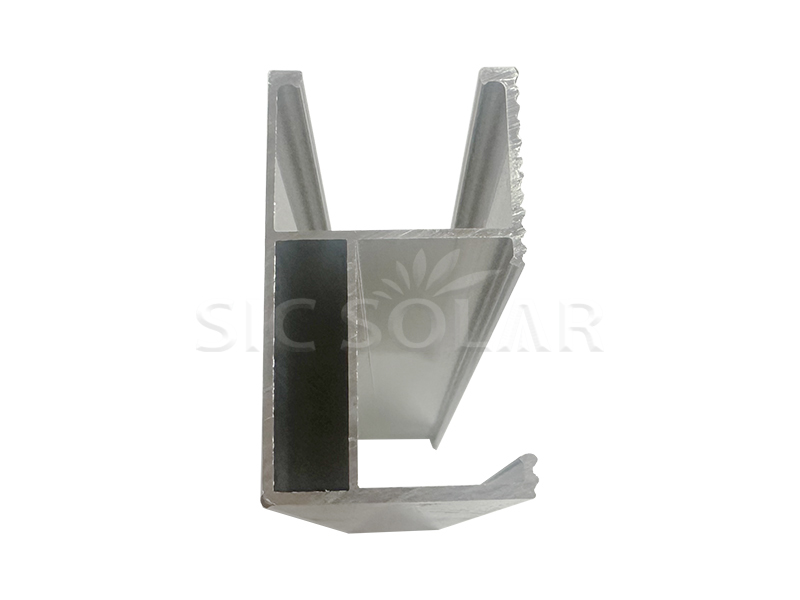

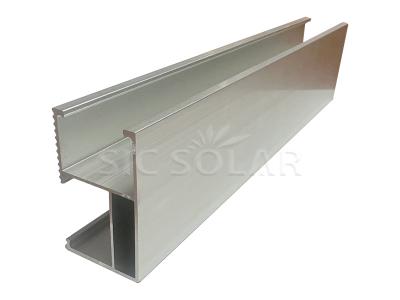

Aluminium Solar Panel Mounting Rails

Click here to learn more solar rail

1️⃣ Plan the Layout – Determine the rail spacing based on the panel size, roof type, and system design.

2️⃣ Install the Rails – Attach the aluminum rails to the roof using suitable hooks, L-brackets, or clamps with stainless steel screws.

3️⃣ Align the Rails – Check that the rails are straight and level, and adjust them as needed.

4️⃣ Install the Panels – Place the PV modules on the rails and secure them with mid and end clamps.

5️⃣ Final Check – Make sure all screws are properly tightened and the rails and panels are correctly aligned and stable.

1️⃣ Plan the Layout – Determine the rail spacing based on the panel size, roof type, and system design.

2️⃣ Install the Rails – Attach the aluminum rails to the roof using suitable hooks, L-brackets, or clamps with stainless steel screws.

3️⃣ Align the Rails – Check that the rails are straight and level, and adjust them as needed.

4️⃣ Install the Panels – Place the PV modules on the rails and secure them with mid and end clamps.

5️⃣ Final Check – Make sure all screws are properly tightened and the rails and panels are correctly aligned and stable.

Q1: What is the maximum rail length?
The maximum standard rail length is 6.4 m.

Q2: Can the rails be cut to different lengths?
Yes. They can be cut on site to fit different system layouts.

Q3: Can multiple rails be connected together?
Yes. Rail connectors can join multiple sections to create longer mounting runs.

Q4: Can these rails be used on different roof types?
Yes. They can be used with different roof mounting systems when the appropriate brackets and accessories are selected.

Q5: Can the rail specifications be customized?
Yes. Length, profile, and other specifications can be customized based on project requirements.
