Trapezoidal Metal Roof Clamp

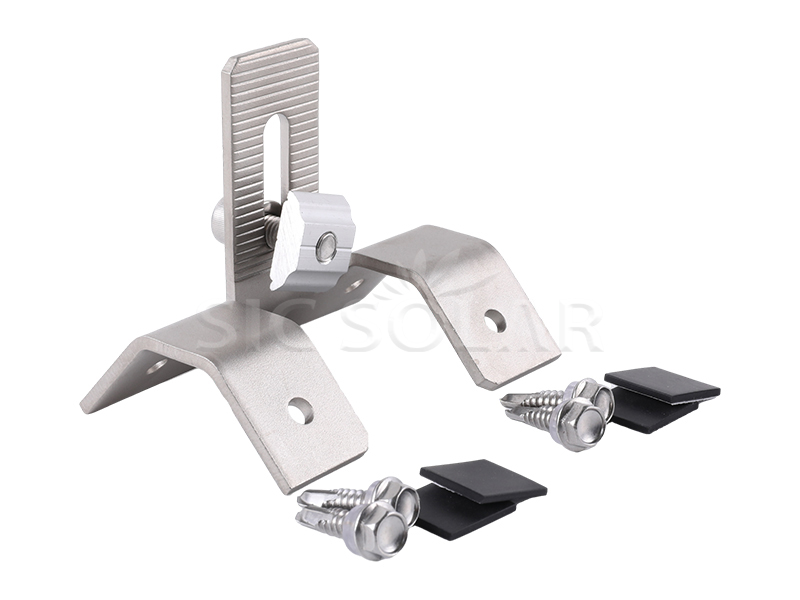

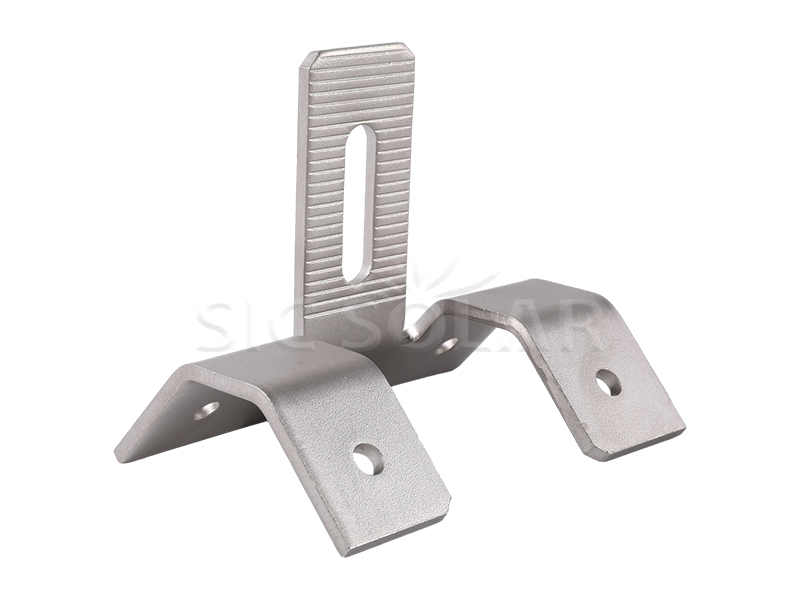

Trapezoidal Metal Roof Clamp is a solar mounting accessory used to secure mounting rails or solar panels to compatible trapezoidal metal roofs. It provides a stable connection between the roofing structure and the photovoltaic mounting system, supporting efficient and secure installation.

Brand:

SIC SOLAR

Item NO.:

SIC-MH-01

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Trapezoidal roof

Color:

Nature

Material:

SUS304

Warranty:

10 years and 25 years service time

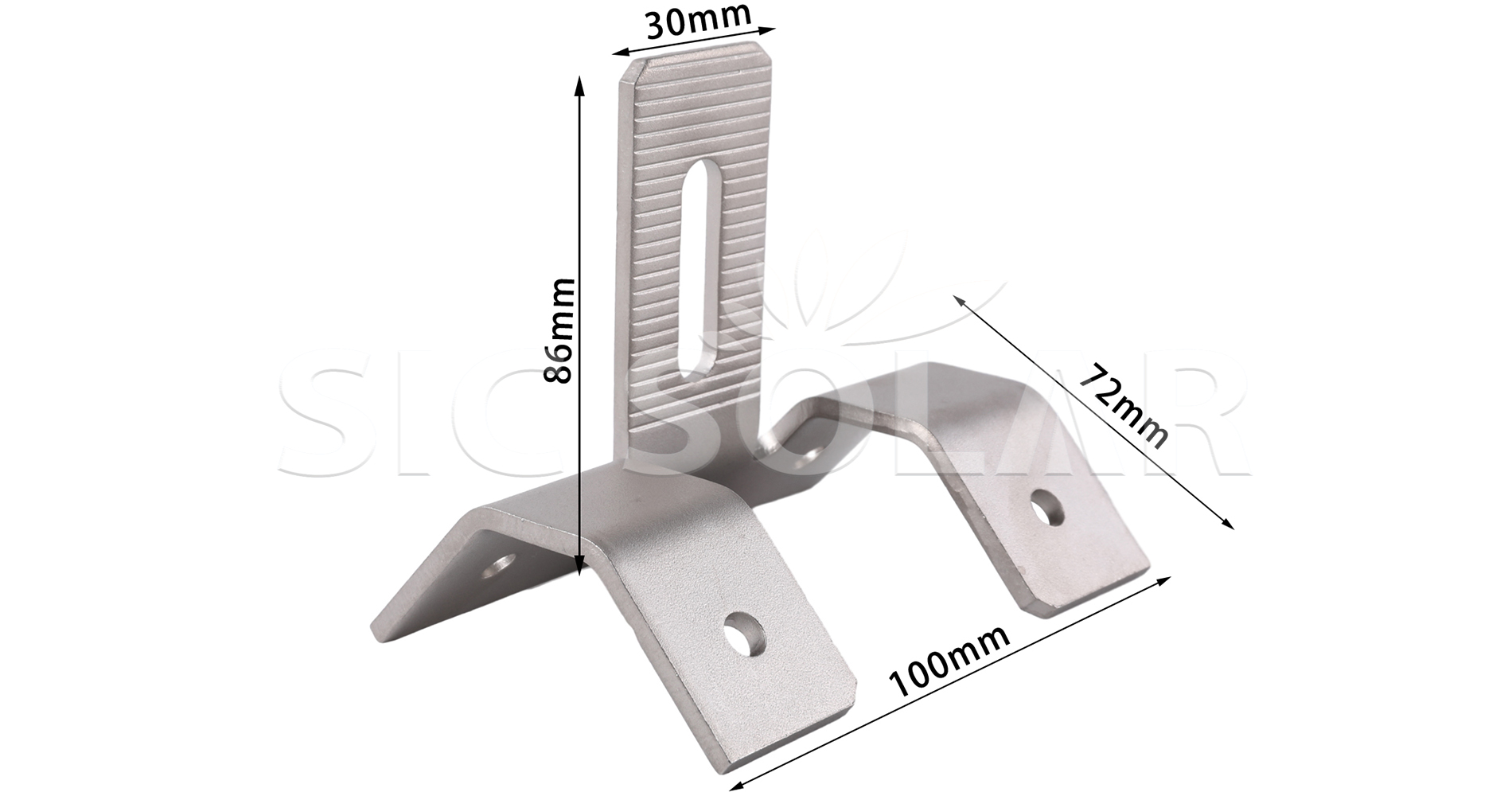

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more metal clamps

Types roof clamp

Solar Trapezoidal Metal Roof

Installation Site	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M²
Material	SUS304
Color	Natural or Customized
Anticorrosive	stainless steel
Warranty	10 years and 25 years service time

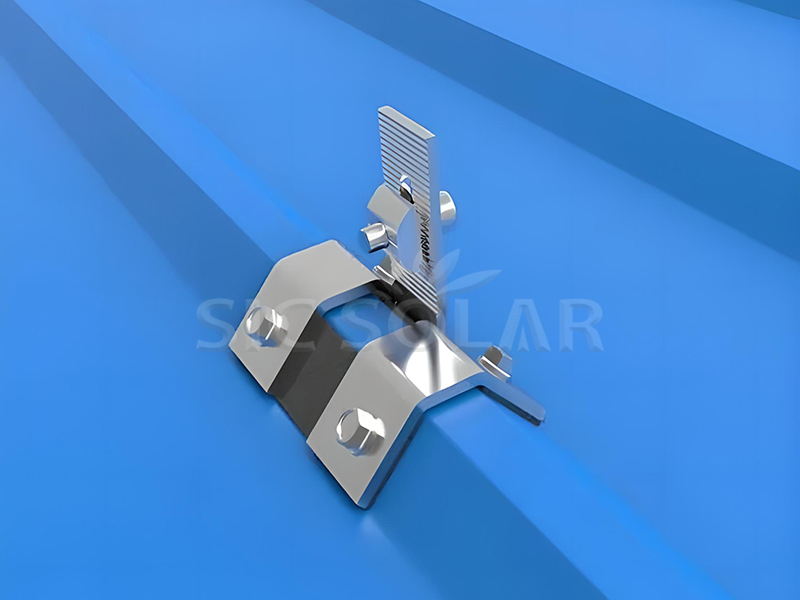

1️⃣ Position the Clamp: Place the clamp on the appropriate raised rib of the trapezoidal metal roof.

2️⃣ Secure the Clamp: Fasten it using suitable self-tapping screws or set screws, depending on the roof profile and system design.

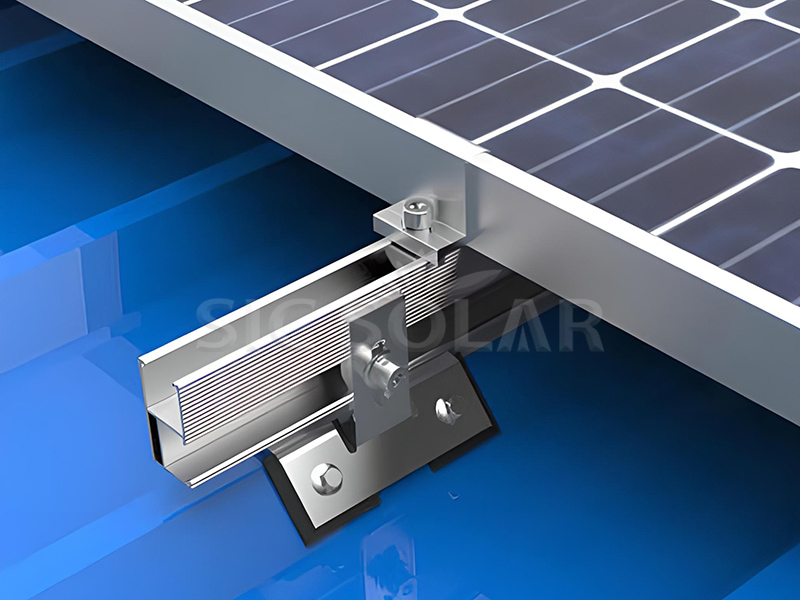

3️⃣ Install the Rail: If mounting rails are required, attach them to the clamp and ensure the connection is secure.

4️⃣ Mount the Panels: Secure the solar panels using suitable middle and end clamps.

5️⃣ Complete the Inspection: Check all fasteners and connections to ensure the system is properly aligned, secure, and stable.

Solar bracket package

☆ Designed for Trapezoidal Metal Roofs: Developed for use with compatible trapezoidal roofing profiles and raised ribs.

☆ Practical Installation: The compact design supports efficient installation when used with suitable tools and fasteners.

☆ Flexible System Integration: Compatible with suitable solar rails, panel clamps, and other mounting accessories.

☆ Customizable Design: Dimensions, hole positions, materials, and connection configurations can be adapted to specific project requirements.

Related Certificates

☆ CE Certificate: Available for our solar mounting systems.

☆ SGS Certificate: Available for SUS304 hook materials.

☆ SGS Certificate: Available for SUS304 screw materials.

Q1: Which roofs are suitable for this clamp?
The clamp is mainly designed for trapezoidal metal roofing sheets. The roof profile, rib dimensions, sheet thickness, and fixing method should be checked before installation.

Q2: Can the clamp be used with all solar mounting rails?
No. Compatibility depends on the clamp connection, rail profile, fastener dimensions, and mounting configuration. These specifications should be confirmed before installation.

Q3: How do I select the correct clamp size?
Check the trapezoidal roof profile, rib dimensions, sheet thickness, mounting rail specifications, and required fixing method before selecting the clamp.

Q4: Can the clamp be customized?
Yes. Material, dimensions, hole positions, surface treatment, and connection configurations can be customized according to project requirements.

Q5: What information is needed before ordering?
Please provide the roof profile, rib dimensions, sheet thickness, mounting rail type, panel frame specifications, project location, and applicable wind or snow loads. This information helps our technical team confirm product compatibility and mounting requirements.
