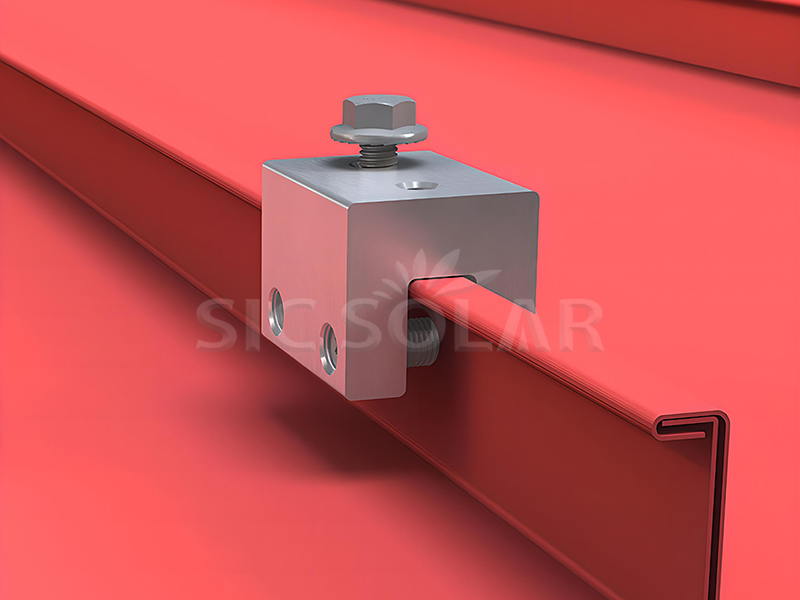

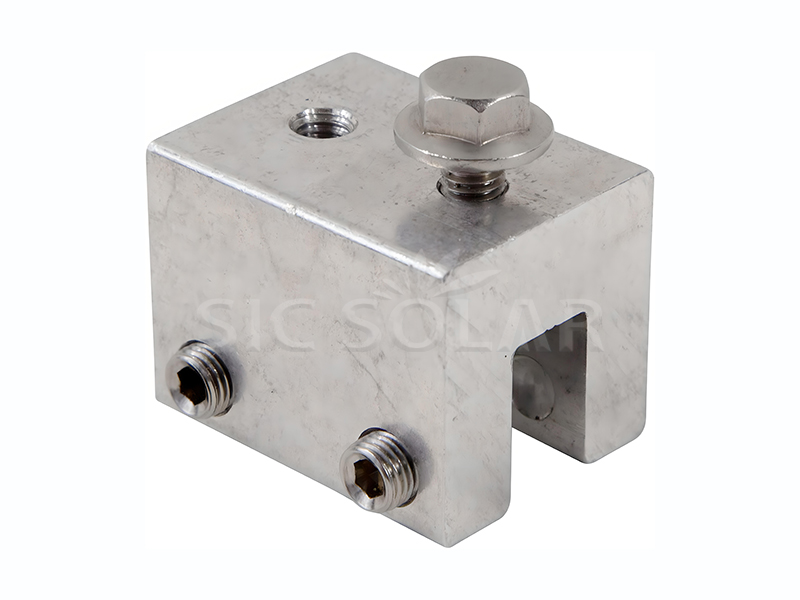

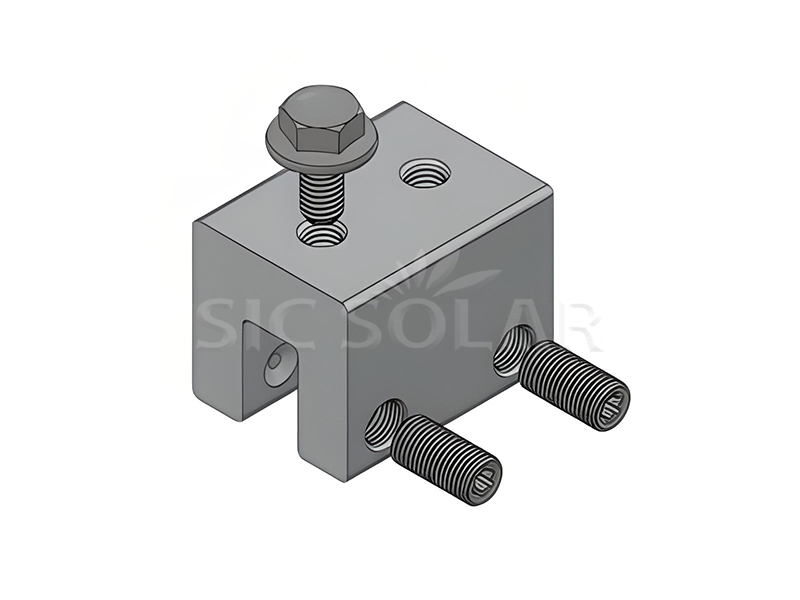

Klip Lok solar standing seam metal roof clamp

Click here to learn more clamps

1️⃣ Check the Roof Profile: Confirm that the clamp matches the seam shape, dimensions, and specifications of the roofing system.

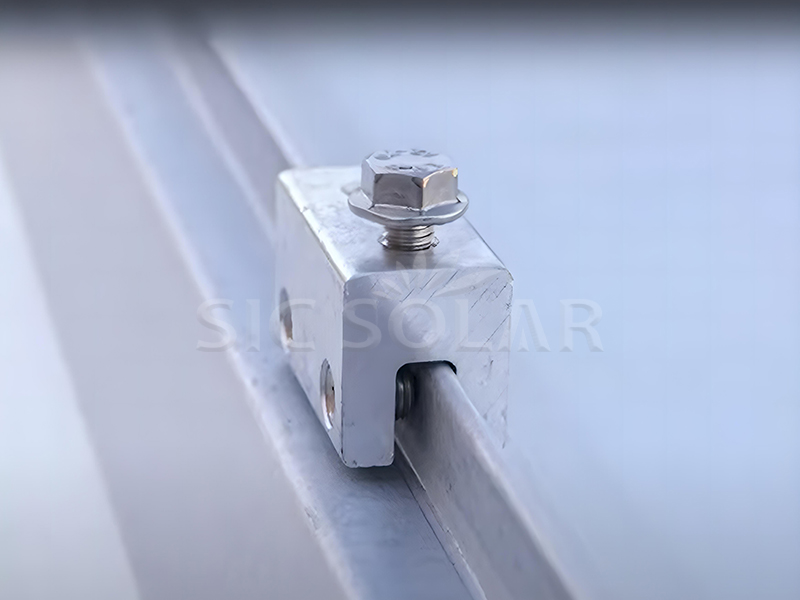

2️⃣ Position the Clamp: Place the clamp on the raised seam according to the planned solar panel layout.

3️⃣ Tighten the Fasteners: Use the recommended tools and tightening torque to secure the clamp without over-tightening or deforming the seam.

4️⃣ Install the Rails or Brackets: Attach compatible mounting rails or brackets to the clamps according to the system design.

5️⃣ Inspect the Installation: Check clamp alignment, fastener tightness, and connection stability before installing or commissioning the panels.

☆ Non-Penetrating Installation: Attaches to compatible standing seams without drilling through the roof sheets.

☆ Helps Preserve Waterproofing: Avoiding roof penetrations helps reduce the risk of leaks caused by mounting holes.

☆ Quick Installation: The clamping design simplifies installation on compatible metal roof profiles.

☆ Lightweight Options: Aluminum models help keep the mounting system's additional weight low.

Related Certificate

☆ Strength Test Report: Provides information on the mounting system's performance under specified wind and snow load conditions.

Q1: Does the clamp require drilling into the roof?
Generally, no. It grips the standing seam without penetrating the roof sheet. Always check the specific clamp design and roofing manufacturer's requirements.

Q2: Is it compatible with all Klip Lok metal roofs?
Not necessarily. Seam shapes and dimensions vary between roofing profiles. Confirm compatibility with the exact roof model before installation.

Q3: Can installation damage the standing seam?
When correctly selected and installed, the clamp is designed to secure the seam without unnecessary roof penetration. Incorrect positioning or excessive tightening may deform or damage the metal.

Q4: Is additional waterproofing required?
Since the clamp generally does not penetrate the roof sheet, sealing around mounting holes is usually unnecessary. Follow the roofing manufacturer's instructions for any specific sealing requirements.

Q5: Can the clamp be customized?
Depending on the manufacturer, clamp dimensions, seam profiles, fasteners, and surface treatments may be customized to suit specific roofing systems.
