Solar Roof Mount Bracket Slate Tile Roof Hook

Click here to learn more hooks

1️⃣ Find the rafter under the slate tile.

2️⃣ Carefully lift the slate tile to avoid breaking it.

3️⃣ Place the hook on top of the rafter.

4️⃣ Use stainless steel screws or bolts to secure the hook.

5️⃣ Adjust the hook’s position using the slots to line it up with the mounting rails.

6️⃣ Put the slate tile back onto the hooks properly.

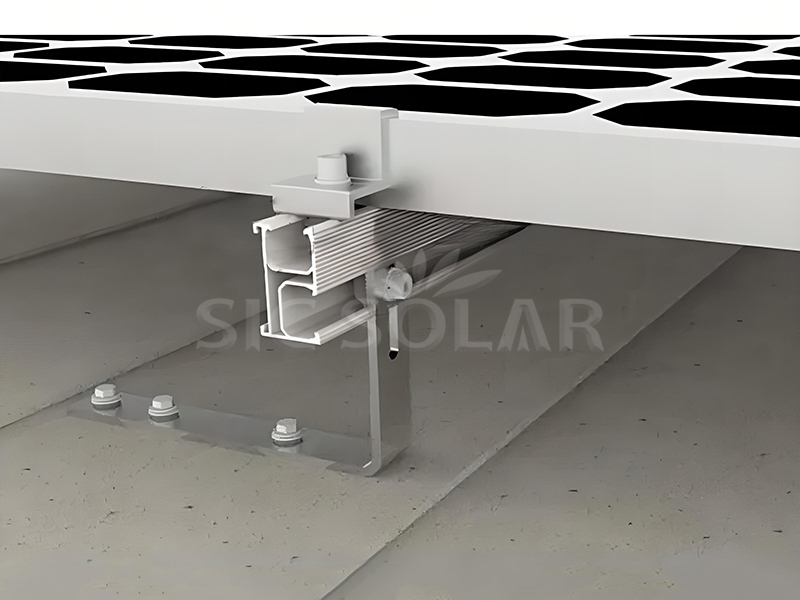

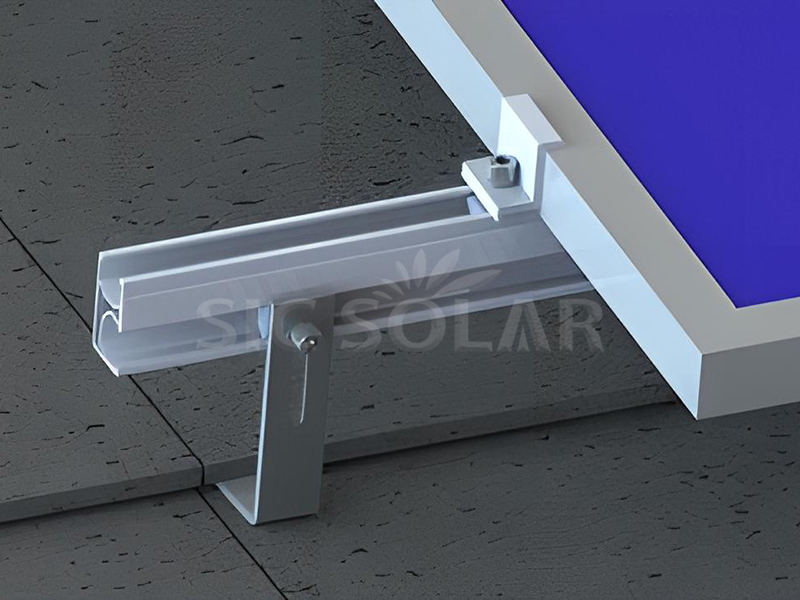

7️⃣ Install the rails and panel: Install the rails and secure the panel with clamps.

☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.

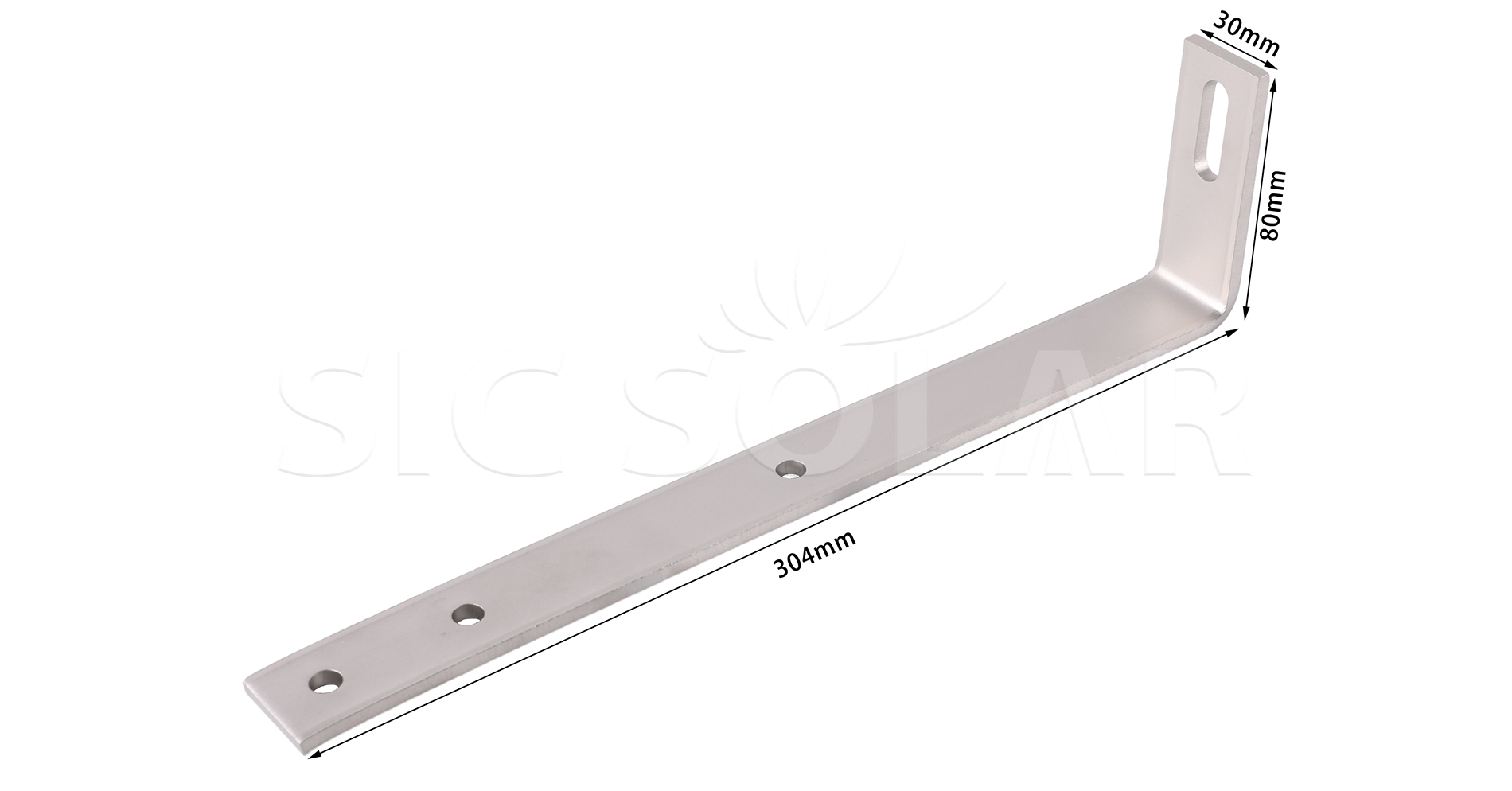

☆ Length customized -- The length is 200mm and 300mm.

Related Certificate

☆ Our CE Certificate covers the solar tile hook roof mount system.

☆ Our SGS Certificate verifies the hook material as SUS304.

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

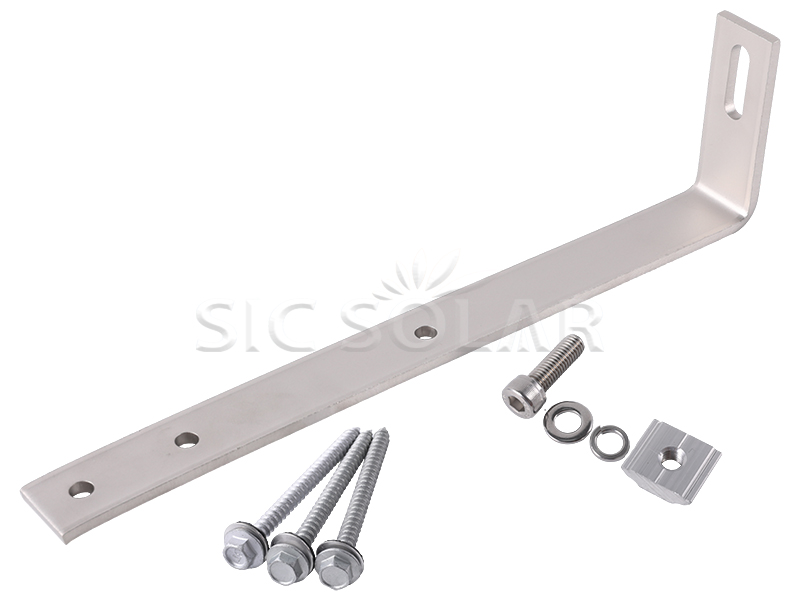

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
