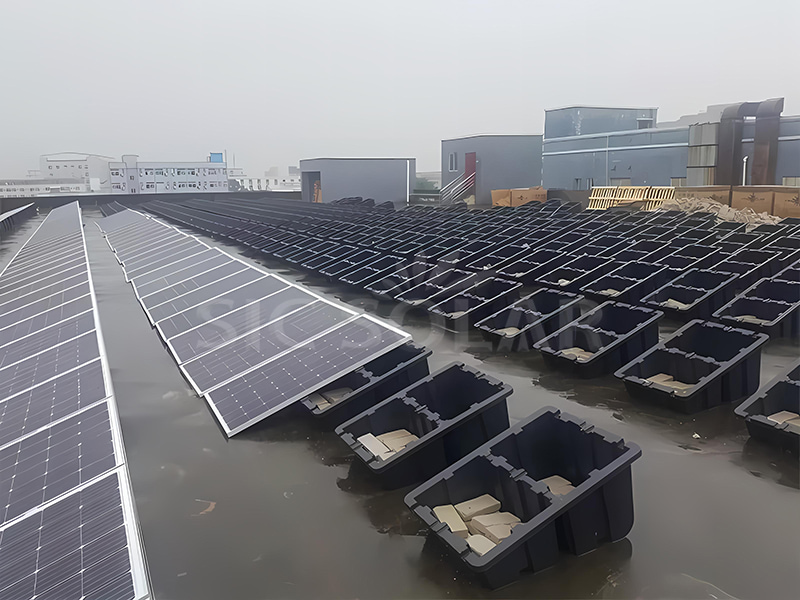

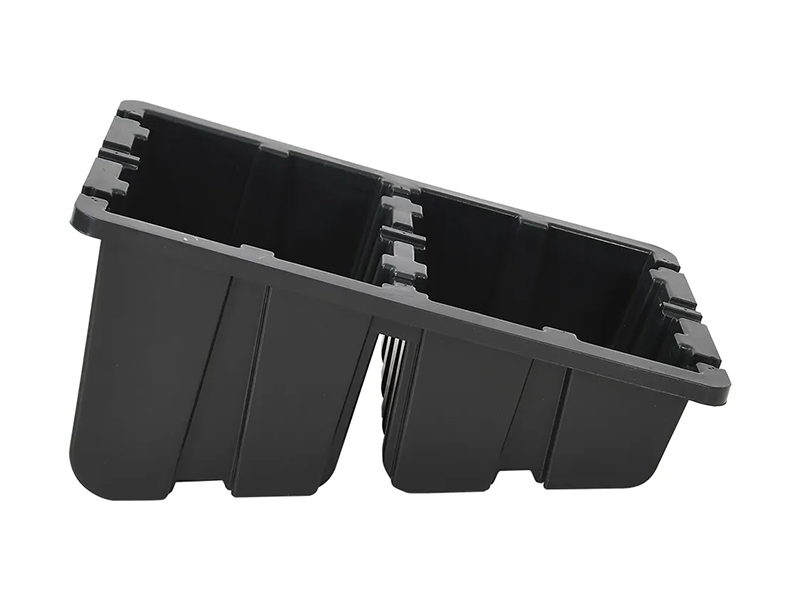

HDPE solar ballast mounting

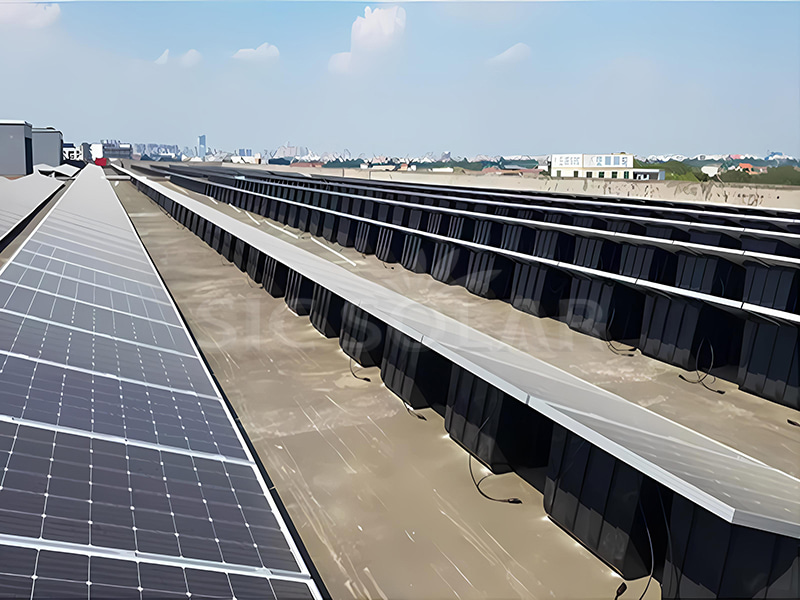

HDPE solar ballast mounting

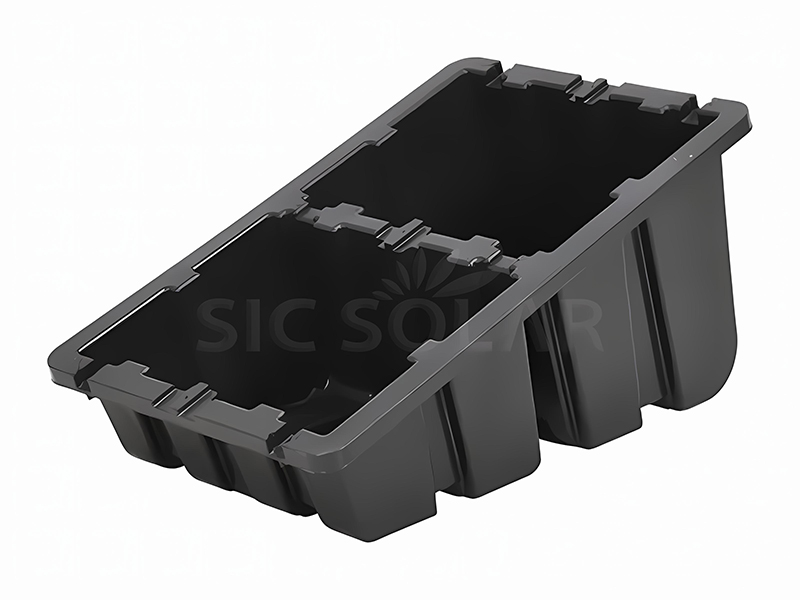

Solar PP Ballasted Ground Mount Bracket

The Solar PP Ballasted Ground Mount Bracket is a durable and innovative mounting system designed for ground-mounted solar panel installations. It is made from polypropylene (PP), a strong and weather-resistant material, and uses a ballasted approach to secure the structure, eliminating the need for ground penetration.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-PB-18

  • Installation Site:

    Flat roof or ground

  • Panel Orientation:

    Landscape or portrait

  • Tilt Angle:

    18 degrees

  • Color:

    Black

  • Material:

    PP

  • Wind Load:

    <60m/s

  • Snow Load:

    <1.4kn/m2
Inquire Now

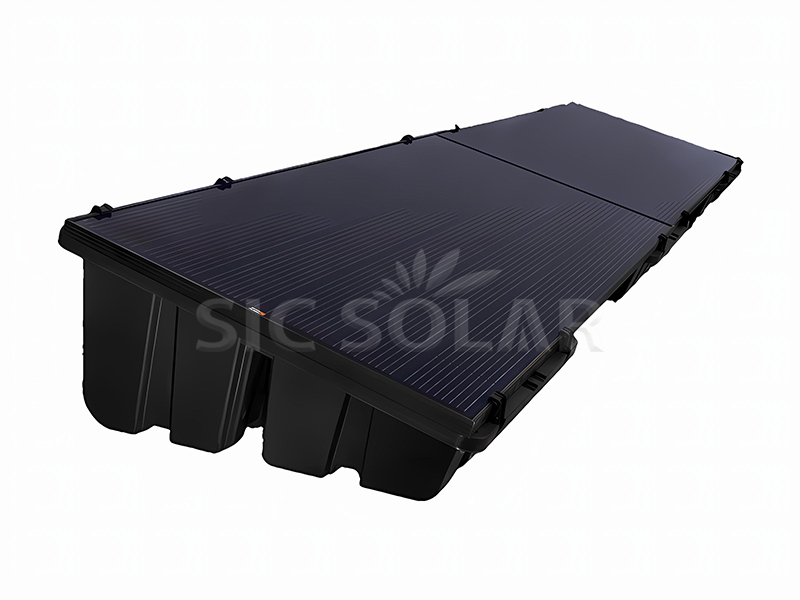

PP ground solar mount

The Solar PP Ballasted Ground Mount Bracket is a versatile, durable, and eco-friendly solution for ground-mounted solar panel installations. Its ballasted design eliminates the need for ground penetration, making it an ideal choice for sites with challenging conditions, such as contaminated land or areas where soil disruption is not permitted.

PP solar mounting system

Since the Solar PP Ballasted Ground Mount Bracket does not require ground screws, piles, or concrete foundations, it minimizes ground disturbance, preserving the natural landscape and avoiding issues related to soil quality or underground infrastructure.This non-penetrative design is particularly advantageous in temporary installations or projects where the site needs to remain flexible for future use.

Components Video Technical Details Package Advantage FAQ

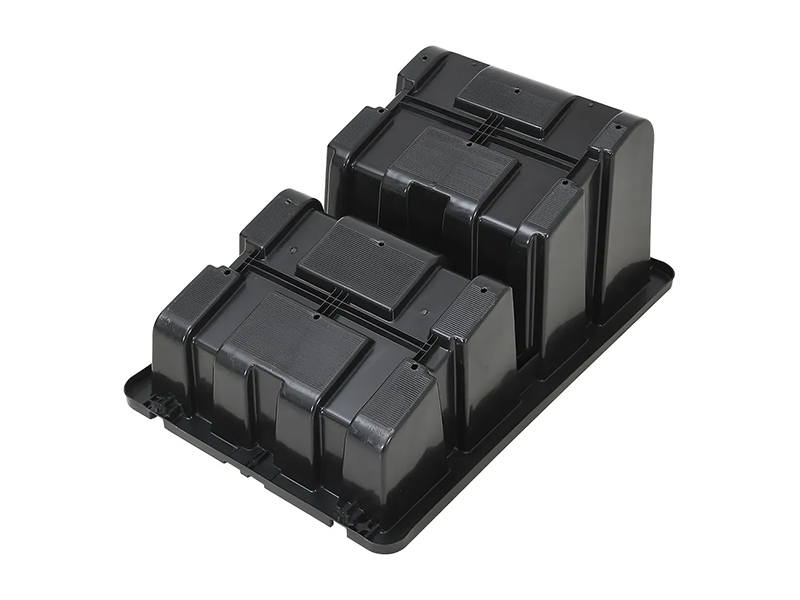

PP pv ballast mount

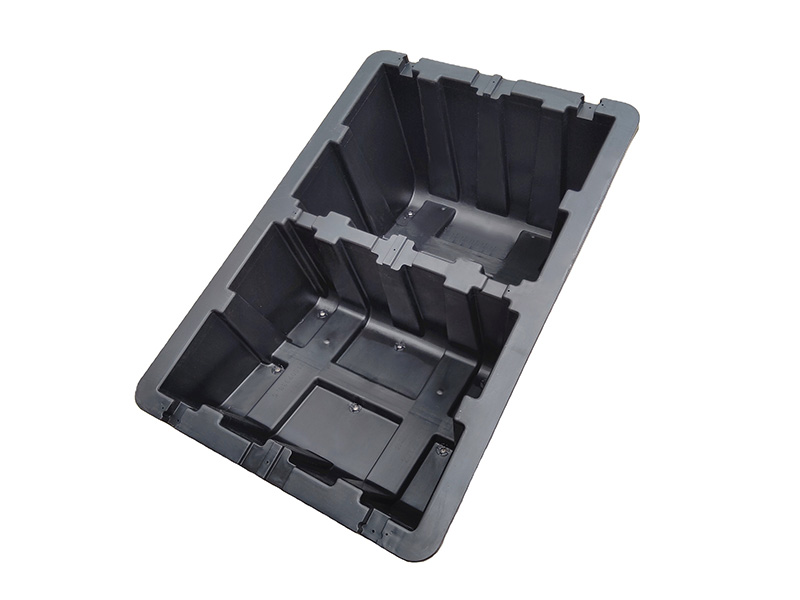

Solar plastic mounting

Pv ballast ground mount

PP roof mount drawing

Name Solar PP Ballasted Ground Mount Bracket

Installation Site

Flat surface
Material PP
Filler Gravel, stone
Weight of filler 120 KGS
Content Plastic pan*1, end clamp*4, screw*4
Angle of installation 18°

Life time

20 years

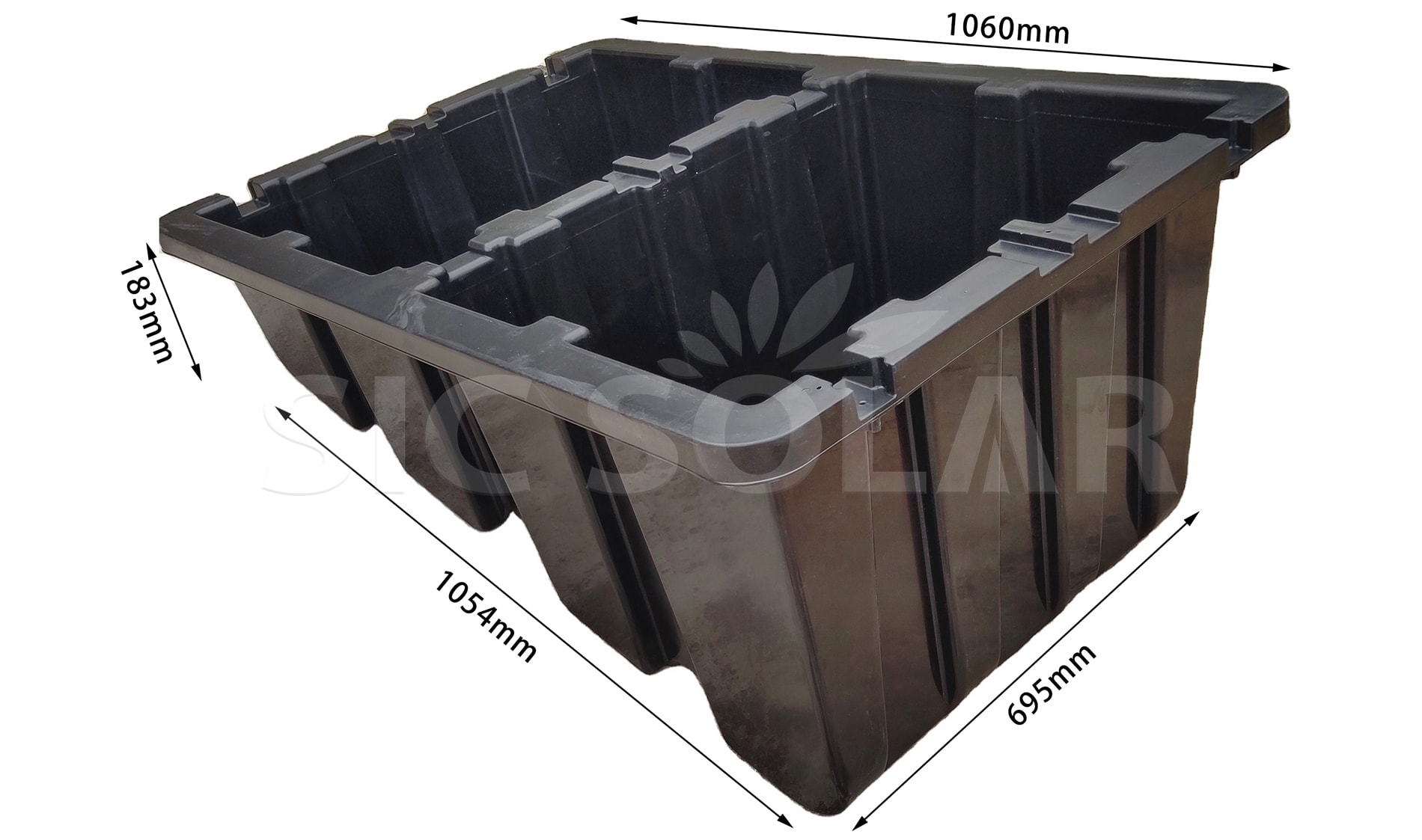

Dimension

1017×695×507 mm
Net weight 7.5 KGS

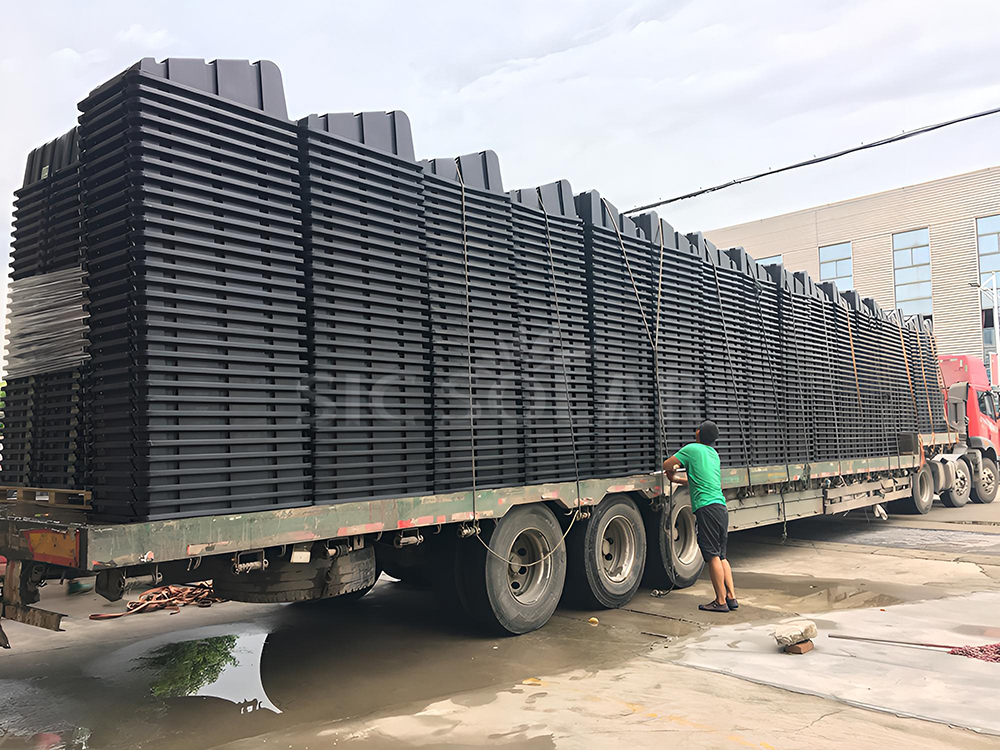

PP mounting package

☆ Easy installation- Plastic Ballast pan and end clamps.

☆ Flexible position planning - Plastic ballast frame could be extended according to your installation site.

☆ Ballast design- Suit for any flat surface without damaging any surface

Q1. Is there any wind speed and snow load test?

Yes.



Q2. Is there any certification?

Yes.



Q3: Could the tilt angle be changed? Like reduced to 15°?

The mold is fixed 18°.

New mold need to be opened for other angle. The cost is too high to open for small qty.



Q4: Is the PP mount have request on solar panel size?

For panel put in horizontal, the panel width should be 992-1010mm. Other panel width need to get a adapter.

For panel put in vertical, no request.



Q5: Does the price for the item comprehensive of clamps and any other material needed to mount the system?

Yes, The price included the clamps to mount panels, which is complete, except for the ballast gravel.



Q6: What will be excluded from the final DDU quotation (ex. customs clearance / european due taxes)?

With DDU terms, only the import taxes and VAT are not included, 6.5% for european countries.

Hot Tags : Solar pp ballasted ground mount bracket Solar panel hdpe bracket PV ground ballast mount Solar ground mount system Ballast solar ground mount Solar ground mount structure ballasted solar mounting system PV plastic ballast ground mount
Leave A Message
With 10 years solar experience professional team,SIC SOLAR insist in a management theory of
Send Message
Related products
Solar Fence Installation
Solar Fence

Solar Fence are an innovative, environmentally friendly solution that combines security, lighting an...

Read More
Solar Cable Clips
Solar Wire Management PV Wire Clips

Solar Wire Management PV Wire Clips are essential components for organizing and securing solar panel...

Read More
Tin Roof Solar Panel Clamp
Solar Aluminum Clamp For Metal Roof

The Solar Aluminum Clamp for Metal Roof is a specialized mounting component designed to securely att...

Read More
Solar Wood Screws
Screws For Wooden Beam And Steel Beam

Screws For Wooden Beam And Steel Beam are essential components in solar installation systems, design...

Read More
Solar Cable Clips For 2 Wires
Cable Clips For Solar Panels

Cable Clips for Solar Panels are essential accessories for managing and securing cables in photovolt...

Read More

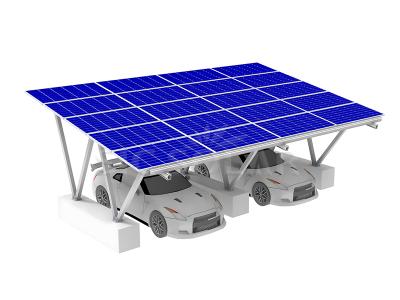

Solar PV carport system
