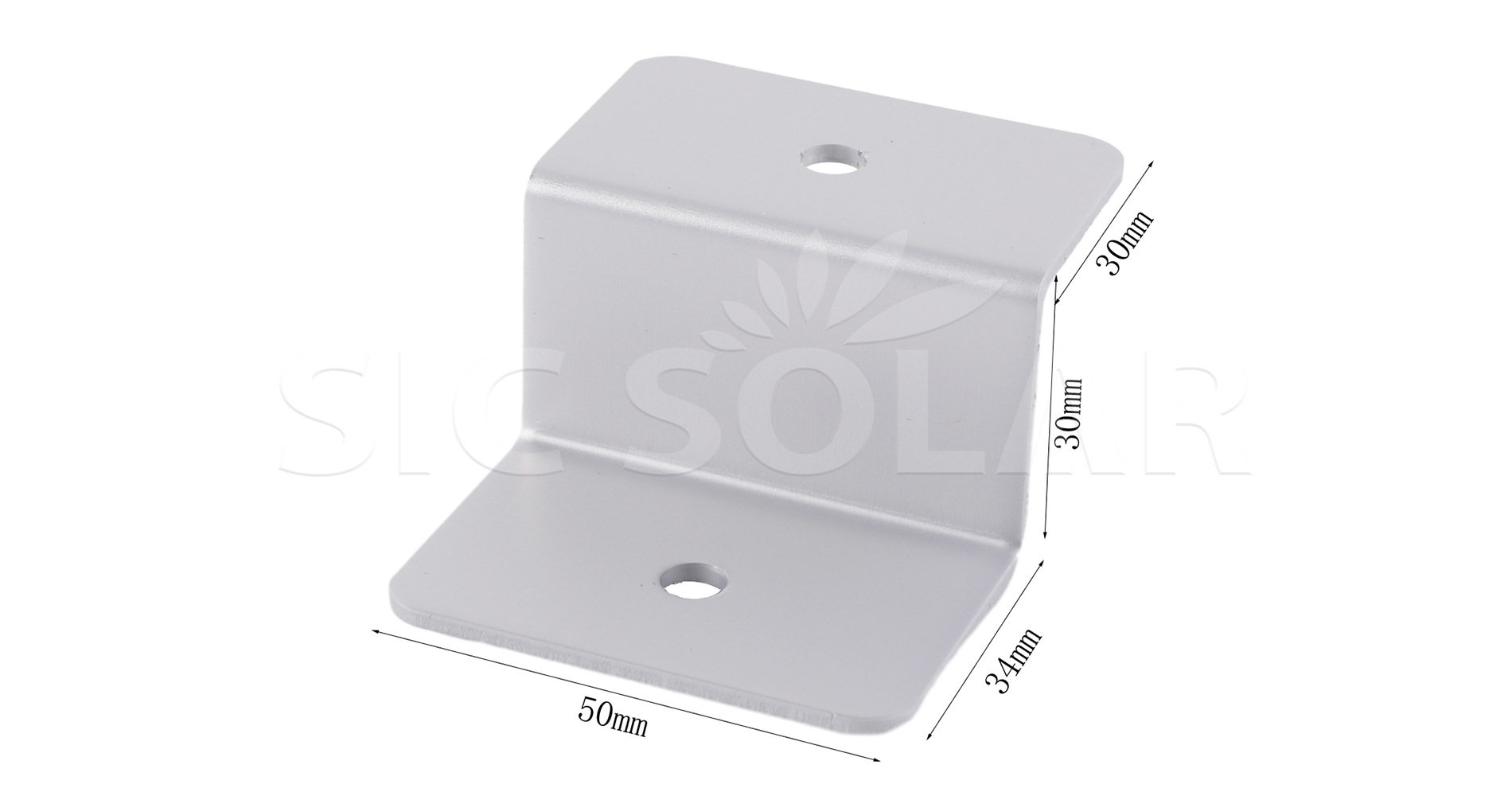

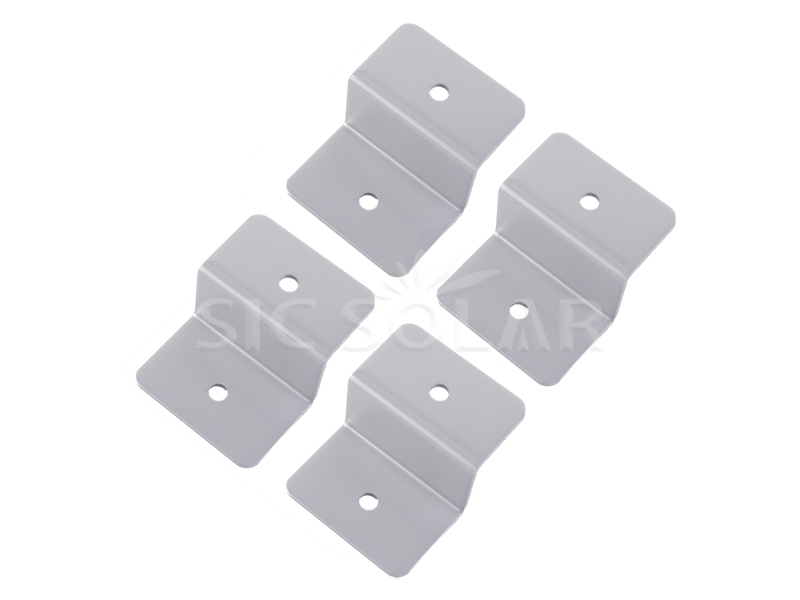

Z Type Aluminum Solar Panel Mounting Brackets For Marine Rv

Click here to learn more produce

1️⃣ Check Compatibility: Confirm that the bracket dimensions and hole positions match the solar panel frame and mounting surface.

2️⃣ Choose the Location: Select a flat, structurally sound surface with good sunlight exposure and sufficient clearance.

3️⃣ Mark the Positions: Align the brackets with the panel layout and mark the fixing points.

4️⃣ Prepare the Surface: Before drilling, check for hidden wiring and structural components, and identify potential water-entry points.

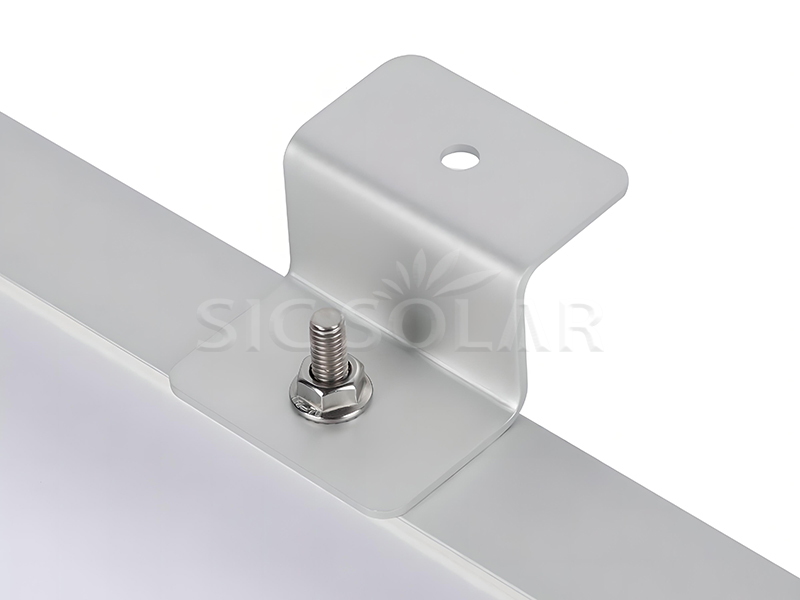

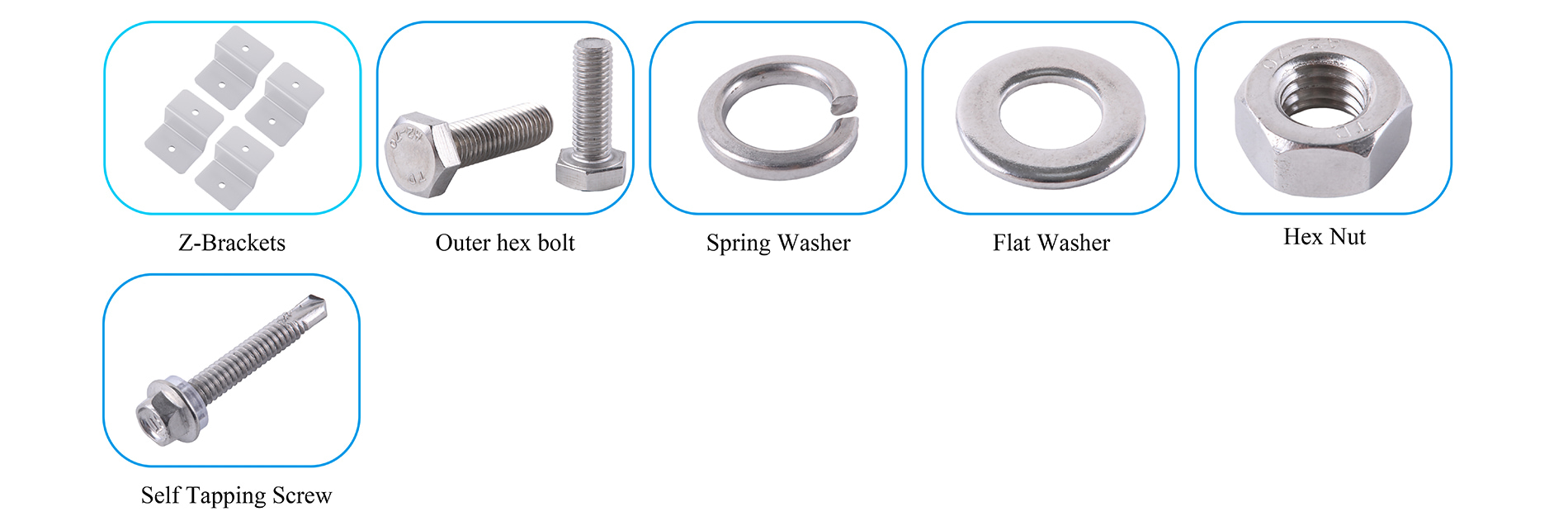

5️⃣ Secure the Brackets: Use compatible fasteners to attach the brackets. Apply suitable marine- or vehicle-grade sealant where needed to protect drilled holes.

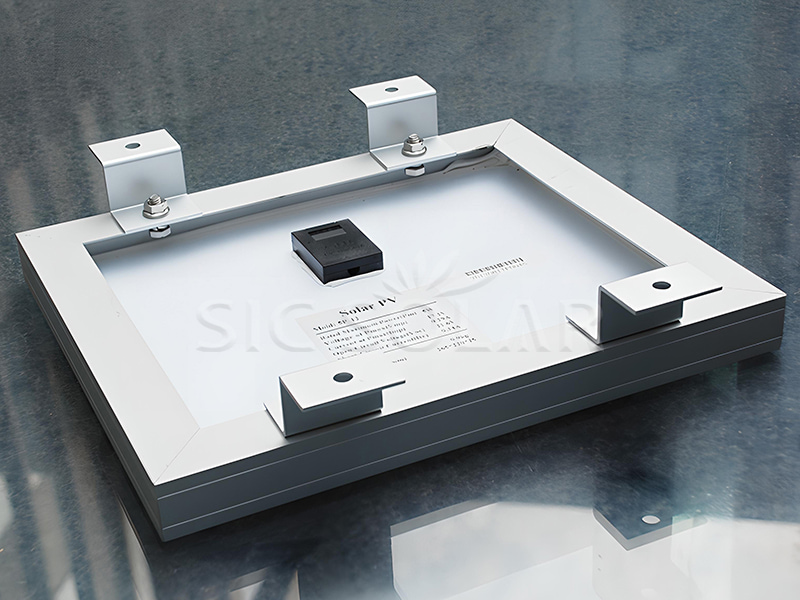

6️⃣ Install the Panel: Position the solar panel and secure it with the specified hardware. Check that it is properly aligned.

7️⃣ Inspect the Assembly: Check the fasteners, seals, and bracket stability. Ensure the installation can handle expected wind, vibration, and travel conditions.

☆ Lightweight Aluminum – Adds minimal weight to RVs, boats, and other mobile solar systems.

☆ Space-Saving Design – The compact profile makes efficient use of limited mounting space.

☆ Flexible Options – Different dimensions and hole configurations can accommodate various panels and mounting surfaces.

☆ Easy Installation – The simple bracket design makes panel positioning and fastening straightforward.

☆ Off-Grid Applications – Suitable for solar installations on RVs, boats, and remote equipment.

Q1: What are Z Type Aluminum Solar Panel Mounting Brackets used for?

They secure solar panels to suitable mounting surfaces on RVs, boats, and other mobile or off-grid systems.

Q2: Why are these brackets Z-shaped?

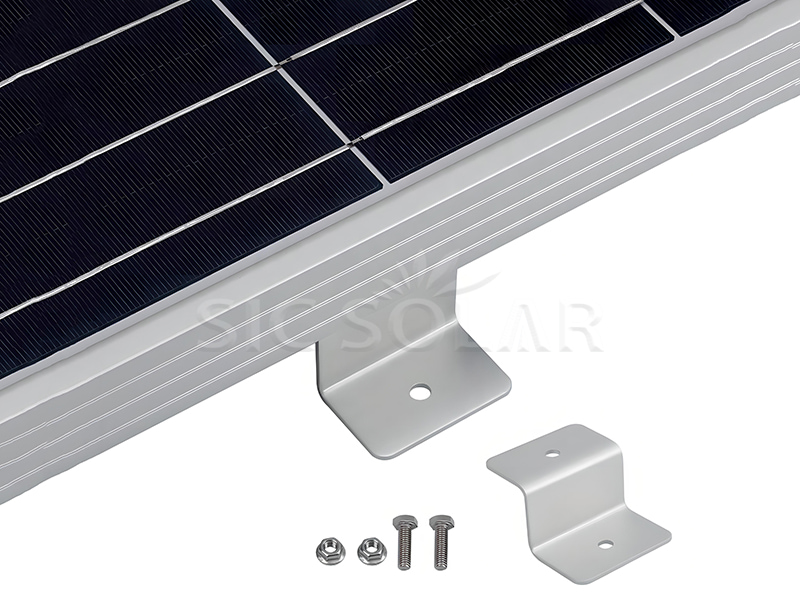

The Z-shaped profile raises the panel above the mounting surface, providing clearance for the panel frame and fastening hardware.

Q3: Do I need to drill holes to install the brackets?

Most installations use screws or bolts and require fixing holes. Drilling should be suitable for the mounting surface, and any roof penetrations must be properly sealed. A drilling-free installation is possible only if the product is specifically designed for it.

Q4: What information is needed for a quotation?

Please provide the required quantity, bracket dimensions, material and finish, solar panel dimensions, mounting surface type, fastener requirements, and intended application, such as RV or marine use.
