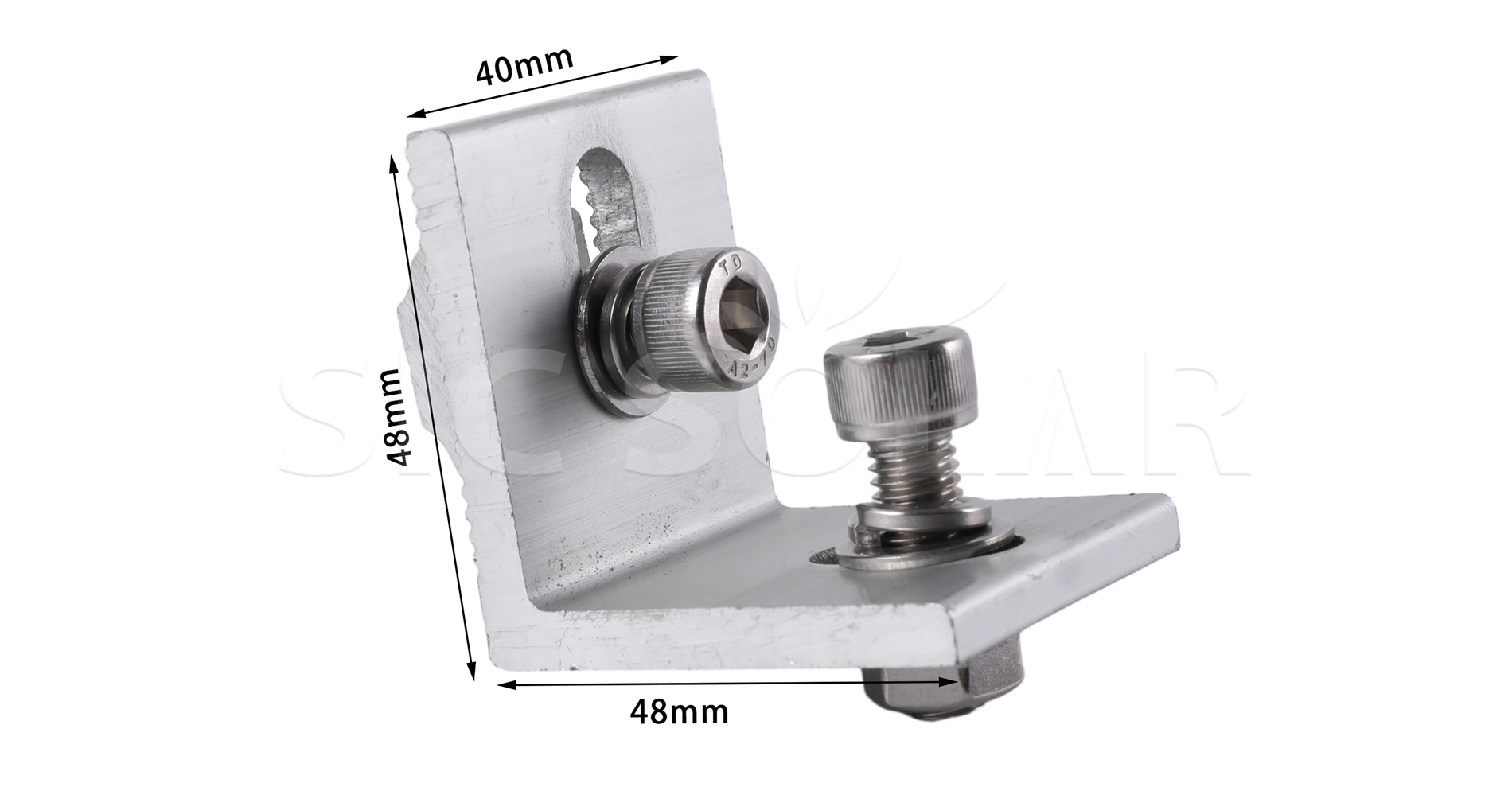

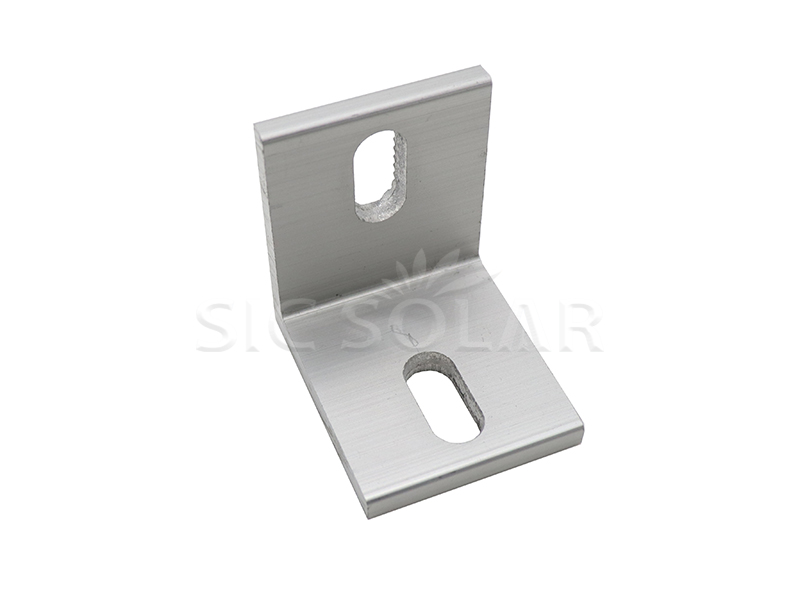

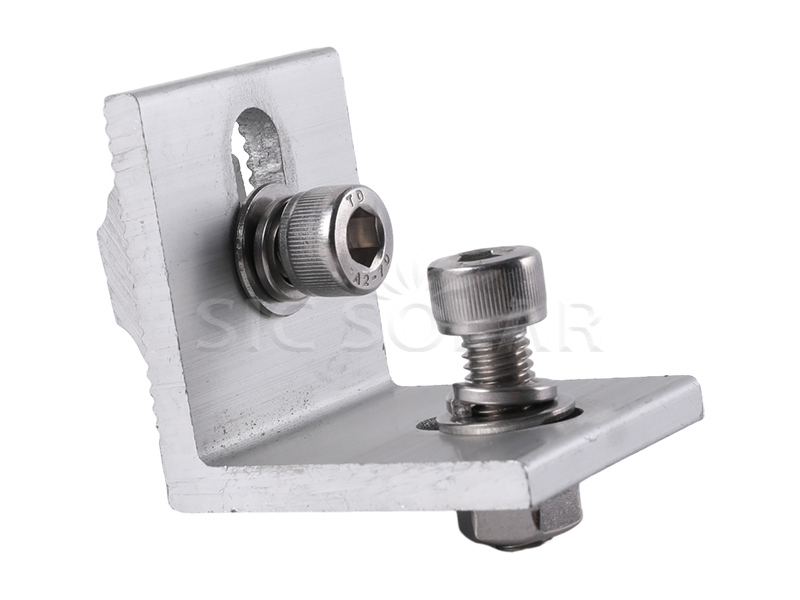

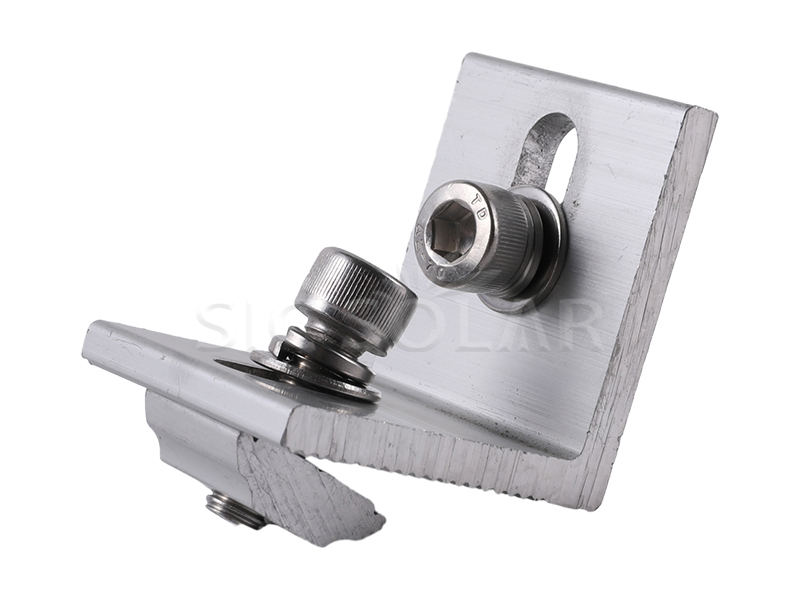

Angle Aluminum Solar Panel Clamps For Metal Roof

Angle Aluminum Solar Panel Clamps For Metal Roof are specialized mounting components designed to securely fasten solar panels to metal roofs.

Brand:

SIC SOLAR

Item NO.:

SIC-AA

Installation Site:

Metal roof

Color:

Silver or black

Material:

Aluminum

Wind Load:

60m/s

Snow Load:

1.4kn/m2

Components Technical Details Installation Guide Package Advantage

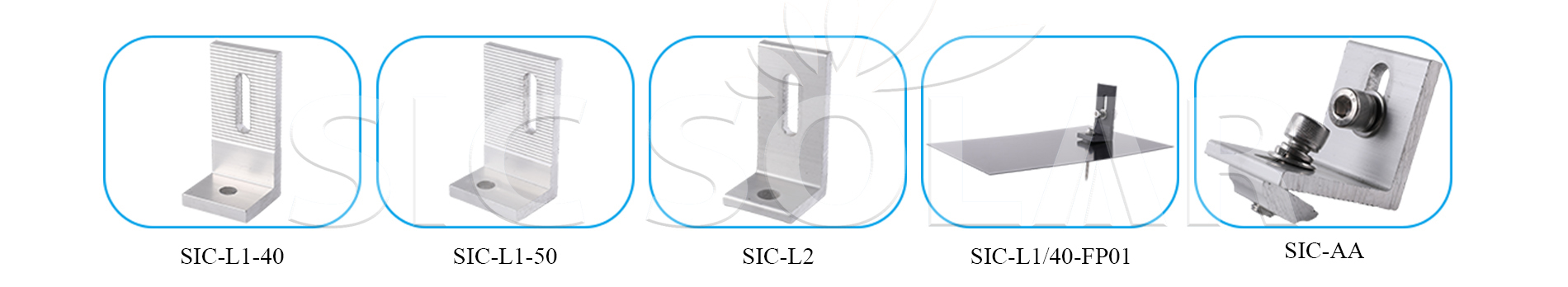

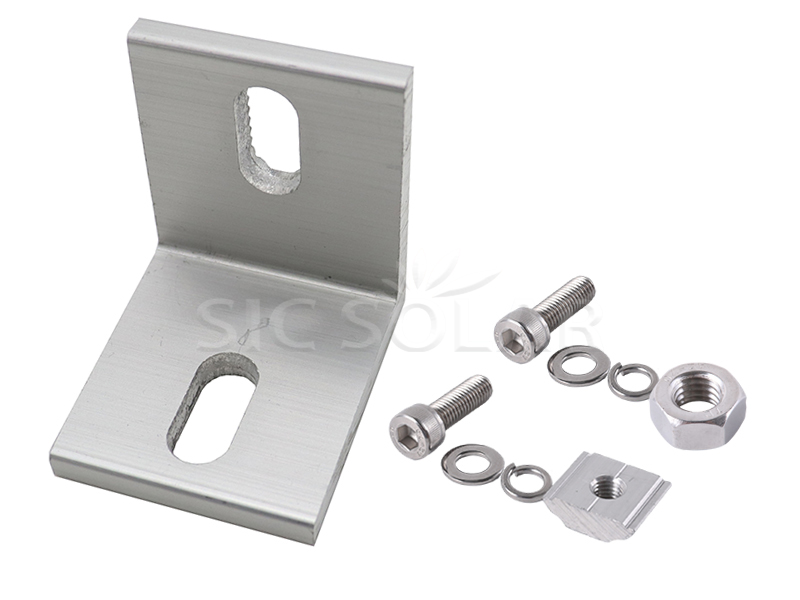

Component of L feet

Solar Panel L Feet For Roof Mount

1️⃣ Mark the clamp mounting points that will be mounted on the roof based on panel layout.

2️⃣ Place angle aluminum clamps onto the metal roof profile; align these with clamp connection points.

3️⃣ Bolt angle aluminum to clamps.

4️⃣ Rails for mounting have to be installed by bolting them onto angle clamps- Alignment and stability!

5️⃣ Install Solar Panels by fixing them using center and end clamps—secure fit? Yes, check!

Solar bracket package

Advantages as follow:

☆ Sturdy and Stable: Ensures panels stay securely in place even in windy and snowy weather.

☆ Corrosion-Resistant: Made of anodized aluminum for a long service life.

☆ Easy Installation: Simple structure for quick installation.

☆ Wide Compatibility: Suitable for most metal roof types.

☆ Lightweight: Reduces roof load while maintaining strength.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list
