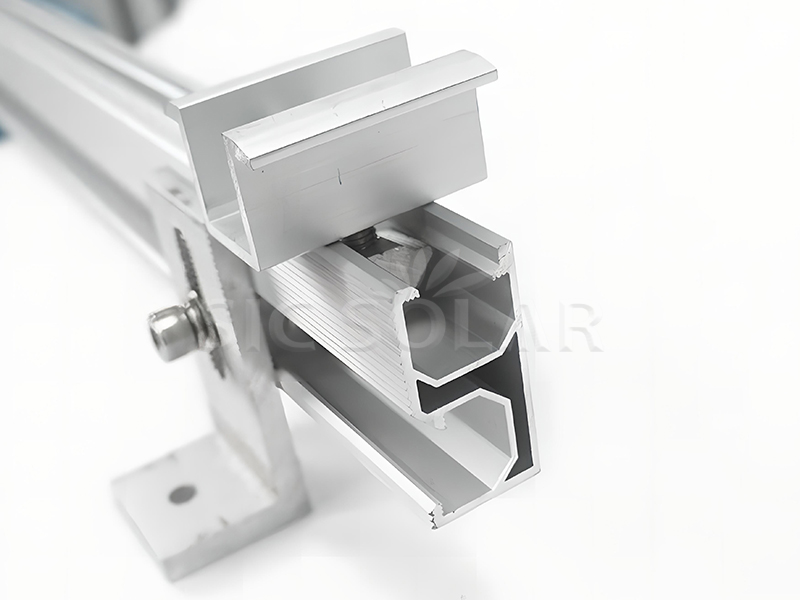

mid clamp for roof mounted pv modules
mid clamp for roof mounted pv modules

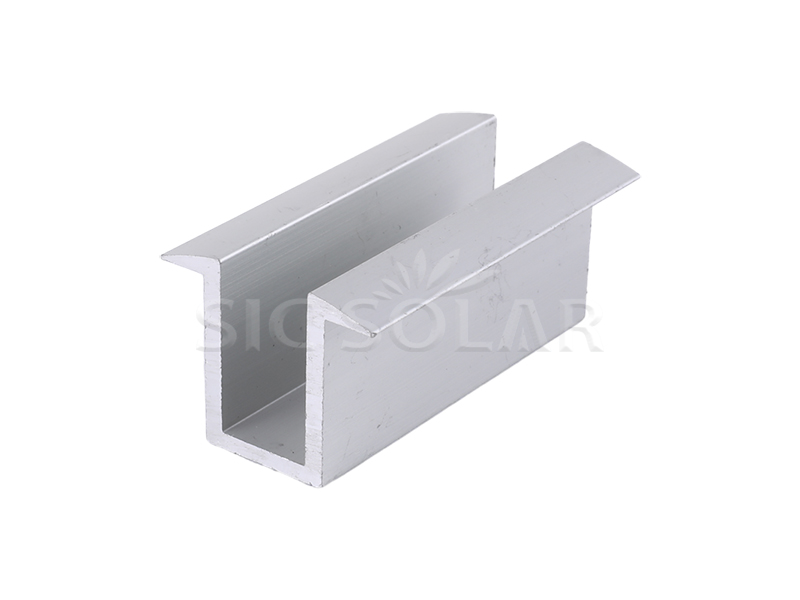

Aluminum solar panel middle clamp

Aluminum Solar Panel Middle Clamp is a key part of PV systems, designed to hold neighboring solar panels firmly on the mounting rails. It fits between panels to keep them aligned, stable, and efficiently spaced.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-IC-W
  • Shipping Port:

    Xiamen port
  • Installation Site:

    Roof or ground
  • Color:

    Silver and Black
  • Material:

    AL6005-T5
  • Warranty:

    10 years and 25 years service times
  • Surface:

    Anodized aluminum
  • Length:

    Customized
  • Thickness:

    Customized
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

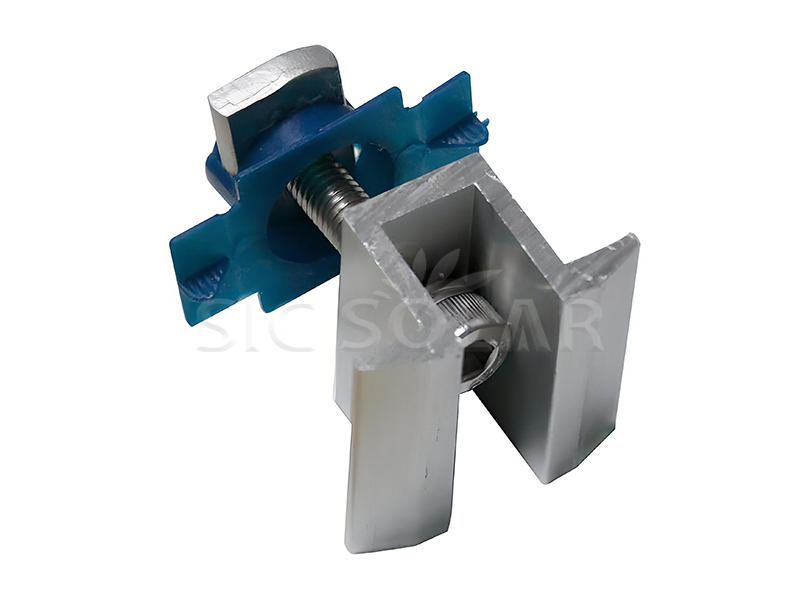

Mid Clamp Solar

Aluminum Solar Panel Middle Clamp grips the edges of panels tightly to stop them from shifting or loosening due to wind or vibrations.

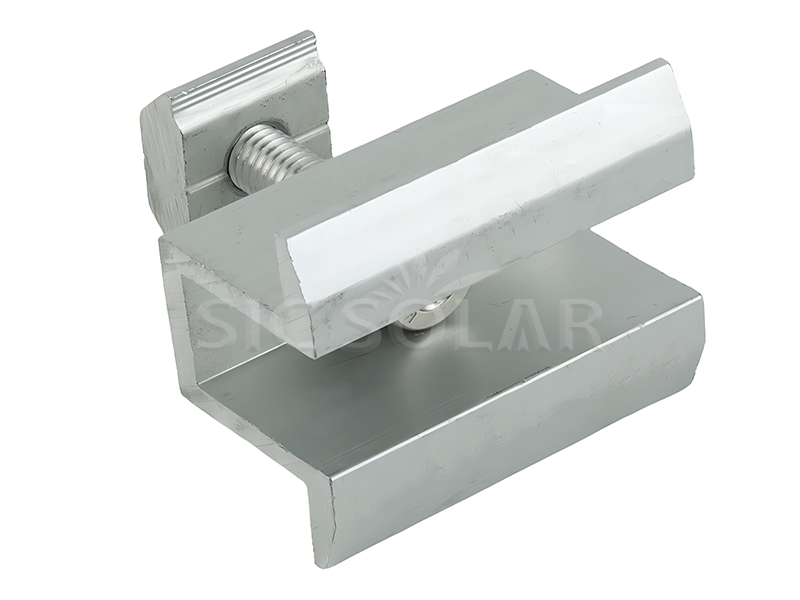

mid clamp for solar panels

Using hex bolts of different lengths, the Aluminum Solar Panel Middle Clamp adjusts to various panel frame depths like 30mm, 35mm, 40mm, 45mm, or 50mm. Choose the bolt size based on your panel thickness.

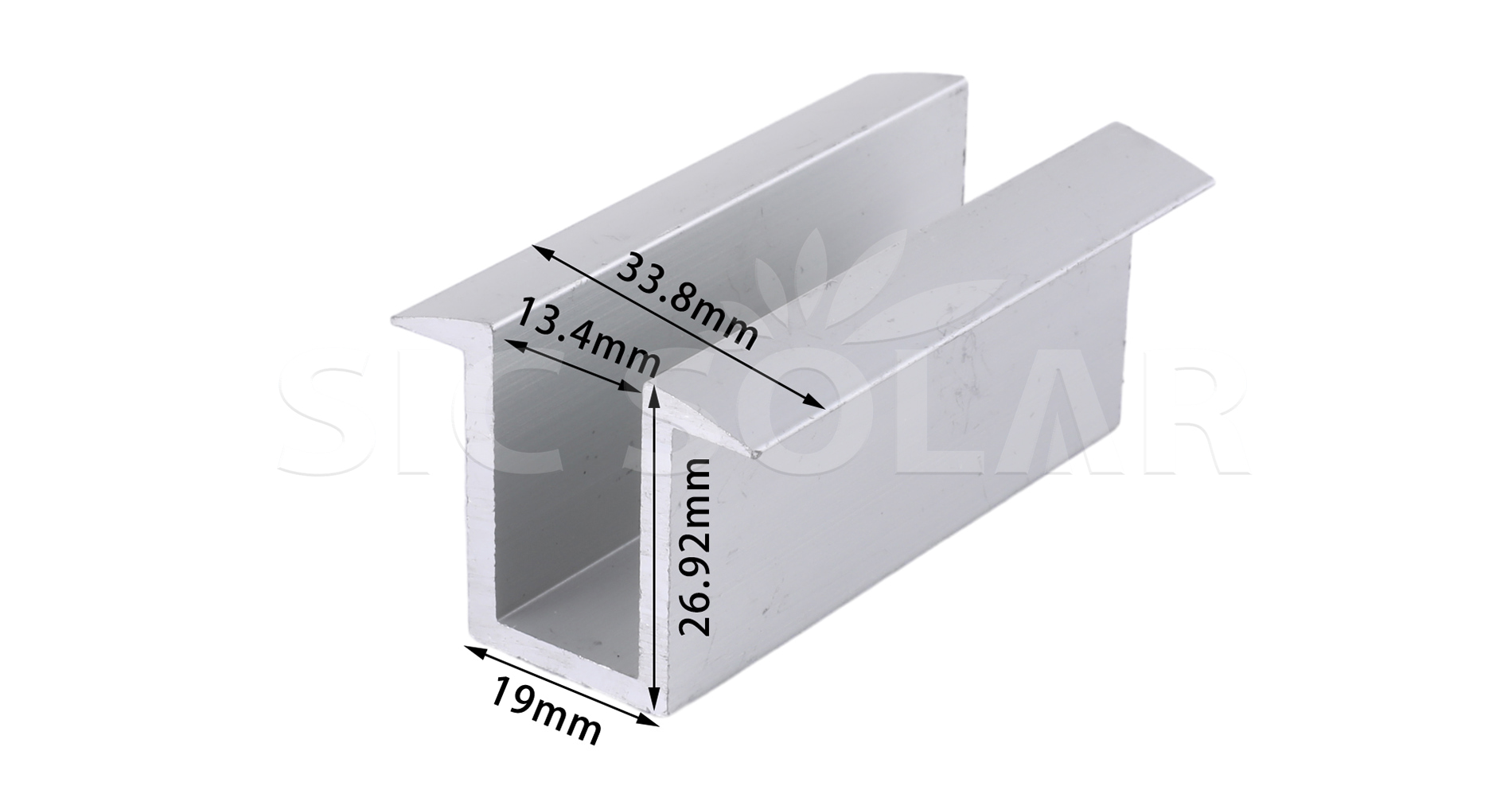

Mid Clamp For Solar Panels

Name Aluminum Solar Panel Middle Clamp
Installation Site Pitched roof or ground
Wind Load <60M/S
Snow Load <1.4KN/M2
Material AL6005-T5
Color Silver and Black
Anticorrosive Anodized aluminum
Warranty 10 years and 25 years service time

1️⃣ Position two panels side by side on the rail.

2️⃣ Put the center clamp between the panels, lining it up with the frame edges.

3️⃣ Insert M8 bolts through the clamp into rail grooves.

4️⃣ Tighten the bolts evenly with a wrench or screwdriver.

5️⃣ Repeat for all panels, and add end clamps at the ends.

Solar bracket package

☆ High anodized -- Effectively prevent corrosion and prolong service life.

☆ High-quality and light weight aluminum -- Quick and easy to mount.

☆ Strong intensity -- It can be used in extremely bad installation condition.

Q1. Can the bolts also be made black ?

Yes.



Q2. Can the clamps be customized ?

Yes.
