W type Aluminum End Clamp for Fixing Solar Panel

W type Aluminum End Clamp for Fixing Solar Panel is a mounting part designed to secure the edge of a solar panel to an aluminum rail in a solar power setup.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-EC-W
  • Shipping Port:

    Xiamen
  • Installation Site:

    Roof or ground
  • Color:

    Black or Silver
  • Material:

    Aluminum
  • Length:

    Customized
  • Thickness:

    Customized

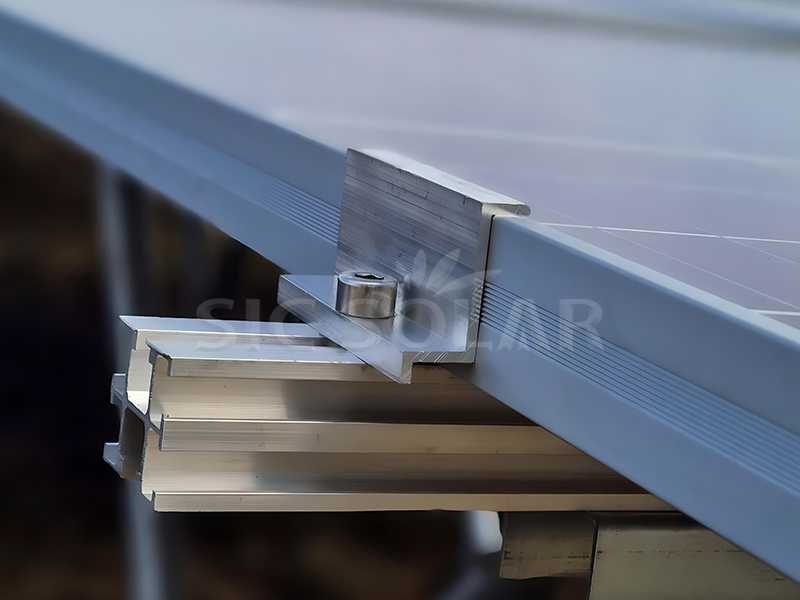

Solar Rail Mount End Clamps

W type Aluminum End Clamp for Fixing Solar Panel is strong, resists corrosion well, and comes pre-assembled for quick and easy installation.

Solar Rail Clamps

W type Aluminum End Clamp for Fixing Solar Panel fits standard solar panel frame sizes, such as 30mm, 35mm, and 40mm, making it adaptable for different setups.

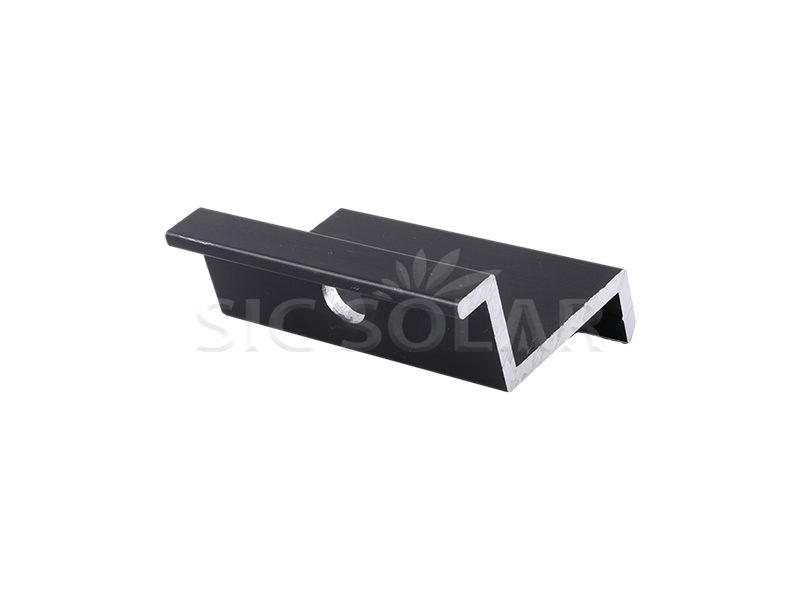

Pv End Clamp

Name W type Aluminum End Clamp for Fixing Solar Panel

Installation Site

Pitched roof or ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

AL6005-T5

Color

Silver or Black

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

1️⃣ Place the solar panel correctly on the mounting rail.

2️⃣ Position the W-shaped clamp over the panel’s edge and line it up with the rail slot.

3️⃣ Insert the bolts through the clamp into the rail.

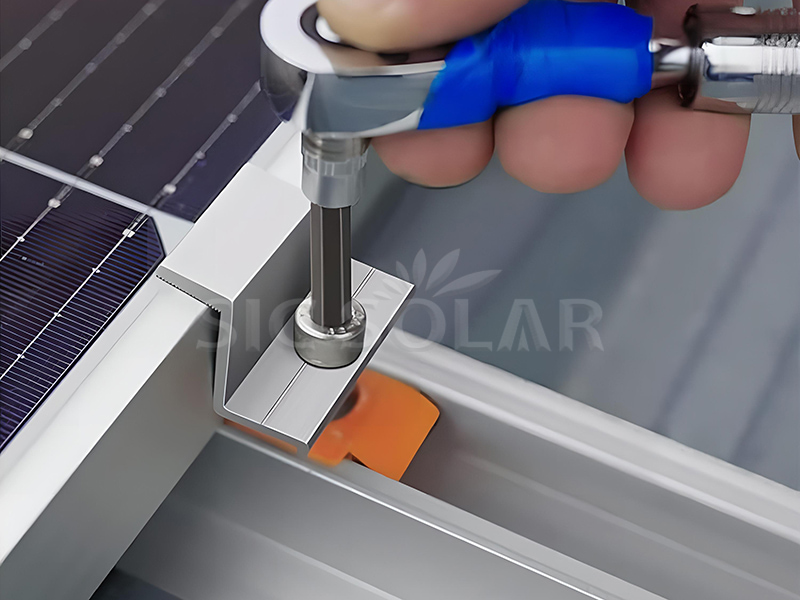

4️⃣ Tighten the bolts with a wrench until the panel is firmly fixed.

5️⃣ Check to make sure the clamp sits flush with the panel frame and doesn’t block neighboring panels.

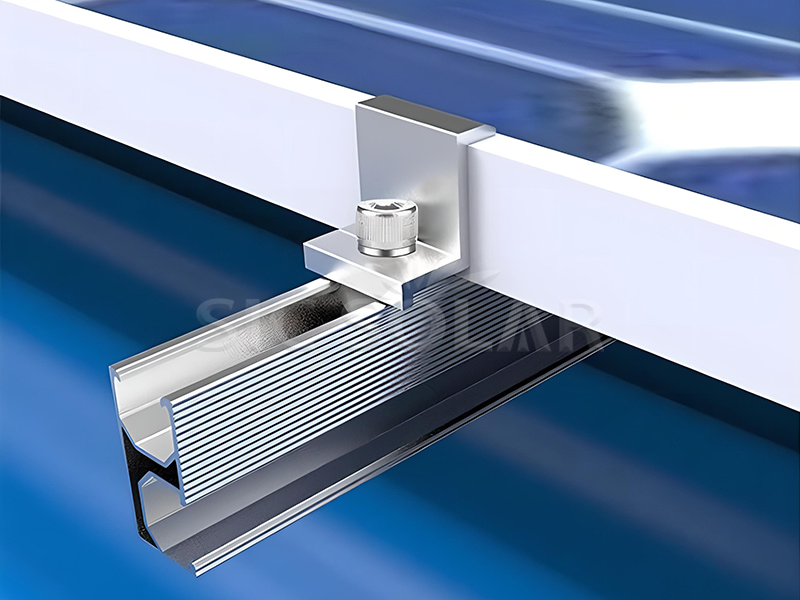

PV mounting end clamp

☆ The clamp has a thicker anodized layer to help prevent corrosion and extend its lifespan.

☆ Different clamp designs are available to suit panels with frame sizes from 30mm to 50mm.

☆ It is built to be strong enough to handle tough installation environments.



Related certificate

☆ The product comes with a strength analysis report, showing it’s tested to meet requirements for things like wind speed and snow loads.

Q1. Can the bolts also be made black ?

Yes.



Q2. Can the clamps be customized ?

Yes.
