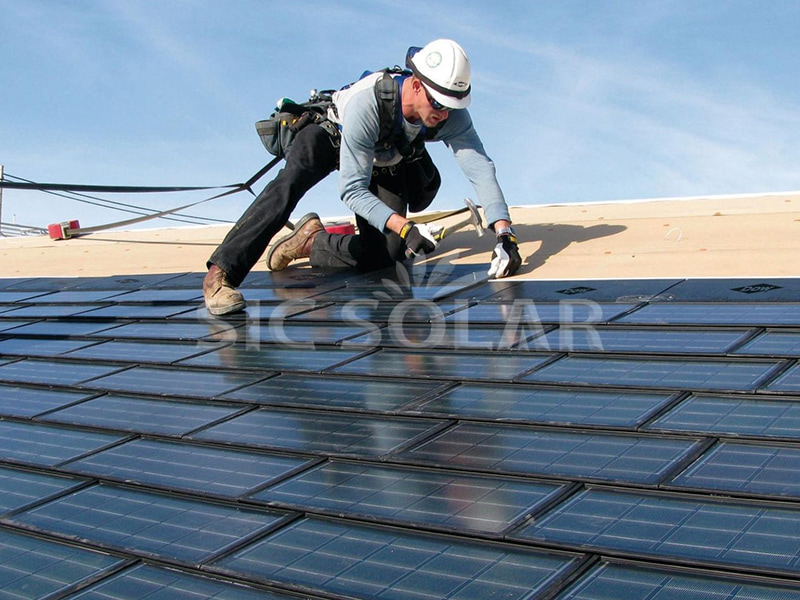

bipv roof mount racking system
bipv roof mount racking system

Bipv Mounting System

Bipv Mounting System combines architectural elements with solar power generation, replacing or enhancing traditional building materials with photovoltaic modules. It can be customized according to specific enclosure applications and requires careful integration to achieve the purpose of weatherproofing, structural bearing and electrical connection.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-BIPV

  • Installation Site:

    Roof

  • Color:

    Natural or Customized

  • Material:

    Glass
Inquire Now

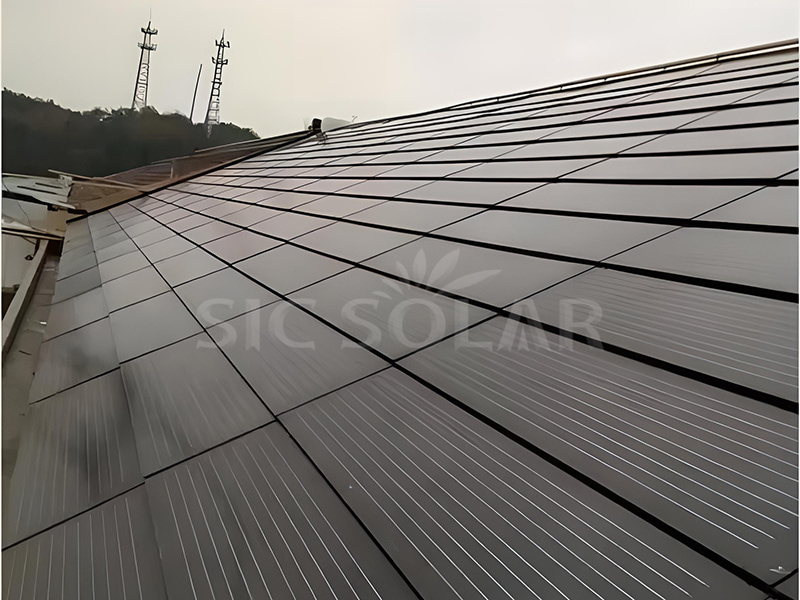

solar bipv waterproof solar mounting system

Bipv Mounting System embeds solar panels into the building structure, acting as both an exterior wall and an energy source. Unlike rack-mounted building-integrated photovoltaic systems, building-integrated photovoltaic panels usually replace traditional materials and require specialized installation methods to ensure structural integrity and weather resistance.

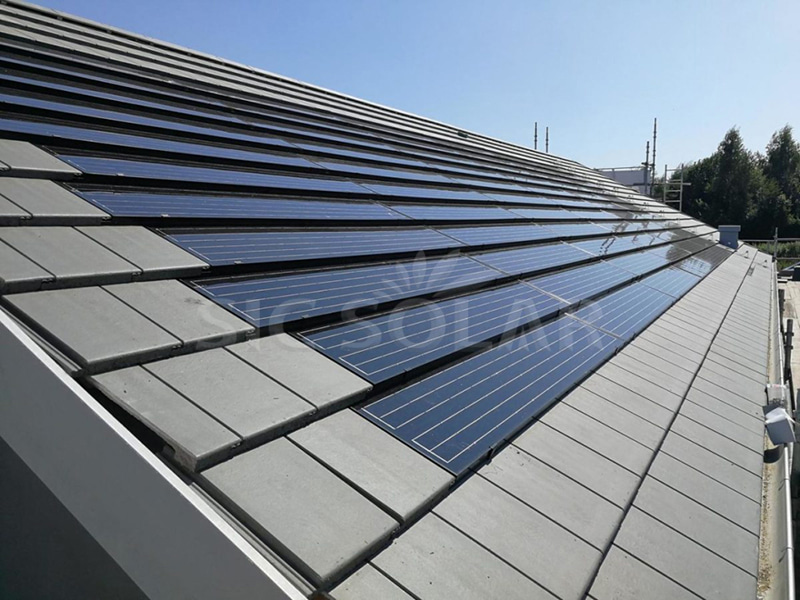

bipv waterproof solar mounting

Bipv Mounting System includes solar tiles, solar shingles and membrane modules that replace standard roofing materials. The rooftop mounting system uses rails fixed to the roof rafters, and the photovoltaic modules are flush with the roof or slightly raised, covered with integrated flashing and sealing gaskets.

Project Video Technical Details Installation Guide Package

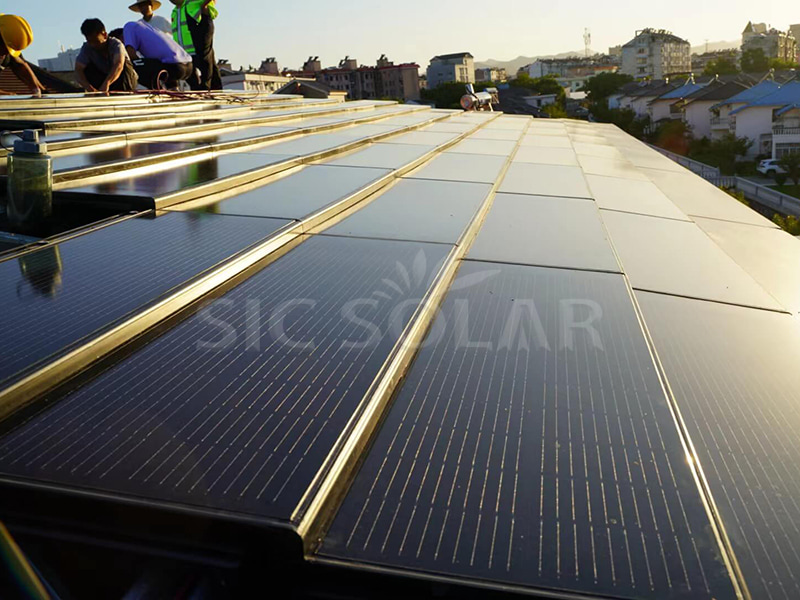

bipv roof mount racking system

Installation Site

Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

 Glass

Color

Natural or Customized

1️⃣ Design & Engineering

Perform structural assessments, energy yield models, and waterproofing strategies in the early design phase.

2️⃣ Substructure & Waterproofing

Install compatible subframes, waterproofing, and weatherseals as per manufacturer’s detailed instructions to ensure watertight performance.

3️⃣ Component Fixing

Secure components using clips, bolts, or structural sealants: tighten to specification torque for metal frame components and use approved sealants for frameless glass component components.

4️⃣ Electrical Integration

Route DC cabling within the building structure; connect to inverter or combiner box as per electrical code and fire safety regulations.

5️⃣ Commissioning & Monitoring

Perform infrared scans, ground continuity tests, and water leak checks; integrate with building management systems for performance tracking.

Solar bracket package
