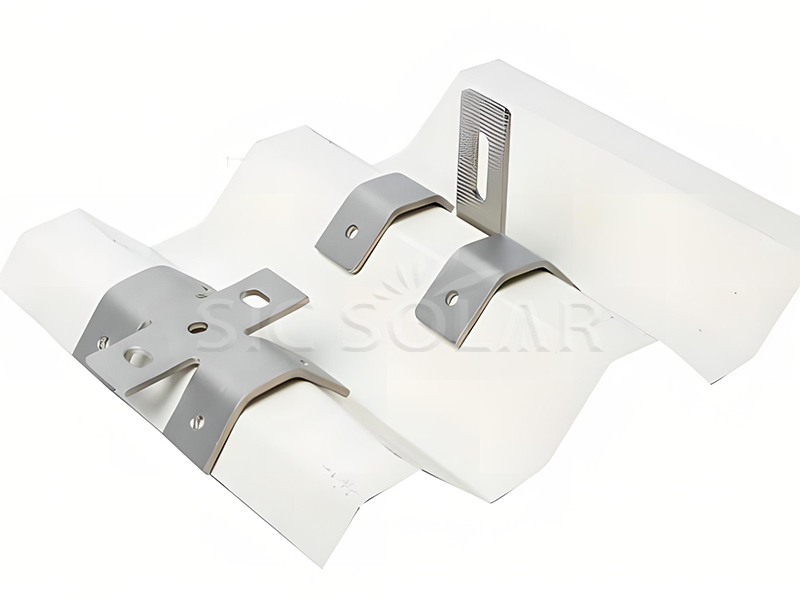

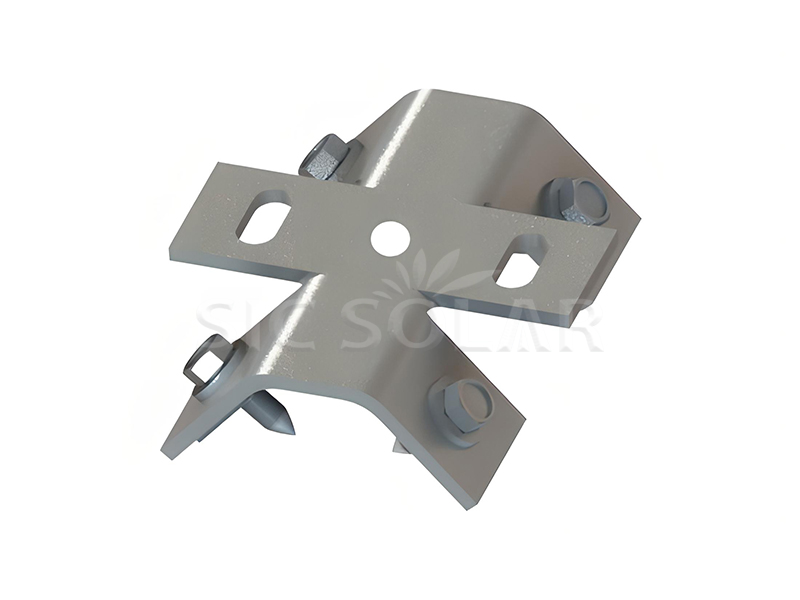

Trapezoidal Standing Seam Clamp For Tin Roof

Click here to learn more metal clamps for Trapezoidal roof sheet.

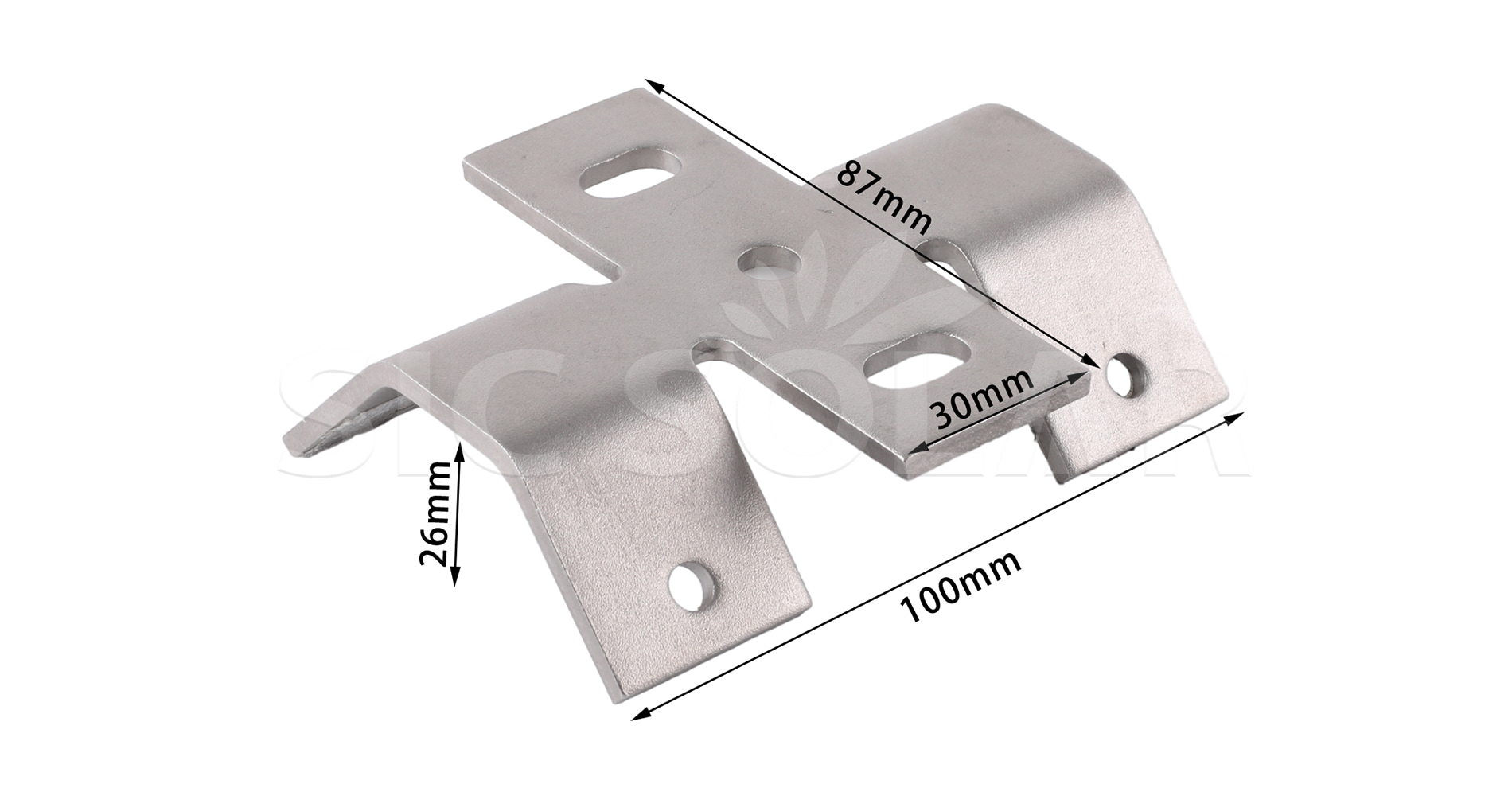

1️⃣ Determine the seam profile – Measure the trapezoidal seams on the tin roof to select the correct clamp size.

2️⃣ Mark the mounting points – Plan the solar panel layout and mark the locations of the seams.

3️⃣ Install the clamps – Position each clamp over the seam and tighten the retaining screws according to the manufacturer's torque specifications.

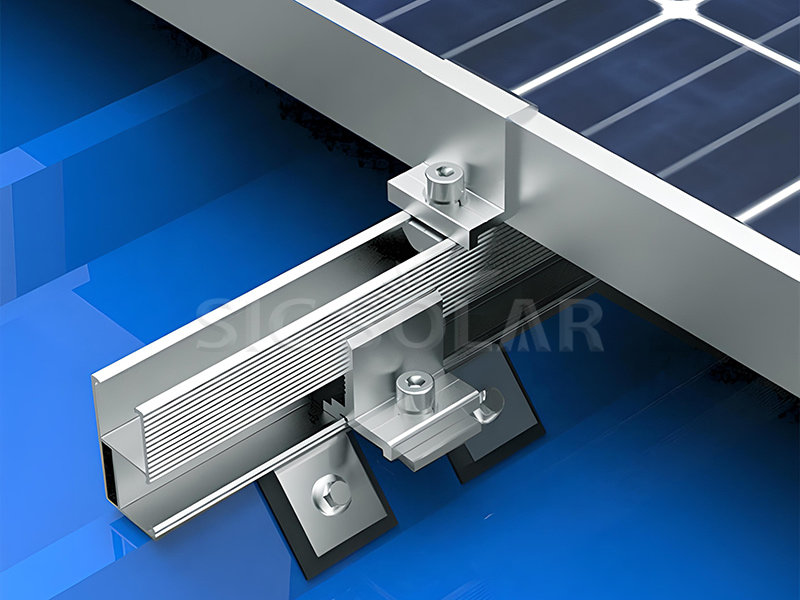

4️⃣ Install the mounting rails – Secure the aluminum rails to the clamps using bolts and washers, aligning them to ensure accurate panel placement.

5️⃣ Install the solar panels – Place the solar modules on the rails and secure them with the middle and end clamps.

6️⃣ Final inspection – Check all fasteners to ensure the clamps are properly tightened and do not deform the roof seams.

Advantages as follow:
☆ Various metal clamps could meet different solar panel arrangements.
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate

Our CE Certificate for solar mounting system

Our SGS Certificate for hook material -- SUS304

Our SGS Certificate for screw material -- SUS304

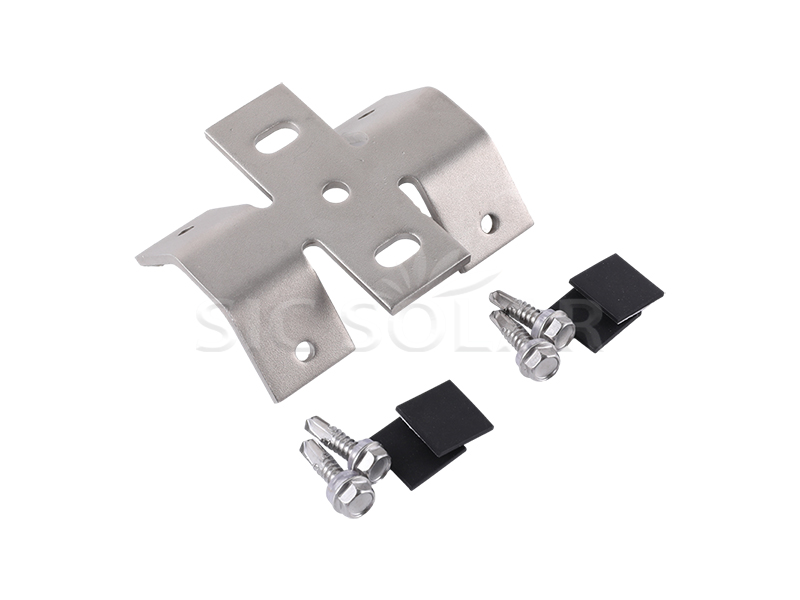

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
