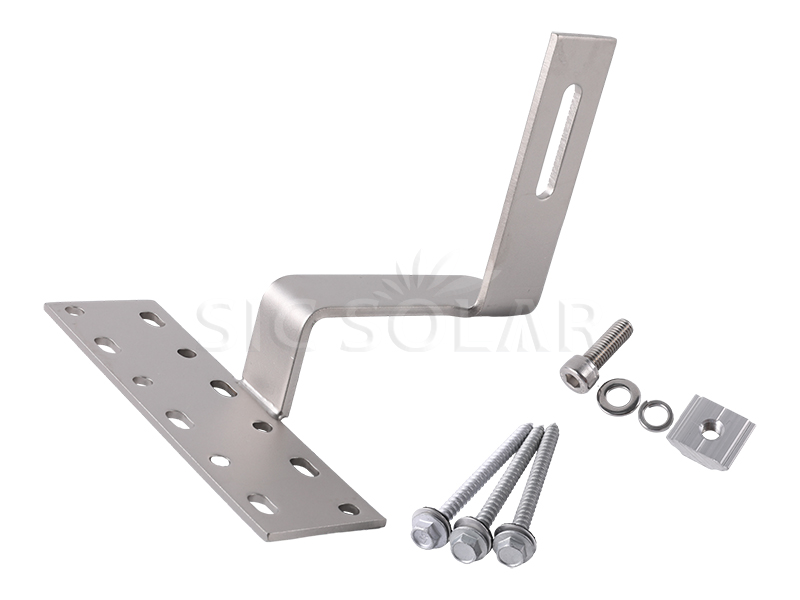

A2 Solar Panle Mount Tile Roof Hook

Click here to learn more hooks

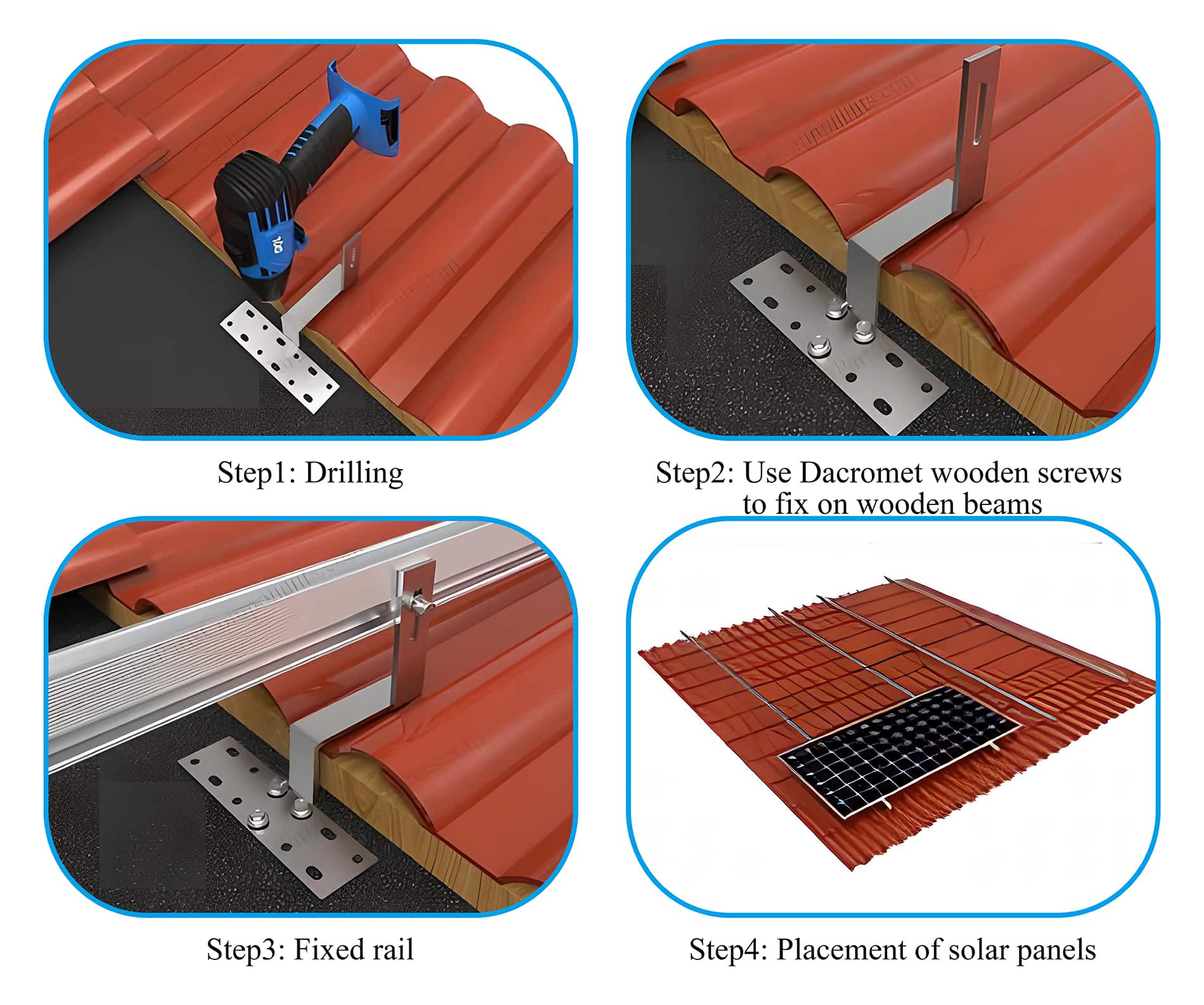

1️⃣ Position the Rafters – Determine the location of the rafters below the tiled roof.

2️⃣ Lift the Tile – Gently remove or lift the tile where the hook will be installed.

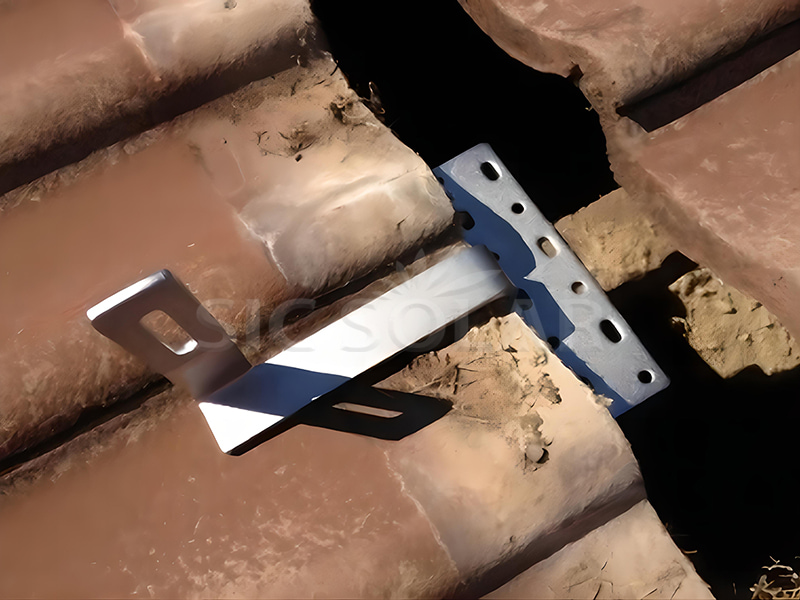

3️⃣ Position the Roof Hook – Attach the A2 stainless steel hook to the rafter.

4️⃣ Secure with Screws – Secure the hook using stainless steel wood screws.

5️⃣ Reinstall the Tile – Place the tile back onto the hook, ensuring it is properly installed.

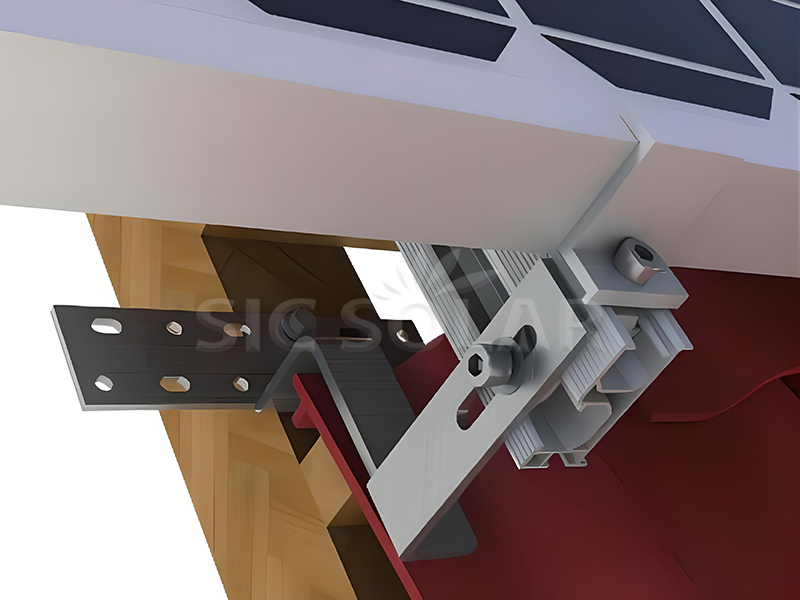

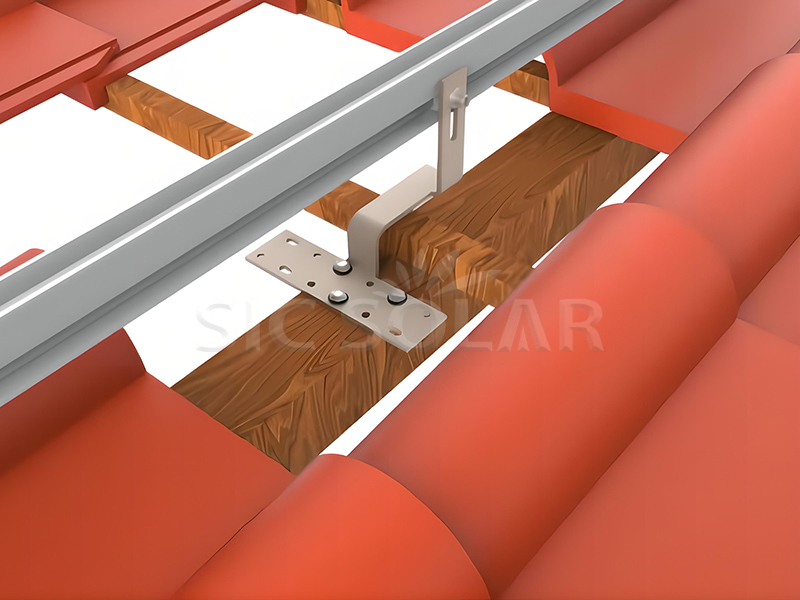

6️⃣ Install the Mounting Rail – Attach the aluminum rail to the hook using bolts and nuts.

7️⃣ Install the Solar Panel – Install the PV module using the intermediate and end clamps.

8️⃣ Final Inspection – Verify stability, alignment, and weather sealing.

Advantages as follow:
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High strength – Stainless steel material makes the hook can sustain strong wind and heavy snow.

Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGSCertificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

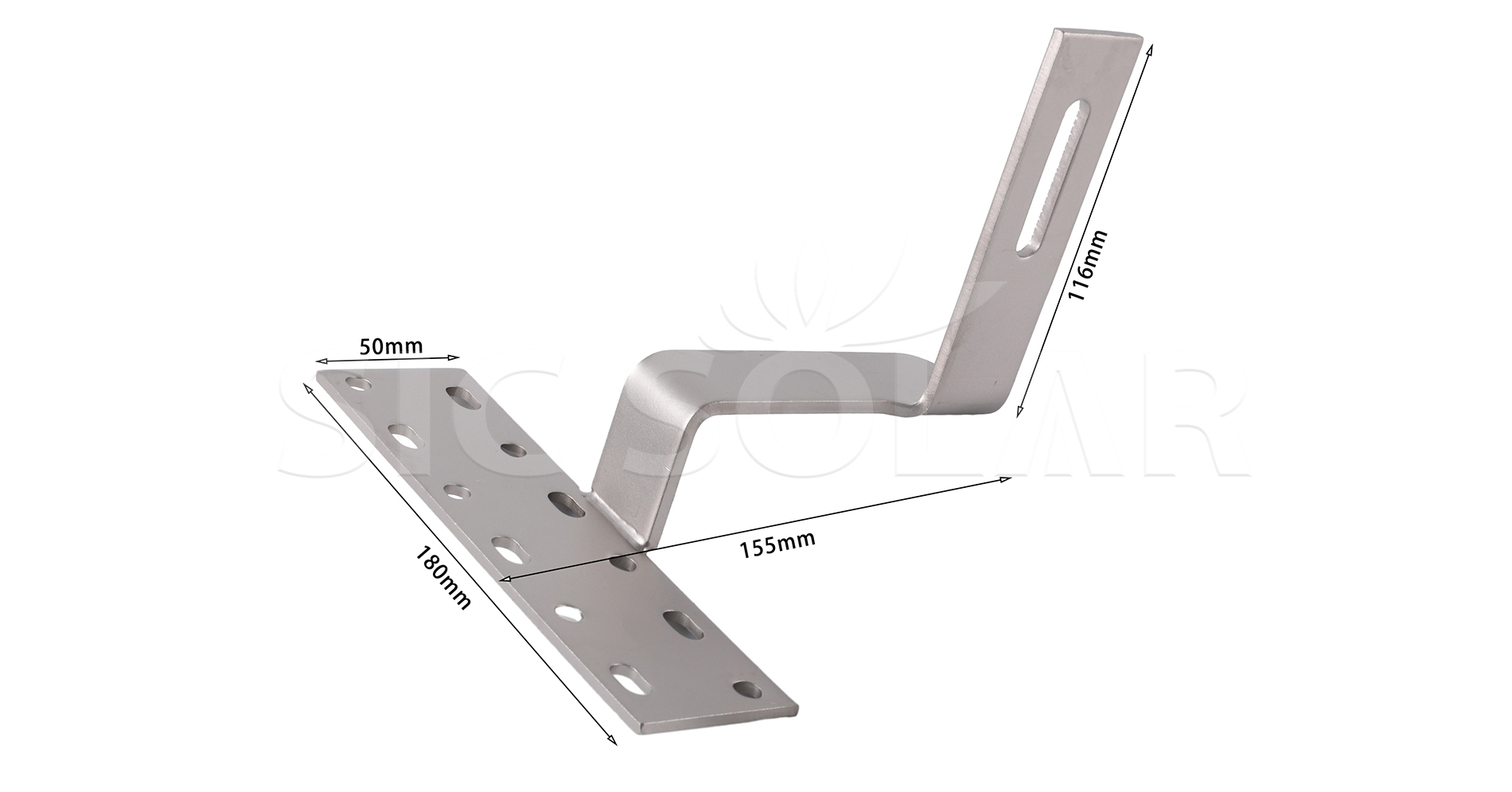

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
