Ground Screw Solar Pile Driver
Ground Screw Solar Pile Driver

Electric Ground Screw Driver

The electric driver is an installation equipment for hand-push screw and photovoltaic ground screw.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-GSM-C30
  • Color:

    Blue
  • Voltage:

    380v

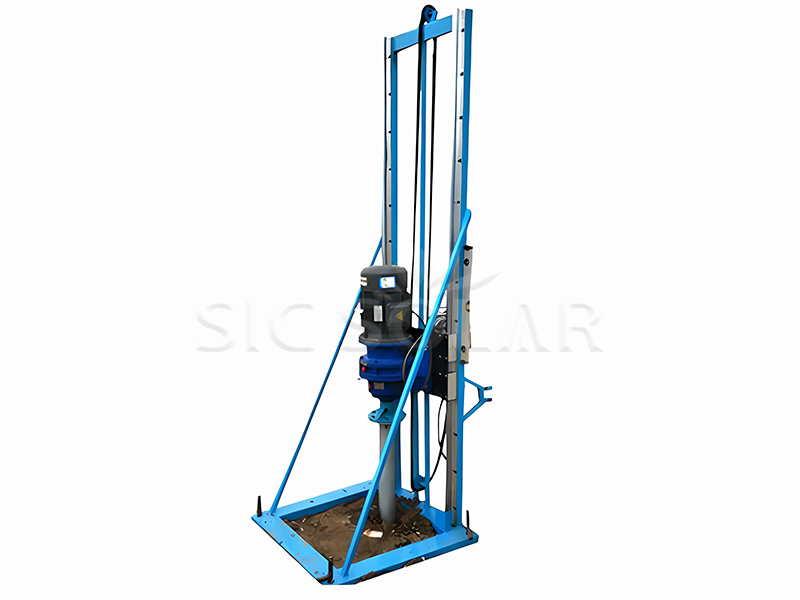

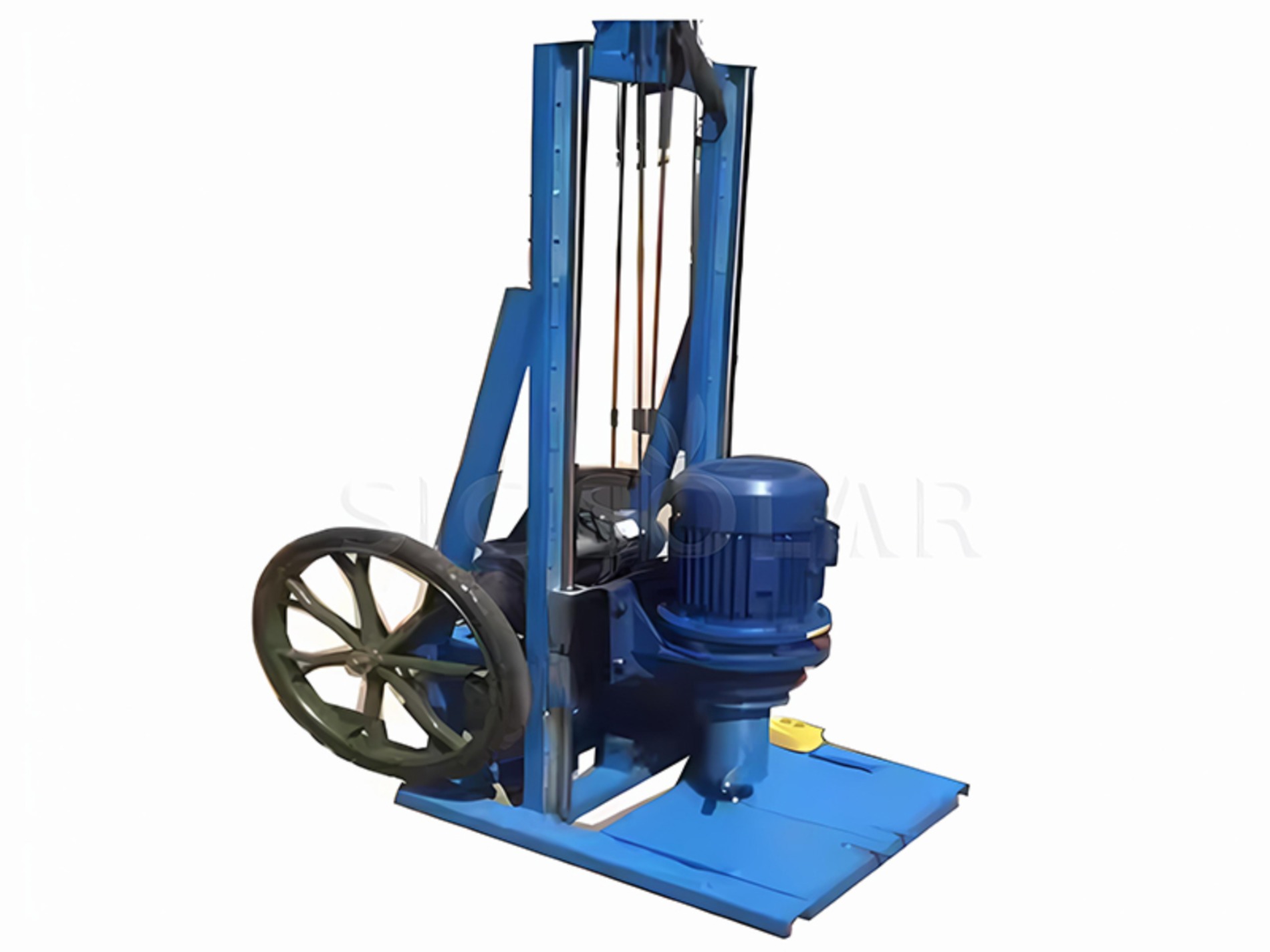

Ground Screw Pile Driver

Solar Pile Driving Pile Driving Machine

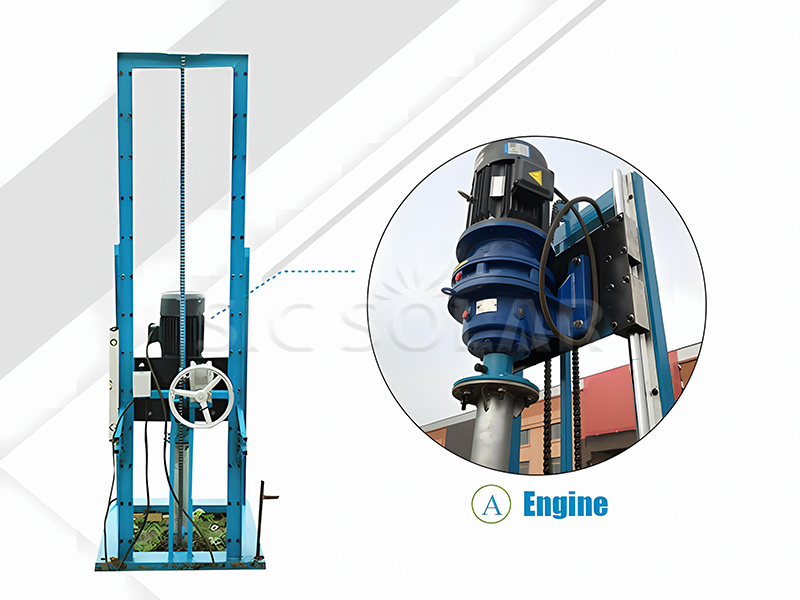

Power principle: This machine uses 7.5kW motor as power source, and then decelerates through gearbox, and connects to and drill screw pile nail with specified size.

Ground Screw Machine Pile Driver

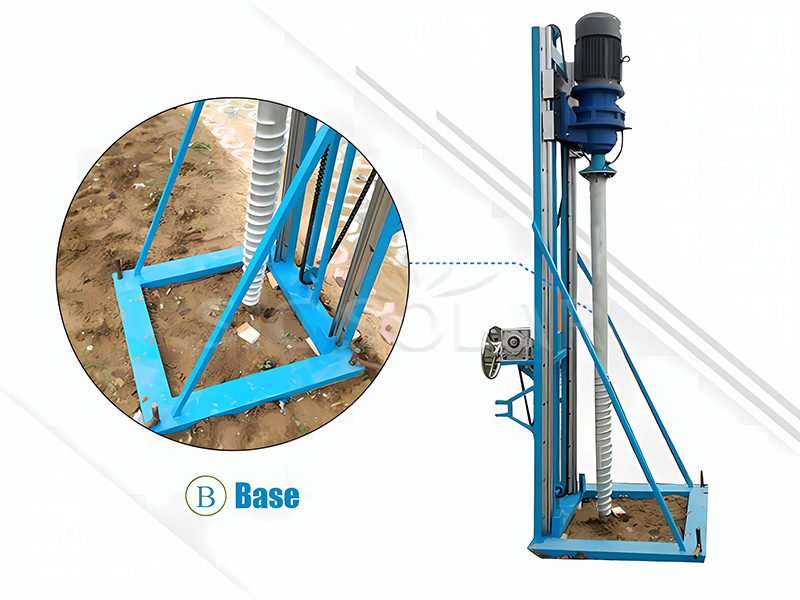

The machine is hoisted by hoist gears. Through the motor and the reducer moving up and down on two 30mm slides on the fixed plate, the hoist reaches, the height specified by the customer by the shaking chain.

Voltage 380V
Oil for Gearbox Gear oil
Height of Machine 2000MM-3500MM
Length of Ground Screw
800MM-2500MM
Max Diameter of Ground Screw 140MM
Motor Speed 1440 r/min
Operational Direction clockwise/ counterclockwise
Oil for Gearbox Gear oil
Weight of Machine
About 260KG
Transmission mode
Reducer optical axis chain transmission



☆ Portable - Immediately loadable and quick changes of position.

☆Professional -  suitable for different soil types.

☆ Economic - Cost savings and saving time.

☆ Efficient - Short assembly time and quick mounting.



Q1. How can I purchase the suitable driver for my ground screw?

Currently we have several kinds of ground screw electric driver, the max specification of ground screw for the driver is different. so, pls offer us the dimension of ground screw, and we will choose the suitable driver for you.



Q2. Do I need to add gear oil before use?

Yes, it is, must add gear oil before use.



Q3. What should I pay attention to when I assemble the driver?

Don't be worry, we will offer you the instruction of ground screw electric driver.



Q4. What is the weight of driver including accessories?

The weight of driver is260KG.



Q5. Do you have the warranty certificate for the driver?

Yes, we have the warranty certificate for the driver, and we also have the certificate of other products. If you want, we will offer you.
