Home Products Solar Components Nut Solar SUS304 Flange Nut With Locking Teeth

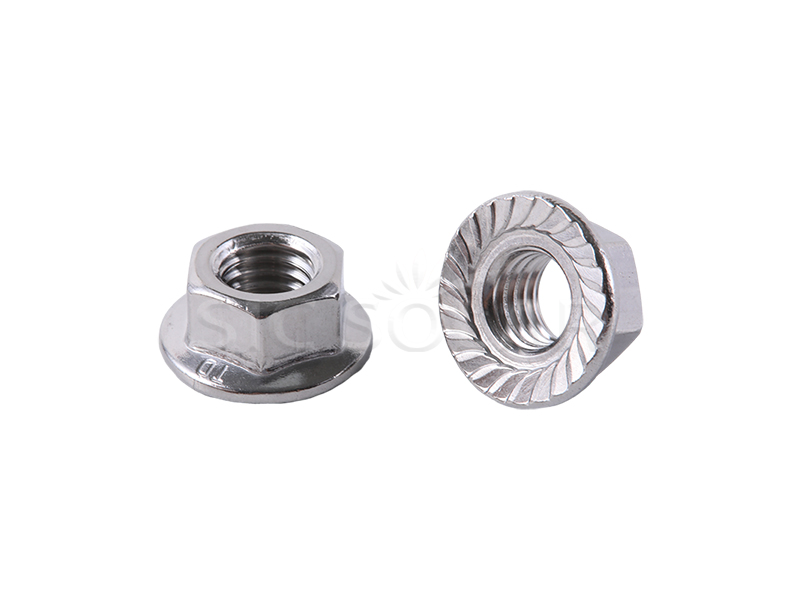

Serrated Hexagon Flange Nut
Serrated Hexagon Flange Nut

Solar SUS304 Flange Nut With Locking Teeth

Solar SUS304 Flange Nut with Locking Teeth is designed to provide secure fastening for solar mounting systems. Made from SUS304 stainless steel, it features an integrated flange to distribute clamping force and serrated teeth to help resist loosening in compatible connections.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-FN
  • Product Origin:

    Fujian, China
  • Shipping Port:

    Xiamen port
  • Installation Site:

    Roof or Ground
  • Color:

    Natural
  • Material:

    SUS304
  • Warranty:

    10 years and 25 years service time
  • Length:

    Can be customized
  • Thickness:

    Can be customized
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M²

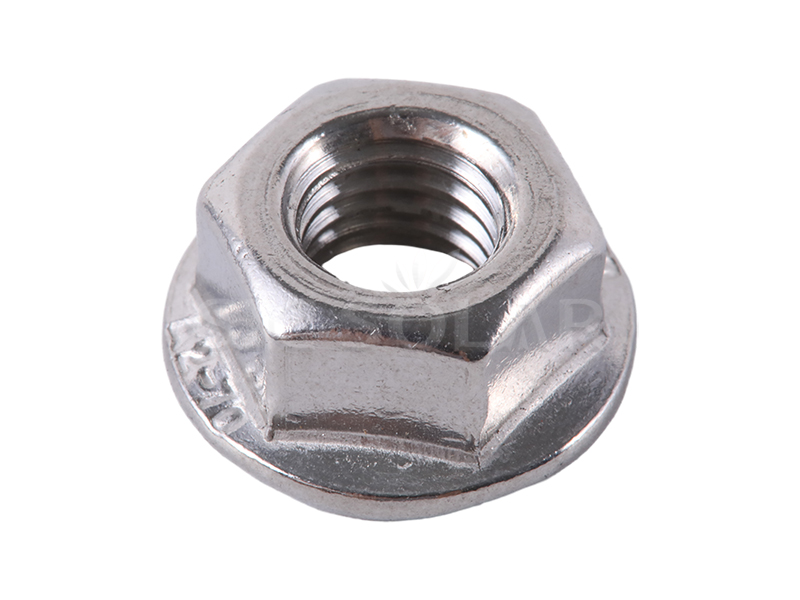

Nut Flange

Solar SUS304 Flange Nut with Locking Teeth built-in flange provides a wider bearing surface, helping distribute pressure across the connected components. The locking teeth grip the mating surface when tightened, helping prevent unwanted rotation under suitable installation conditions.

Flange Nut

Solar SUS304 Flange Nut with Locking Teeth are commonly used to secure solar mounting rails, brackets, and other structural components. In many applications, the integrated flange eliminates the need for a separate washer, simplifying assembly and reducing the number of components required.

Name Solar SUS304 Flange Nut with Locking Teeth

Installation Site

Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M²

Material

SUS304

Color

Natural

Anticorrosive

Stainless steel

Warranty

10 years and 25 years service time

1️⃣ Position the Nut: Place the flange nut at the designated fastening point according to the mounting system design.

2️⃣ Align the Components: Make sure the nut and connected parts are correctly positioned.

3️⃣ Tighten the Fastener: Use a compatible wrench or socket to tighten the nut according to the specified torque.

4️⃣ Check the Connection: Confirm that the nut is secure and the locking teeth are properly engaged with the mating surface.

Solar bracket package

☆ SUS304 Stainless Steel: Offers good resistance to rust and moisture in many outdoor environments.

☆ Integrated Flange: Distributes clamping force over a wider area and may eliminate the need for a separate washer.

☆ Locking Teeth Design: Helps resist rotation and loosening when used with compatible surfaces.

☆ Easy Installation: The hexagonal exterior allows tightening with standard wrenches or sockets.

☆ Simplified Assembly: Combines the functions of a nut and flange washer, reducing the number of separate components in suitable applications.

Q1: What is the purpose of the flange?

The flange provides a wider bearing surface to distribute clamping force and may eliminate the need for a separate washer, depending on the application.

Q2: How do the locking teeth work?

The serrated teeth grip the mating surface when tightened, helping resist rotation and loosening. Their effectiveness depends on correct installation and surface compatibility.

Q3: Can the locking teeth damage the mounting surface?

Yes. The teeth may mark or damage soft materials, coatings, or finished surfaces. Check compatibility before installation.

Q4: Can the flange nut be reused?

Reuse depends on the product design and condition. Inspect the threads and locking teeth, follow the manufacturer's recommendations, and replace any fasteners that are worn or damaged.
