Home Products Ground Screw Pile Drilling Machine Ground screw electric driver
Ground screw electrical drill
Ground screw electrical drill
Ground screw electrical drill

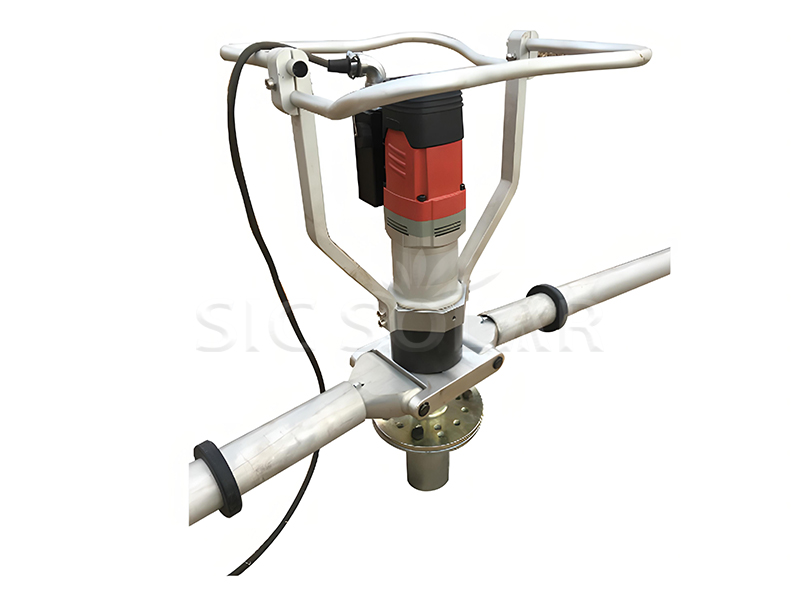

Ground screw electric driver

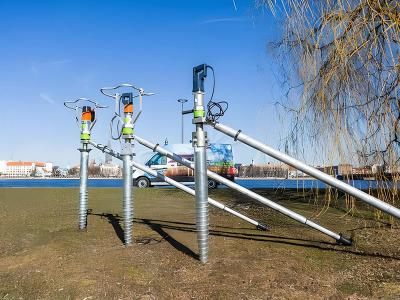

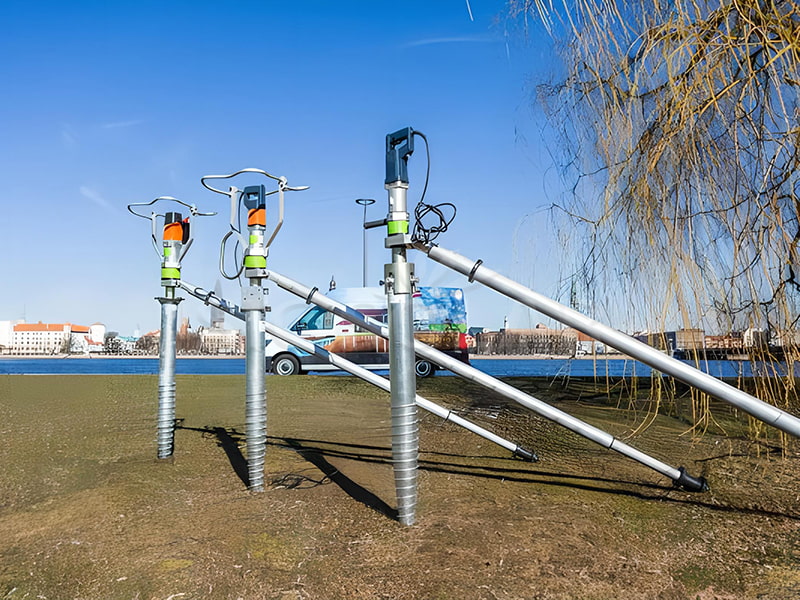

Ground screw electric driver helps you put ground screws into different kinds of soil quickly and evenly. That's why they're so important for big solar projects.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-GSM-E30
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, china



Ground screw electrical drill

Ground screw electric driver are simple to use and are mostly for putting up smaller to medium-sized solar panels, building fences, carports, wooden houses, and playground equipment.

Ground screw electrical drill

Ground screw electric driver cuts down a lot on the time it takes to install ground screws, especially when you compare it to doing it by hand or with older methods. They're perfect for big solar farms, building garages, or any other job where you need to put in a lot of screws.

Click here to learn more produce

Voltage

115V   230V

Max torque 4500N. m
Max power consumption 1800w
Max current 16A   8A
Pile diameter 76mm
Pile depth 1800mm

Track base

1430mm

Ground width

250mm

Ground gaps

280mm

Blade length

1400mm

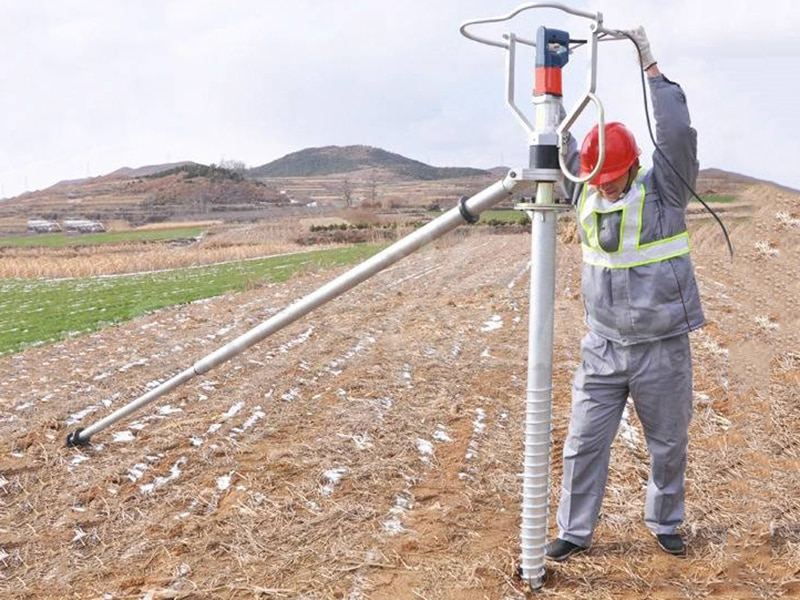

1️⃣ First, put the anchor bolt where you've marked it to go.

2️⃣ Then, hook up the electric driver to the right adapter.

3️⃣ Start screwing in the anchor bolt, making sure to push down steadily as you go.

4️⃣ Try to keep the bolt straight up and down so it's in exactly the right spot.

5️⃣ Stop tightening it once it's deep enough and feels secure.

The Ground screw electric driver accessory are packed in wooden case of 235*38*31cm, while the electric motor is packed in steel case of 67*31*19cm. (length * width * height). Photos as follow.

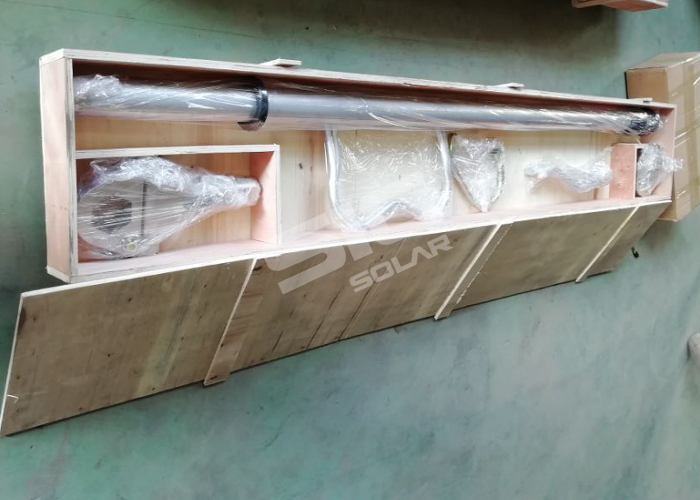

package for Ground Screw Electric Driver

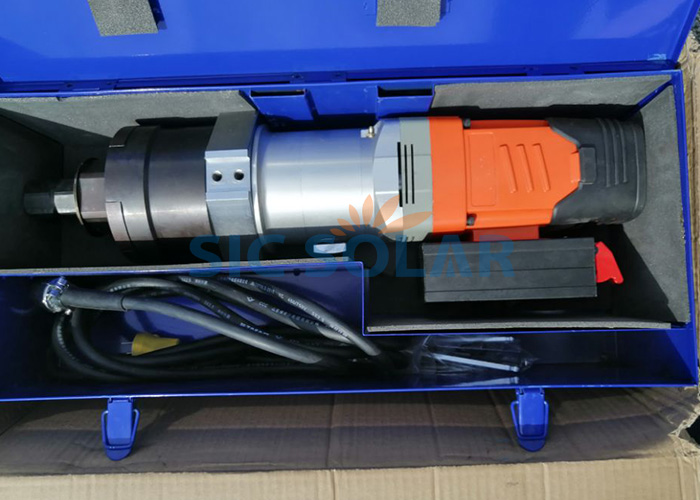

Package for Ground Screw electric motor

☆ It's easy to move around and quickly set up in different spots.

☆ It works well in all sorts of ground conditions.

☆ You'll save both money and time using this.

☆ It helps you put things together quickly, making the whole job go faster.

Q1. How can I purchase the suitable driver for my ground screw?

Currently we have three kinds of ground screw electric driver, the max specification of ground screw for the driver is different. so, pls offer us the dimension of ground screw, and we will choose the suitable driver for you.





Q2. Did you have adapter/connector plate for the different type of header screws?

Yes, below are the picture of adapters. We will equip one for the driver.

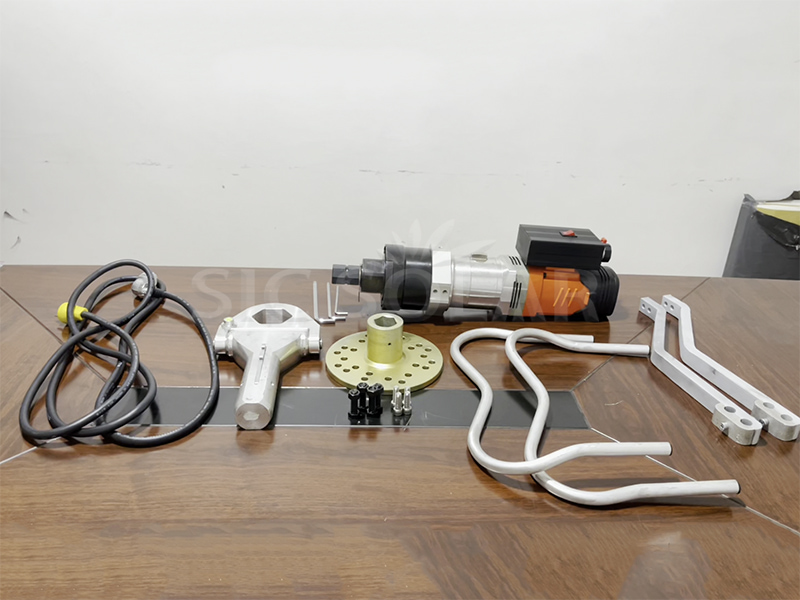

Adapters/ connector plates





Q3. The supporting vertical column for the solar panel must be inserted vertically into the ground, is the driver suitable for this operation?

Yes, it is, if you use the equipment correctly.





Q4. What should I pay attention to when I assemble the driver?

Don't be worry, we will offer you the instruction of ground screw electric driver.





Q5. What is the weight of driver including accessories?

The weight of driver is 78kg.





Q6. What is the warranty period?

The warranty period is 3 months.





Q7. Do you have the warranty certificate for the driver?

Yes, we have the warranty certificate for the driver, and we also have the certificate of other products. If you want, we will offer you.
