Solar Panel Quick Mid Clamps
Solar Panel Quick Mid Clamps

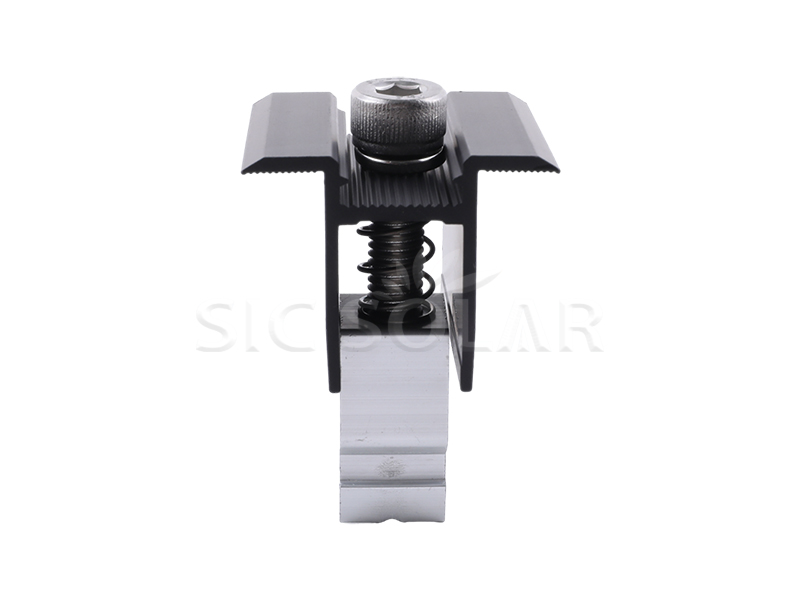

Quick Installation Solar Rapid Mid Clamp

Quick Installation Solar Rapid Mid Clamp is made to hold solar panels tight to mounting rails, right where the panels meet in a row. It's easy to use and gets the job done fast, which makes it great for putting up solar panels at homes or businesses.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-IC-C

  • Shipping Port:

    Xiamen, China

  • Installation Site:

    Rail

  • Color:

    Customized

  • Material:

    AL 6005-T5

  • Warranty:

    10 years warranty and 25 years service times

  • Function:

    Fixing solar panel
Inquire Now
Download

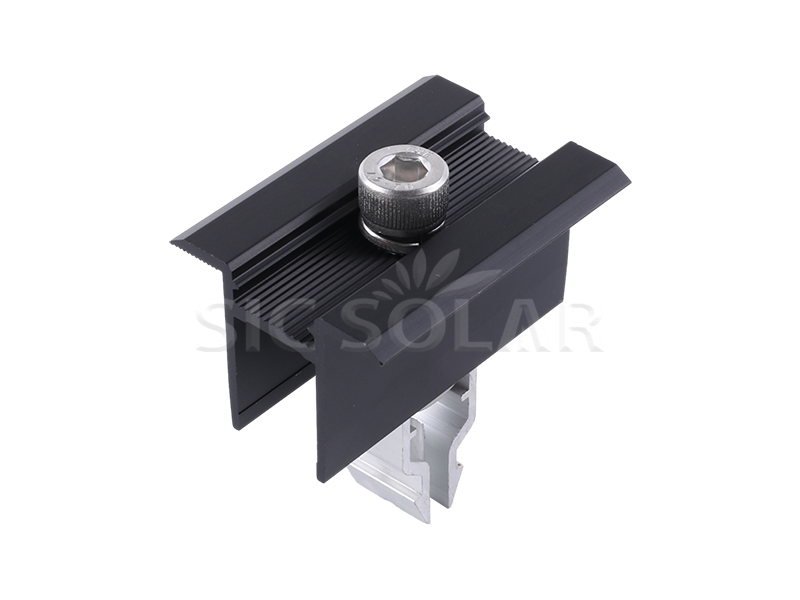

Solar Rapid Mid Clamp

Quick Installation Solar Rapid Mid Clamp helps you put things together quicker, so you don't spend as much time on labor. Usually, you don't need many tools, and it's simple to lock it down. It's made to fit right between panels, so they stay in line on the rails.



Mid Clamp Solar Panels

Quick Installation Solar Rapid Mid Clamp keeps panels where they should be, so they don't get moved around by the wind or anything else. They come in different sizes that work with different panel frames, so they're useful for setting up all kinds of systems.

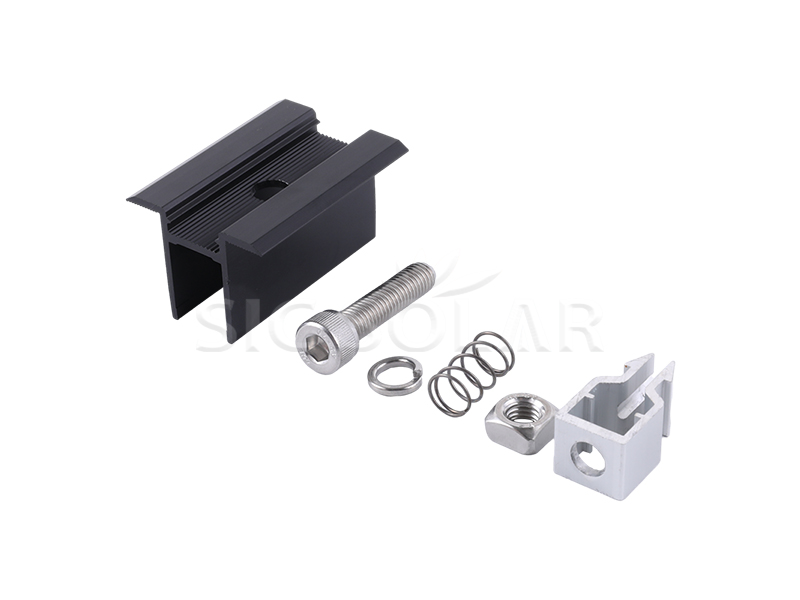

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more mid clamps

PV panels mid/end clamp

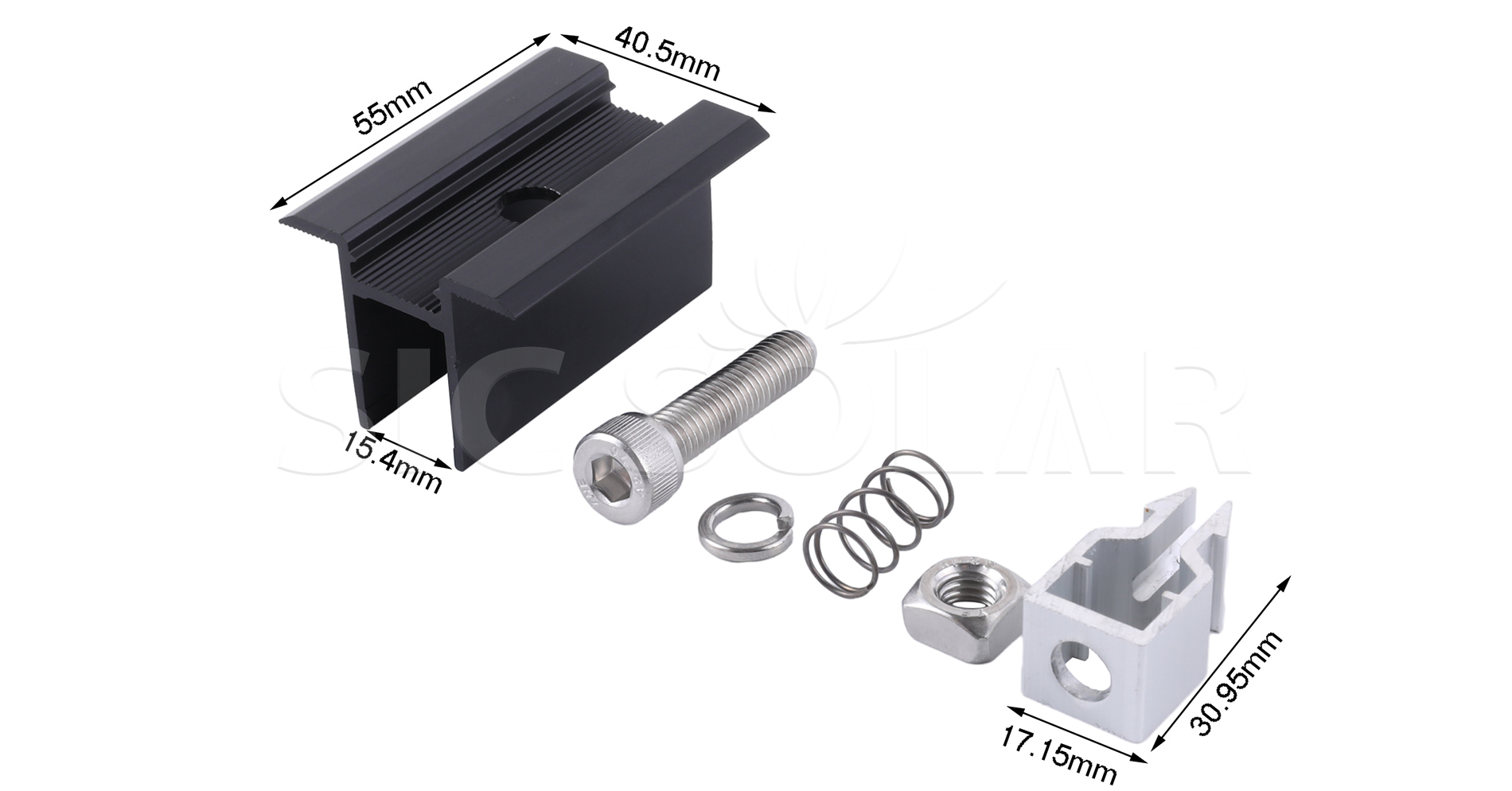

Solar Mid Clamp Size

Name Quick Installation Solar Rapid Mid Clamp

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

1️⃣ Put the clamp in place: Set the clamp between the frames of the two panels next to each other.

2️⃣ Line it up: Make sure the clamp lines up with the groove on the rail below.

3️⃣ Tighten the screws: Tighten the clamp until the panels are locked in.

4️⃣ Do it again: Put a clamp at each spot where panels meet, keeping the space and pressure even.

Solar bracket package

☆ Fast to install — Just press it hard onto the rail.

☆ Lasts long – Good AL6005-T5 means it's guaranteed for 10 years and should last for 25.

☆ Won't rust



Related certificate

☆ Aluminum quality certificate -- AL6005-T5 ingredients

☆ SGS Certificate for screw stuff -- SUS304

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
