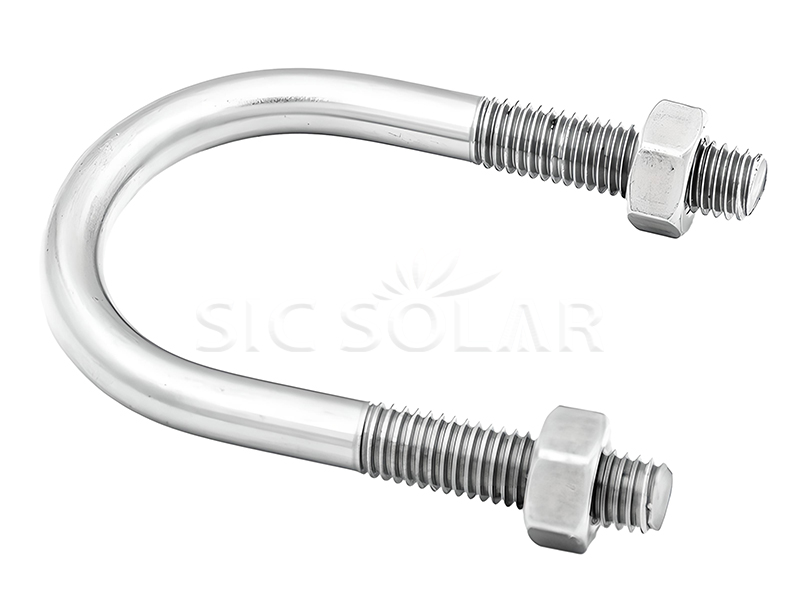

Ground Bolt U shape for solar carport base

Ground Bolt U shape for solar carport base is designed to secure compatible carport base components to a suitable foundation. Its U-shaped structure provides a reliable connection point for fixing base plates and supporting components, helping maintain the stability of the solar carport structure.

Brand:

SIC SOLAR

Item NO.:

SIC-GB-U

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Material:

SUS304

Warranty:

10 years and 25 years service time

Surface:

Hot dipped galvanized/Clean

Length:

Can be customized

Thickness:

Can be customized

Function:

For solar project

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more ground screw

Name	Ground Bolt U shape
Installation Site	Ground
Material	SUS304
Surface	Hot dip galvanized/Clean
Diameter	M6 up to M36
Length	20mm up to 200 mm
Warranty	10 years and 25 years service time

1️⃣ Prepare the Foundation: Ensure the concrete foundation or other approved base is ready. Mark the bolt positions according to the installation drawings.

2️⃣ Position the U-Bolts: For concrete foundations, secure the bolts in place before pouring. For existing foundations, use a suitable anchoring method based on the structural design.

3️⃣ Align the Base Components: Position the carport column or base plate with the U-bolts, ensuring the components are correctly aligned.

4️⃣ Tighten the Fasteners: Secure the connection using the specified nuts and washers. Tighten according to the project requirements.

5️⃣ Inspect the Installation: Check the alignment, fastening, and surface coating to ensure the assembly is installed correctly.

Wooden pallet packing

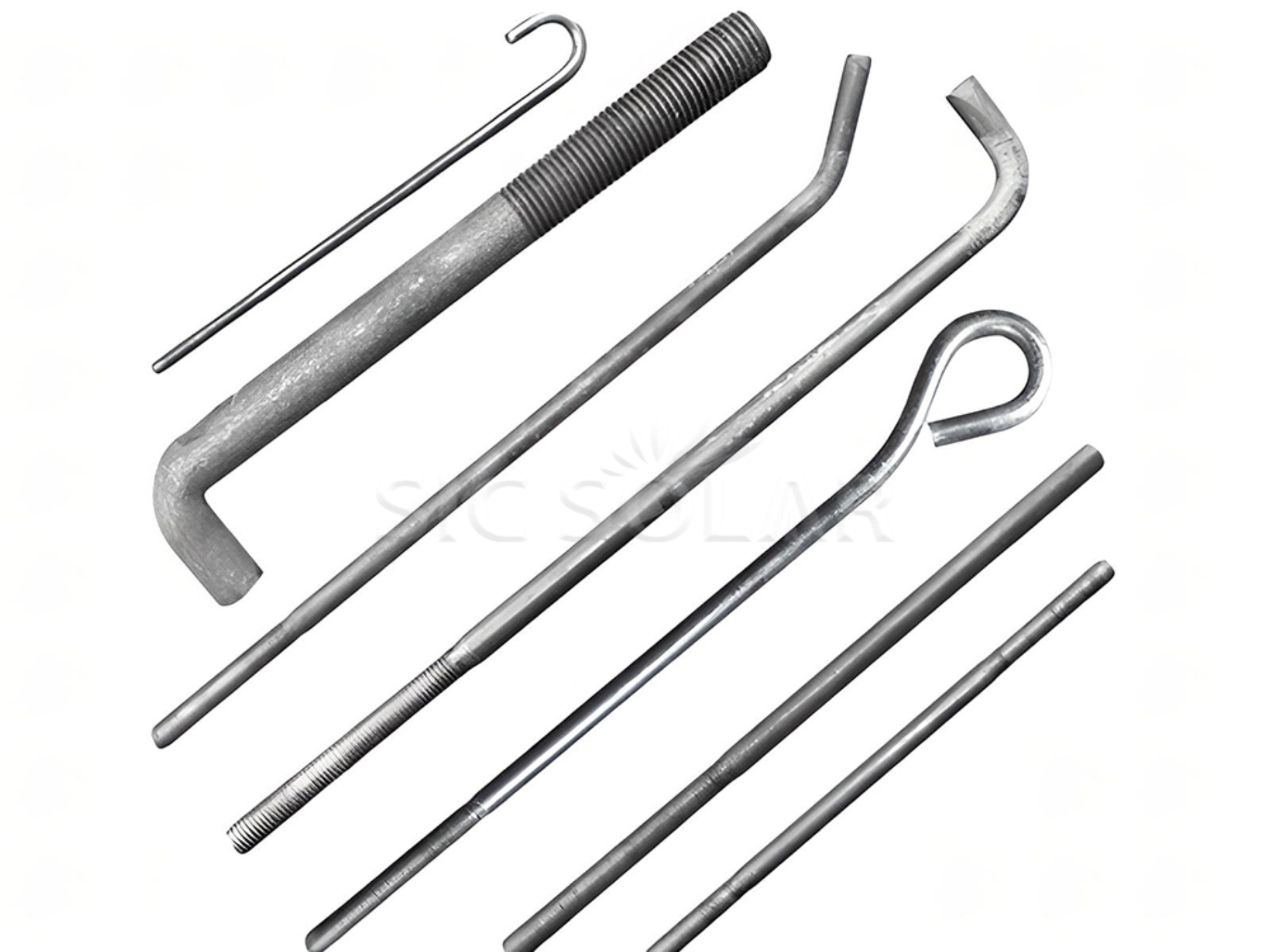

☆ Multiple Options: Different bolt configurations are available to suit compatible ground mounting feet and base structures.

☆ Stable Connection: Helps secure solar carport base components to the foundation.

☆ Practical U-Shaped Design: Provides a convenient fixing arrangement for compatible structural components.

☆ Custom Specifications: Dimensions, thread configurations, materials, and surface treatments can be selected according to project needs.

☆ Accurate Positioning: A positioning template can help maintain the correct bolt spacing and alignment during installation.

Q1. What specifications are available?

Please contact us with your project requirements for detailed specifications and suitable options.

Q2. Can the bolts be supplied in black? What surface treatment is available?

Yes. Black electrophoretic coating is available.

Q3. Can you supply bi-metal screws?

Yes. Please contact us to discuss the required materials and specifications.

Q4. Can the bolts be customized according to customer drawings?

Yes. We can customize the bolts to meet your requirements. Please share your drawings for evaluation.

Q5. What trade terms do you offer?

For express shipments, we can arrange delivery through TNT, DHL, FedEx, and other carriers.

For sea freight, available trade terms include EXW, FOB, CIF, and DAP, subject to the order requirements.

Q6. What payment methods do you accept?

For orders of USD 10,000 or less, 100% T/T payment is required when placing the order.

For orders over USD 10,000, a 50% T/T deposit is required, with the remaining 50% payable before shipment.

Q7. What is the delivery time?

For in-stock bolts, delivery generally takes around 5–10 working days. For items that are not in stock, the lead time depends on the order quantity and production schedule.
