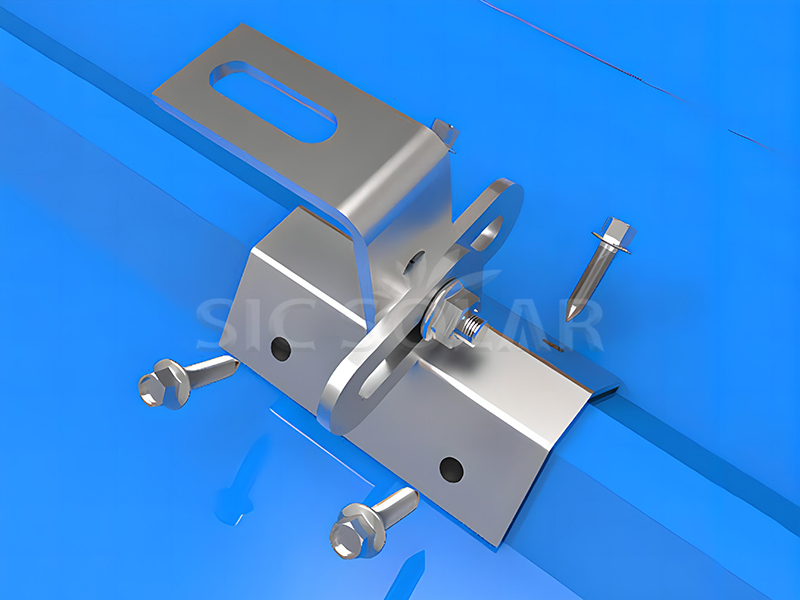

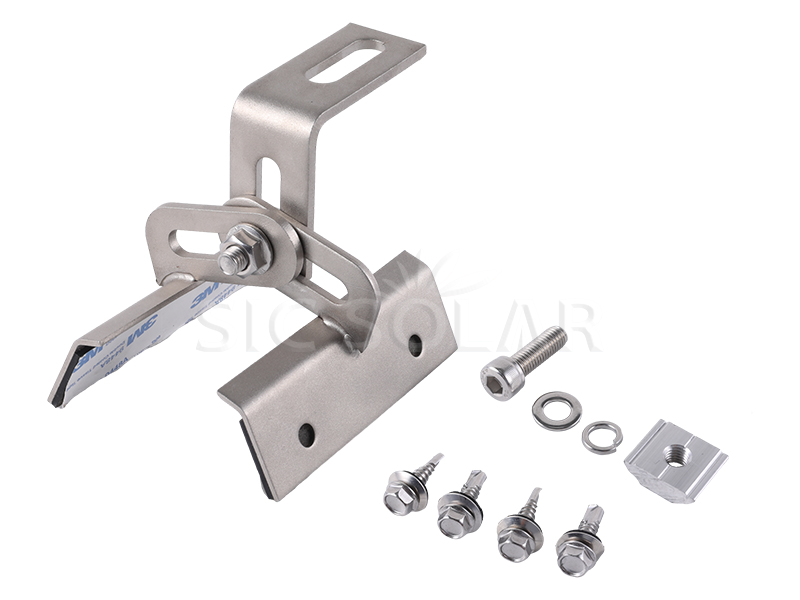

Pv Adjustable Clamp For Trapezoidal Metal Roof

Click here to learn more

1️⃣ Measure the height and spacing of the trapezoidal ribs to define the roof outline.

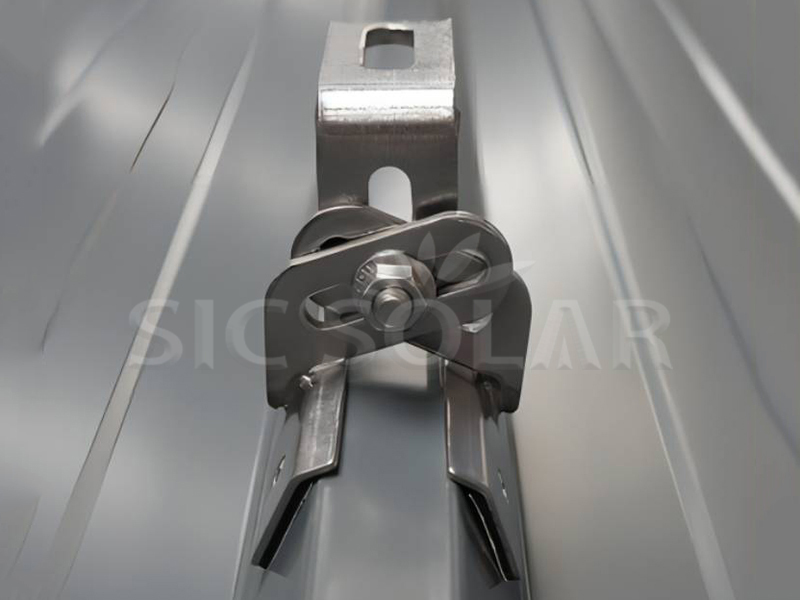

2️⃣ Place the clamps where you want them on the ribs.

3️⃣ Tighten the screws using self-tapping screws or lifting bolts to fix the clamps.

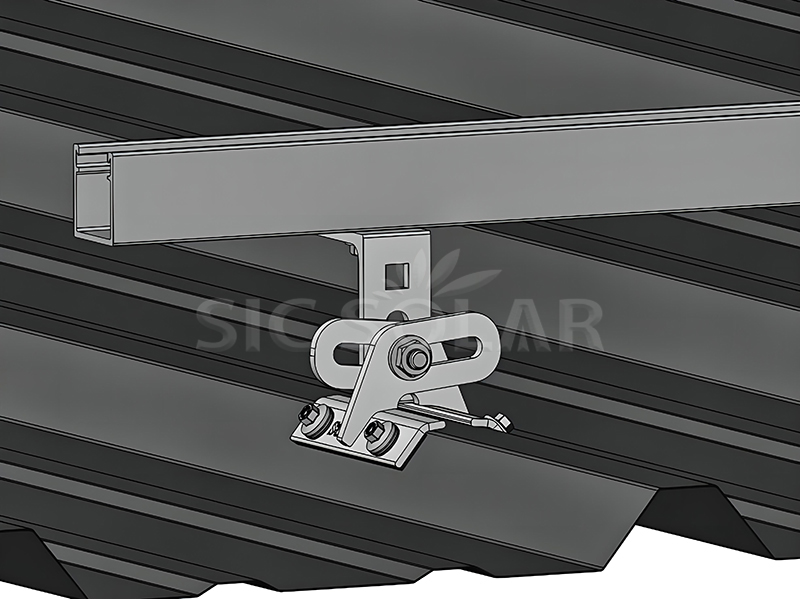

4️⃣ Attach the aluminum rails to the clamps.

5️⃣ Make sure the rails are properly spaced and aligned parallel.

6️⃣ Mount the solar panels using the middle and end clamps.

7️⃣ Finally, check that all connections are stable and secure.

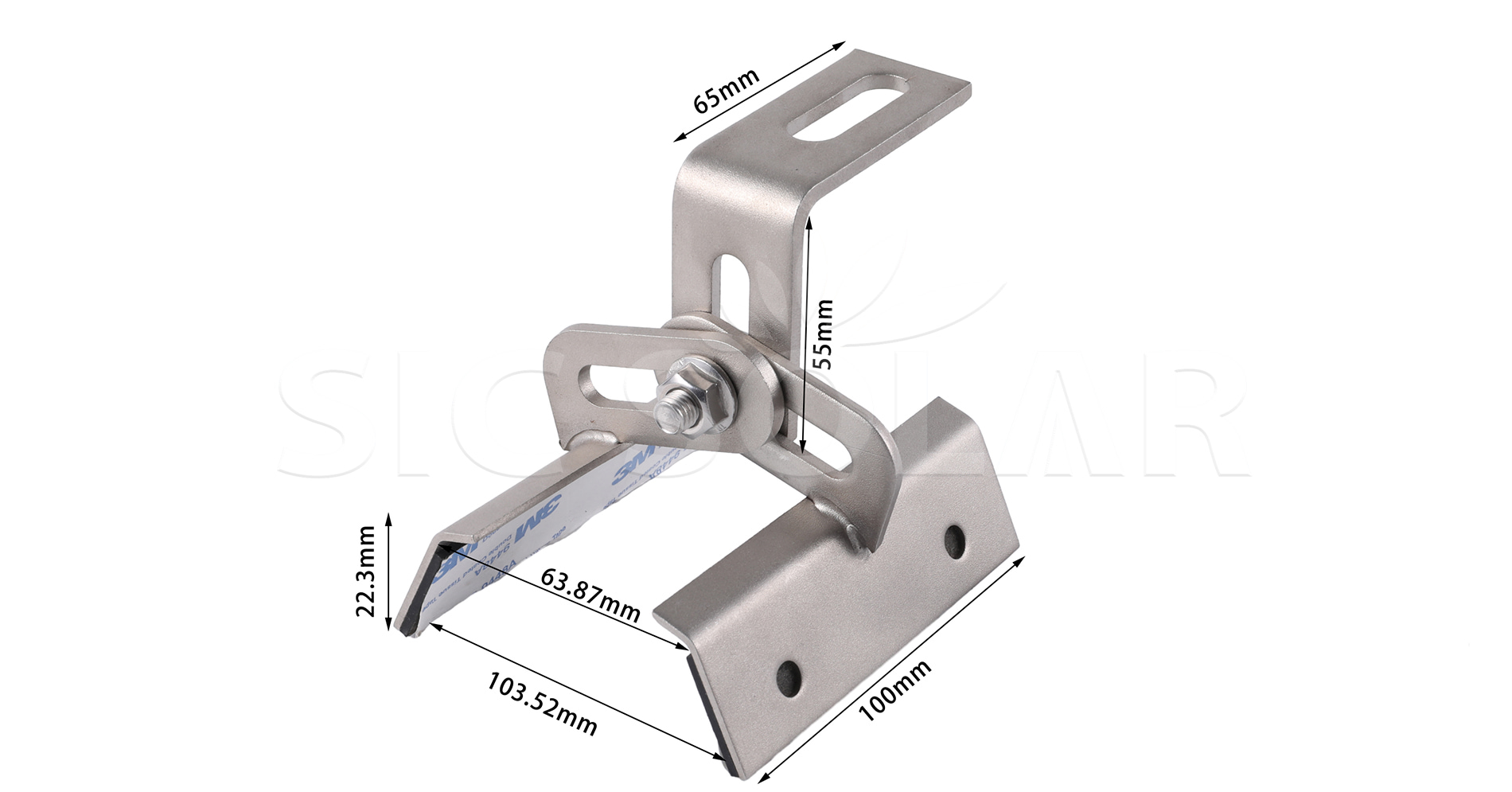

☆ Adjustable clamp plate could meet various trapezoidal metal roof sheet.
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Pre-assembly – Save labor cost at the installation site.

Related Certificate

☆ Our CE Certificate for solar mounting system.

☆ Our SGS Certificate for hook material -- SUS304.

☆ Our SGS Certificate for screw material -- SUS304.

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
