PV L Feet Bracket For Metal Roof Sheet

PV L Feet Bracket For Metal Roof Sheet refers to a particular mounting bracket that is generally used in attaching and securing solar photovoltaic (PV) panels on metal roofing sheets. Thus, this bracket plays an important role in security and safety precaution of the installation as well as positioning adjustment for gaining the best sunlight exposure.

Brand:

SIC SOLAR

Item NO.:

SIC-L1

Shipping Port:

Xiamen port

Color:

Natural or Customized

Material:

AL6005-T5 & SUS304

Warranty:

10 years and 25 years

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

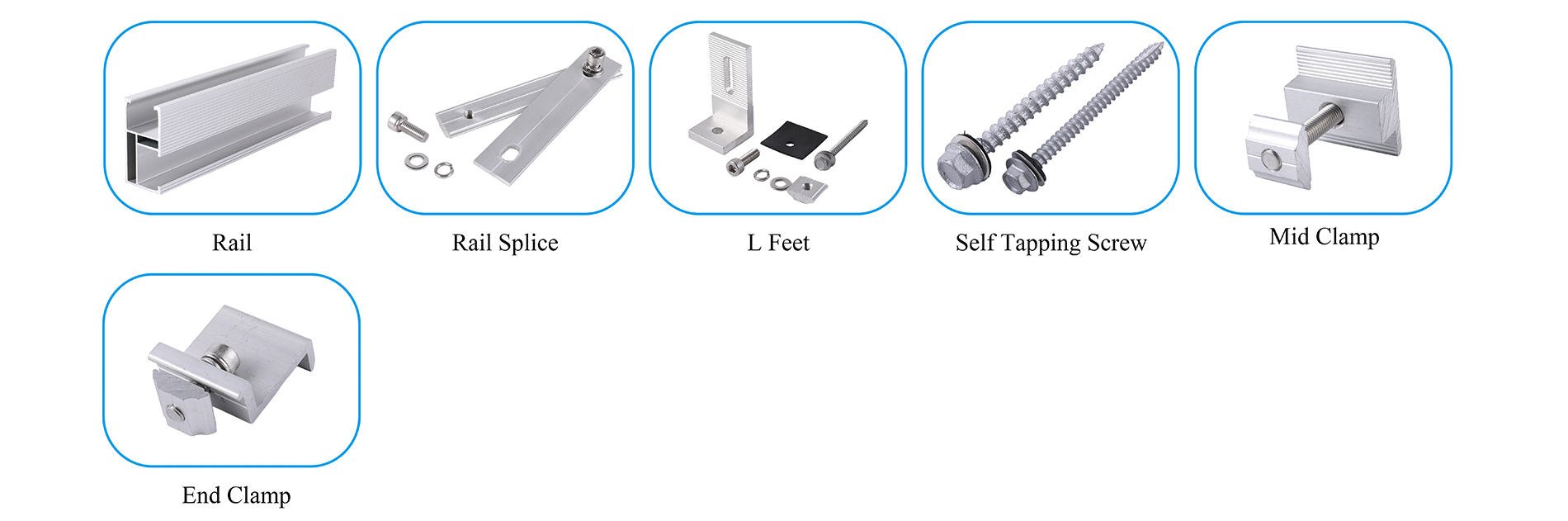

Components Video Technical Details Installation Guide Package Advantage

Click here to learn more

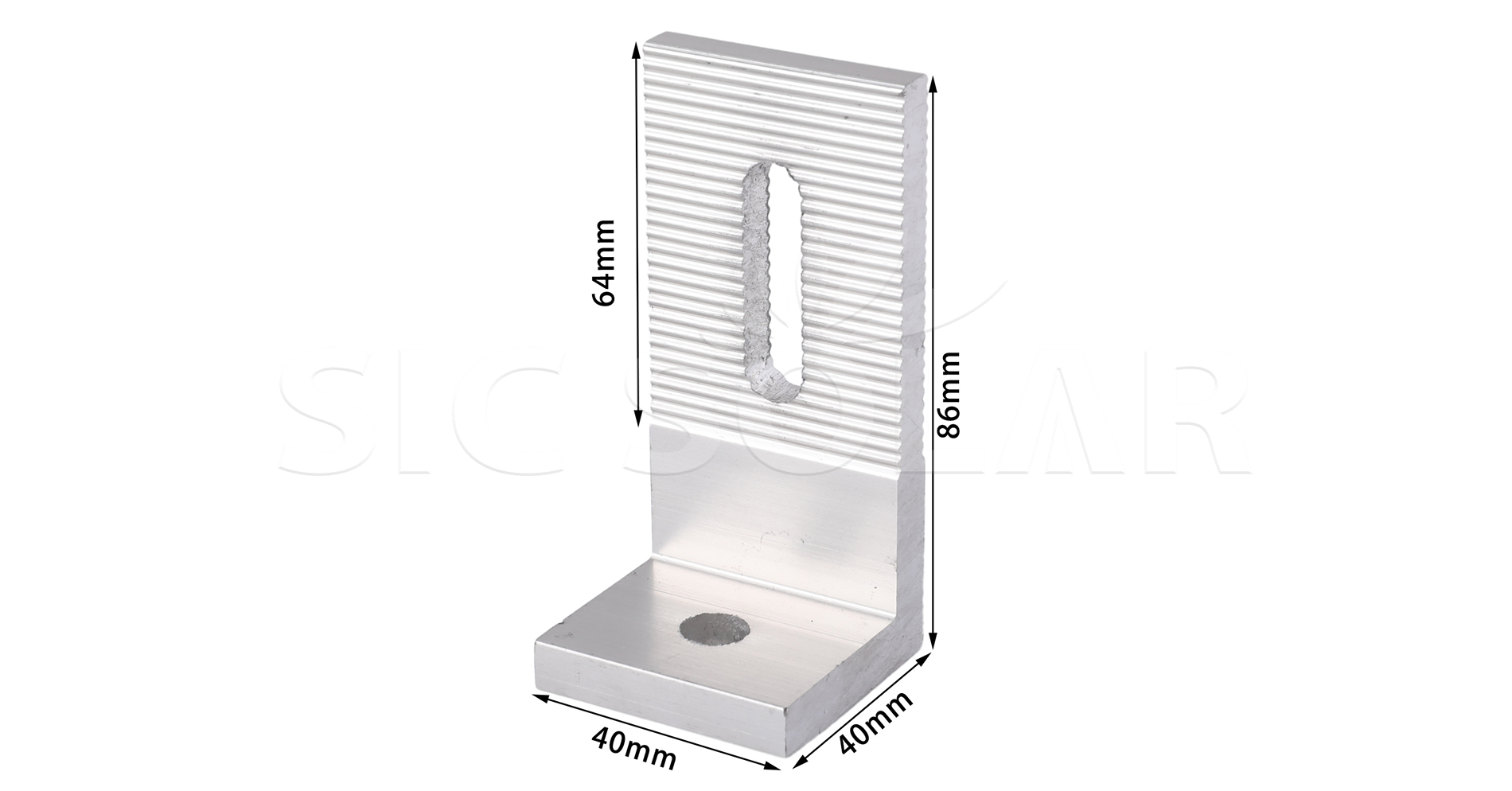

L Shaped Metal Bracket

Installation Site	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

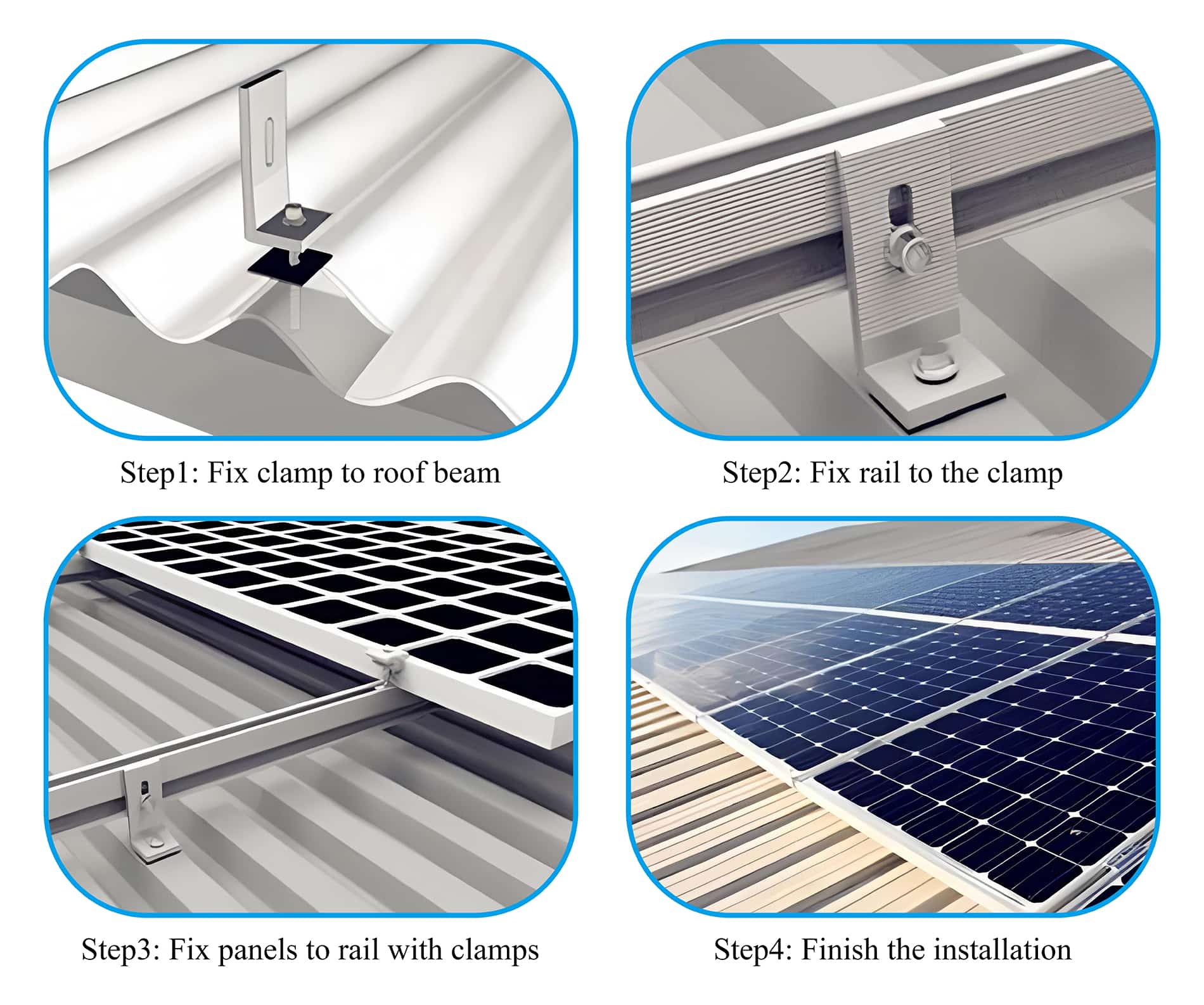

1️⃣ Position the L-shaped legs – Align the brackets with the planned track locations.

2️⃣ Attach the brackets – Use self-tapping screws for trapezoidal/corrugated roofs or clamps for standing seams (no drilling required).

3️⃣ Install the tracks – Secure the tracks to the L-shaped legs using bolts or slip nuts.

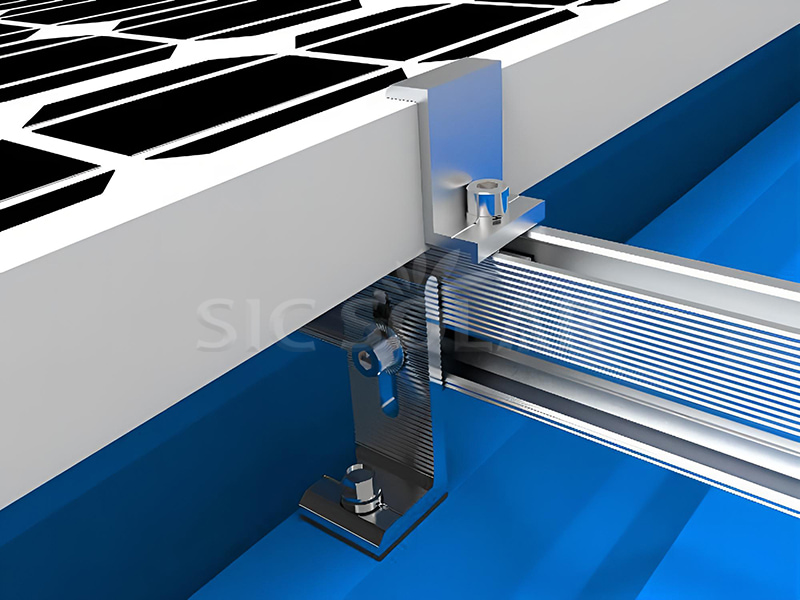

4️⃣ Install the panels – Secure the panels using the intermediate and end clamps.

5️⃣ Inspect – Ensure all fittings are secure and waterproof.

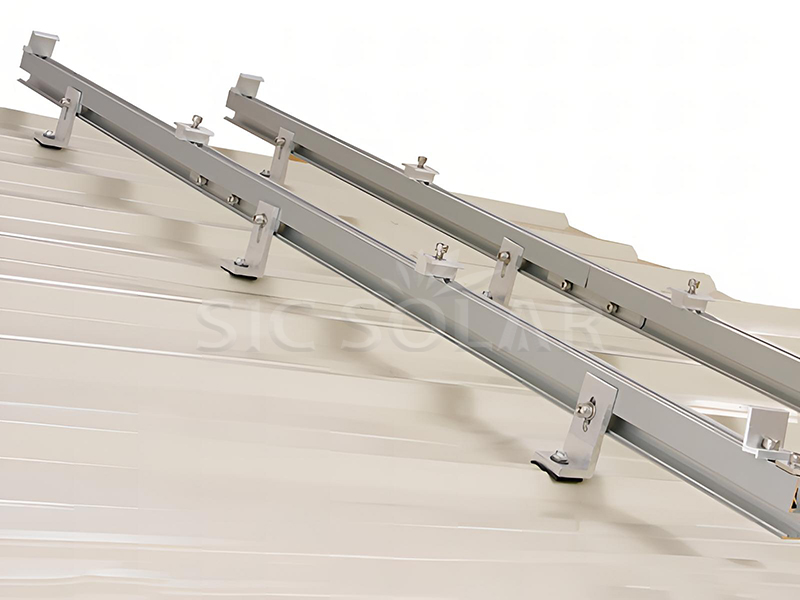

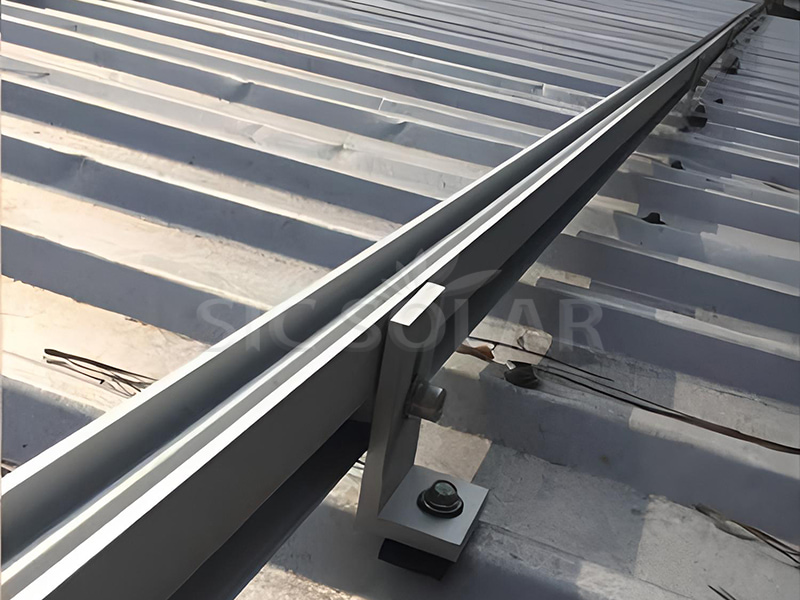

L Feet Metal Roof Solar Mounting System

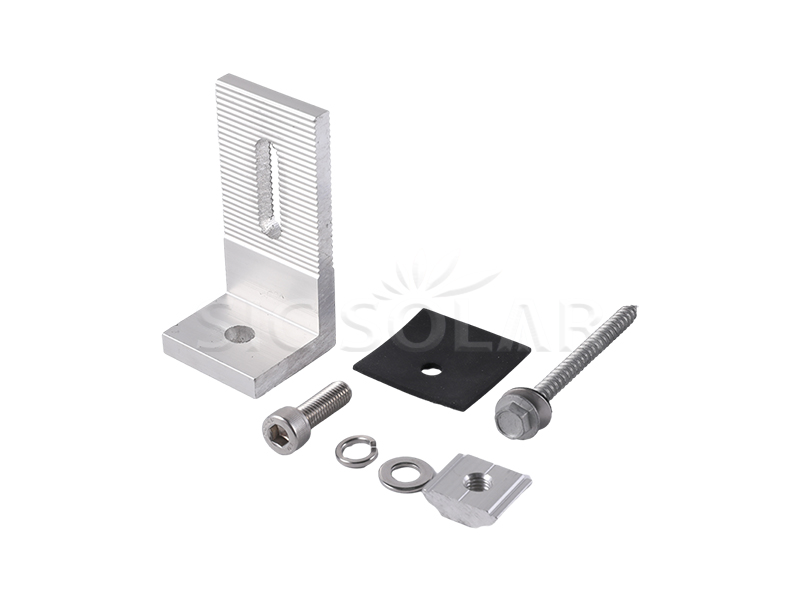

Solar bracket package

☆ EPDM rubber effectively repels water.

☆ Sturdy and stable: Ensures stable support for panels under wind and snow loads.

☆ Corrosion-resistant: Durable materials ensure long-term performance.

☆ Easy installation: Pre-drilled holes and an adjustable design simplify installation.

☆ Wide compatibility: Compatible with trapezoidal, corrugated, and other metal roof panels.

☆ Lightweight design: Reduces roof load while maintaining high strength.
