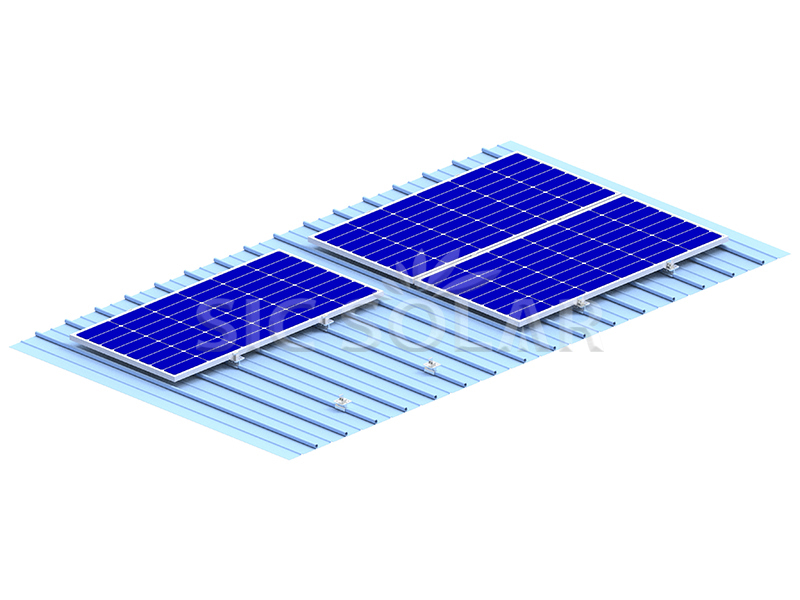

Mounting Solar Panels On Metal Roof

Raising Solar Panels Above Metal Cover dispenses with the need to infiltrate the rooftop, decreasing the gamble of spills. Ridged metal rooftops and three-sided metal rooftops can likewise be fitted with sunlight-based chargers utilizing uniquely planned sections and fixing equipment.

Brand:

SIC SOLAR

Item NO.:

SIC-TC-08

Installation Site:

Metal Roof

Color:

Natural

Material:

AL6005-T5

Wind Load:

60m/s

Snow Load:

1.4kn/m2

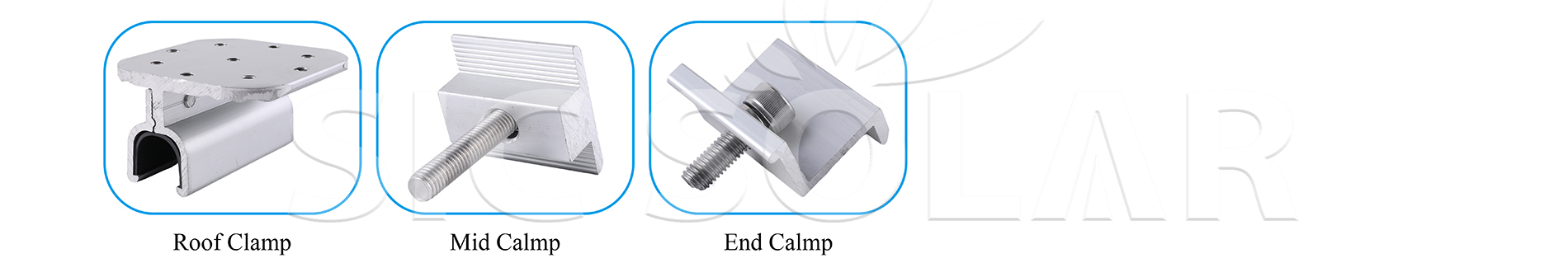

Components Project Technical Details Installation Guide Package Advantage FAQ

Click here to learn more product

pv roof mounting systems

metal roof solar panel mounting structure

seam metal roof clamps

Installation Site	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Assess the roof – Check the orientation, slope, and condition; confirm system compatibility.

2️⃣ Select hardware – For standing seam roofs, use non-penetrating clamps; for trapezoidal roofs, use adjustable clamps with EPDM washers.

3️⃣ Mark the rails – Lay out and mark the rail positions according to the panel layout and roof structure.

4️⃣ Install the clamps/bolts – Install along the marked lines; add washers or sealant for waterproofing.

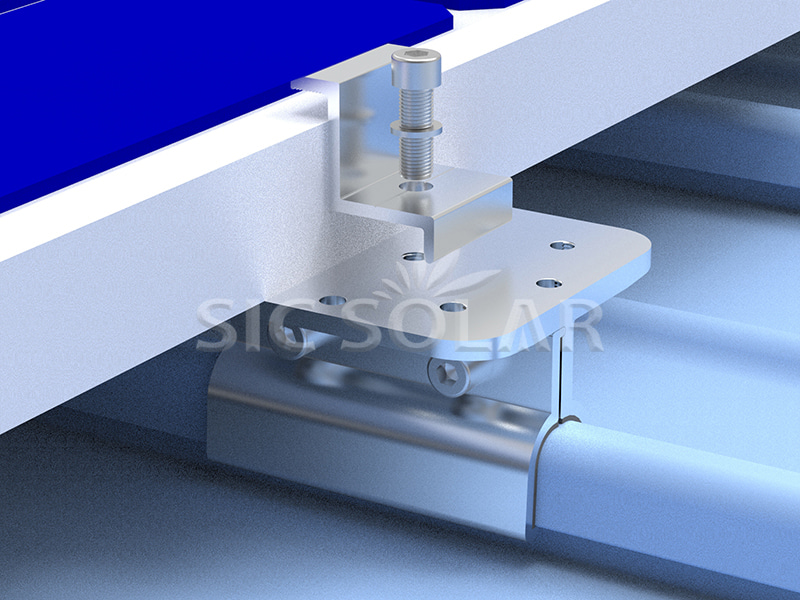

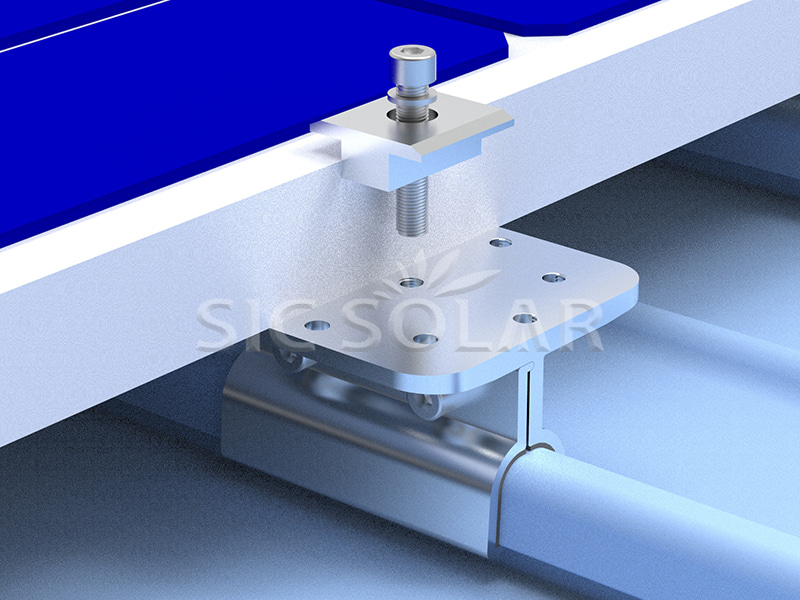

5️⃣ Install the rails and panels – Secure the rails to the clamps, then secure the panels with the center and end clamps.

Solar bracket package

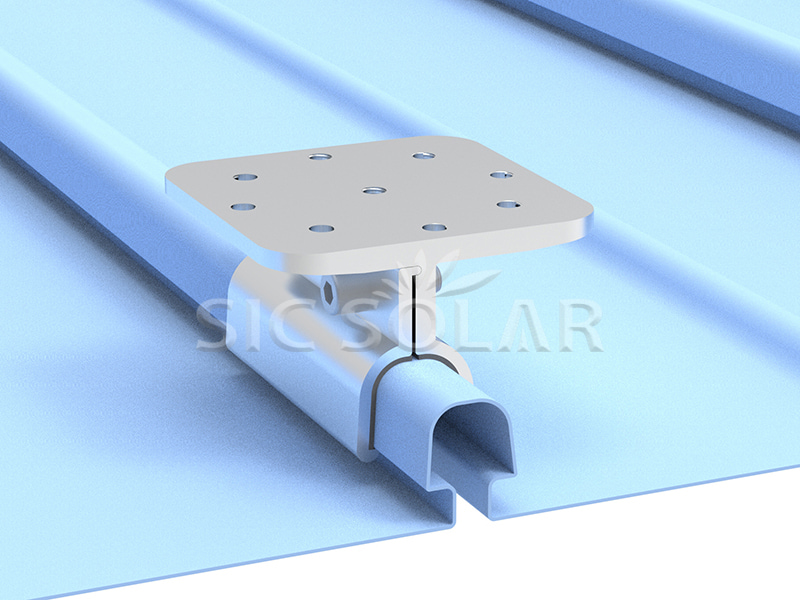

☆ Standing seam roof clamps will not damage metal roof panels.

☆ Strong and stable: Ensures roof panels are securely fixed under wind and snow loads.

☆ Corrosion-resistant: Weatherproof materials ensure long service life.

☆ Quick installation: Pre-assembled components make installation fast and easy.

☆ Flexible and compatible: Suitable for standing seam, corrugated roofs, and trapezoidal roofs.

☆ Lightweight design: Reduces roof loads while maintaining high strength.

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
