Roof aluminum railing parts for metal roof installation
Roof aluminum railing parts for metal roof installation
Roof aluminum railing parts for metal roof installation

Metal roof aluminum short rail mounting system

Metal Roof Aluminum Short Rail Mounting System is a solar panel mounting solution optimized for metal roofs. This system uses shorter aluminum rails to attach solar panels securely and efficiently to the roof, offering a streamlined installation process.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-MN-03

  • Installation Site:

    Metal roof

  • Material:

    AL6005-T5

  • Warranty:

    10 years and 25 years service time

  • Function:

    Frame support for solar panel

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now

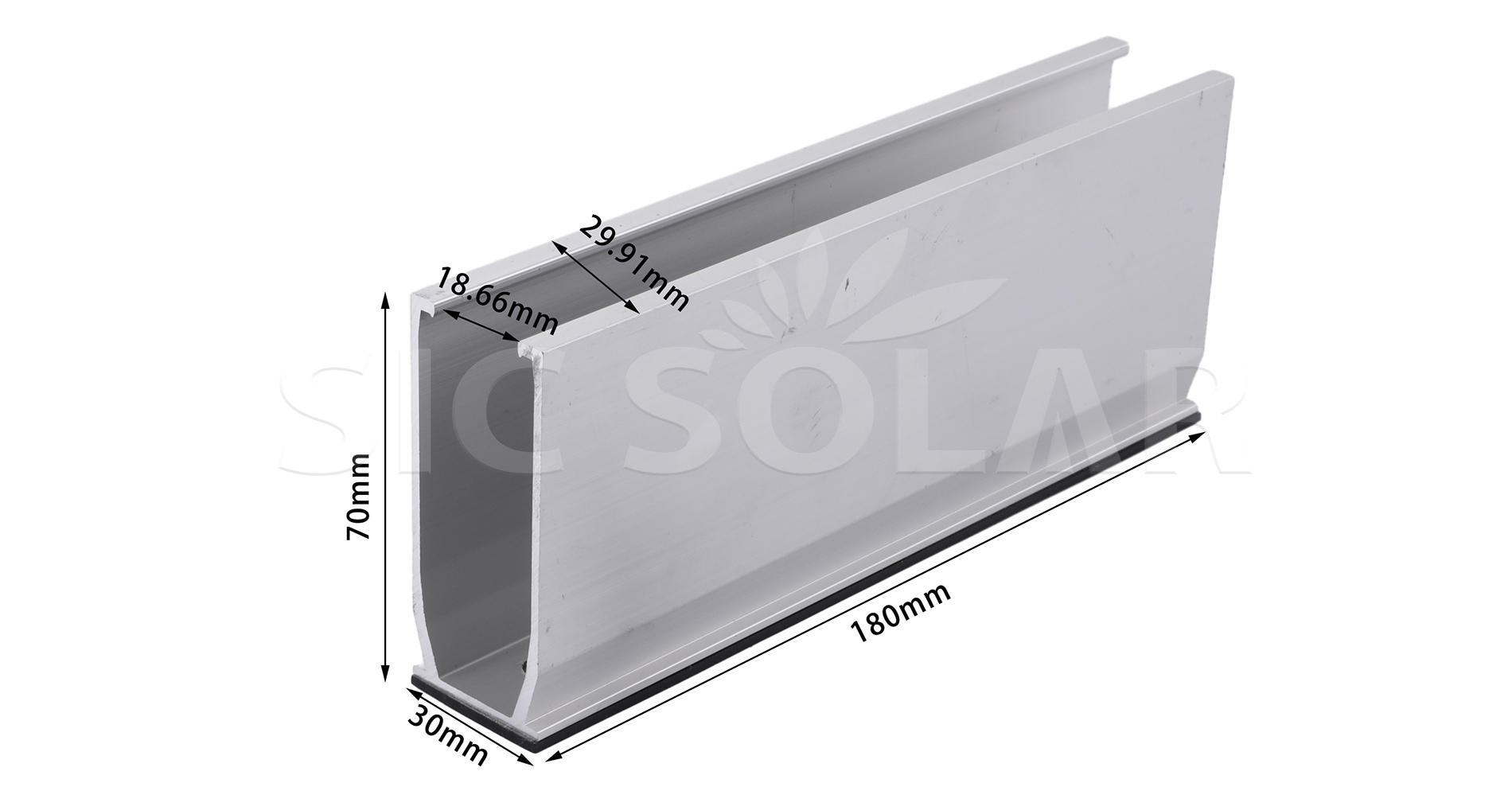

Solar mounting rails

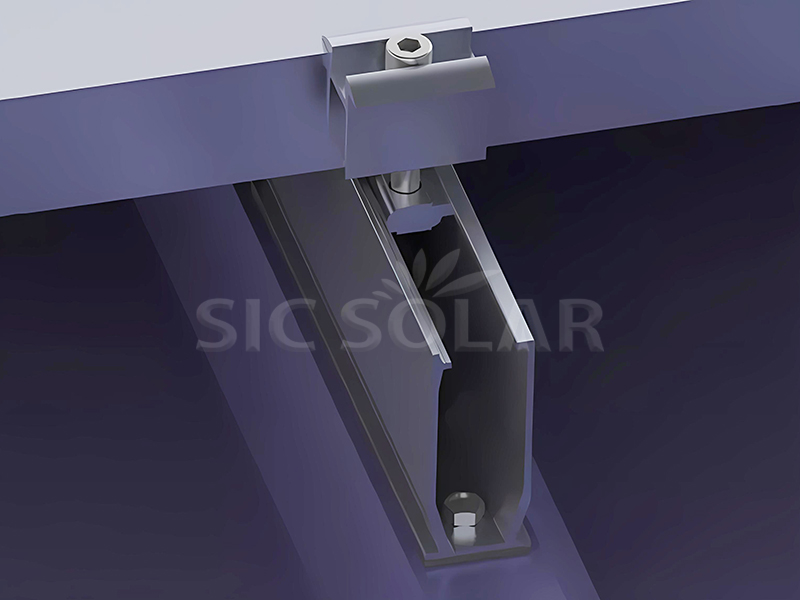

Metal roof aluminum short rail mounting system use shorter aluminum rails that are lighter and easier to handle than traditional long rails. These rails are usually mounted directly to the metal roof using clamps or brackets. The rails are made of high-quality aluminum, which is known for its corrosion resistance, lightness, and durability. This ensures that the mounting system can withstand harsh weather conditions for a long time.

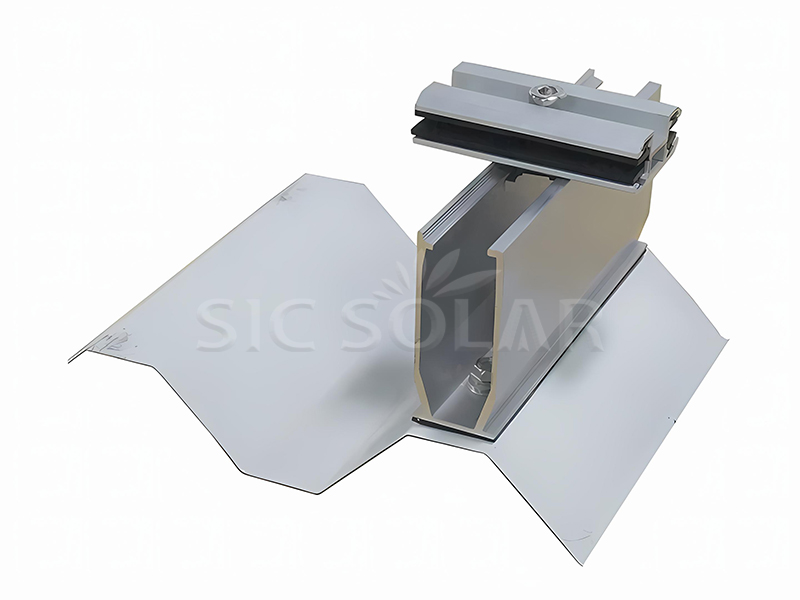

Trapezoidal metal roof clamp

When choosing a Metal roof aluminum short rail mounting system, you should consider the type of metal roof, the slope of the roof, wind and snow load requirements, and the specific design criteria the system must meet. You also need to consider the ease of installation, flexibility in panel orientation, and the overall cost-effectiveness of the system.

Components Technical Details Installation Guide Package Advantage

Click here to learn more short rail

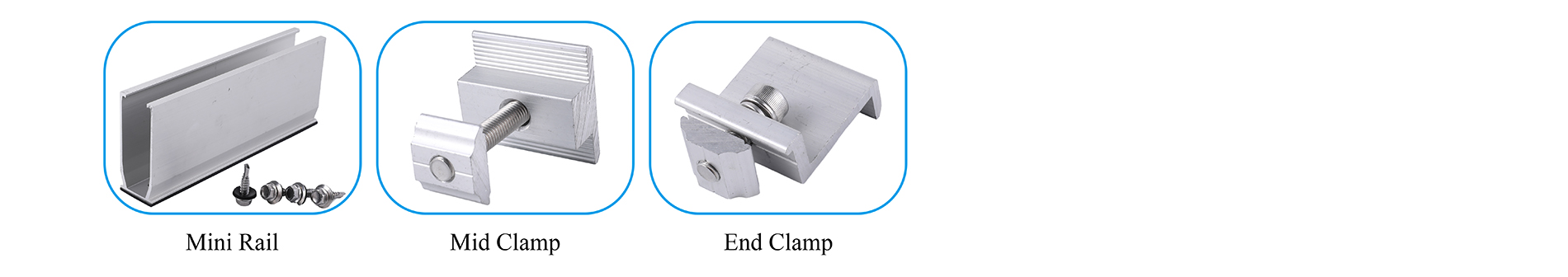

Roof Solar Mounting Components

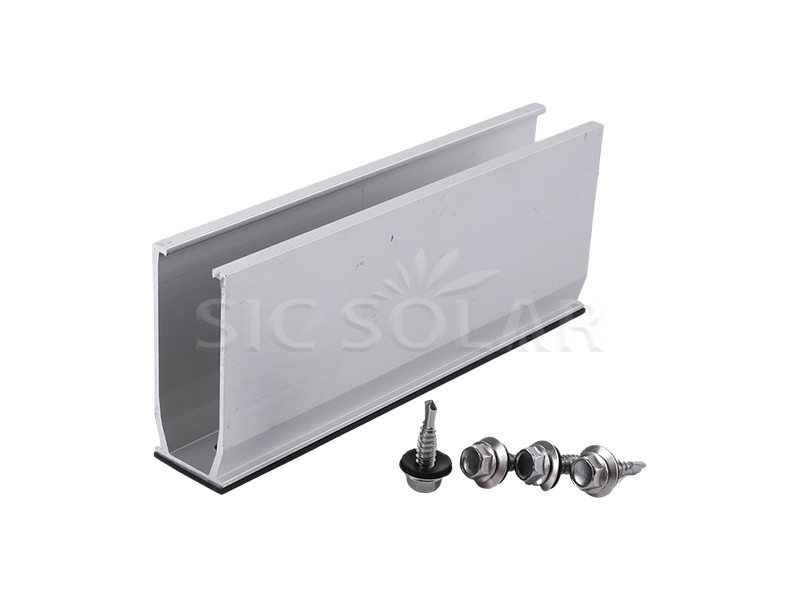

Mini Rail

Installation Site

Metal Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time

1️⃣ Mark the mounting points – determine the correct spacing of the short rails on the metal roof.

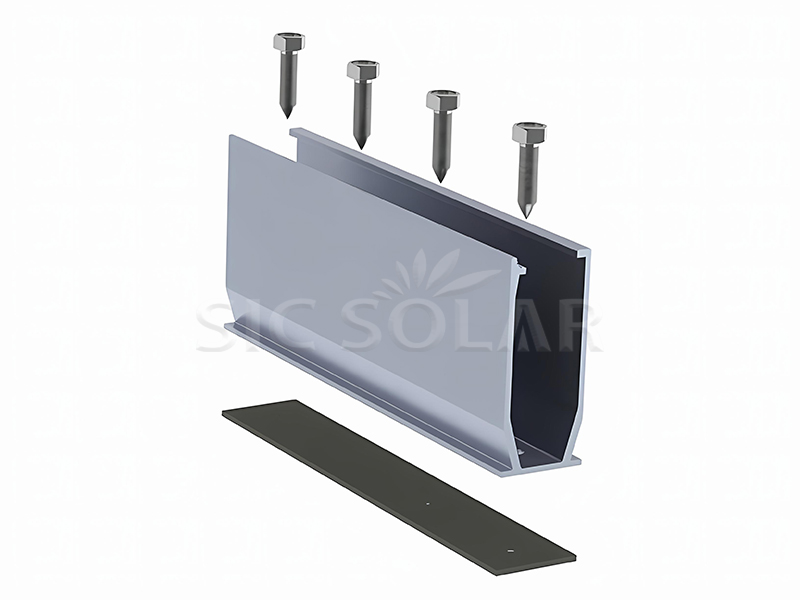

2️⃣ Secure the short rails – use self-tapping screws with waterproof washers.

3️⃣ Mount the solar panels – secure the panels using mid- and end clamps.

4️⃣ Final check – ensure all connections are tight and weatherproof.

Solar bracket package

Advantages as follow:
☆ Easy to use - Only 3 components, Save labor cost at the installation site.
☆ Short rail arraycould be customized according to your roof size.
☆EPDM rubber can be effective waterproofing.

☆ Best aluminum profile Ensure 10 years warranty and 25 years service time.



Related Certificate

Our SGS Certificate for screw material -- SUS304

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
