Solar panel ground mounting systems
Solar panel ground mounting systems

Steel Ground Solar Panel Mounting Systems/CE

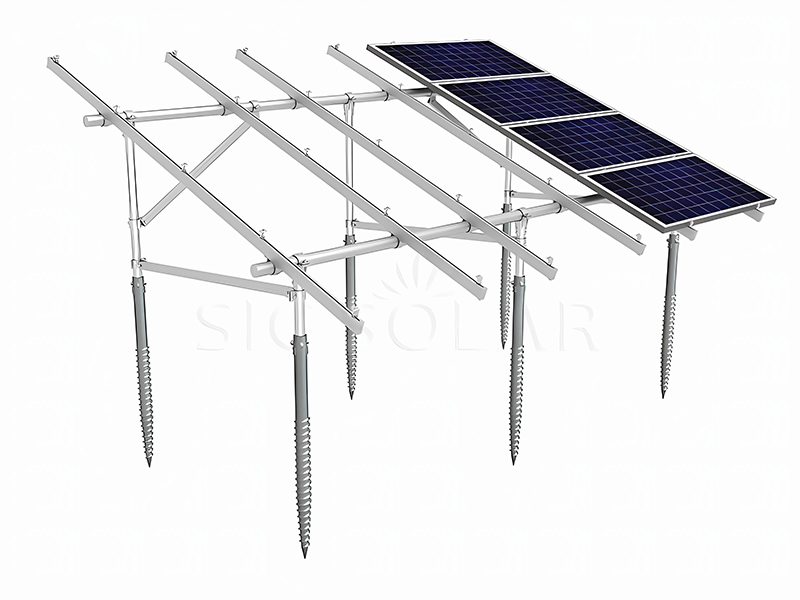

Steel Ground Mount Solar Racking is developed for the large ground commercial solar system.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-SGI
  • Installation Site:

    Open field
  • Tilt Angle:

    0-60 degrees
  • Material:

    Hot Dipped Galvanized Steel Q235B
  • Wind Load:

    <60M/S
  • Snow Load:

    1.4KN/M2

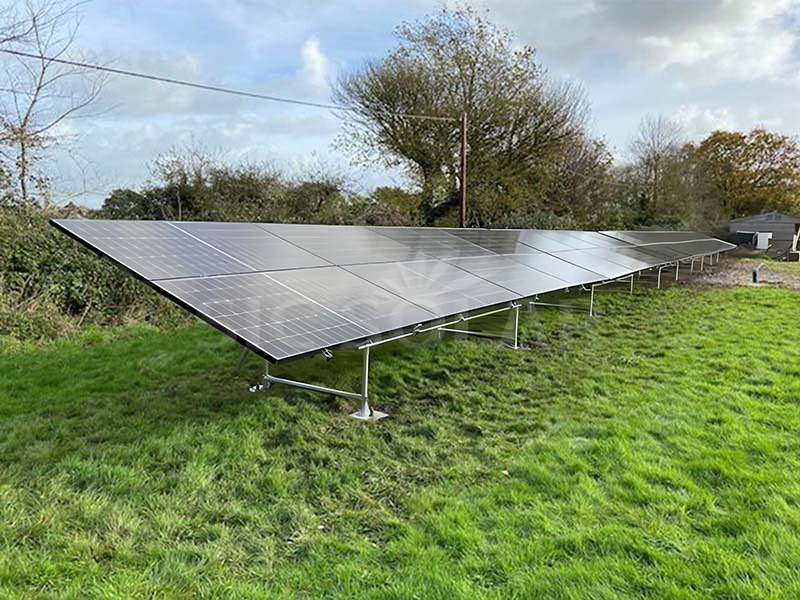

Solar ground power system

Steel solar ground mounting structure is developedfor the large ground commercial solar system. It could be used together with ground screw or concrete base.

Solar aluminum ground mount

Main material is hot dipped galvanized steel, which is anticorrosive for outdoor use. The whole structure is extremely anti-corrosion during its entire life span.

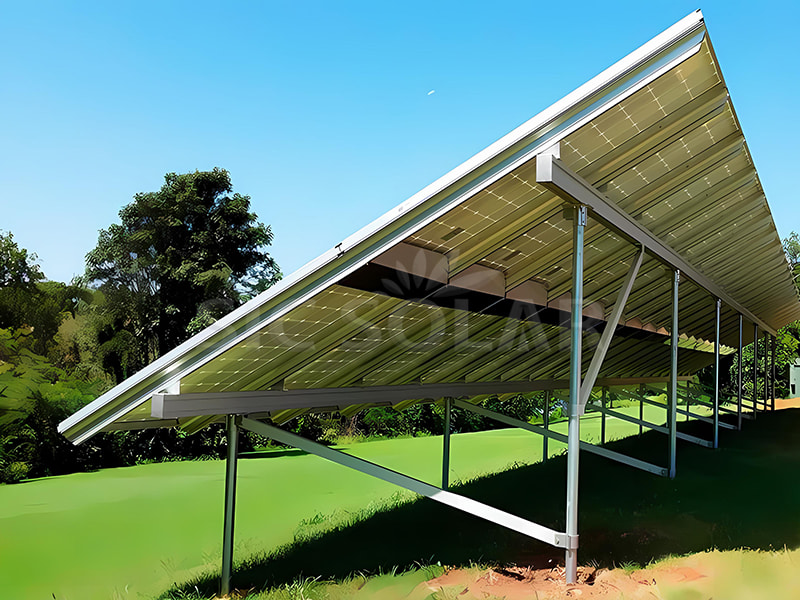

Steel ground mounting system

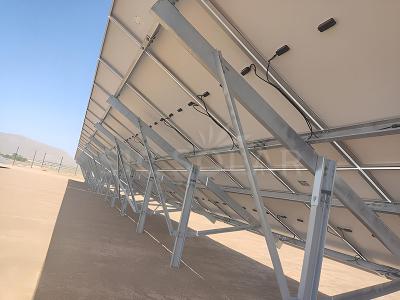

Solar pv ground mount

Product Name

Steel Ground PV Mount

Installation Site

Roof or Ground

Foundation Concrete or Ground Screw Foundation
Material Hot dipped galvanized steel Q235B & Stainless Steel 304
Color Natural or Customized
Anticorrosive Hot dipped galvanized steel& stainless steel
Tilt Angle 0°~60°

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Standards

AS/NZS 1170.2, JIS C 8955:2011

Warranty

10 years warranty and 25 years service time

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.



Solar ground structure package

Advantages as follow:

☆ Ground mounting array could be customized according to your ground size.

☆ High Durability – Best steel Ensure 10 years warranty and 25 years service time.

☆ Hot dipped galvanized Steel Q235B could meet high strength request, which is also anti-corrosion.

☆ Pre-assembled main frame  – highly save the labor cost at your installation site.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. What’s the MOQ request?

MOQ=50KW.



Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
