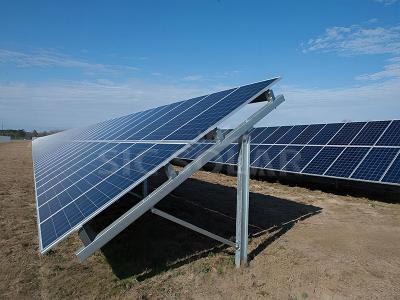

C Post Column Solar Ground Mounting Kit
C Post Column Solar Ground Mounting Kit

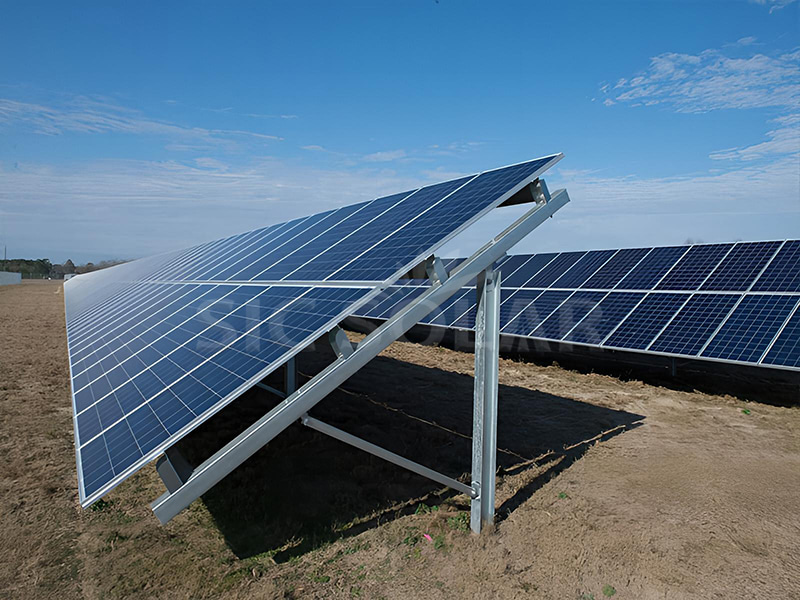

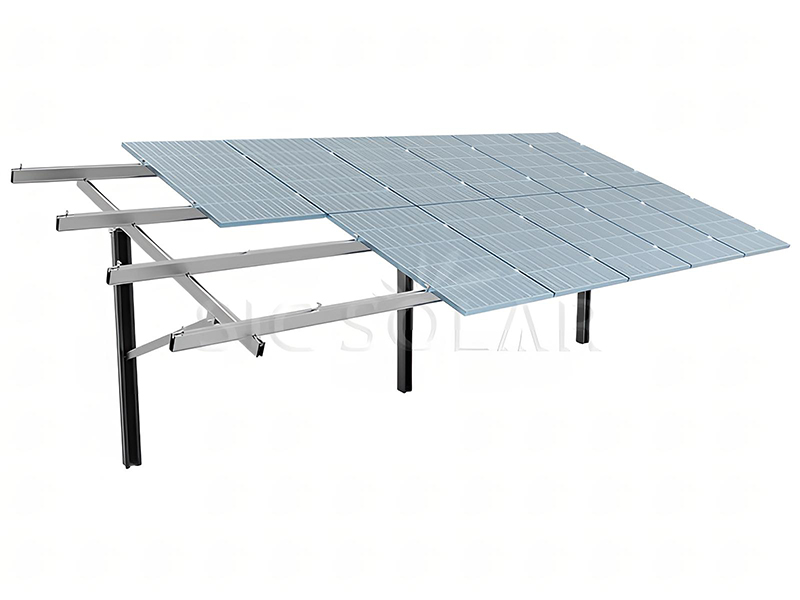

C Type Steel Pile Foundation Solar Ground Power System

C-shaped steel pile foundation solar ground power generation system is a strong and efficient mounting structure designed for large solar installations, especially suitable for challenging terrain. The system uses C-shaped steel piles to provide a stable and durable foundation for photovoltaic panels.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-C-GM
  • Installation Site:

    Open field
  • Tilt Angle:

    0-60 degrees
  • Material:

    Galvanized steel
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

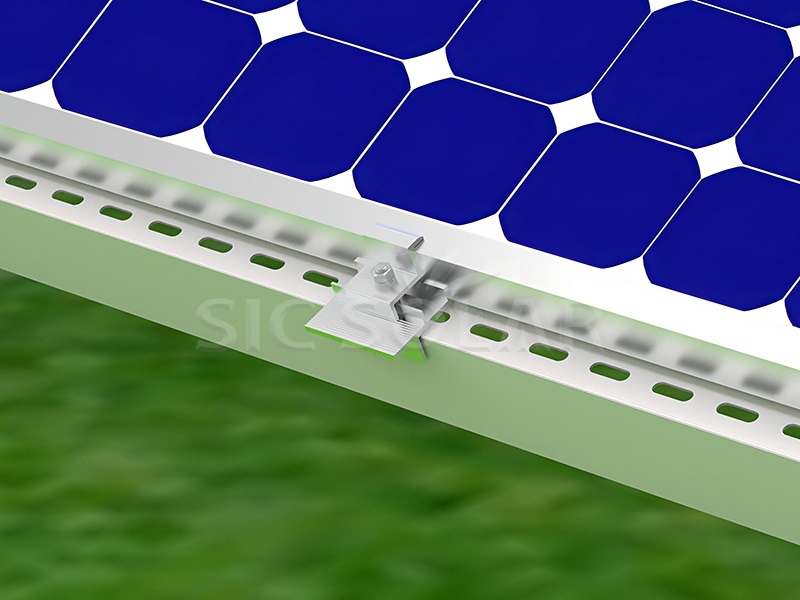

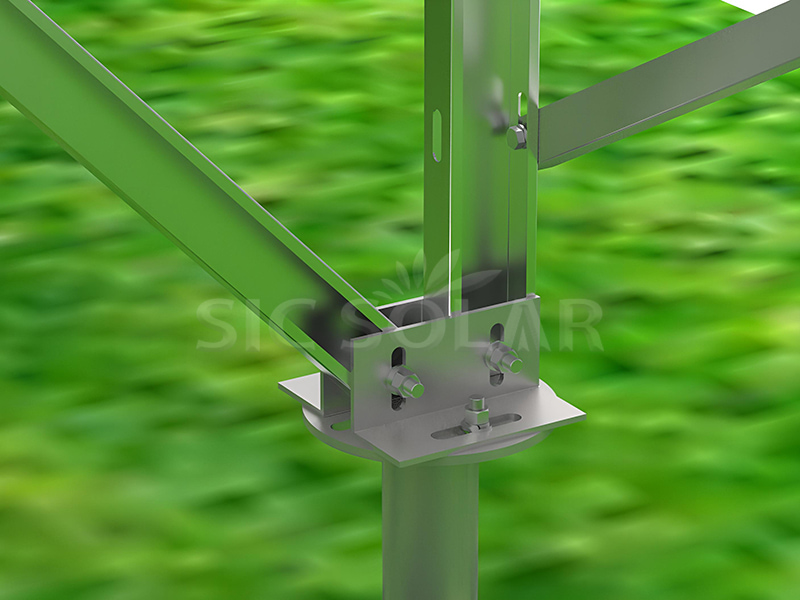

Pv C pile screw mounting

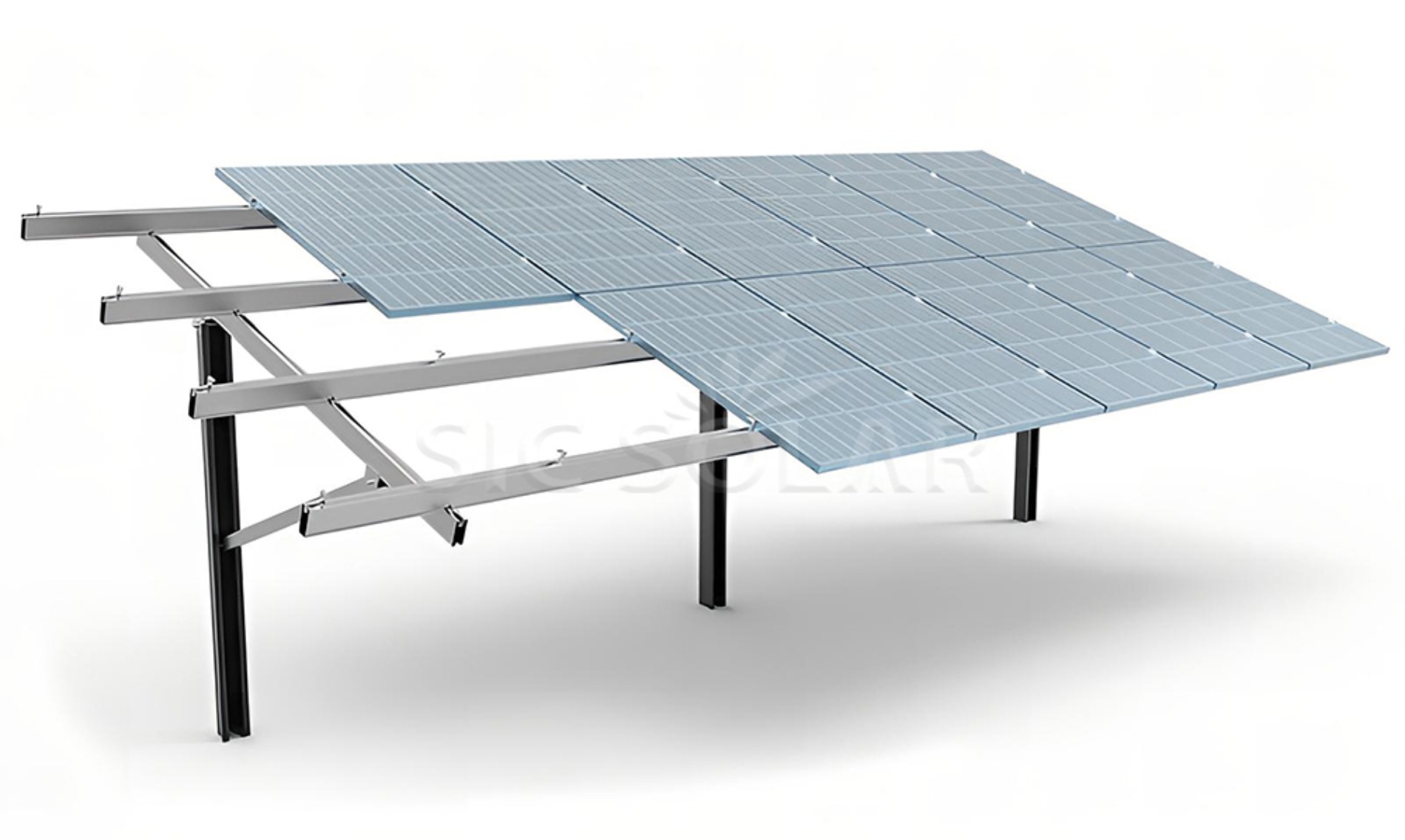

C Type Steel Pile Foundation Solar Ground Power System is applicable for both frame and frame-less modules, and widely used in small and large solar plants. The C shape galvanized steel pile used as structural dupport is designed to be quickly assembled under any field conditions.

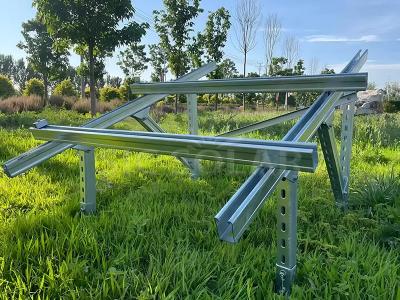

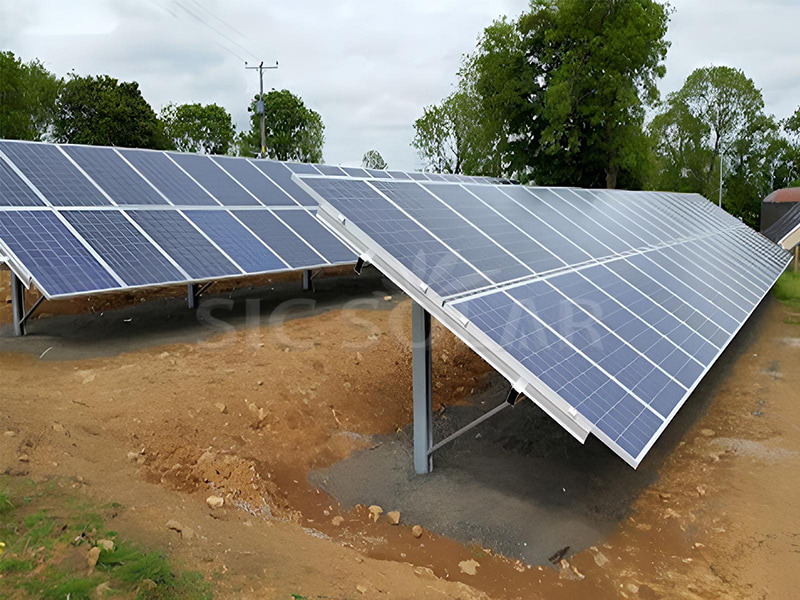

Solar ground mounting bracket

C Type Steel Pile Foundation Solar Ground Power System are designed to withstand strong wind and snow loads, ensuring that solar arrays remain stable in extreme weather conditions. Steel has excellent structural strength and is suitable for large-scale solar power generation projects.

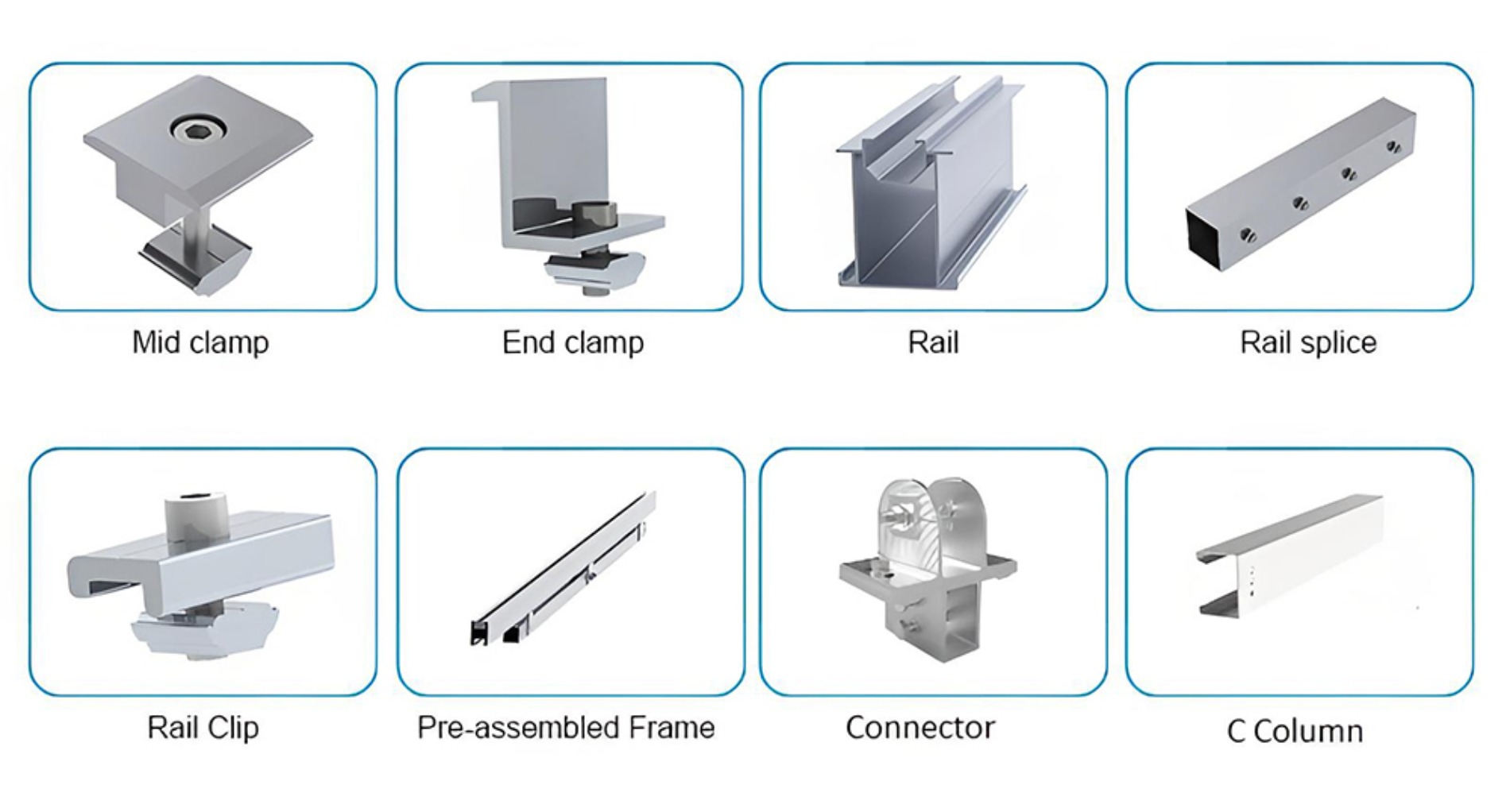

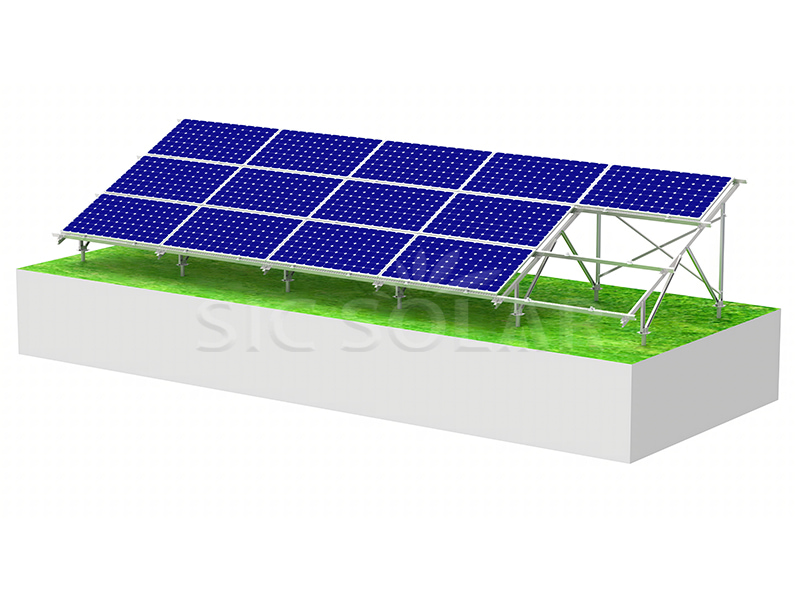

galvanized steel solar panel mounting system

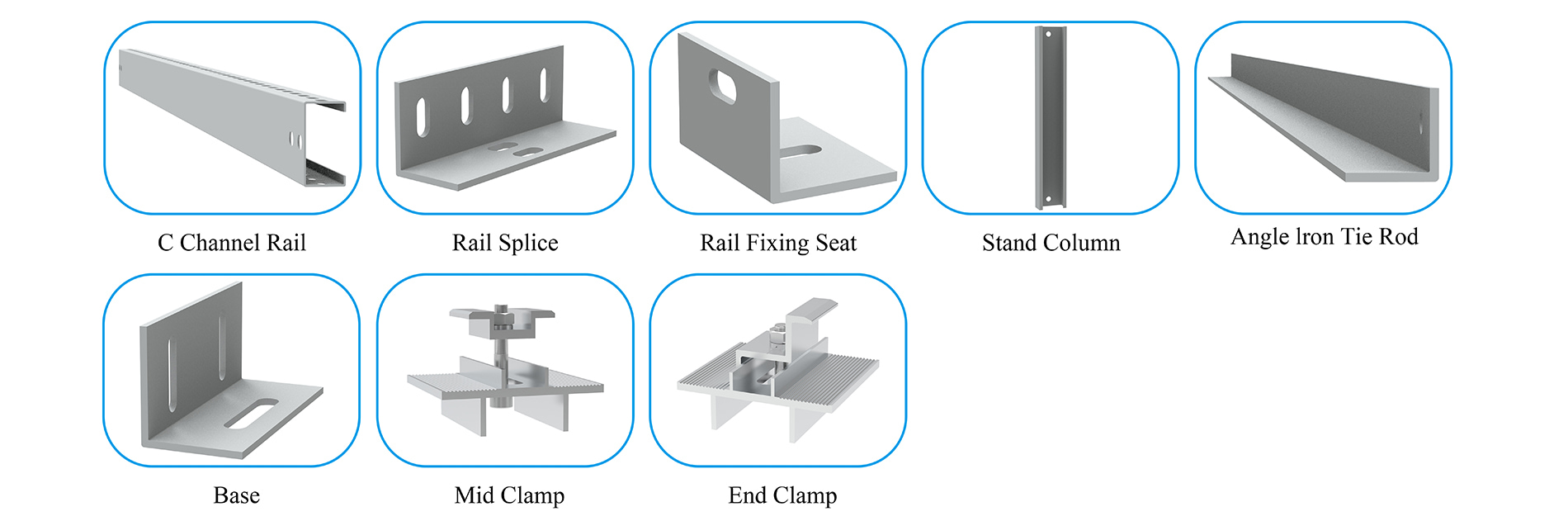

Name C Type Steel Pile Foundation Solar Ground Power System

Installation Site

Open Field Ground

Material

Hot dipped galvanized steel & Stainless steel

Wind Speed

<60M/S

Snow Load

<1.4KN/M2

Color

Natural

Warranty

10 years warranty and 25 years service time

1️⃣ Site Assessment

Evaluate the soil conditions, topography and environmental factors of the installation site to determine if it is suitable for piling.

2️⃣ Pile Driving

Use specialized piling equipment to drive C-shaped steel piles into the ground to the required depth, ensuring stability and alignment.

3️⃣ Mounting Structure Assembly

Attach horizontal rails and support structures to the driven piles to form the frame for the solar panels.

4️⃣ Panel Mounting

Fix the solar panels securely to the frame and adjust the tilt angle as needed to optimize sunlight.

5️⃣ Electrical Connections

Connect the solar panels to the inverter and other electrical components, ensuring compliance with local electrical codes and standards.

6️⃣ System Testing

Perform comprehensive testing to verify system performance and ensure all components are functioning properly.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Solar bracket package

Advantages as follow:

☆ Widely application--can work under any ground and soil conditions.

☆ Adjustable solar angle 0-60 degree - Win more solar energy during solar tilt angle change.

☆ High pre-assembly--save time and labor cost, require less tools.

☆ C-type pile has strong load bearing, high corrosion resistance, salt tolerance.

☆ Fast installation--use piledriver ramming C-type piles directly into the earth.



Related certificate:

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. What’s the MOQ request?

MOQ=50KW.



Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
