Carbon Steel U Channel Solar Panel Bracket Ground Mounting Structure

Click here to learn more products

1️⃣ Site Survey and Layout

Before you begin, confirm the footprint, ground slope, and soil type of the module array.

2️⃣ Foundation Construction

Install screw piles, driven piles, or concrete foundations, depending on soil conditions and frozen ground depth requirements.

3️⃣ Track Assembly

Place the pre-drilled U-shaped track on the foundation and secure with bolts.

4️⃣ Module Installation

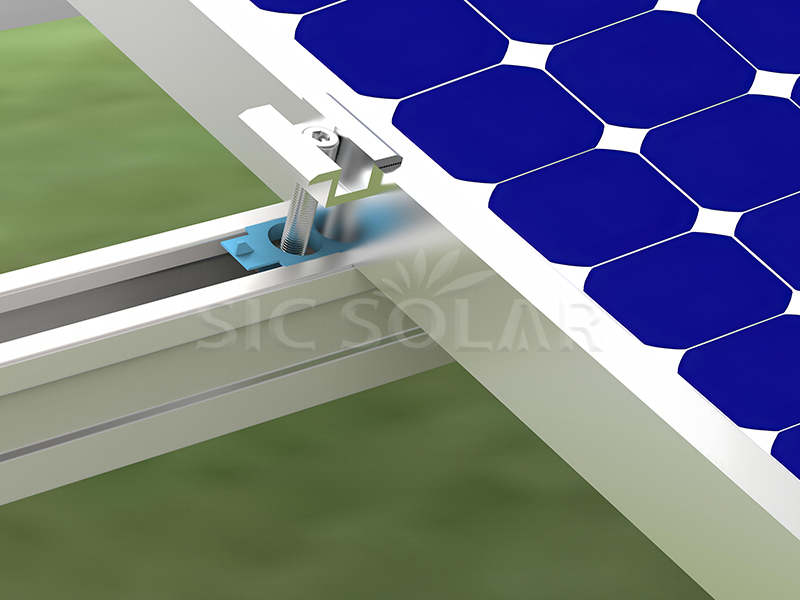

Slide the stainless steel clamp into the U-shaped slot, place the module, and tighten the clamp to specification.

5️⃣ Grounding and Bonding

Ensure metal-to-metal contact for grounding—use a ground jumper or set screws, as described in the installation manual.

6️⃣ Commissioning and Inspection

Check the torque of all structural and electrical fasteners, repair any coating scratches, and record array geometry; schedule a semi-annual visual inspection to check for debris, loose bolts, or corrosion.

Our standard package is steel pallet for long aluminum profile, while small aluminum components will be packed into cartons with plywood pallet.

Advantages as follow:

☆ Easy installation – simple components make it easy to transport and install.

☆ Good Anti-Corrosion Performance – high-quality carbon steel, with hot dip galvanized surface treatment, make corrosion resistance much better.

☆ High Quality Components – all connection part adopts are high quality stainless steel screws, make the structure more durable and strong.

☆ Low Labor Cost – highly pre-assembled parts help to reduce the installation time and labor cost.

Related certificate:

Strength Analysis report -- mountings will be test to meet your target strength, like wind speed and snow load.

Q1. What’s the MOQ request?

MOQ=50KW.

Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
