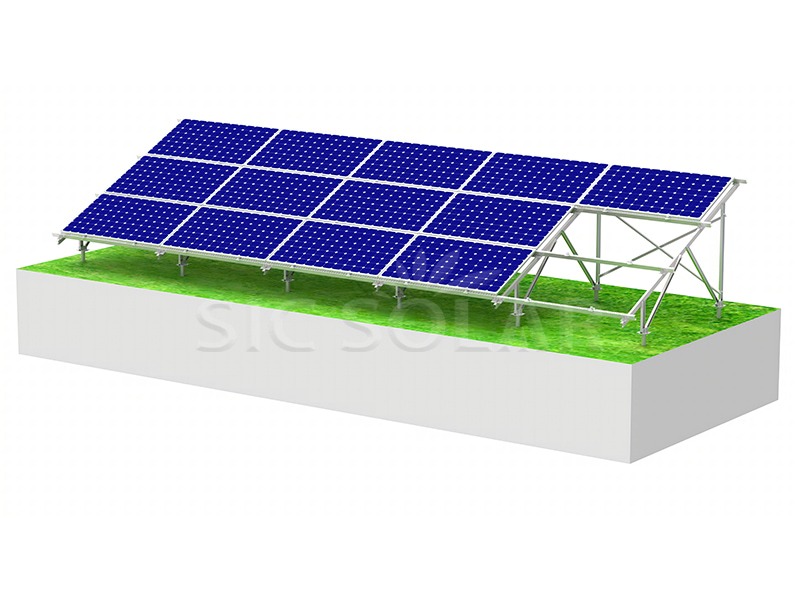

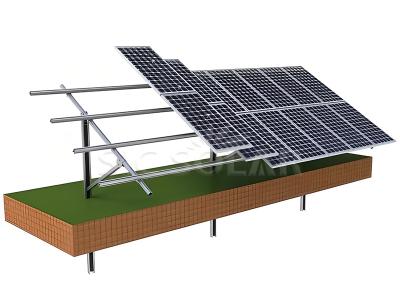

Steel Pile Solar Mounting System

Click here to learn more products

1️⃣ Check the Site Conditions
Evaluate the soil, terrain, drainage, wind conditions, and planned PV layout before installation.

2️⃣ Mark the Pile Positions
Set out the pile locations according to the approved system design and panel arrangement.

3️⃣ Install the Steel Piles
Drive the piles into the ground to the required depth using suitable installation equipment.

4️⃣ Install the Support Structure

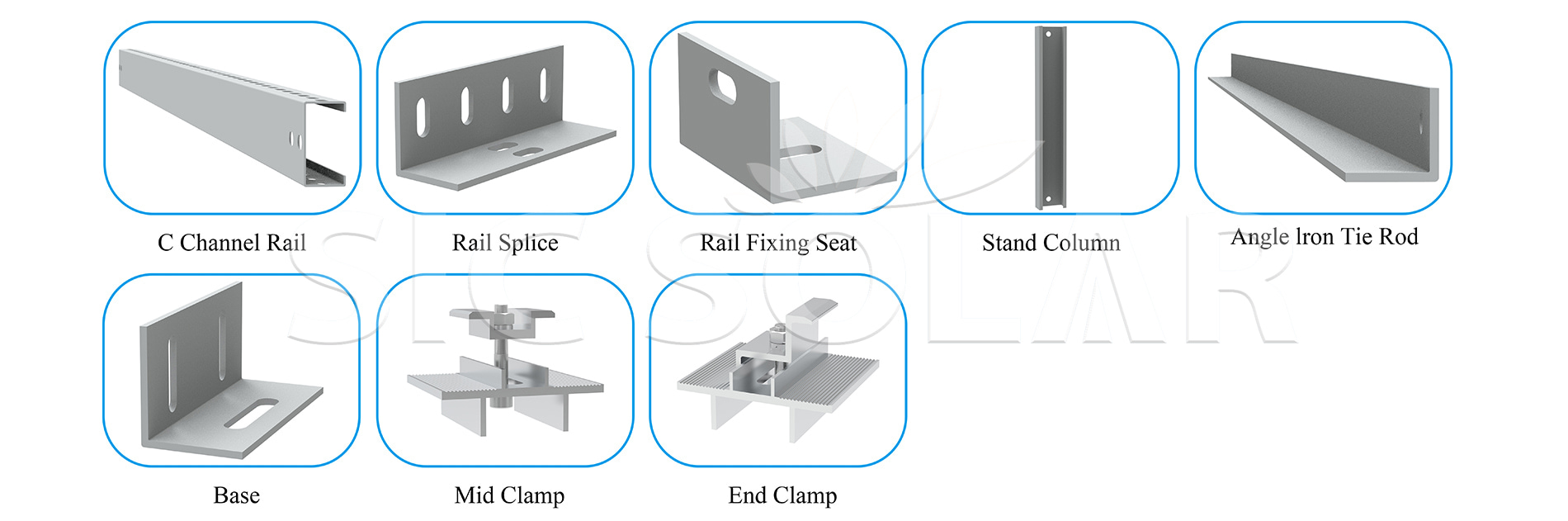

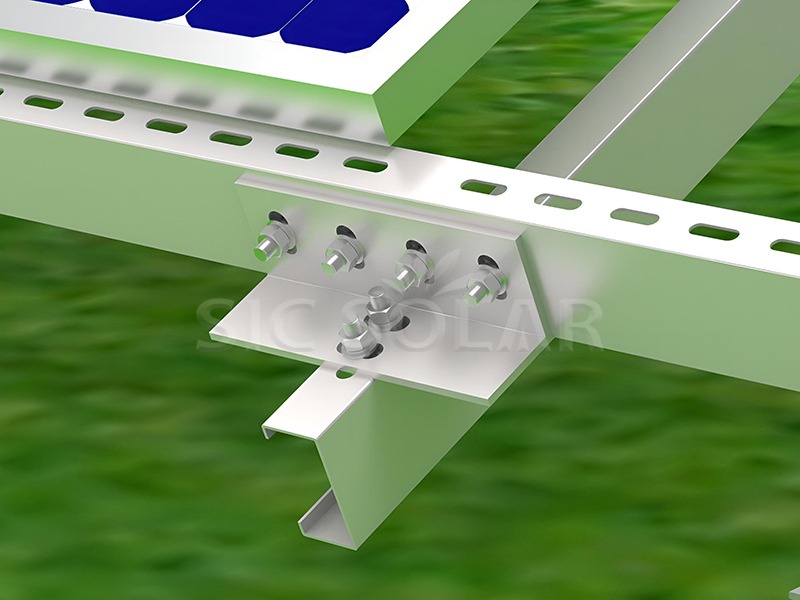

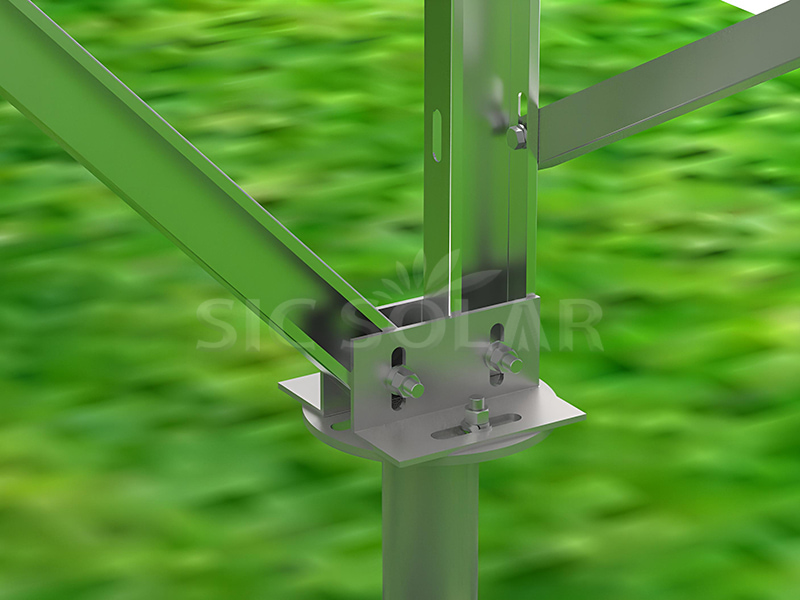

Attach the beams, brackets, rails, and other structural components to the installed piles.

5️⃣ Mount the Solar Panels

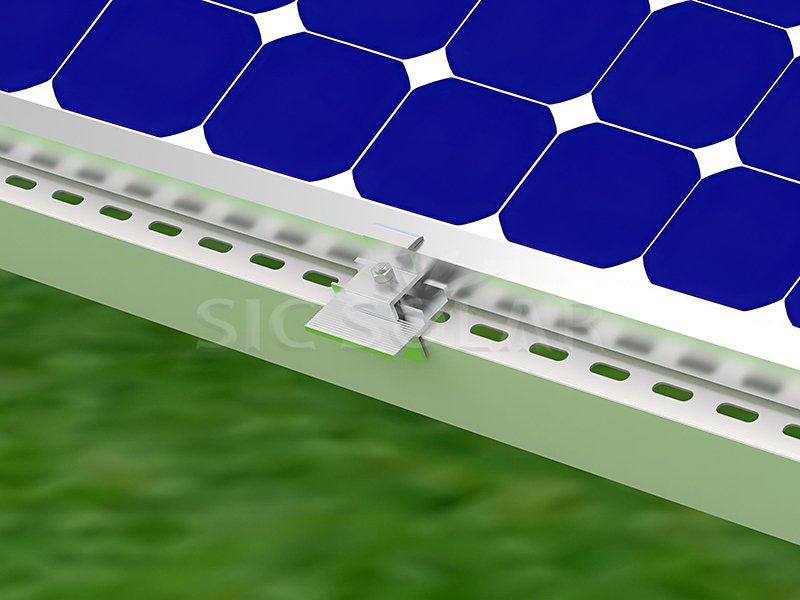

Place the PV panels on the rails and secure them with suitable mid clamps and end clamps.

6️⃣ Check Alignment and Connections
Adjust the structure as needed and make sure all fasteners and connections are properly secured.

7️⃣ Complete the Final Inspection
Check overall stability, panel alignment, grounding, and structural connections before commissioning.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

☆ Suitable for Different Sites: Can be adapted to various soil and ground conditions after proper site assessment.

☆ Adjustable Tilt Angle: The system can support tilt angles from 0° to 60°, depending on the design and project requirements.

☆ Pre-Assembled Components: Many components can be prepared in advance, helping save installation time and reduce onsite work.

☆ Strong C-Type Piles: C-shaped steel piles provide good load-bearing capacity and can be treated for corrosion resistance, including use in coastal environments.

☆ Quick Installation: Steel piles can be driven directly into the ground with a suitable pile-driving machine, reducing the need for concrete work.

Related Certificate

☆ Strength Analysis Report: The mounting structure can be tested and engineered according to project requirements, including wind speed and snow load.

Q1: What is the MOQ?
The minimum order quantity is 50 kW.

Q2: Does the system require concrete foundations?
Not necessarily. Steel piles can provide the foundation without concrete when soil and site conditions are suitable. The appropriate foundation method should be confirmed through a project assessment.

Q3: What type of soil is suitable for steel piles?
Steel piles can be used in many soil conditions, but suitability depends on factors such as soil strength, density, groundwater, and required pull-out capacity. A site and soil assessment is recommended before installation.

Q4: How deep should the steel piles be installed?
The required depth depends on soil conditions, wind and snow loads, pile design, and project requirements. It should be determined through structural and site calculations rather than using one fixed depth.

Q5: Can the system be used on uneven ground?
Yes. The mounting structure can be designed to accommodate certain terrain variations. The specific layout depends on the site conditions.

Q6: Can the system be customized?
Yes. Pile dimensions, rail configuration, panel orientation, tilt angle, and other structural details can be adjusted to meet project requirements.
