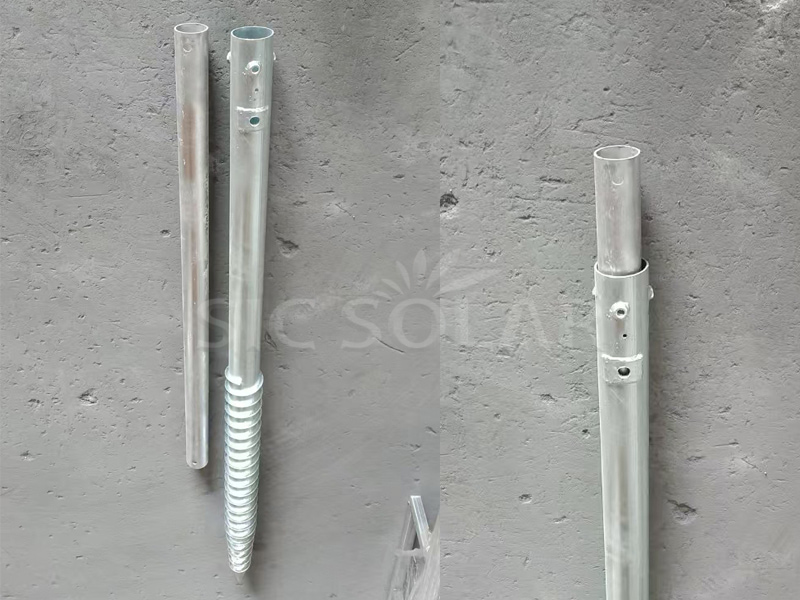

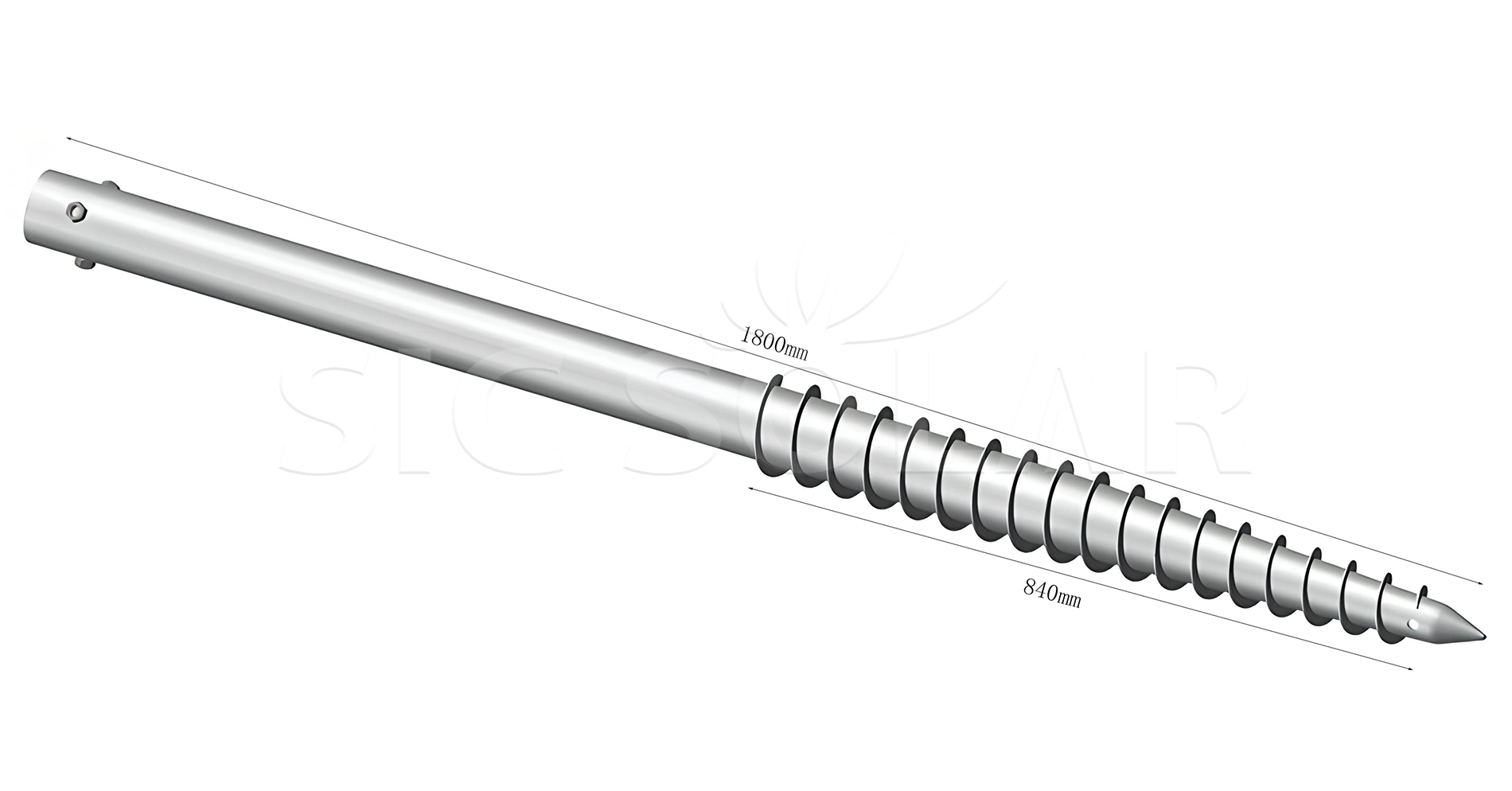

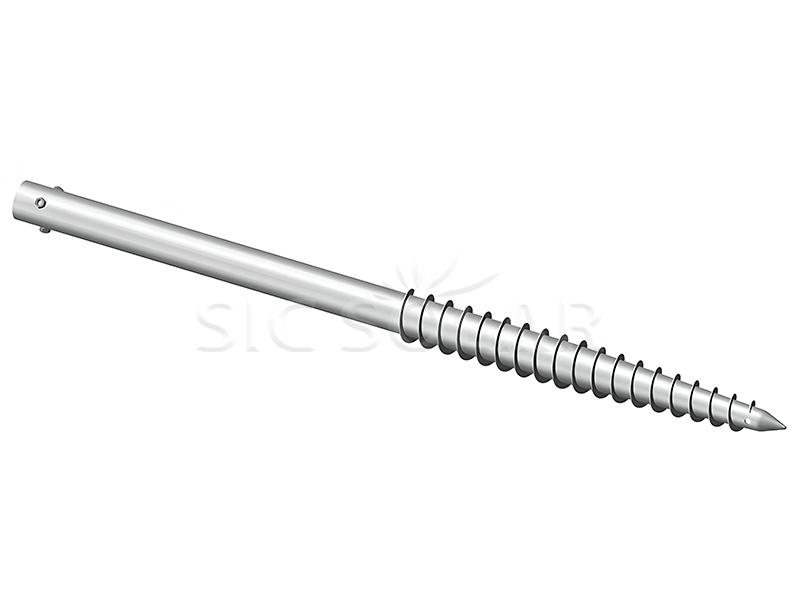

Solar Ground screws without flange

Click here to learn more ground screw

1️⃣ Mark the Installation Points: Mark the screw positions according to the mounting system layout and project drawings.

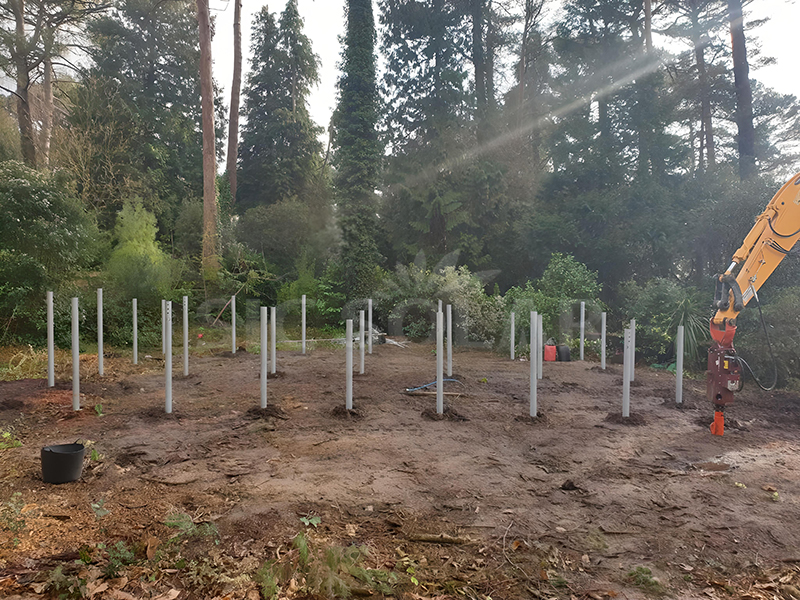

2️⃣ Install the Ground Screws: Use suitable installation equipment to drive the screws into the soil, keeping them aligned as specified.

3️⃣ Check Depth and Alignment: Confirm that each screw reaches the required installation depth and is correctly positioned.

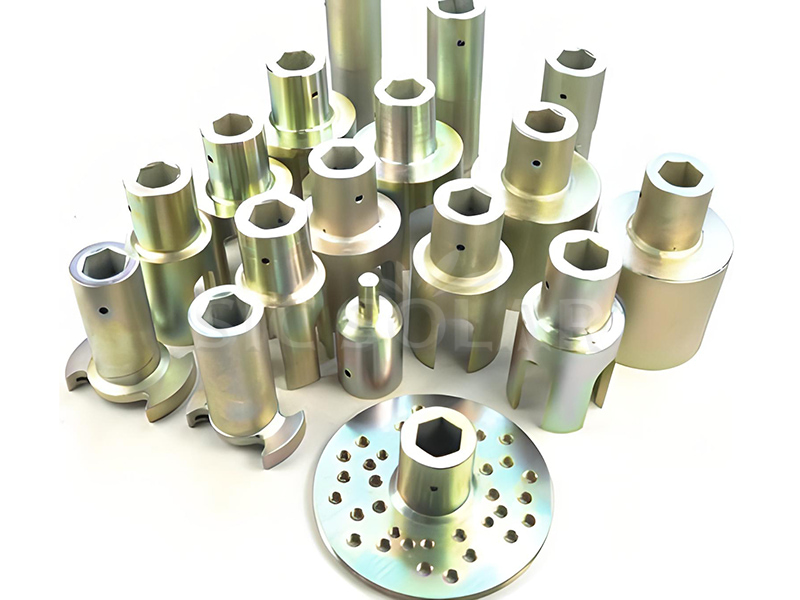

4️⃣ Attach the Connectors: Fit compatible adapters or brackets to the upper ends of the screws according to the system design.

5️⃣ Install the Mounting Structure: Secure the support columns or solar mounting brackets to the ground screws using the specified fasteners.

☆ Flange-Free Design: Allows flexible connections using separate adapters or brackets to suit different mounting structures.

☆ Efficient Installation: Can reduce excavation and concrete work in suitable soil conditions.

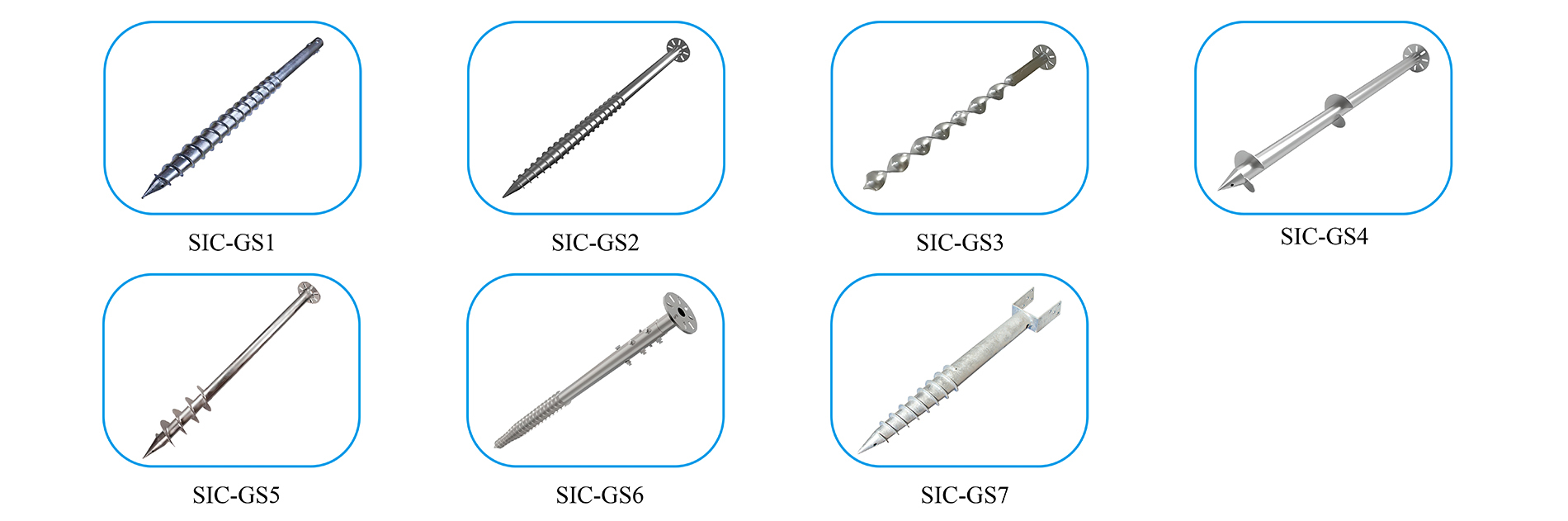

☆ Flexible Configurations: Available in different dimensions and designs for various ground-mounted solar applications.

☆ Reduced Foundation Work: May lower material use, site preparation requirements, and installation time compared with conventional concrete foundations.

Q1: What is the difference between ground screws with and without a flange?

Ground screws with a flange feature an integrated plate or connection surface. Flange-free models use a separate adapter, bracket, or other compatible connection method.

Q2: Can these ground screws be used in all soil types?

No. Soil density, rock content, groundwater, and other site conditions affect installation and load capacity. A site assessment is recommended before installation.

Q3: How deep should solar ground screws be installed?

The required depth depends on the screw design, soil conditions, wind loads, and structural calculations. The appropriate depth should be determined for each project.

Q4: How are flange-free ground screws connected to solar mounting structures?

They can be connected using compatible adapters, brackets, or custom fittings. The connection must match the screw design and mounting system requirements.

Q5: Can the dimensions of solar ground screws be customized?

Yes. Depending on the manufacturer's capabilities, options may include customized length, diameter, thread design, material, and connection details.
