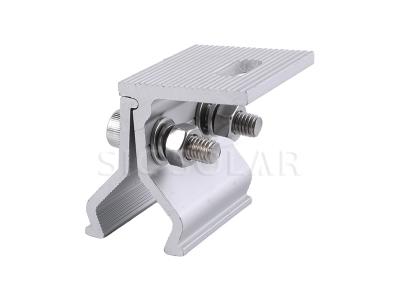

Non penetrating solar roof mount system

Non penetrating solar roof mount system are designed to secure solar panels to the roof without drilling holes, preventing damage to the roof structure and maintaining waterproof integrity. These systems rely on ballast, clamps or bonding techniques to hold the solar panels securely in place.

Brand:

SIC SOLAR

Item NO.:

SIC-TC-12

Installation Site:

Roof

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

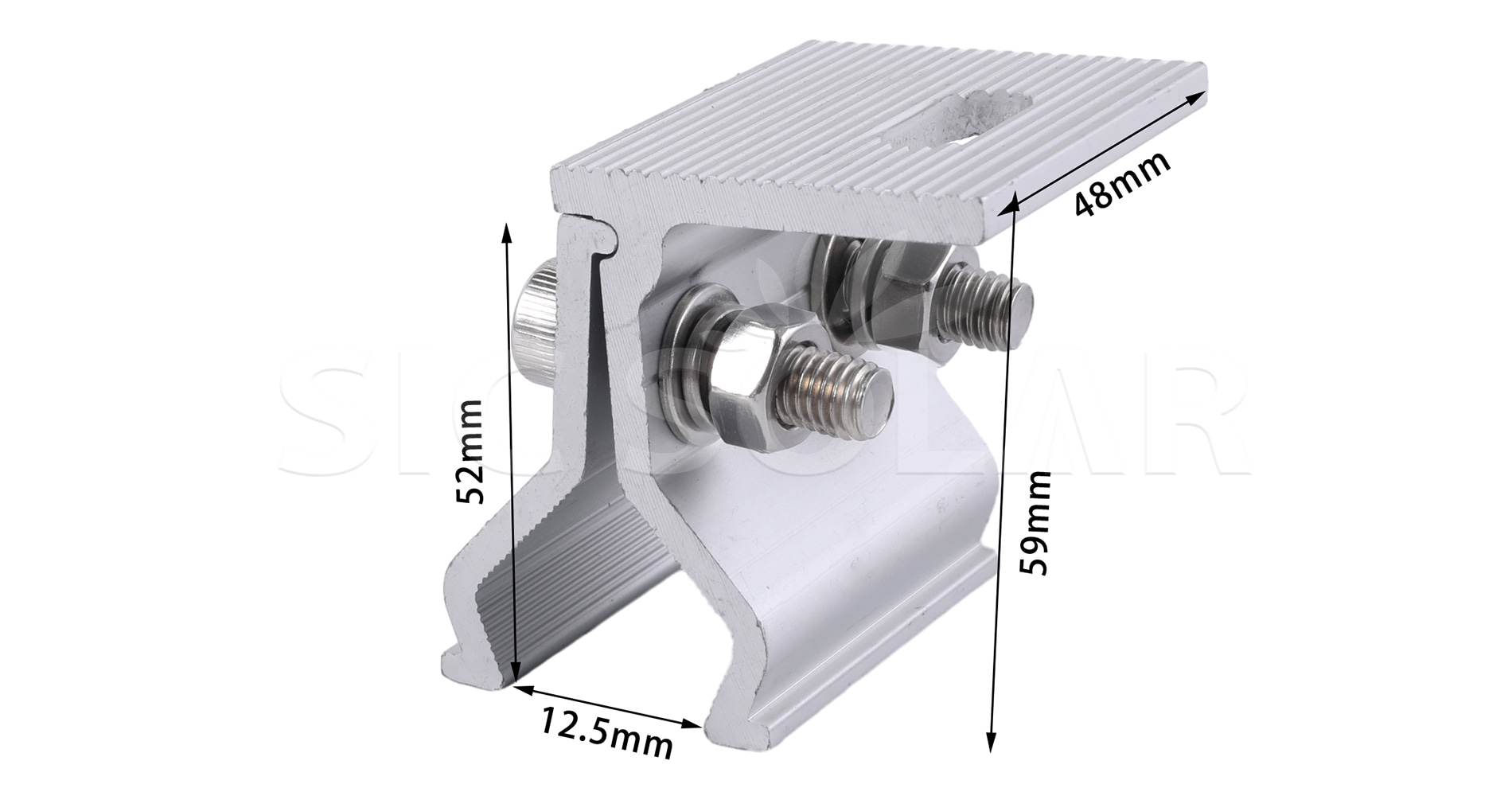

Components Technical Details Installation Guide Package Advantage

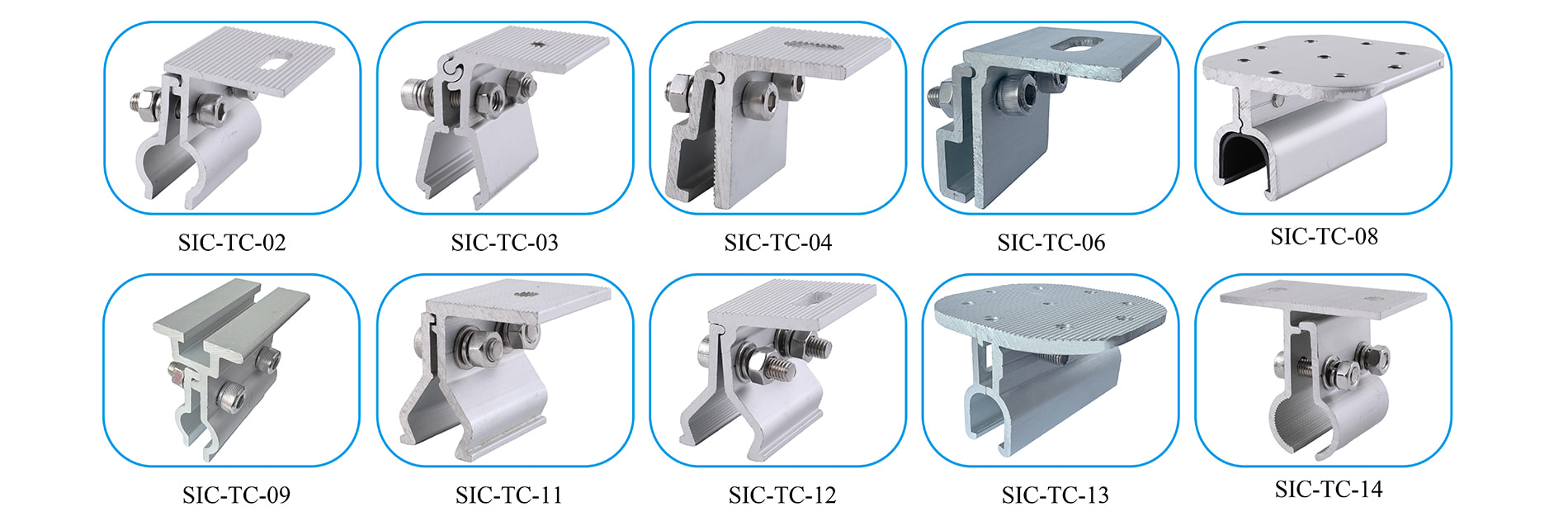

Click here to learn more Non-penetrating tin clamps Roof mount non penetrating clamps

solar panel clamps

Installation Site	Metal roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ Preparation: Clean the roof surface and make sure it is free of debris. It is important to check that the roof is strong enough to support the weight of the mounting system and solar panels.

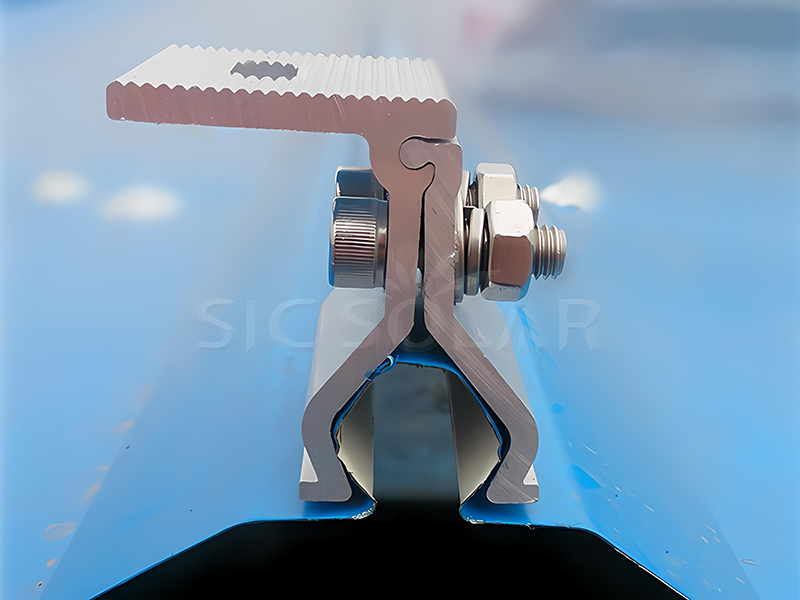

2️⃣ Place the Solar clamp: Place the Solar clamps in the designated area of the roof. These are strategically placed to provide stability and ensure that the mounting system remains secure.

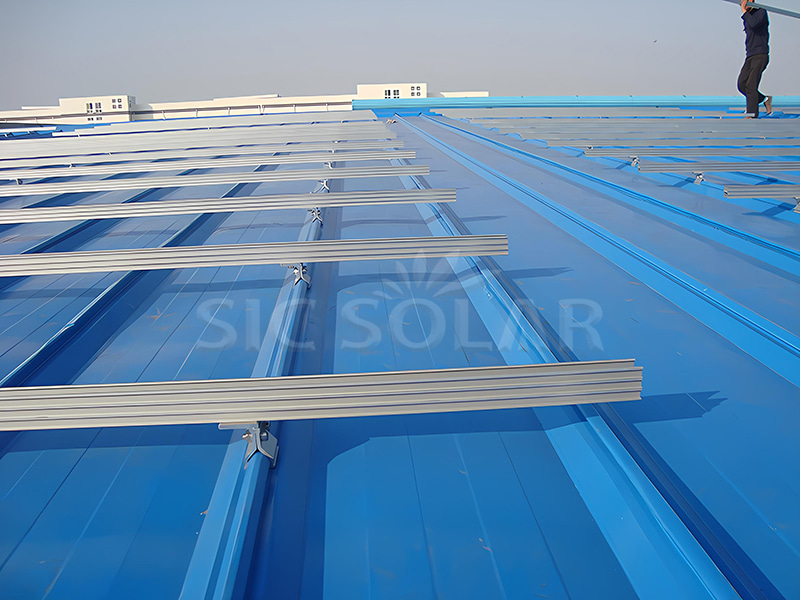

3️⃣ Install the mounting rails: Attach the rails to the Solar clamps. These rails will serve as the foundation for the solar panels.

4️⃣ Panel mounting: Once the rails are secured, mount the solar panels to the rails using the appropriate mid clamp and end clamp. Panels are typically mounted in either a horizontal or vertical orientation, depending on the roof layout.

5️⃣ Wiring: Once the panels are secured, route the wiring from the solar panels to the inverter. Make sure all connections are secure and protected from environmental factors.

Solar bracket package

Advantages as follow:
☆ Standing seam roof clamps - Do not damage the metal roof sheet.
☆ Pre-assembled clamps – highly save the labor cost at your installation site.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

Related Certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load Aluminum quality certificate -- AL6005-T5 composition list
