China Aluminum Solar Clamp For Trapezoidal Metal Roof Sheet manufacturer

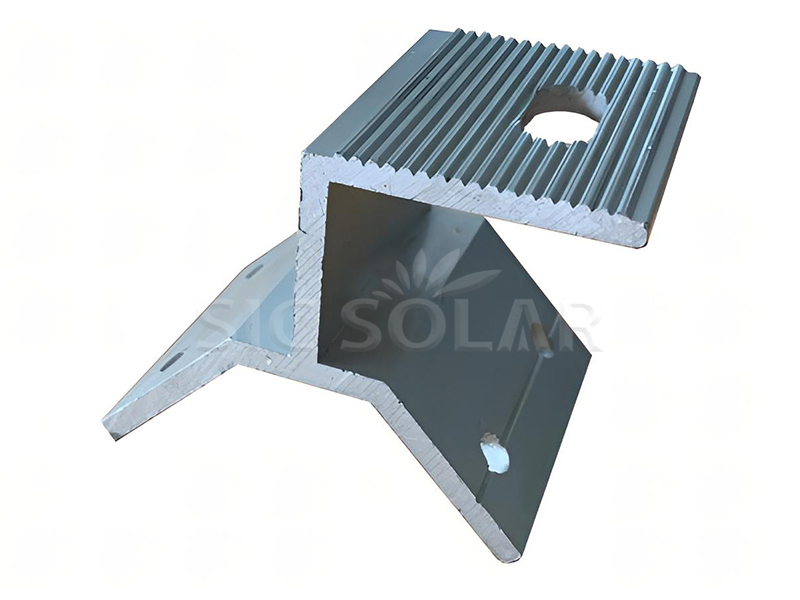

Aluminum Solar Clamp For Trapezoidal Metal Roof Sheet

Aluminum solar clamp for trapezoidal metal roof sheet are specifically designed to provide a secure and efficient way to mount solar panels on this type of roofing. These clamps are engineered to conform to the unique shape of trapezoidal roofs, optimizing both the stability and the energy capture of the solar panels.

Brand:

SIC SOLAR

Item NO.:

SIC-TC-05

Shipping Port:

Xiamen port

Installation Site:

Metal Roof

Color:

Natural or Customized

Material:

Aluminum

Warranty:

10 years and 25 years

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

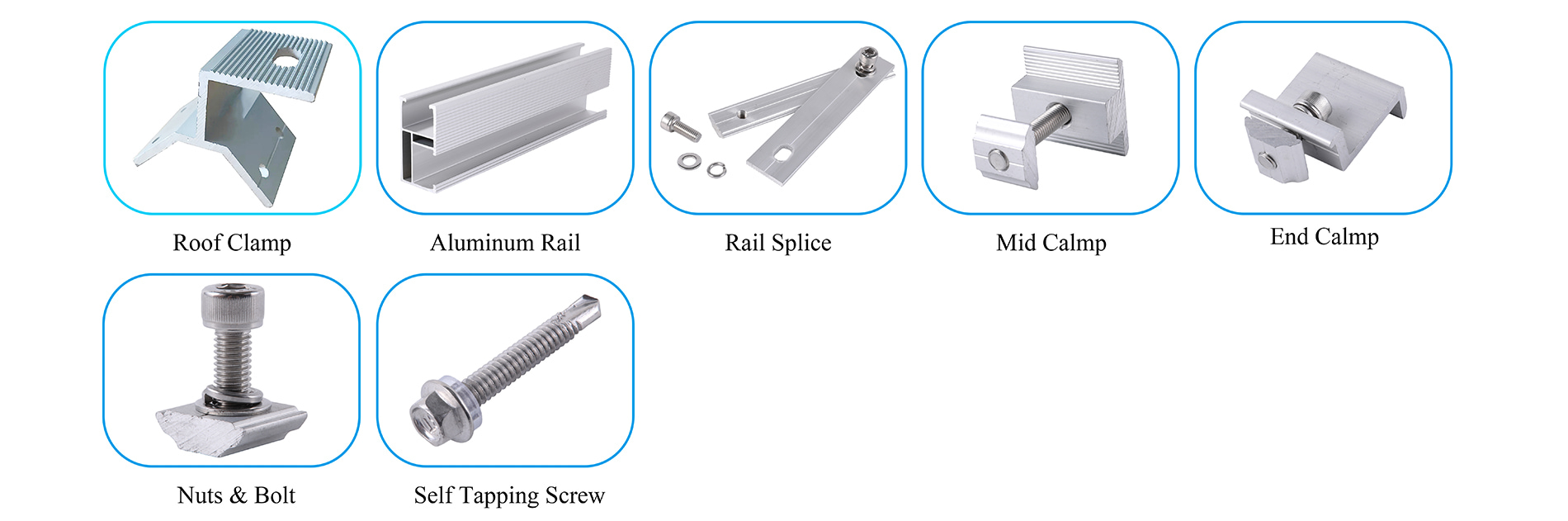

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more

Installation Site	Metal Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

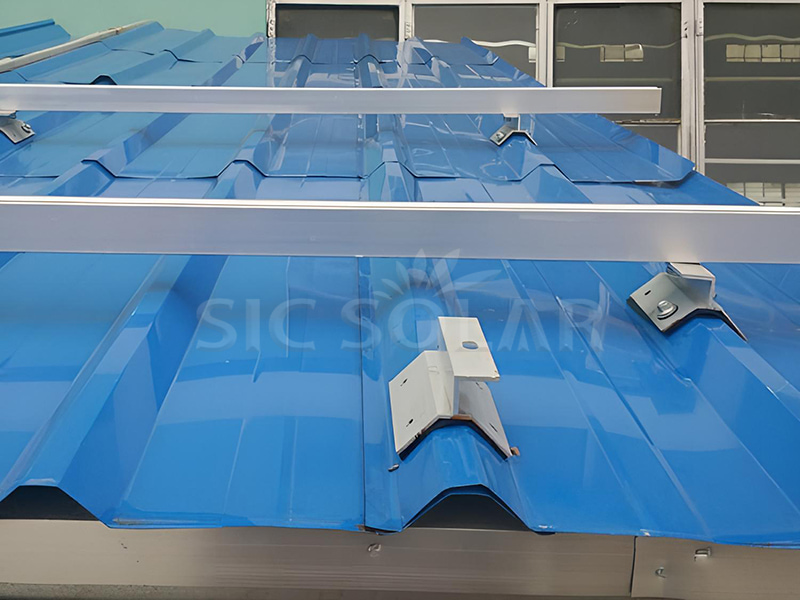

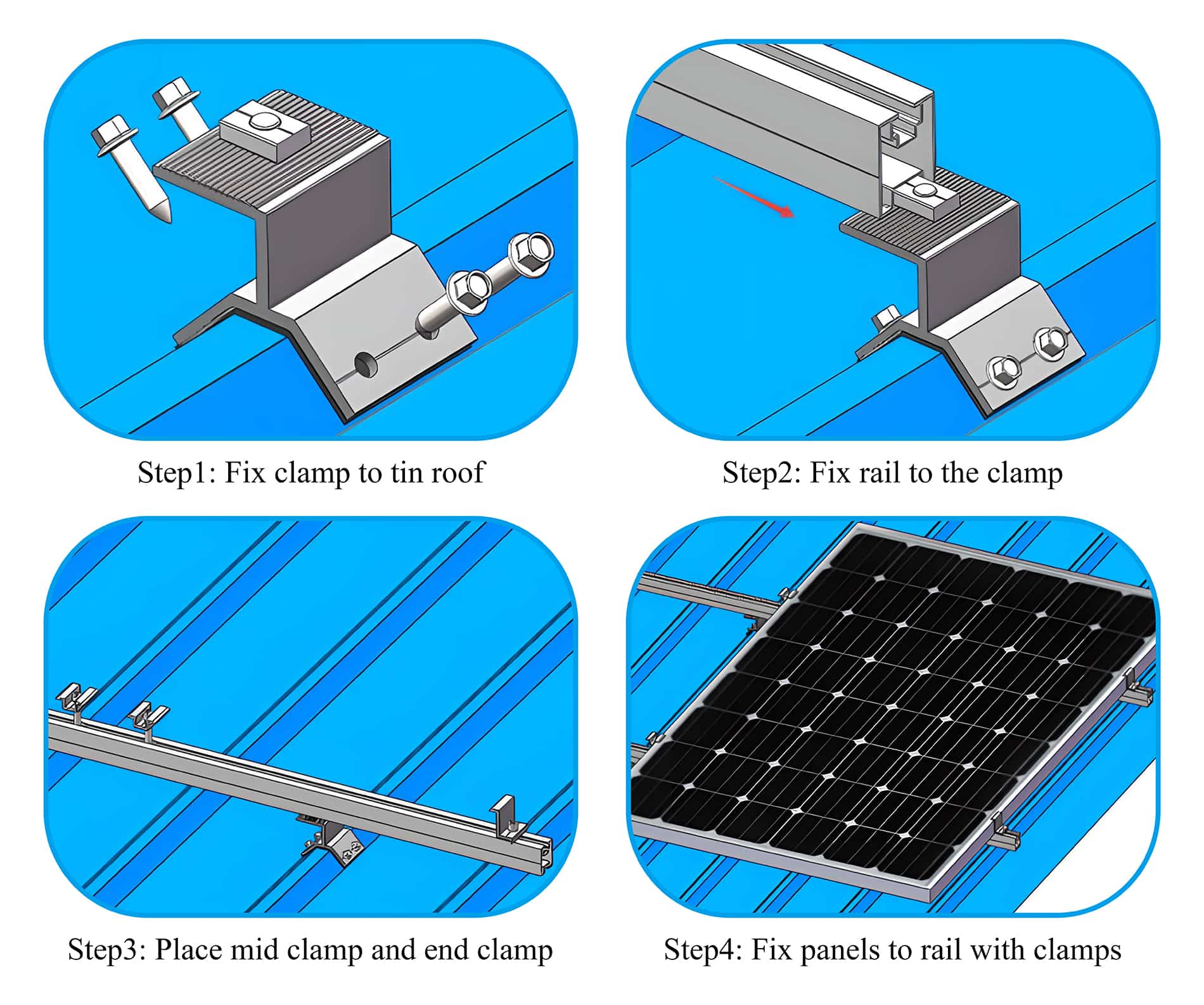

1️⃣ Position the clamps - align them with the ridge for proper support.

2️⃣ Secure the clamps to the roof - secure with self-tapping screws and EPDM rubber seals.

3️⃣ Install the solar rails - secure the solar mounting rails to the clamps.

4️⃣ Install the solar panels - secure the panels using the middle and end clamps.

5️⃣ Final inspection - check for tightness, alignment and watertightness.

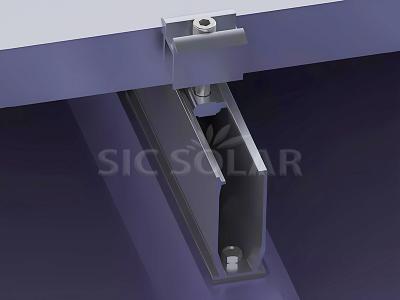

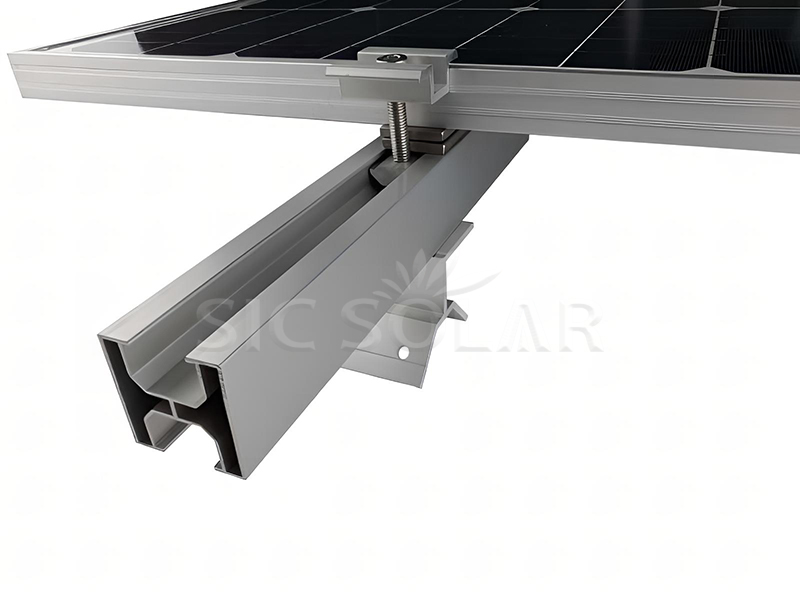

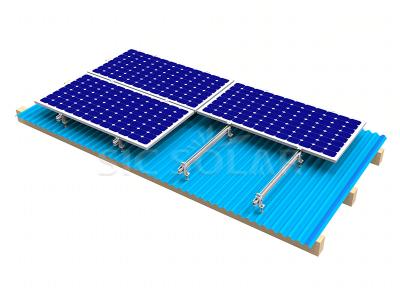

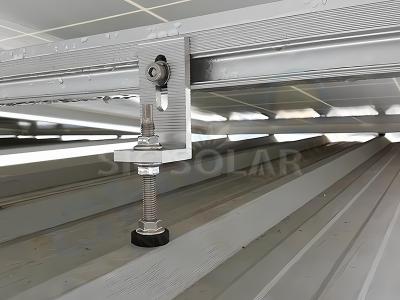

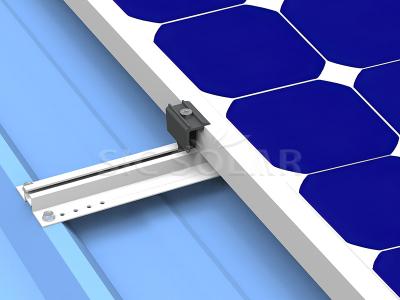

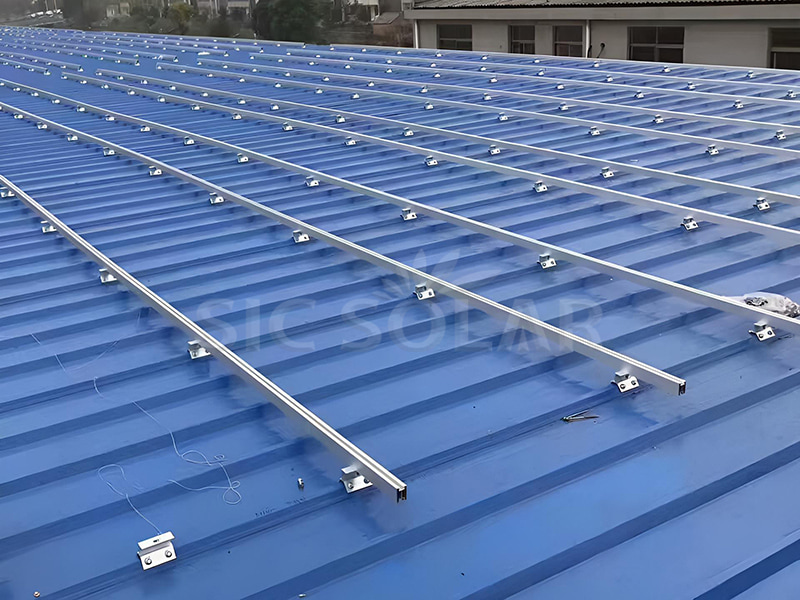

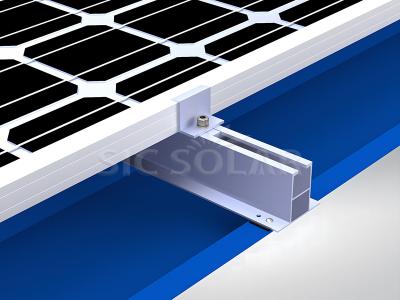

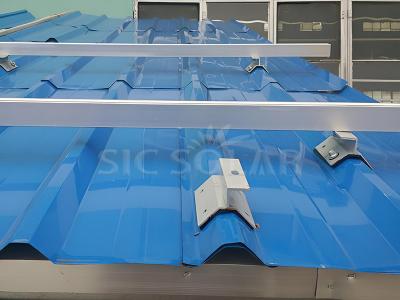

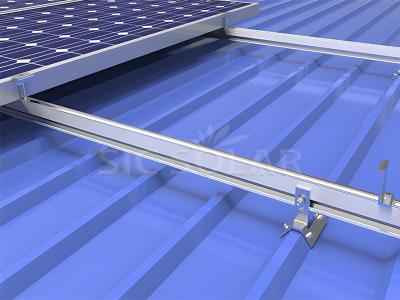

Trapezoidal Metal Roof Solar Panel Clamps

Solar bracket package

Advantages as follow:
☆ Widely application - Aluminum Clamps could be customized according to the roof sheet spec.
☆ Pre-assembled clamps – highly save the labor cost at your installation site.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

Related Certificate:

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load

Q1: What spacing should be used with clamps for PV assemblies?

Normally, the spacing between the clamps on same rail should be less than 800mm.

Q2: Do you have EU warehouse?

Sorry, we currently do not have an EU warehouse, and our goods are shipped directly from China.

Q3: Does the clamp can fit my roof sheet?

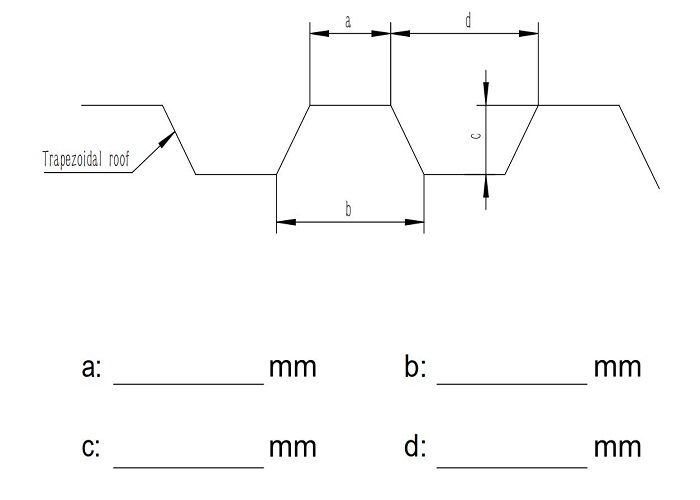

Pls offer your roof sheet specifician as below pic, thus we can check if the clamp suitable for your trapezoid roof.

Trapezoidal roof size need to be offered
