Solar panel mount for trapezoidal metal sheet

Solar panel mount for trapezoidal metal sheet provides a reliable, durable, and cost-effective solution for installing solar panels on these roofs.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-MN-01
  • Installation Site:

    Roof
  • Color:

    Nature
  • Material:

    AL6005-T5
  • Warranty:

    10 years and 25 years service time
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2



Solar panel mounting bracket

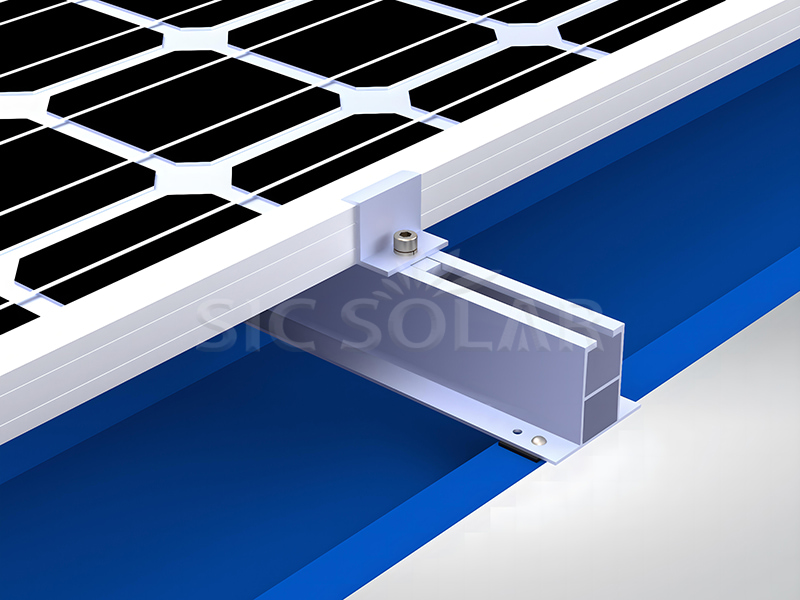

Solar panel mount for trapezoidal metal sheet can help our customer to save more material cost and installation time. Using Self-tapping screws fix the Mini Rail directly to the trapezoidal sheet.

Solar panel mounting bracket

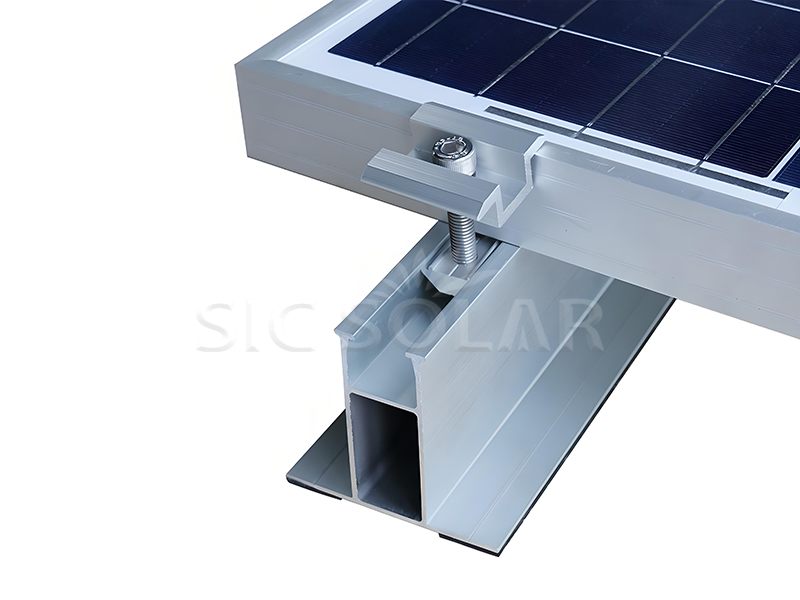

Solar panel mount for trapezoidal metal sheet assemblies was developed specifically for trapezoidal sheet metal. It allows easy changing of the module orientation thanks to the universal module clamps.

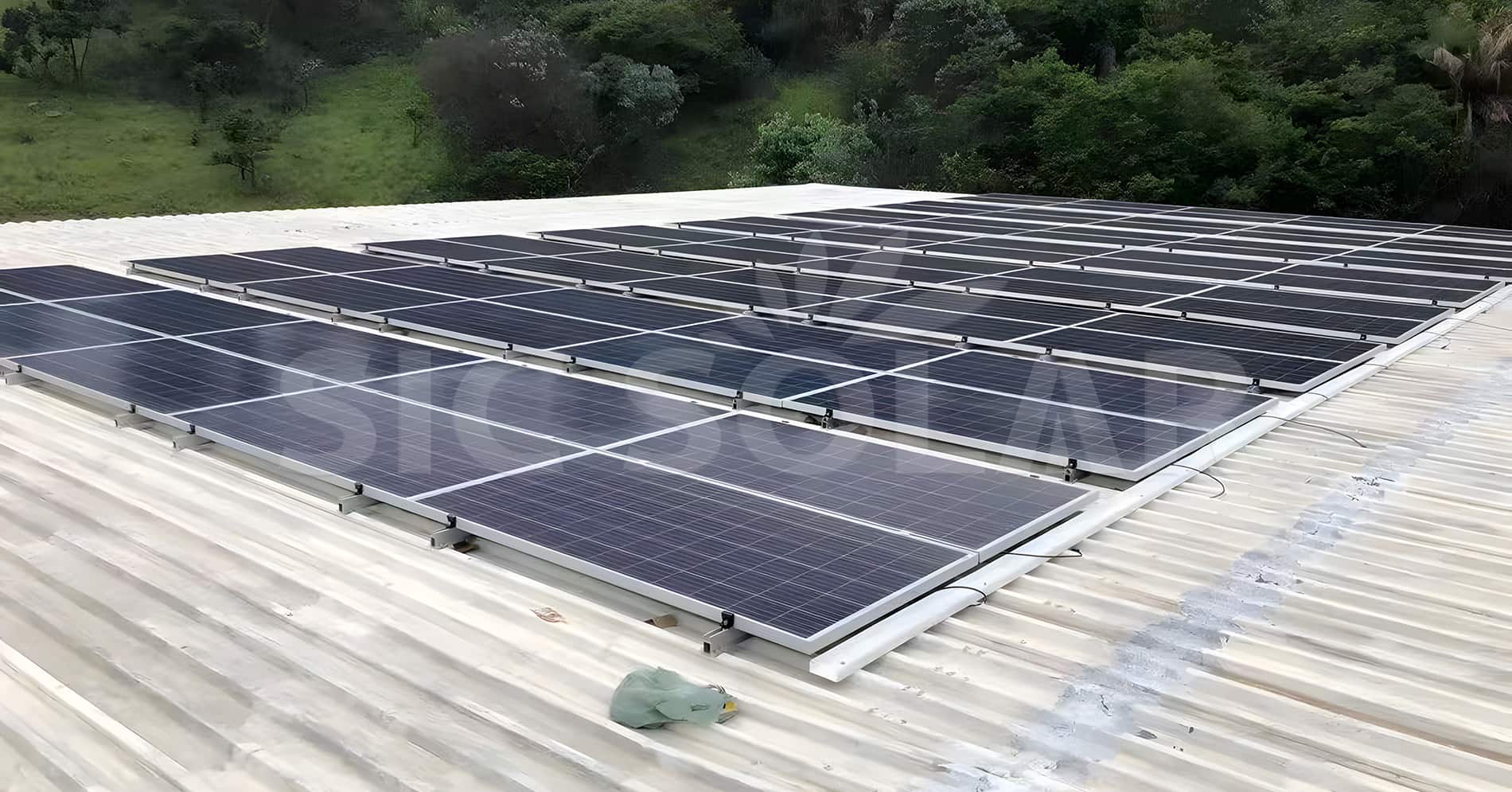

Solar Trapezoidal Tin Roof System With Short Rail

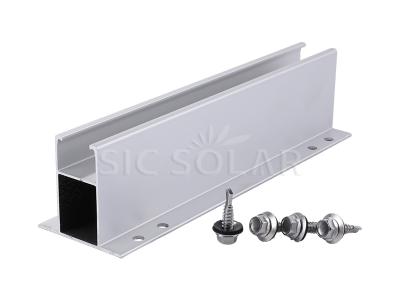

Mini Rail Solar Bracket

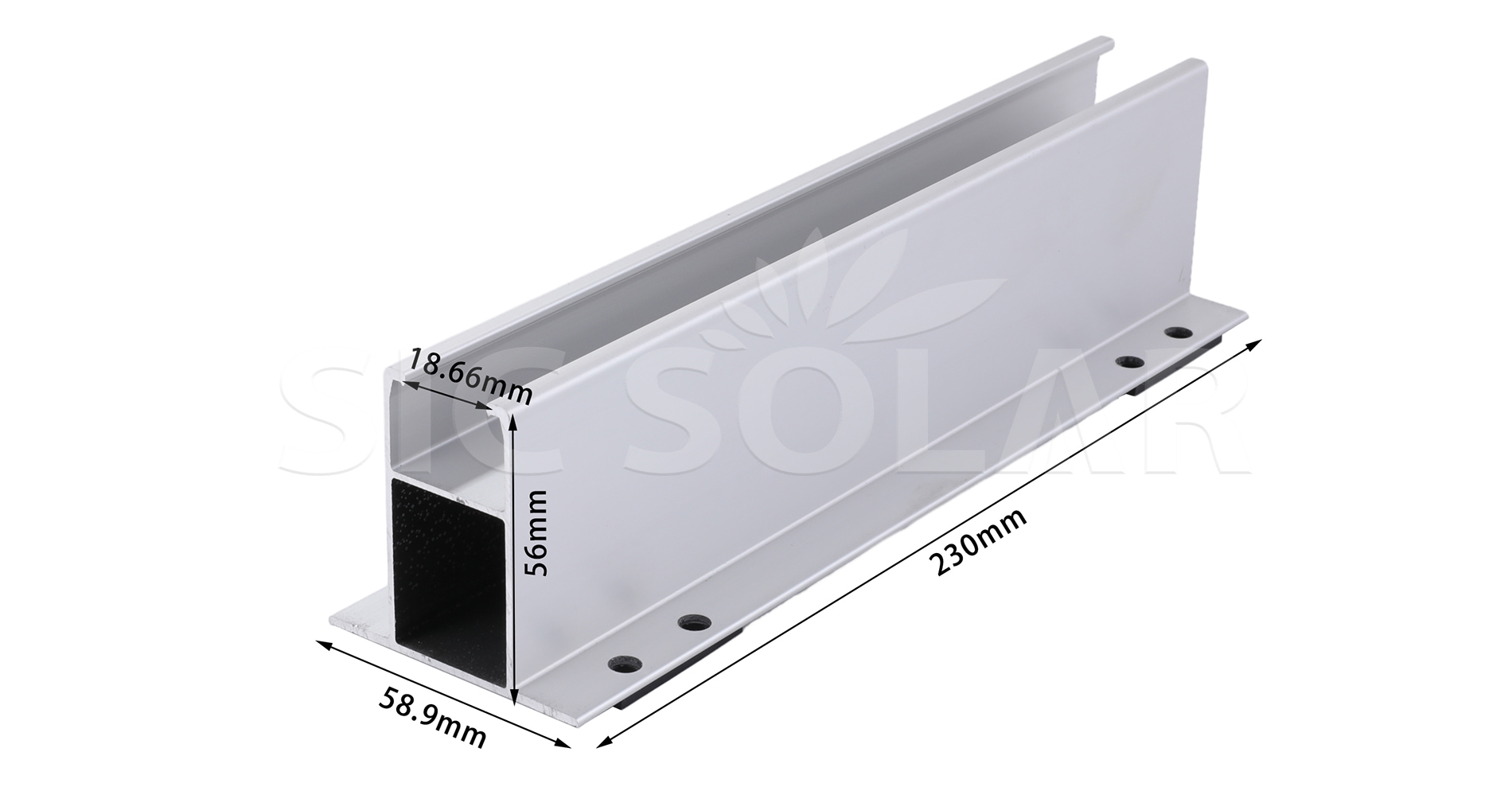

Solar Short Rail

Installation Site

Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

1️⃣ Position the mini rail – align with the raised parts (ribs) of the trapezoidal metal sheet.

2️⃣ Secure the mounting clamps – use self-drilling screws and EPDM washers to prevent leaks.

3️⃣ Install the mounting rail (if applicable) – For rail-based systems, secure the aluminum rail to the clamps.

4️⃣ Install the solar panel – secure the panel using the middle and end clamps.

5️⃣ Final check – check all connections for tightness and weatherproofing.

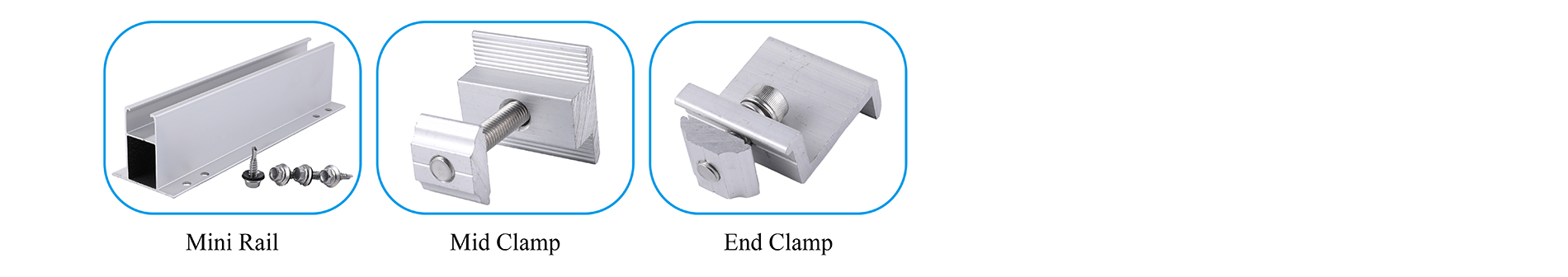

Solar bracket package

Advantages as follow:
☆ Easy to use - Only 3 components, Save labor cost at the installation site.
☆ Short rail array could be customized according to your roof size.
☆ EPDM rubber can be effective waterproofing.

☆ Best aluminum profile Ensure 10 years warranty and 25 years service time.



Related Certificate

Our SGS Certificate for screw material -- SUS304 Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.



Q1. What's the length of this short rail?

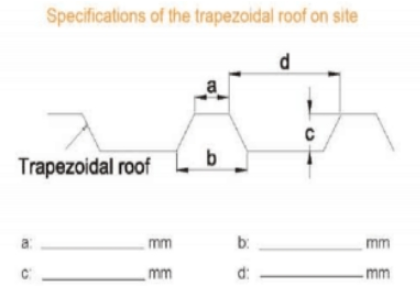

It will depends on your traperzodial roof specification. It's better to offer below size of a, b, c and d.





Q2. How many hole for self-tapping screw?

As usual, there is only 8 holes, but if 24 holes needed, we also can do it.
