MiniRail system for trapezoidal sheet metal

MiniRail system for trapezoidal sheet metal is developed specifically for trapezoidal metal panels. It can easily change the direction of the module, is extremely light, and can be completely stacked on a pallet.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-MN-04

  • Shipping Port:

    Xiamen

  • Installation Site:

    Pitched roof

  • Material:

    AL6005-T5

  • Length:

    Customized

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now

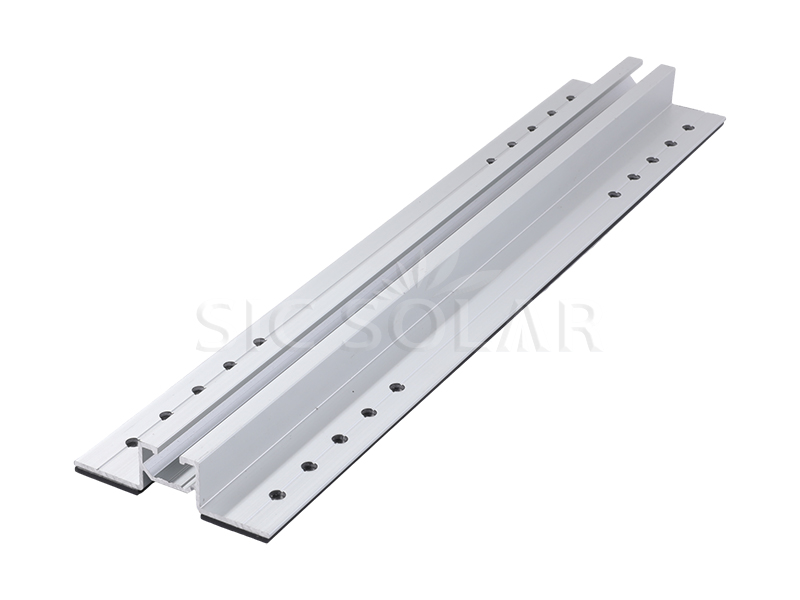

Short rail for solar panel mount

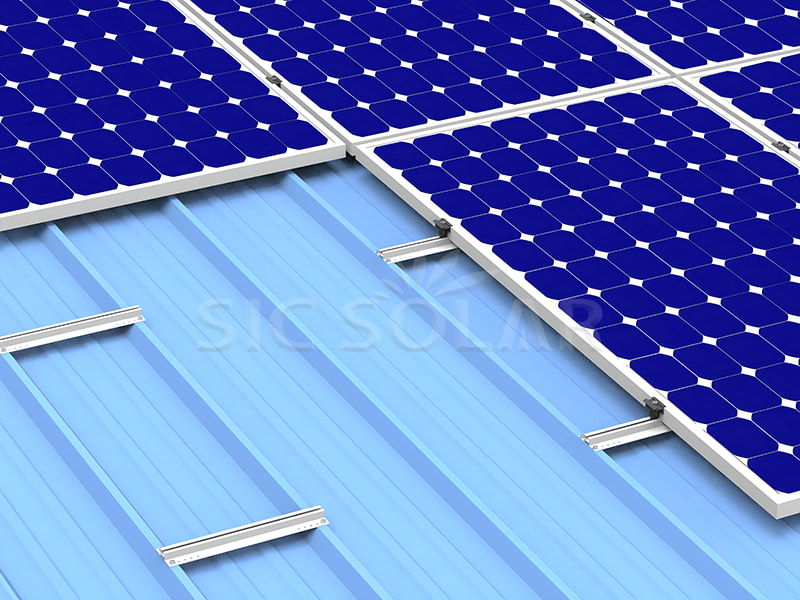

MiniRail system for trapezoidal sheet metal is suitable for trapezoidal metal roof and corrugated metal roof, which enables solar panels to be installed horizontally and vertically, which is a smart design for solar metal roof installation. It is a cost-effective installation solution, which only requires 3 components - mid-end clip and mini rail.

Trapezoidal roof racking

MiniRail system for trapezoidal sheet metal can be customized in different lengths according to the size of the trapezoidal sheet, and can achieve waterproof effect when combined with EPDM cam.

Components Technical Details Installation Guide Package Advantage

Click here to learn more pitched roof mount

Solar roof structures

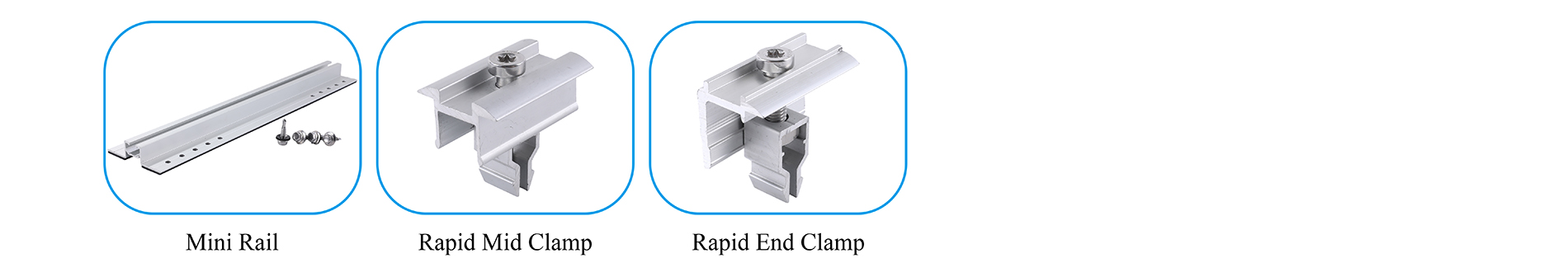

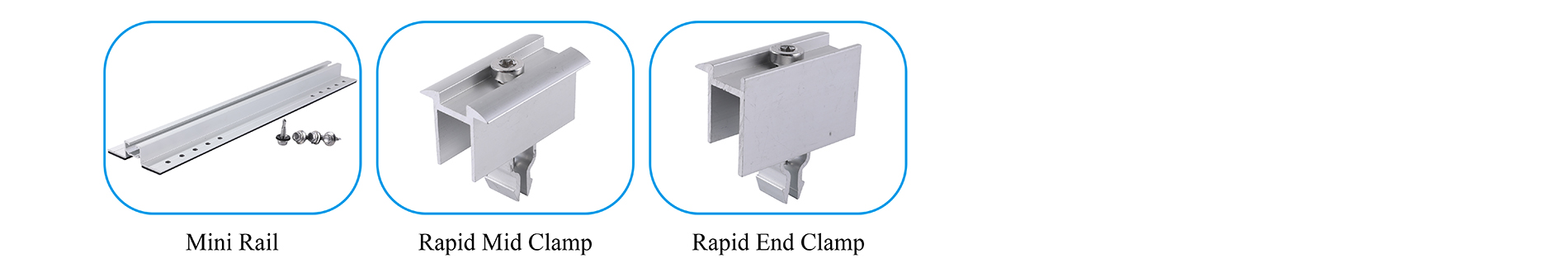

Mid clamp and end clamp for mini rail

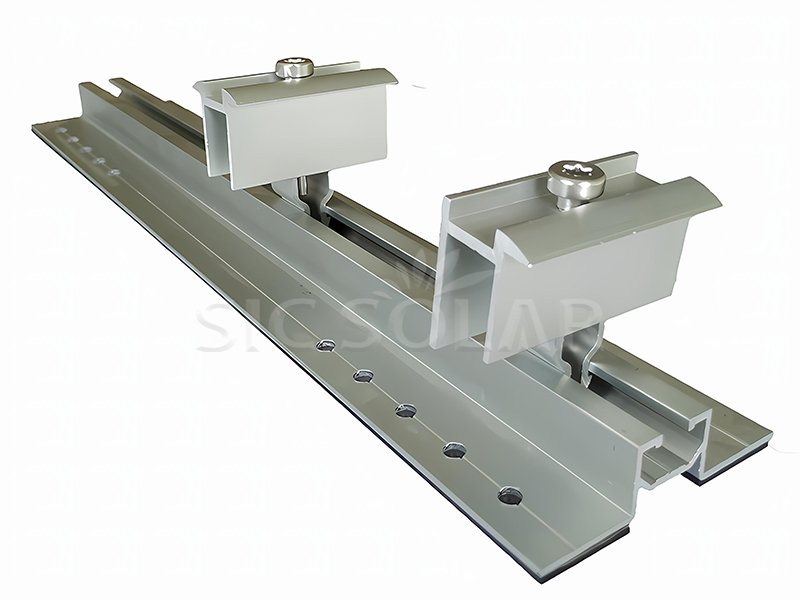

Mini Rail Solar Bracket

Name MiniRail system for trapezoidal sheet metal

Installation Site

Pitched roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

AL6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

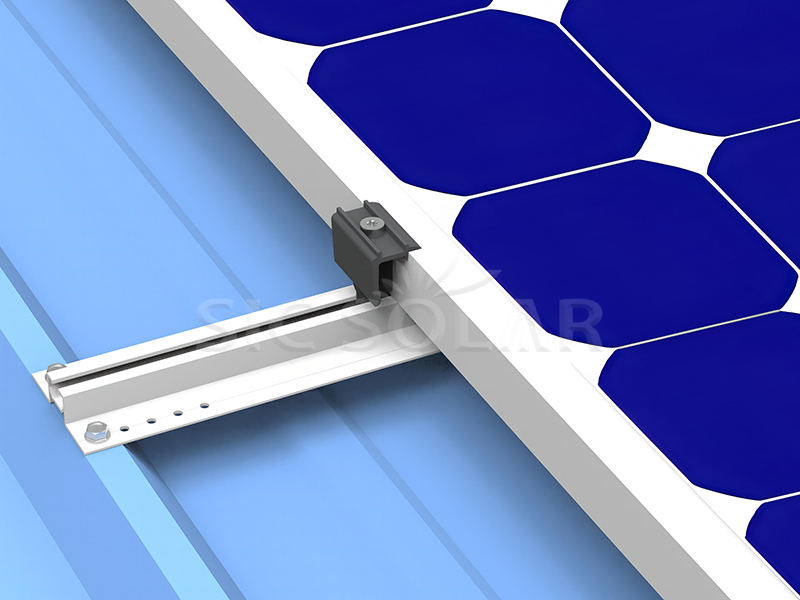

1️⃣ Position Mini Rails – Place the short aluminum MiniRails on the ridge of the trapezoidal panels.

2️⃣ Secure with self-tapping screws – Secure the rails using self-drilling stainless steel screws and EPDM sealing washers to keep water out.

3️⃣ Mount the solar panels – Use the middle and end clamps to secure the panels securely.

4️⃣ Final check – Make sure all clamps are tight and the system is stable.

Solar bracket package

Advantages as follow:

☆ Easy Installation--Using quickly clamp, which is easy and quickly for installation.

☆ Waterproofing--The rubber can perfectly prevent water.

☆ Pre-assembled components  – highly save the labor cost at your installation site.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
