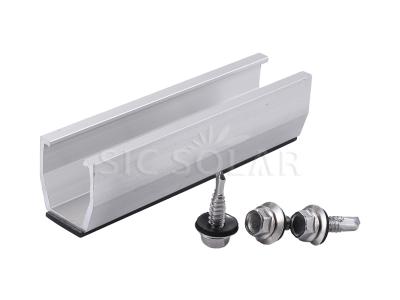

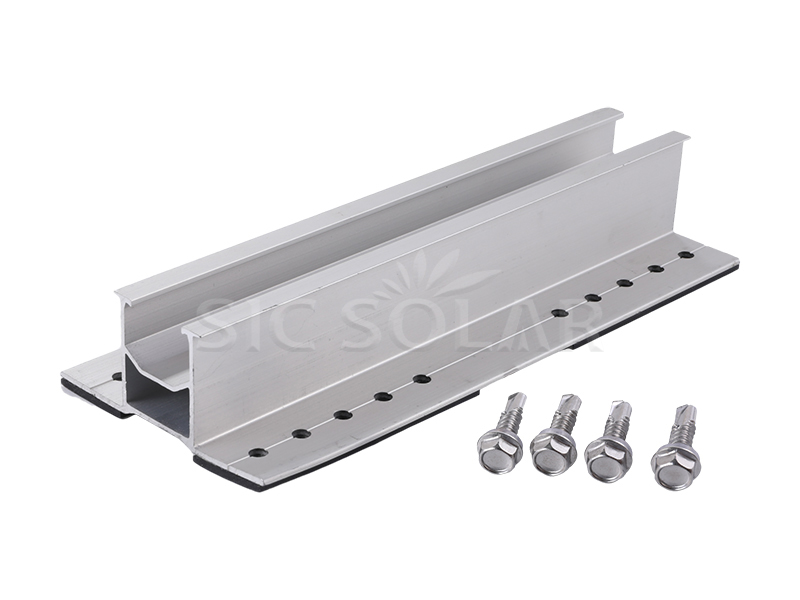

Solar Ultimate Rail for Trapezoidal Metal Roof

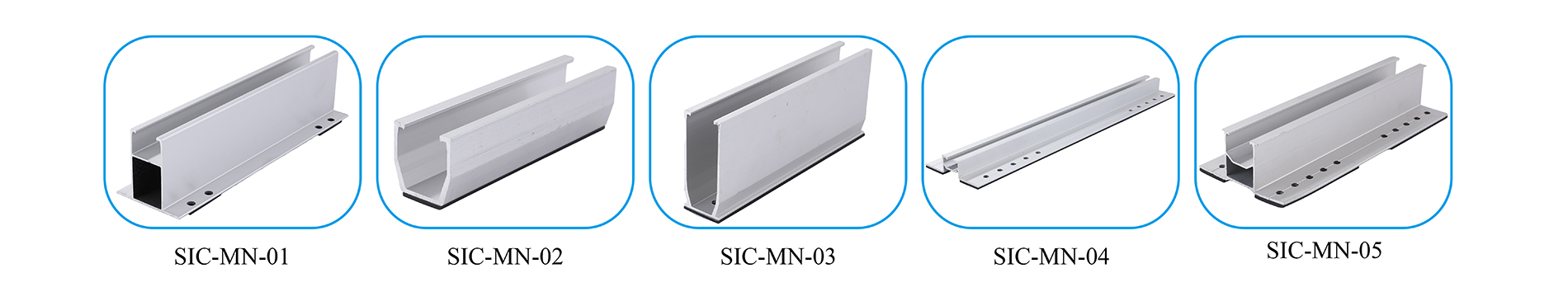

Click here to learn more Mini rail

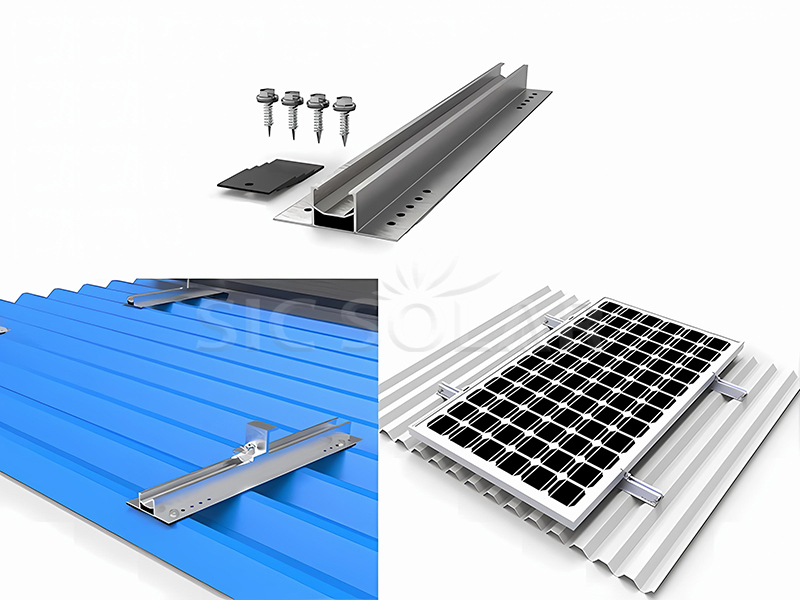

1️⃣ Position the rails – First, put the rails where they need to go, following the natural shape of the trapezoidal metal roof.

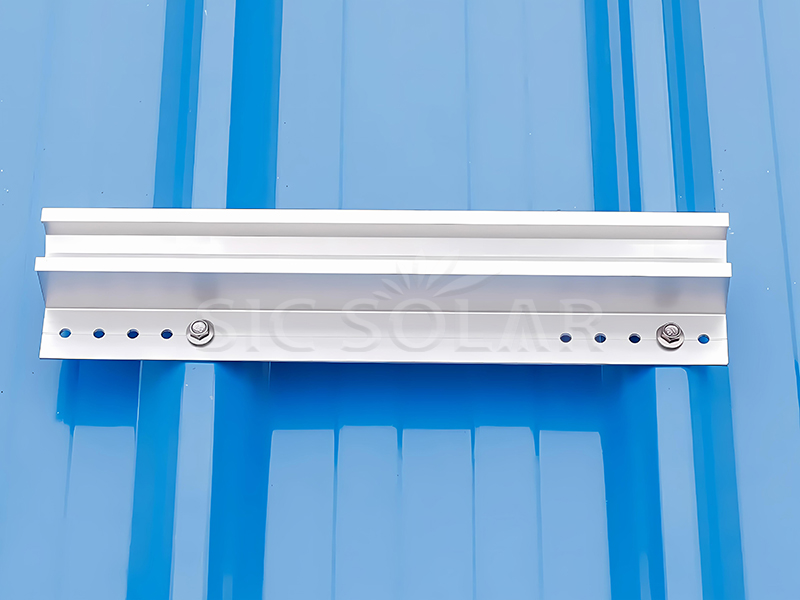

2️⃣ Secure the rails – Next, fasten them down. Screw or rivet the rails right onto the roof's ridges.

3️⃣ Seal the joints – Then, seal up any gaps. Put in rubber or EPDM seals so no water can leak through.

4️⃣ Align the rails – Make sure they're straight. Double-check that all the rails are perfectly straight and parallel before you attach anything else.

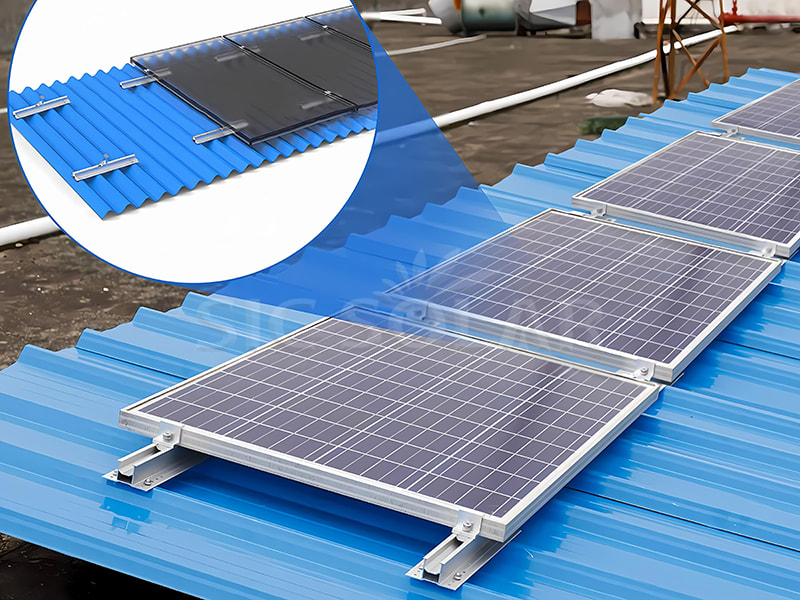

5️⃣ Install the components – Finally, put on the other parts. Attach the solar panels with the special middle and end clips.

☆ Easy installation - It's light, quick to install, and won't break the bank.

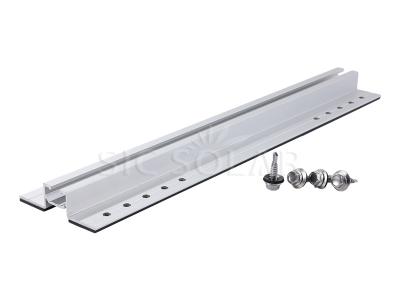

☆ Simple components - You just need some short metal pieces and clamps to put everything together.

☆ Water proof - The EPDM rubber does a great job of waterproofing.

Related Certificate:

☆ Our SGS Certificate for screw material -- SUS304 Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1: Do you have stock in EU? Is it possible to get a sample first?

Sorry, we do not have EU warehouse at present, all products are shipped from China.

Yes, you can have samples. But the samples costs should be paid by your side.

Q2: Can this short rails work on my roofs？

Pls offer us below dimension of your trapezoidal roof sheet. Our engineer will check it for you.
