Solar Aluminium Mini Rails
Solar Aluminium Mini Rails
Solar Aluminium Mini Rails

Mini Rail For Solar Panels

Mini Rail For Solar Panels is a compact, lightweight mounting solution designed for quick and easy installation of solar panels, especially on rooftops. These mini rails provide the necessary support for solar panels without requiring the longer, bulkier rails typically used in conventional mounting systems.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-MN-01

  • Shipping Port:

    Xiamen port

  • Installation Site:

    Pitched metal roof

  • Material:

    AL6005-T5

  • Warranty:

    10 years and 25 years life time

  • Thickness:

    Can be customized

  • Function:

    Support the solar panel
Inquire Now
Download



Solar Panel Mini Rail Kit

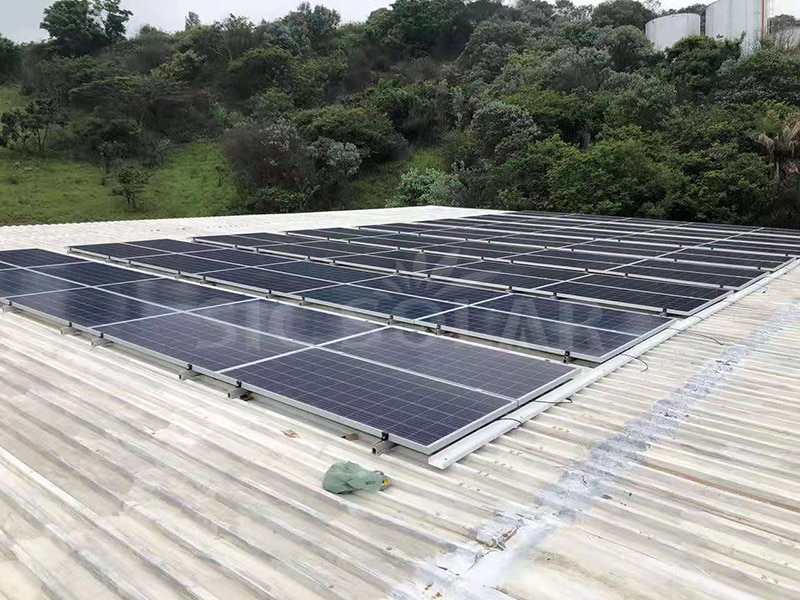

Mini Rail For Solar Panels are lightweight and durable support systems designed for mounting solar panels on pitched roofs, particularly suited for trapezoidal metal roofs. These rails are appreciated for their ease of installation, strength, and compatibility with various solar panel types.

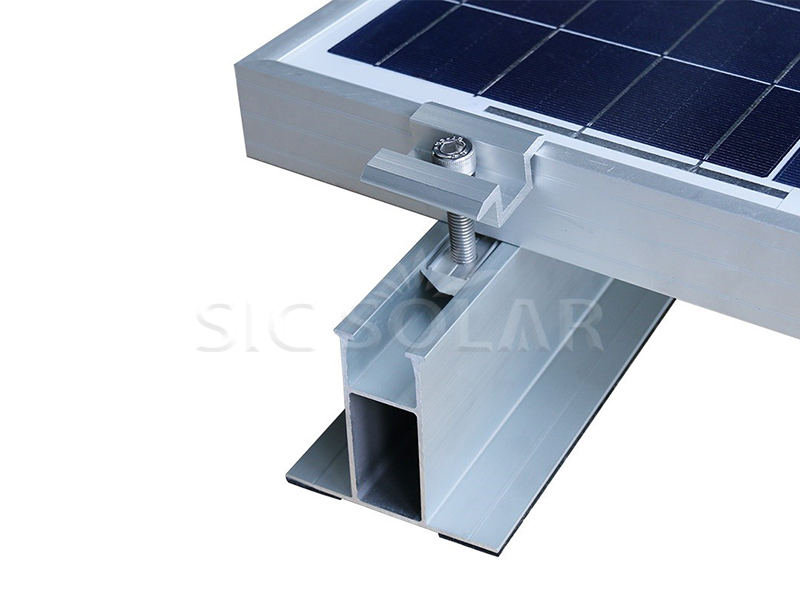

Solar Aluminium Mini Rail

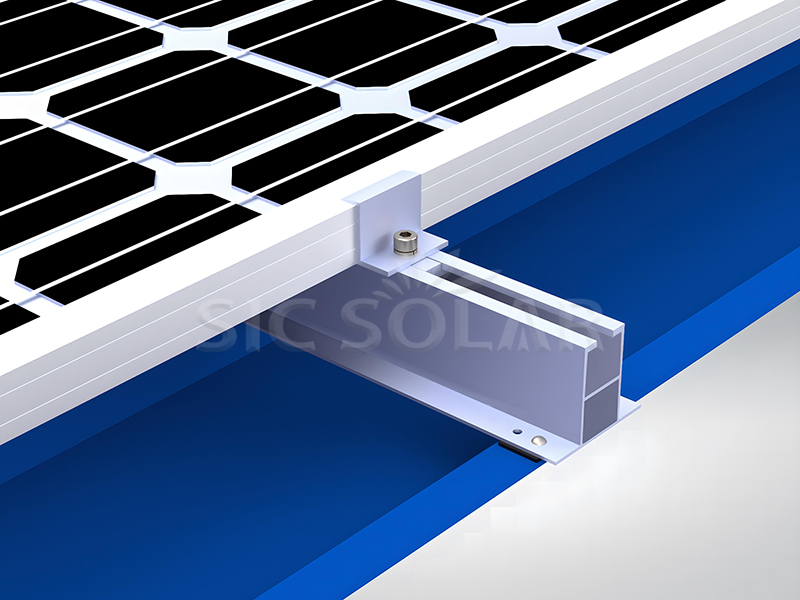

Mini Rail For Solar Panels is designed for quick installation, with some systems allowing for pre-assembly and others requiring minimal on-site assembly.These rails can support a variety of solar panel types, both framed and frameless, and can accommodate different panel layouts in portrait or landscape orientations.

Components Technical Details Installation Guide Package Advantage

Click here to learn more hooks

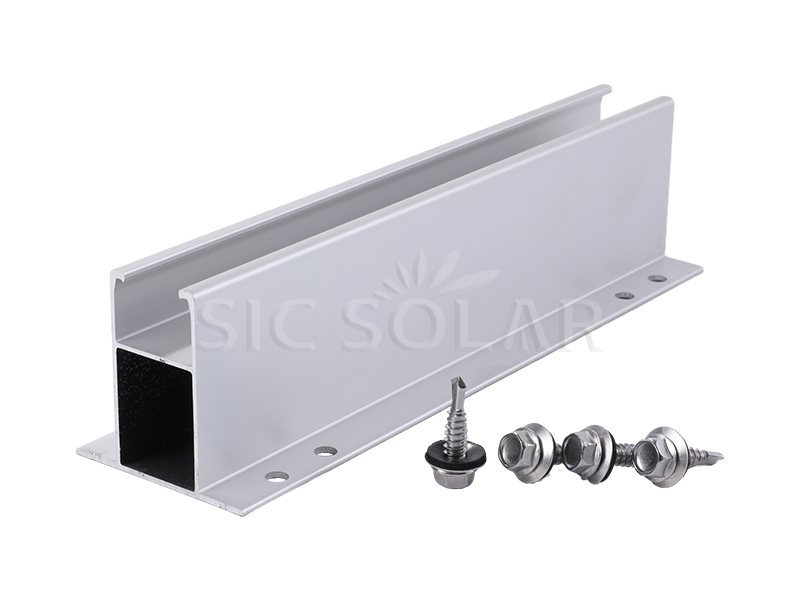

Solar Mini rail

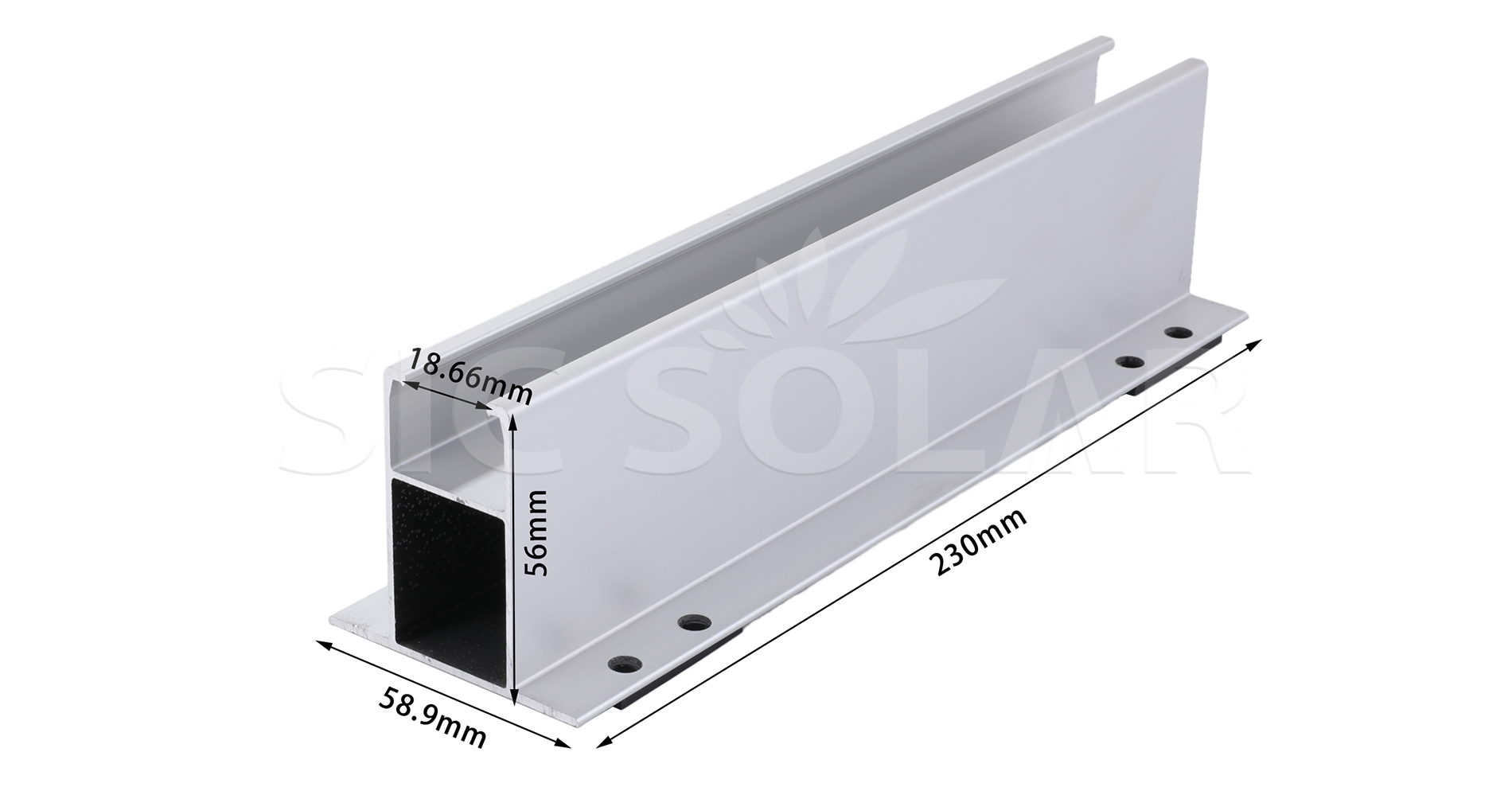

Mini Rail Solar Bracket

Name Mini Rail For Solar Panels
Installation Site Pitched metal roof
Wind Load <60M/S
Snow Load <1.4KN/M2
Material AL6005-T5
Color Silver and Black
Anticorrosive Anodized aluminum
Warranty 10 years and 25 years service time

1️⃣ Mark the solar panel layout

Determine where the solar panels will be located on the roof.

Make sure each corner and midpoint of the solar panel is supported by the mini-rails.

2️⃣ Securing the mini-rails

Use self-tapping screws with EPDM sealing washers to secure each mini-rail to the roof panel.

3️⃣ Mounting the solar panel

Place the solar panel on the mini-rails and secure with the mid- and end clamps.

Tighten all bolts to the manufacturer's recommended torque.

Package of mini rail

Advantages as follow:

☆Highanodized- extremely effective in preventing corrosion and prolonging service life.

☆High-quality and light weight aluminum -- Quick and convenient to mount.

☆ High strength - can be used in extremely harsh installation conditions.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
